Suspension Crane for Sale South Africa, Suspension Hoist Crane 10 Ton
Suspension crane 10 ton for sale South Africa, custom single girder overhead crane, underhung crane design, wire rope hoist crane,with specifications of 10T-13M(1+1M) H9M.
Case Study: 10 Ton Suspension Crane for Sale in South Africa
A South African manufacturing company was in need of a reliable and efficient crane to help with their heavy lifting operations. They required a suspension crane with a 10 ton capacity, custom single girder overhead crane, underhung crane design, and wire rope hoist crane. After conducting extensive research, they found the perfect solution to meet their needs.
Specifications:
- Capacity: 10 Ton
- Span: 13 meters (1+1 meter)
- Height of Lift: 9 meters
- Hoist Type: Wire Rope Hoist
- Crane Type: Suspension Crane
- Crane Design: Custom Single Girder Overhead Crane with Underhung Crane Design
Features and Benefits:
- The 10 ton capacity of the suspension crane makes it ideal for lifting heavy loads.
- With a span of 13 meters and a height of lift of 9 meters, the crane can easily move materials across the manufacturing facility.
- The wire rope hoist provides smooth and reliable lifting of loads.
- The custom single girder overhead crane design ensures that the crane is compact and easy to operate.
- The underhung crane design allows for better use of available space in the manufacturing facility.

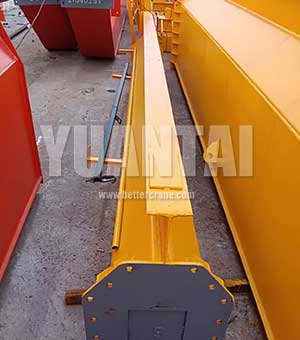

Main girder of 10 ton overhead crane with suspension crane design for South Africa

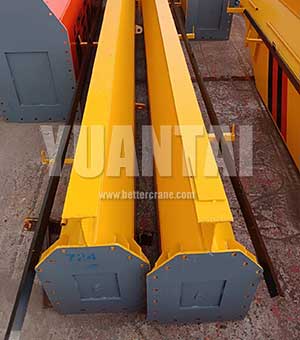

U shaped girder + I beam main girder of suspension crane 10 ton

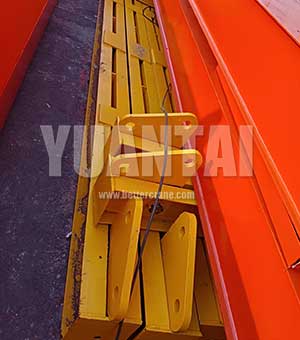

End carriages of underhung or under running suspension crane 10 ton

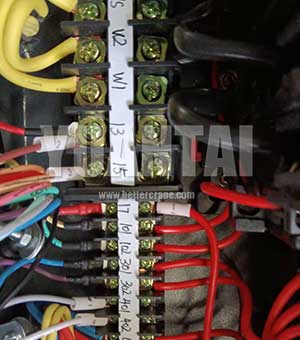

Electric wiring
main parts
Steel structure and main parts packed and readly for delivery All in all, the 10 ton suspension crane with custom single girder overhead crane and underhung crane design, featuring a wire rope hoist crane, has proven to be an excellent solution for the South African manufacturing company's heavy lifting needs. The crane's high capacity, reliable lifting capabilities, and compact design make it an essential tool for their operations.
Suspension cranes
A suspension crane is a type of overhead crane that is running on the suspended crane rail or track, which is mounted on the ceiling or roof structure. It is also known as an under running crane or underhung crane. Suspension cranes are small and lightweight and are widely used in workshops, production and assembly lines, warehouses and other places to lift and move heavy loads. They are electric traveling suspension cranes that work on the roof of the work site. They are applicable to non-corbels plant, warehouses and other places.

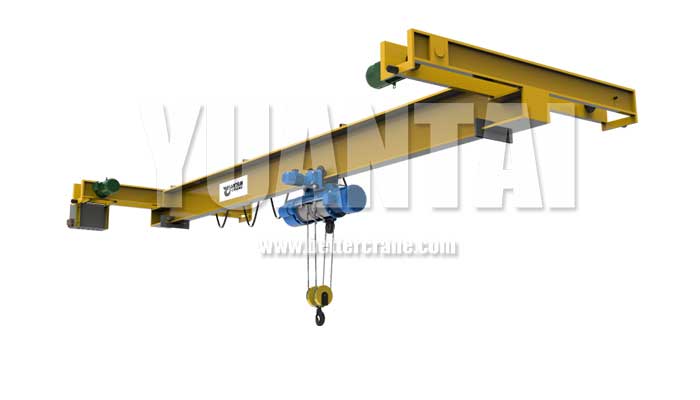

Suspension crane 10 ton customized for sale South Africa
- Features : The main features of a suspension crane include high safety and reliability, tight structure and good rigidity, flexible operation and low maintenance, low noise and no pollution, wide selection and application, smoothing moving, effectively braking and long service life.
- Applications: Suspension cranes are widely used in workshops, production and assembly lines, warehouses, and other places to lift and move heavy loads. They are a versatile and reliable tool for handling a wide variety of goods.
- Advantages : The advantages of single girder suspension crane include high safety and reliability, tight structure and good rigidity, flexible operation and low maintenance, low noise and no pollution, wide selection and application, smoothing moving, effectively braking and long service life. They are also cost-effective.
Main difference of under running suspension cranes and top running overhead cranes
|
Feature |
Top Running Cranes |
Under Running Suspension Cranes |
|
Design |
Top running cranes operate on a fixed rail or track system that is located on the top of each runway beam. |
Supported by the bottom of the runway beams and the wheels run along the bottom of the lower beam flange |
|
Mounting Type |
Mounted on top of each runway beam |
Utilizes the existing overhead building structure for support |
|
Applications |
Ideal for moving extremely heavy loads. |
Offers flexibility, functionality, and ergonomic solutions |
|
Costs |
Built larger than under-running cranes to grant them the ability to handle higher capacities |
The use of the existing ceiling trusses or roof structure, combined with the lightweight design, leads to a reduction in equipment costs. |
|
Other Terms |
Provide added lift height for buildings with limited headroom because they ride on rails on top of the runway beam |
Under running cranes are well-suited for operation in wide bays and can be used on multiple runways, which reduces the depth of the girder. |
Types of 10 ton overhead cranes for sale South Africa
As a crane manufactuer, Yuantai Crane is aimed to provide types of cranes for clients in Sounth Africa to help them to improve the material handling efficiency and safety. As for 10 ton cranes, there are types of 10-ton overhead cranes available in South Africa:
- Single girder overhead cranes: Suitable for light to medium duty applications.
- Double girder overhead cranes: Suitable for heavy duty applications.
- Top running overhead cranes: Can be configured in a single or double girder design.
- Under running overhead cranes: Usually configured in a single girder design.
- Gantry cranes: Can be used for indoor or outdoor applications.
Each type of crane has its own advantages and is suitable for different applications. It’s important to choose the right type of crane for your specific lifting requirements.
Customized crane design , Cost-effective crane prices
Here is a short list of factors that you may need to provide to a crane manufacturer or supplier to get a quotation for a suspension crane:
- Lifting capacity: The maximum weight of the loads you will be lifting.
- Span: The distance between the two runway beams that support the crane.
- Lifting height: The distance between the floor and the highest point the load will be lifted.
- Crane speed: The speed at which the crane moves along the runway beams and the speed at which the hoist lifts and lowers loads.
- Duty cycle: The frequency and duration of crane operation.
- Power supply: The type of power supply available at your facility (e.g., single-phase or three-phase).
- Environmental conditions: Any special environmental conditions that the crane will be operating in, such as high temperatures, humidity, or corrosive substances.
- Special features or requirements: Any special features or requirements you may have, such as remote control operation, explosion-proof design, or compliance with specific industry standards.
Providing this information to a crane manufacturer or supplier will help them to provide you with an accurate quotation for a suspension crane that meets your needs.
Are you in need of a top-notch 10-ton suspension crane in South Africa? Look no further! Our cranes are designed with your specific lifting needs in mind and come in a variety of configurations to fit your unique requirements. Get in touch with us today to learn more about our amazing products and receive a personalized quote for a 10-ton suspension crane that will take your business to new heights!
