15-Ton Explosion-Proof Overhead Crane Kit – Cost-Effective Solution

A cost-effective, explosion-proof crane kit designed for hazardous environments in Pakistan, featuring a unique main girder-free design.

Overview of Explosion-Proof Overhead Cranes

Explosion-proof cranes are specially designed lifting machines equipped to operate safely in environments with flammable gases, vapors, or dust. These cranes use explosion-proof components, such as motors, electrical enclosures, and control systems, which are insulated and sealed to prevent ignition sources. This design minimizes the risk of fires or explosions in high-risk industrial settings.

Industries like oil and gas, chemical processing, and mining frequently operate in hazardous zones where flammable substances are present. In these environments, the potential for a minor spark or heat generation to cause a catastrophic accident is significant. Explosion-proof cranes are essential for ensuring safety, as they provide the reliability needed to handle materials without adding risks. Their use not only protects workers and equipment but also helps companies comply with strict safety regulations, avoiding operational shutdowns or fines.

Overview of the 15-Ton Explosion-Proof Overhead Crane Kit

The 15-ton explosion-proof overhead crane kit for sale in Pakistan is an innovative and cost-effective solution designed for industries that demand both high lifting capacities and uncompromising safety. Unlike traditional overhead cranes, this kit is sold without the main girder, making it easier and more affordable to install and adapt to existing structures.

This crane kit comes with robust specifications that align with industrial requirements:

Capacity: 15 tons, suitable for heavy-duty material handling.
Crane Span: 15.24 meters, ensuring optimal coverage for large workspaces.
Lifting Height: 8 meters, providing flexibility for various lifting tasks.
Electrical System: Operates on 400V, 50Hz, 3-phase power, which is standard for industrial settings in Pakistan.
Explosion-Proof Grade: Zone 1 ExdIIBT4, making it safe for environments with flammable gases or vapors.

By focusing on affordability without compromising quality, this explosion-proof crane kit addresses the challenges faced by industries in Pakistan, where hazardous conditions are common. The absence of the main girder reduces costs while maintaining the essential safety features, making it a practical choice for companies aiming to enhance operational safety and efficiency. Check more on Yuantai Crane's projects in Pakistan or contact us to check our list of performances in Pakistan.

Key Specifications and Features of the 15-Ton Explosion-Proof Overhead Crane Case

Capacity and Performance

The 15-ton explosion-proof overhead crane is engineered to handle substantial loads with precision and safety, making it ideal for industries that require lifting heavy materials in hazardous environments.

Capacity: With a maximum lifting capacity of 15 tons, this crane ensures reliable performance for transporting and positioning heavy materials efficiently. Its robust design minimizes the risk of mechanical failures, even under continuous use.
Crane Span: Spanning 15.24 meters, the crane provides extensive coverage, enabling operators to move materials across large workspaces seamlessly. This wide span is particularly beneficial in expansive industrial facilities such as chemical plants and oil refineries.
Lifting Height: Featuring an 8-meter lifting height, the crane is versatile in handling loads of varying sizes and heights. It is suitable for tasks requiring the transfer of tall equipment or stacked materials, ensuring flexibility in diverse operational scenarios.

Electrical and Operational Characteristics

The electrical system and operational features of this crane are designed to meet stringent industrial standards while optimizing energy efficiency.

Crane Voltage: Operating at 400V, 50Hz, 3-phase power, the crane ensures compatibility with international electrical standards, offering reliable and stable performance in industrial settings. This power specification also supports consistent operation, even in facilities with demanding energy requirements.
Explosion-Proof Grade: Rated for Zone 1 ExdIIBT4 environments, this crane is engineered to prevent ignition in hazardous atmospheres containing flammable gases, vapors, or dust. Its explosion-proof components, including sealed motors and insulated wiring, enhance safety by reducing the risk of sparking or overheating during operation.

Safety and Durability Features

Safety and durability are central to the crane's design, ensuring long-term performance in challenging environments.

Hazard-Resistant Materials: Built with explosion-proof and corrosion-resistant materials, this crane is designed to withstand the harsh conditions often found in industries such as oil and gas, mining, and chemical processing. The robust construction minimizes wear and tear, ensuring reliability over time.
Protective Coatings and Insulation: The crane features high-quality insulation and protective coatings that safeguard it against environmental damage, such as moisture, corrosive substances, and extreme temperatures. This design reduces maintenance requirements and extends the crane’s operational lifespan, delivering consistent performance even under demanding conditions.

By combining high capacity, efficient electrical systems, and exceptional safety features, the 15-ton explosion-proof overhead crane is an indispensable asset for industries where safety and performance cannot be compromised.

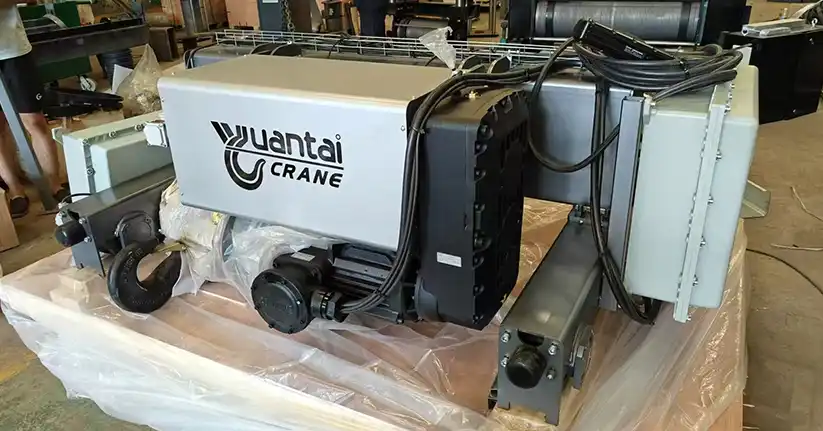

explosion proof wire rope electric hoist 15 ton , European style low headroom hoist for sale

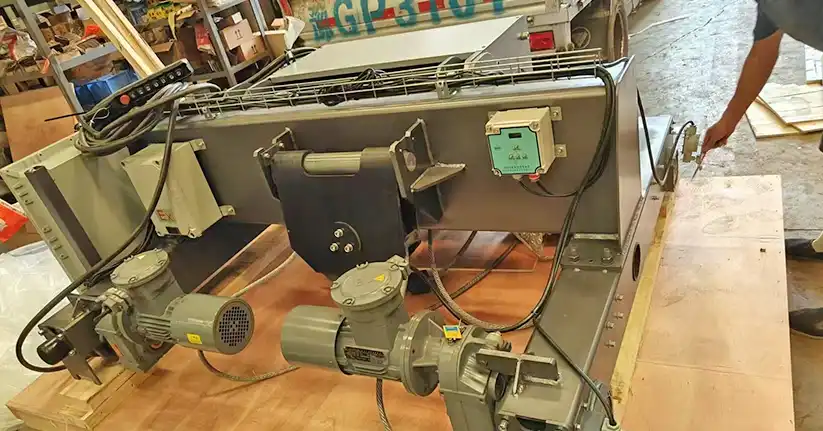

explosion proof crane hist trolley 15 ton for sale

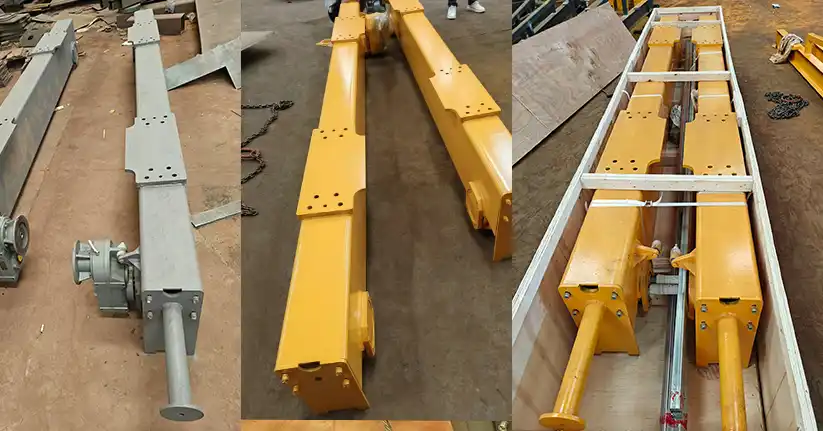

end carriages for explosion proof crane kit 15 ton

explosion proof electrical box

explosion proof travelling limit switch

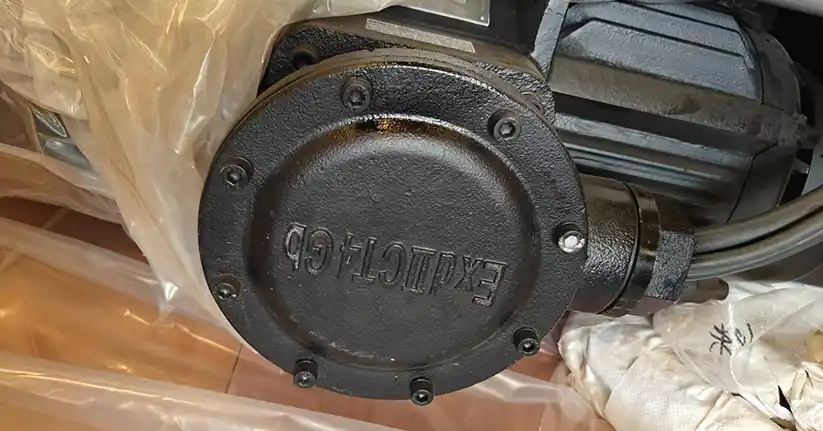

explosion proof motor

Design and Engineering of the Explosion-Proof Crane Without Main Girder

Unique Design: A Crane Without a Main Girder

The concept of an overhead crane without a main girder offers a streamlined approach to material handling while maintaining functionality. Unlike traditional cranes, this design eliminates the primary horizontal beam that typically spans the length of the crane.

Space Optimization: Without a main girder, the crane requires less vertical clearance, making it ideal for facilities with low ceilings or height restrictions. This design enhances the usability of space while allowing seamless integration into existing infrastructure.
Structural Advantages: The simplified design reduces the overall weight of the crane, placing less stress on supporting structures such as beams and columns. This is particularly beneficial for facilities where structural reinforcement is either costly or impractical.

Structural Integrity and Safety Considerations

Despite the absence of a main girder, the crane's design is meticulously engineered to ensure safety and structural stability.

Critical Safety Features: Reinforced end carriages and robust hoisting mechanisms are implemented to compensate for the lack of a central girder. These components ensure even weight distribution and minimize stress on specific points of the crane structure.
Load Distribution Analysis: The crane is designed to distribute loads efficiently across its span, reducing the likelihood of deformation or failure. Advanced engineering techniques, such as finite element analysis (FEA), are used to verify the structural integrity of the crane under dynamic and static loads.
Compliance with Standards: The design adheres to international safety and performance standards for explosion-proof cranes, ensuring operational reliability in hazardous environments.

Cost-Effective Design Solutions

The absence of a main girder significantly reduces the costs associated with manufacturing, transportation, and installation.

Manufacturing Savings: Simplified production processes require fewer materials and less fabrication time, leading to cost savings that are passed on to the end user.
Ease of Installation: Without the need to position and secure a large girder, installation becomes quicker and less labor-intensive. This reduces downtime during crane setup and minimizes disruption to ongoing operations.
Safety and Reliability: Despite its cost-effectiveness, the crane maintains the essential features of an explosion-proof design, ensuring safety and operational efficiency. Advanced engineering compensates for the lack of a main girder, ensuring the crane meets the rigorous demands of industrial environments.

This innovative design strikes a balance between functionality, safety, and affordability, making it a practical choice for industries in need of explosion-proof lifting solutions.

Applications in Pakistan: Suitability for Local Industries

Overview of the Industrial Environment in Pakistan

Pakistan’s industrial sector encompasses a diverse range of industries, many of which require explosion-proof equipment to ensure safety in hazardous environments. Key sectors include:

Oil and Gas: With extensive exploration and refining operations, Pakistan’s oil and gas industry often works in environments with flammable gases and vapors, making explosion-proof cranes essential for safe material handling.
Chemical Manufacturing: The chemical industry deals with volatile substances that can create explosive atmospheres. Explosion-proof equipment ensures safe and efficient operations.
Textile and Food Processing: While not traditionally associated with hazardous environments, these sectors sometimes encounter flammable dust, especially in large-scale operations.
The growing focus on industrial safety and compliance with international standards has further driven the demand for explosion-proof solutions.

Why This 15-Ton Overhead Crane Is Ideal for Pakistan

The 15-ton explosion-proof overhead crane kit aligns perfectly with the needs of Pakistan’s industrial landscape, offering a balance of safety, reliability, and cost-effectiveness.

Cost-Effective Solution: With its simplified design that omits the main girder, this crane kit reduces manufacturing and installation costs, making it an affordable choice for industries with budget constraints.
Compliance with Local Standards: The crane meets international explosion-proof standards, such as Zone 1 ExdIIBT4, ensuring its suitability for hazardous environments in Pakistan. Additionally, its operational voltage (400V 50Hz 3-phase) is compatible with the country’s electrical infrastructure.
Adaptability to Industrial Needs: With a lifting capacity of 15 tons, a span of 15.24 meters, and an 8-meter lifting height, the crane offers the versatility needed to handle a wide range of industrial applications, from oil and gas operations to chemical processing.

Local Market Conditions and Client Demand

The demand for explosion-proof cranes in Pakistan is on the rise, driven by several factors:

Industrial Growth: Pakistan’s expanding industrial base, especially in hazardous sectors, has created a need for safe and efficient material handling solutions.
Increased Safety Awareness: Industries are becoming more aware of the risks associated with hazardous environments and are investing in equipment that ensures compliance with safety regulations.
Client Preferences: Businesses value cost-effective solutions that do not compromise on quality or safety. The 15-ton crane kit, with its explosion-proof design and affordability, is well-suited to meet these preferences.

By addressing the specific needs of Pakistan’s industrial sectors, this crane offers a practical and reliable solution for improving safety and productivity in hazardous environments.

Advantages of the Explosion-Proof 15-Ton Crane Kit for Sale in Pakistan

Enhanced Safety Features

Safety is the cornerstone of the 15-ton explosion-proof crane kit, making it a reliable choice for hazardous environments.

Explosion-Proof Design: Certified for Zone 1 ExdIIBT4, the crane ensures safe operation in areas where flammable gases, vapors, or dust may be present. This feature minimizes the risk of ignition and ensures compliance with safety standards for hazardous zones.
Comprehensive Protection: The crane is engineered to withstand environmental challenges posed by volatile materials, ensuring uninterrupted operations in industries such as oil and gas, chemical manufacturing, and mining.
Integrated Safety Mechanisms: High-quality insulation, spark-resistant components, and durable protective coatings further enhance operational safety and reliability.

Cost-Effectiveness Without Compromising Quality

This crane kit strikes the perfect balance between affordability and performance, making it a cost-effective solution for industrial applications.

Elimination of the Main Girder: By excluding the main girder from its design, the crane significantly reduces manufacturing and material costs without sacrificing operational capabilities.
Optimized Production and Installation: Simplified manufacturing processes and easier installation translate to lower upfront and long-term expenses for buyers.
Retained Safety and Functionality: Despite its cost-efficient design, the crane incorporates all necessary explosion-proof features, ensuring that safety and performance are never compromised.

Easy Maintenance and Low Operational Costs

The simplified design of the crane not only reduces costs at the time of purchase but also minimizes expenses throughout its operational life.

Simplified Maintenance: The absence of a main girder reduces the complexity of components, making routine maintenance more straightforward and less time-consuming.
Durable Construction: High-quality materials and corrosion-resistant coatings ensure that the crane remains operational with minimal maintenance requirements, even in challenging environments.
Energy Efficiency: Advanced engineering ensures that the crane operates efficiently, keeping energy consumption and associated costs low over its lifecycle.

This combination of safety, affordability, and low operational costs makes the 15-ton explosion-proof crane kit an ideal solution for industrial clients in Pakistan, offering long-term value and reliability in hazardous working conditions.

Conclusion: Get Your Designed Explosion Proof Crane Kit

Pakistan’s industries, like oil and gas, chemical plants, and mining, are growing fast. This growth increases the need for explosion-proof equipment to ensure safety and efficiency. As these sectors expand, explosion-proof cranes will become essential for safe material handling and boosting productivity.

The 15-ton explosion-proof overhead crane kit is a smart, affordable choice for Pakistan’s industries. Its unique design, without a main girder, lowers costs without compromising safety or performance. Key features like a 15-ton lifting capacity, 15.24-meter span, and Zone 1 ExdIIBT4 explosion-proof rating make it suitable for handling heavy loads in hazardous environments. This crane offers businesses a practical and reliable solution that fits their safety and operational needs.

The 15-ton crane kit is a great example of how modern crane technology can meet the demands of Pakistan’s growing industries. It combines safety, affordability, and reliability, making it a valuable tool for hazardous environments.
