5-Ton Gantry Cranes in Small Workshops: Space-Saving Solutions

5-Ton Gantry Cranes in Small Workshops: Space-Saving & Cost-effective Material HandlingSolutions

The 5-ton gantry crane for small spaces is a compact and adaptable material handling solution designed to excel in confined workshop environments. With adjustable dimensions and versatile mobility, it optimizes workspace while efficiently lifting and moving heavy loads. Whether wall-mounted or portable, these cranes prioritize safety, making them an invaluable asset for small workshop owners seeking to enhance productivity within limited square footag

   Definition of a 5-Ton Gantry Crane

   Gantry cranes are a type of material handling equipment used in various industries, including manufacturing, construction, and workshops. A 5-ton gantry crane is a specific type of crane designed to lift and move heavy loads, typically up to 5 tons in weight. It features a horizontal beam, or gantry, that spans the workspace, allowing for efficient load handling and transportation within the workshop.

    Importance of Gantry Cranes in Industrial Workshops

   Gantry cranes play a pivotal role in enhancing the efficiency and productivity of industrial workshops. These cranes are versatile and can be used for a wide range of tasks, including loading and unloading materials, positioning heavy equipment, and aiding in assembly processes. Their ability to lift substantial weights makes them indispensable in various manufacturing and maintenance operations.

   Problem Statement: Space Limitations in Small Workshops

   Small workshops often face a critical challenge: limited spac The confined working area can hinder the use of traditional cranes and equipment, leading to operational bottlenecks and decreased productivity. Small workshop owners are constantly seeking space-saving solutions that allow them to maximize their limited square footag

    Purpose of the Outline: To explore space-saving solutions with 5-Ton Gantry Cranes

   The purpose of this article is to delve into the world of 5-ton gantry cranes, specifically focusing on how they can provide space-saving solutions for small workshops. We will explore the benefits of using these cranes, challenges posed by limited space, and innovative solutions that allow small workshop owners to harness the power of gantry cranes without compromising their workspac

Benefits of 5-Ton Gantry Cranes

Gantry cranes are a category of material handling equipment known for their unique design and versatility. These cranes consist of a horizontal beam or gantry that is supported by legs on either side, providing a stable and mobile platform for lifting and transporting heavy objects. They come in various sizes and weight capacities, and the 5-ton gantry crane, in particular, offers several distinct advantages.

• 1. Precise Load Handling: Gantry cranes are renowned for their precision when lifting and moving heavy loads. Their design allows for smooth and controlled horizontal and vertical movement, making them suitable for tasks requiring careful positioning, such as assembly and material placement.
• 2. Wide Coverage Area: The gantry structure spans the entire workspace, offering extensive coverag This feature allows them to reach objects situated in different parts of the workshop, reducing the need for manual material transport and thereby increasing efficiency.
• 3. Portability: Many gantry cranes are equipped with wheels or casters, enabling them to be moved easily within the workshop. This portability enhances flexibility and adaptability, allowing operators to position the crane precisely where it is needed for specific tasks.
• 4. Various Power Options: Gantry cranes can be powered electrically, manually, or through a combination of both. This adaptability in power sources ensures that they can be used in various workshop environments and situations.

Specific Advantages of 5-Ton Capacity

The 5-ton capacity of a gantry crane holds particular appeal for small workshops. This intermediate lifting capacity provides several key benefits:

• 1. Versatile Handling: A 5-ton gantry crane can lift a wide range of materials, including heavy machinery components, pallets of materials, and mor This versatility means it can serve multiple functions in a workshop, making it a valuable and adaptable tool.
• 2. Optimal Balance: The 5-ton capacity strikes a balance between lifting power and the crane's physical siz It can handle substantial loads without taking up an excessive amount of space in the workshop, which is often a concern in smaller work environments.
• 3. Precision and Control: The 5-ton capacity allows for precise handling of loads, reducing the risk of accidents and damage to materials. Workshop operators can confidently move heavy objects while maintaining control and safety.

Efficiency and Productivity Improvements

Efficiency and productivity are at the heart of why 5-ton gantry cranes are increasingly popular in small workshops.

• 1. Time Savings: The use of a 5-ton gantry crane significantly reduces the time and effort required for various material handling tasks. Heavy materials can be lifted, moved, and positioned quickly, speeding up the overall workflow.
• 2. Reduced Manual Labor: In smaller workshops where labor resources may be limited, a 5-ton gantry crane eliminates the need for excessive manual labor, reducing the risk of worker fatigue and potential injuries.
• 3. Enhanced Workflows: By streamlining material handling and assembly processes, workshops can complete projects more efficiently. This efficiency is especially crucial for meeting project deadlines and improving overall workshop performanc

In summary, 5-ton gantry cranes offer a balanced blend of lifting power, versatility, and efficiency. These advantages make them an ideal choice for small workshops looking to optimize their material handling operations and make the most of their limited spac In the following sections, we will delve into innovative space-saving solutions provided by these cranes to address the unique challenges faced by small workshops.

Challenges in Small Workshops

Space Constraints

Small workshops, often defined by their limited physical dimensions, frequently encounter space constraints that pose unique challenges to their operations. These challenges encompass the efficient use of available workspace and effective organization of tools and equipment.

• 1. Restricted Movement: Small workshops typically feature restricted floor space, which can make it difficult for workers to move around freely, especially when handling large or heavy objects. This can lead to inefficiencies and potential safety hazards.
• 2. Limited Storage: Finding adequate space for material storage, tools, and equipment can be an ongoing struggl Effective storage solutions are essential to keep the workspace organized and free from clutter.
• 3. Machinery Placement: The proper arrangement of machinery and equipment is vital for workflow optimization. Space constraints can complicate the positioning of machines, potentially affecting their functionality and ease of access.

Safety Concerns

Safety is a paramount concern in any workshop environment, and small workshops face specific safety issues related to their compact natur

• 1. Higher Risk of Accidents: Due to the limited space, the risk of accidents, especially when handling heavy loads, is amplifie The close proximity of workers, equipment, and materials increases the chances of collisions and injuries.
• 2. Overcrowding: Small workshops can become crowded during busy periods, making it challenging for workers to move safely and efficiently. Overcrowding not only affects productivity but also increases the risk of accidents.
• 3. Equipment Interactions: The confined space may lead to unexpected interactions between equipment, tools, and machinery, potentially causing accidents or damag Workers need to be particularly vigilant to avoid such situations.

Cost Considerations

Effective cost management is a critical consideration for small workshop owners, and investments in equipment must be carefully evaluated in light of budget constraints.

• 1. Initial Investment: The acquisition of equipment, such as gantry cranes, involves an initial capital investment. Small workshops often operate on limited budgets, making it crucial to assess the cost of purchasing and installing such equipment.
• 2. Maintenance Expenses: Beyond the initial purchase, ongoing maintenance costs are a concern. Regular maintenance is essential to ensure the safe and efficient operation of machinery, and small workshops must allocate resources for these expenses.
• 3. Return on Investment (ROI): Small workshop owners must assess the potential return on investment from equipment like 5-ton gantry cranes. Understanding how these tools will enhance productivity and, ultimately, lead to financial gains is pivotal for informed decision-making.

To tackle these challenges effectively, small workshop owners need to implement creative solutions and consider space-saving equipment options. In the subsequent sections of this article, we will explore innovative solutions, including the use of 5-ton gantry cranes, to address these specific challenges. These solutions not only optimize workspace but also enhance safety and cost-effectiveness, making them valuable assets for small workshop owners.

Space-Saving Solutions with 5-Ton Gantry Cranes

Single girder and double girder gantry cranes with no cantilever design can be suitable for small workshops, but their feasibility depends on the specific space constraints and the intended usag Here's a brief overview of these crane types in the context of small workshops:



Single Girder Gantry Crane 5 Ton :

• - Suitability: Single girder gantry cranes are generally more space-efficient than double girder cranes due to their simpler design. They are a good choice for small workshops with limited headroom or narrow aisles.
• - Features: These cranes have a single horizontal beam (girder) that spans the width of the gantry structur They are typically lighter and more compact than double girder cranes.
• - Lifting Capacity: Single girder gantry cranes can handle loads ranging from a fraction of a ton to several tons, making them versatile for various applications in small spaces.
• - Applications: They are commonly used in smaller workshops for tasks like material handling, machinery assembly, and maintenanc Their efficient use of space and cost-effectiveness make them a practical choice.

Adjustable Heights  Portable Gantry Crane 5 Ton

One of the key space-saving features of 5-ton gantry cranes is their adjustability. These cranes can be customized to fit the specific needs of a small workshop:

• 1. Height Adjustment: Gantry cranes can be designed with adjustable heights, allowing them to accommodate varying ceiling heights. This flexibility ensures that the crane can operate efficiently in workshops with limited vertical spac
• 2. Width Modification: The width of the gantry crane can also be tailored to the available workspac This adaptability ensures that the crane can be set up in narrower areas, making the most of limited floor space

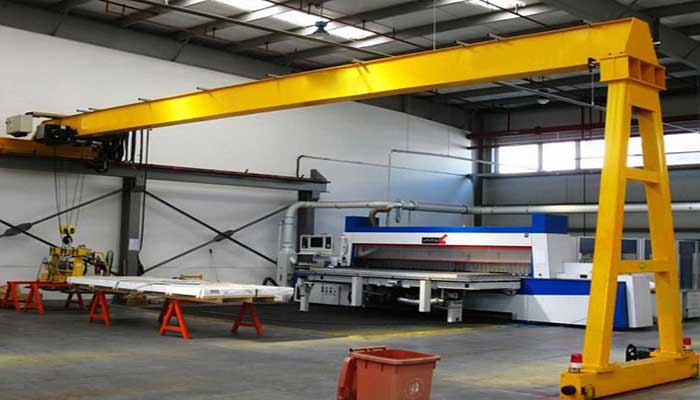

Wall-Mounted Gantry Cranes

Wall-mounted gantry cranes 5 tons are a perfect solution for small workshops where floor space is at a premium:

• 1. Space Optimization: Wall-mounted gantry cranes are affixed to the workshop walls, leaving the floor area unobstructe This design allows for optimal use of available space without compromising crane capacity.
• 2. Flexible Placement: These cranes can be installed at various heights and angles, providing the necessary lifting and maneuvering capabilities while ensuring a clutter-free workspace

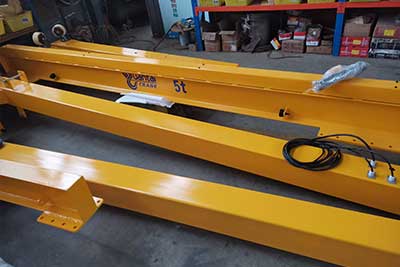

Fixed Height Portable Gantry Cranes 5 Ton

Portable gantry cranes are a versatile option for small workshops seeking space-saving solutions:

• 1. Easy Mobility: Portable gantry cranes come equipped with wheels or casters, allowing for quick relocation as neede They can be moved to specific workstations, eliminating the need for a dedicated crane bay.
• 2. Compact Storage: When not in use, portable gantry cranes can be easily stored, further optimizing workspac Their ability to fold or disassemble makes them an efficient solution for small workshops.

Compact Design and Customization

Many 5-ton gantry cranes are available with compact designs that cater to the unique spatial constraints of small workshops:

• 1. Tailored Footprints: Manufacturers offer customized designs that minimize the space required for crane operation while maintaining their lifting capacity. This ensures that the crane fits comfortably within the workshop.
• 2. Load-Specific Engineering: 5-ton gantry cranes can be engineered to meet the exact needs of the workshop. This includes features like reduced deadweight and improved load distribution, which contribute to a more compact and efficient design.

Integrating Gantry Cranes with Existing Layout

The seamless integration of gantry cranes into the existing workshop layout is a smart space-saving strategy:

• 1. Custom Layout Planning: Small workshops can collaborate with crane manufacturers to plan the crane's installation in a way that maximizes the available space and complements the workflow.
• 2. Effective Workspace Utilization: Gantry cranes can be designed to fit into corners, along walls, or other underutilized spaces, ensuring that they do not interfere with other essential workshop activities.

Incorporating these space-saving solutions allows small workshops to harness the benefits of 5-ton gantry cranes without sacrificing precious floor spac This optimization not only improves workspace functionality but also enhances safety and productivity, making it a prudent investment for workshop owners facing spatial constraints.

Safety Measures

Importance of Safety in Workshop Operations

Safety is a paramount concern in workshop operations, regardless of siz In small workshops, where space constraints can amplify potential hazards, a strong commitment to safety is crucial:

• 1. Worker Well-Being: Prioritizing safety not only protects workers from injuries but also fosters a healthier and more positive work environment. Employees who feel safe are more likely to be productive and engage
• 2. Asset Protection: Ensuring a safe workspace helps protect valuable equipment, machinery, and materials. Reducing the risk of accidents minimizes potential damage and loss.
• 3. Regulatory Compliance: Many regions have strict safety regulations that must be adhered to in industrial settings. Compliance not only prevents legal issues but also supports a culture of safety.

Safety Features of 5-Ton Gantry Cranes

5-ton gantry cranes come equipped with various safety features to mitigate risks associated with their operation:

• 1. Overload Protection: These cranes are designed with overload protection systems that prevent the crane from lifting loads exceeding its rated capacity. This ensures that the crane operates safely and prevents equipment damag
• 2. Emergency Stop Controls: In case of unforeseen circumstances, emergency stop controls allow operators to halt crane movement immediately, reducing the risk of accidents or collisions.
• 3. Limit Switches: Limit switches define the crane's safe operating boundaries. When these limits are reached, the crane automatically stops, preventing overextension and potential hazards.
• 4. Safety Interlocks: Safety interlocks ensure that certain crane functions cannot be engaged simultaneously, preventing conflicting actions that could lead to accidents.
• 5. Anti-Sway Systems: Gantry cranes may be equipped with anti-sway systems that stabilize the load during lifting and movement, reducing the risk of load sway and collisions.

Operator Training and Certification

Proper training and certification of operators are pivotal to ensuring the safe use of 5-ton gantry cranes:

• 1. Comprehensive Training: Operators should undergo comprehensive training programs that cover crane operation, safety procedures, and emergency protocols. This training should also address specific challenges posed by small workshops.
• 2. Certification Requirements: Operators should be certified to use gantry cranes, demonstrating their competence in safe operation. Certification programs typically involve written and practical exams.
• 3. Continual Education: Safety regulations and best practices evolve over tim Operators should engage in ongoing education and training to stay up-to-date with the latest safety standards and technological advancements.
• 4. Safety Culture: Fostering a culture of safety within the workshop is essential. All team members, not just operators, should be encouraged to report safety concerns and actively participate in maintaining a safe work environment.

In conclusion, prioritizing safety in small workshop operations is non-negotiabl The deployment of 5-ton gantry cranes, with their built-in safety features and well-trained operators, can significantly enhance safety standards. Small workshops should view safety as an investment that not only protects workers and equipment but also contributes to overall productivity and success.

Cost and Investment Considerations

Initial Investment

The initial investment in 5-ton gantry cranes is a critical consideration for small workshops, as it involves both purchasing and installing the equipment. The cost can vary based on factors like the crane's design, features, and customization. When evaluating the initial investment, workshop owners should take into account:

• 1. Purchase Cost: The base cost of the gantry crane, which is influenced by its size, lifting capacity, and design.
• 2. Customization Expenses: Any additional features or customization required to fit the crane to the workshop's specific needs.
• 3. Installation Costs: Expenses related to the installation of the crane, including any necessary structural modifications to the workshop.
• 4. Accessories and Attachments: Costs for accessories such as hoists, trolleys, and end-effectors that might be needed for specific tasks.
• 5. Electricity and Power Requirements: Expenses associated with providing the necessary electrical supply for the crane's operation.

Return on Investment (ROI)

Understanding the potential return on investment is essential for small workshop owners. It helps assess the economic viability of the 5-ton gantry crane in the long term. To calculate ROI, consider the following:

• 1. Increased Productivity: Determine how much time and labor costs can be saved by using the crane for various material handling tasks. Improved efficiency can lead to quicker project completion and increased revenu
• 2. Reduced Manual Labor: Calculate the savings resulting from a reduced need for manual labor due to the crane's assistance in lifting and moving heavy loads.
• 3. Maintenance Savings: Evaluate the long-term maintenance costs and how they compare to the savings generated by the crane's efficient operation.
• 4. Enhanced Safety: Quantify the potential reduction in workplace accidents and associated costs, such as medical bills and workers' compensation.
• 5. Extended Equipment Lifespan: Consider how the crane's safe and precise handling of materials can extend the lifespan of other equipment, reducing the need for premature replacement.

Maintenance Costs

Maintenance costs are an ongoing expense that small workshops should budget for when operating 5-ton gantry cranes. These costs can include:

• 1. Routine Inspections: Regular inspections to ensure the crane is in good working order and adhering to safety standards.
• 2. Lubrication and Cleaning: Proper lubrication and cleaning to prevent wear and tear on components.
• 3. Repair Costs: Budgeting for potential repairs in case of unexpected breakdowns or malfunctions.
• 4. Replacement Parts: Costs associated with replacing worn-out or damaged parts.
• 5. Operator Training: Continuing education and certification programs for operators to maintain safety and efficiency.
• 6. Energy Costs: Factoring in the energy costs required to power the crane, especially if it's electrically operate

It's important for small workshop owners to weigh the maintenance costs against the productivity gains and safety improvements that the gantry crane brings. Proper maintenance ensures the crane's longevity and reliability, making it a worthwhile investment in the long run.

In conclusion, while the initial investment in a 5-ton gantry crane can be significant, small workshop owners should assess the potential return on investment and consider the long-term benefits, including improved productivity, safety, and equipment longevity. It's a strategic decision that can enhance the workshop's overall efficiency and competitiveness in the long run.

Case Studies

5 Ton Adjustable Gantry Crane for Sale Qatar for Molds Handling
Adjustable gantry crane 5 ton for sale Qatar good price.5 ton portable gantry crane with adjustable height gantry design, effective & flexible solution for material handling in mold manufacturing factory.




5 Ton Gantry Crane Low Headroom Design, Higher Hook Height for Sale
5 ton gantry crane, single girder design, low headroom hoist, better hook height in low ceiling workshop for sale Bahrain in stone processing factory. Check now.



5 Ton Portable Gantry Crane for Construction Company Brunei
The construction industry requires heavy lifting equipment to move materials and equipment on construction sites. A 5 ton portable gantry crane is an essential tool in the construction industry. This crane is designed to lift and move heavy loads with ease and precision.

To illustrate the real-world application of 5-ton gantry cranes in small workshops, let's explore a few case studies:

Case Study: Precision Machining Workshop

• Workshop Profile: A small precision machining workshop specializing in manufacturing intricate components for the aerospace industry.
• Challenges: Limited space for handling heavy and delicate materials with precision.
• Solution: The workshop installed a 5-ton gantry crane with adjustable heights and widths, allowing them to lift and move heavy components accurately within the confined workspac

Case Study: Woodworking Studio

• Workshop Profile: A small woodworking studio crafting custom furniture and cabinetry.
• Challenges: Handling large wooden panels and heavy machinery components in a compact studio.
• Solution: The workshop integrated a wall-mounted gantry crane, enabling efficient material handling without obstructing floor spac The crane's adaptability and compact design improved workflow and safety.

Case Study : Auto Repair Garage

• Workshop Profile: A small auto repair garage servicing a range of vehicles.
• Challenges: Lifting engines, transmissions, and other heavy automotive parts efficiently while maintaining a safe and organized workspac
• Solution: The garage invested in a portable 5-ton gantry crane, offering easy mobility to place the crane wherever neede The crane's portability allowed for more flexibility and optimized the use of spac

Benefits and Challenges Faced by These Workshops

Benefits:

• 1. Increased Efficiency: In all case studies, the utilization of 5-ton gantry cranes significantly improved the efficiency of material handling and equipment placement. This translated to quicker project turnaround and increased productivity.
• 2. Optimized Workspace: The space-saving features of these cranes allowed each workshop to make better use of its available square footag The workshops experienced less congestion and improved organization.
• 3. Enhanced Safety: The gantry cranes' safety features and precise load control contributed to a safer work environment, reducing the risk of accidents and damage to materials.

Challenges:

• 1. Initial Investment: The upfront cost of acquiring and installing the gantry cranes was a challenge for some workshops, especially those with tight budgets.
• 2. Operator Training: Properly training and certifying operators to use the cranes required time and resources. Workshops had to invest in training programs to ensure safe operation.
• 3. Maintenance Costs: Ongoing maintenance expenses, while manageable, were a consideration for long-term cost planning.

Lessons Learned

From these case studies, several valuable lessons can be drawn:

• 1. Customization Matters: Tailoring the crane's design and features to the workshop's specific needs is essential for optimal performance and space-saving solutions.
• 2. Prioritize Safety: Investing in operator training and certification, as well as adhering to safety standards, is non-negotiabl Safety should always be a top priority.
• 3. Budget Wisely: While the initial investment may seem significant, workshops should carefully assess the long-term benefits and consider the potential return on investment.
• 4. Plan for Maintenance: Proper maintenance is essential to ensure the crane's longevity and safety. Budgeting for regular inspections and repairs is a prudent practic

These case studies demonstrate that 5-ton gantry cranes offer practical solutions to the challenges faced by small workshops. When used strategically and with a focus on safety and efficiency, these cranes can have a positive impact on workspace optimization and overall productivity.

Conclusion

Recap of the Importance of 5-Ton Gantry Cranes in Small Workshops

In small workshops, where limited space is a constant challenge, 5-ton gantry cranes emerge as indispensable tools for material handling, offering versatility, efficiency, and precision. These cranes are capable of lifting substantial loads, enhancing productivity, and streamlining workflows. They address the specific needs of small workshop owners, providing a solution to the space constraints that often impede efficiency.

The Significance of Space-Saving Solutions

The significance of space-saving solutions, such as 5-ton gantry cranes, cannot be overstate In small workshops, where every square foot is valuable, the ability to maximize workspace efficiency is a game-changer. The outlined space-saving features, including adjustable heights and widths, wall-mounted designs, portability, and customization, enable small workshops to make the most of their available areThese solutions not only optimize workspace but also contribute to safety and cost-effectiveness.

Encouragement for Small Workshop Owners to Consider Gantry Cranes

In conclusion, small workshop owners are encouraged to seriously consider the integration of 5-ton gantry cranes into their operations. These cranes are more than just equipment; they are smart investments in safety, efficiency, and productivity. By addressing the challenges of space limitations, small workshops can open doors to improved workflows and economic benefits. The case studies provided insight into how real workshops have harnessed the potential of gantry cranes, emphasizing the value they bring to diverse industries.

In the ever-evolving landscape of industrial and workshop operations, embracing innovative solutions like 5-ton gantry cranes is a strategic mov It ensures that small workshops remain competitive, efficient, and adaptable to changing demands. The investment may seem significant, but the long-term benefits, including enhanced safety and workspace optimization, are well worth the initial cost. Therefore, we encourage small workshop owners to explore the possibilities and embrace the opportunities that 5-ton gantry cranes bring to their operations.
