Types of Electric Overhead Cranes in Steel Mills Workshops and Warehouse
In a steel mill, various workshops and warehouses serve specific functions, each utilizing specific types of overhead cranes for efficient material handling. Here is an overview of each workshop and warehouse in a steel mill along with the different types of overhead cranes typically used in each:
Workshops in a Steel Mill:
- Blast Furnace Workshop: Overhead Cranes Used: QD Open WinchTrolley, Hoist, Single Girder Electric Overhead Crane, Slag Grab Crane.
- Steelmaking Workshop: Overhead Cranes Used: Charging Overhead Crane, Ladle Overhead Cranes, Ladle Transfer Cars, QD Double Girder Overhead Cranes.
- Rolling Workshop: Overhead Cranes Used: Coil Handling Cranes, Electromagnetic Hanging Beam Overhead Cranes.
Warehouses in a Steel Mill:
- Scrap Warehouse: Overhead Cranes Used: Grab Overhead Cranes, Electromagnetic Overhead Cranes.
- Slab Warehouse: Overhead Cranes Used: Slab Clamp Crane.
- Finished Product Warehouse: Overhead Cranes Used: Electromagnetic Hanging Beam Overhead Cranes, Coil Handling Cranes.
Each workshop and warehouse in a steel mill has specific material handling requirements that are met with the use of specialized overhead cranes. The selection of the right type of crane for each area ensures smooth operations, increased productivity, and a safe working environment in the steel mill.
Steel mill overhead electric cranes are essential in these workshops and warehouses for efficient material handling, precise positioning, and safe operations. They help streamline processes, increase productivity, reduce manual labor, and ensure the safety of workers by handling heavy loads with precision. The cranes play a crucial role in the steel mill operations by facilitating the movement of materials throughout the production process, from raw material handling to finished product storage and distribution.
Blast Furnace Workshop:
Blast Furnace Workshop:
The Blast Furnace Workshop is where ironmaking takes place, which is the initial process in steel production. It involves the use of trolleys, hoists, and overhead cranes for maintenance and overhaul of blast furnaces. The main function is to smelt iron efficiently. This workshop is crucial as it is the starting point of the steelmaking process, where raw materials such as iron ore, coke, and limestone are melted to produce iron.
Double girder overhead crane with QD Open winch trolley
QD Open Winch Trolley:
Design: The QD Open Winch trolley consists of a trolley frame, hoisting mechanism, wheels, and control system. It is a medium heavy lifting equipment with load capacities ranging from 5t to 800t and duty groups from M5 to M8.
Features: QD trolleys are designed to withstand harsh working environments, making them ideal for maintenance and overhaul of blast furnaces.
Benefits: Higher duty classification, robust construction, and the ability to handle heavy loads efficiently.
Typical Loads: Used for lifting and transporting heavy equipment and components during maintenance and overhaul of blast furnaces.
Functions: Enables precise positioning and movement of heavy loads within the blast furnace workshop.
Design: Hoists are special lifting equipment that can be installed in various crane types like bridge cranes, gantry cranes, and jib cranes.
Features: Compact size, lightweight, simple operation, suitable for industrial environments.
Benefits: Versatile lifting solutions for small equipment within the blast furnace workshop, easy to operate and maintain.
Typical Loads: Used for lifting small pieces of equipment, tools, and components during maintenance tasks in the blast furnace workshop.
Functions: Facilitates lifting, lowering, and positioning of smaller loads with precision.

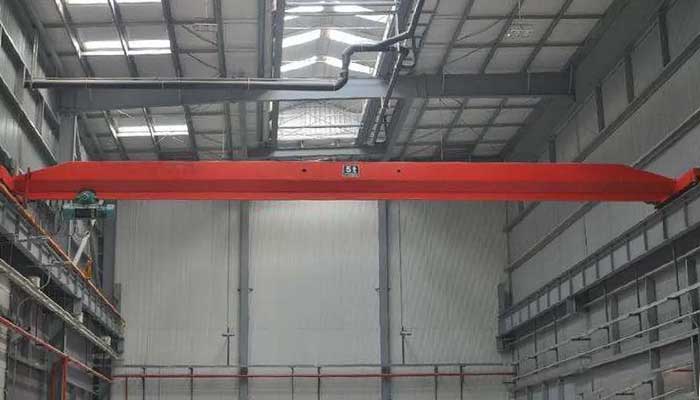

LD Single Girder Overhead Crane:
Design: single girder overhead cranes are commonly used in workshops due to their reasonable structure, light weight, and compatibility with CD1 and MD1 hoists. They have a load capacity of up to 20t.
Features: Lightweight design, suitable for light to moderate lifting applications in front of furnaces.
Benefits: Efficient material handling, enhanced productivity, easy integration with hoists.
Typical Loads: Used for lifting equipment and materials in front of the furnace in the blast furnace workshop.
Functions: Enables safe and efficient lifting and transportation of materials within the workshop.
Design: Slag grab cranes are specifically designed for cleaning blast furnace water slag in steel plants. They are equipped with grabs designed to handle slag materials efficiently.
Features: Robust grabs for slag handling, specialized design for slag cleaning operations.
Benefits: Improved cleanliness in the blast furnace workshop, enhanced safety during slag removal.
Typical Loads: Used for handling and removing blast furnace water slag from the production area.
Functions: Facilitates the efficient collection and disposal of slag materials to maintain a clean and safe working environment.
Steelmaking Workshop:
The Steelmaking Workshop involves processes like charging electric arc furnaces with scrap and molten iron, ladle handling, and continuous casting. Various overhead cranes like Ladle Overhead Cranes and Charging Overhead Cranes are used here. This workshop is vital for transforming molten metal into various steel products used in different industries.
Design: Designed to feed electric arc furnaces with scrap and molten iron, featuring a sturdy structure and high load capacity.
Features: Specialized lifting attachments for handling scrap and molten materials, precise positioning controls.
Benefits: Efficient feeding of materials into electric arc furnaces, improved productivity in steelmaking operations.
Typical Loads: Scrap materials, molten iron, and other materials required for the steelmaking process.
Functions: Loading and unloading of materials into electric arc furnaces to facilitate the steelmaking process.

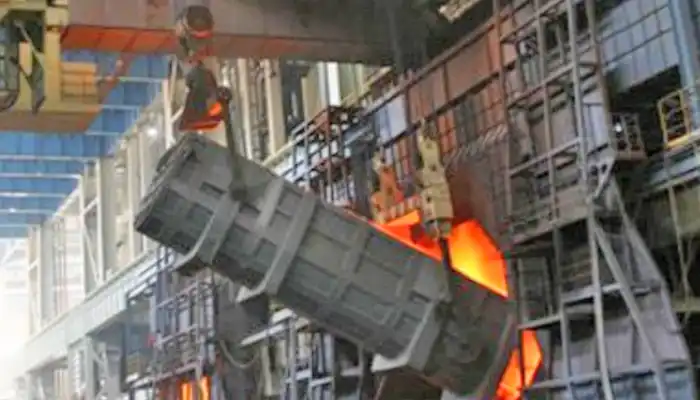

Design: Specifically used for converter charging and lifting ladles in the continuous casting process, with a focus on stability and high lifting capacity.
Features: Ladle hooks or attachments for secure ladle handling, advanced safety systems.
Benefits: Smooth operation during converter charging and ladle lifting, enhanced safety in handling molten metal.
Typical Loads: Ladles containing molten metal, equipment for continuous casting.
Functions: Precise lifting and positioning of ladles for pouring molten metal in the continuous casting process.
Ladle Transfer Cars:
Design: Designed to transport high temperature ladles within steel mills, featuring heat resistant materials and components.
Features: Heat shielding, ladle cradles for secure transportation of ladles, remote operation capabilities.
Benefits: Safe and efficient transport of high temperature ladles, minimizing heat exposure to operators.
Typical Loads: High temperature ladles filled with molten metal.
Functions: Transporting ladles between different areas of the steel mill for continuous casting or other processes.
QD Double Girder Overhead Cranes:
Design: Engineered for heavy duty conditions in steelmaking shops, featuring a robust double girder design for increased stability and load capacity.
Features: Dual girders for added strength, hoisting mechanisms suitable for heavy loads, advanced control systems.
Benefits: Handling heavy loads with ease, improved efficiency in steelmaking operations, enhanced safety features.
Typical Loads: Heavy machinery parts, large components, and materials requiring high lifting capacity.
Functions: Lifting, moving, and positioning heavy loads within steelmaking workshops with precision and reliability.
Rolling Workshop:
In the Rolling Workshop, steel is processed into various shapes and sizes through rolling mills. Coil Handling Cranes and Electromagnetic Hanging Beam Overhead Cranes are used for handling coils and magnetic materials. This workshop is essential for shaping steel into usable products like sheets, bars, and rods.
Design: Specifically designed for handling coils of materials such as steel, aluminum, and copper, featuring specialized coil lifting mechanisms.
Features: Coil clamps or hooks for secure handling, adjustable lifting speeds, precise positioning controls.
Benefits: Efficient handling of coils, reduced risk of damage, improved workflow in the rolling workshop.
Typical Loads: Coils of steel, aluminum, copper, and other materials.
Functions: Lifting, transporting, and positioning coils during the rolling process.
Electromagnetic Hanging Beam Overhead Cranes:
Design: Tailored for handling magnetic materials like steel sections, plates, and billets, with an electromagnetic beam for efficient material handling.
Features: Electromagnetic beam for secure gripping, adjustable magnetic strength, remote control operation.
Benefits: Safe and effective handling of magnetic materials, streamlined workflow in the rolling workshop.
Typical Loads: Steel sections, plates, billets, and other magnetic materials.
Functions: Gripping, moving, and positioning magnetic materials with precision.
Scrap Warehouse:
The Scrap Warehouse stores and processes scrap steel materials for recycling. Overhead cranes like Grab Overhead Cranes and Electromagnetic Overhead Cranes are used for loading, sorting, and handling scrap efficiently. This warehouse plays a crucial role in recycling and reusing steel materials, contributing to sustainability in steel production.
Design: Equipped with grabs for loading and sorting scrap steel efficiently, featuring sturdy construction and grab mechanisms.
Features: Grab attachments for secure handling, adjustable grab opening/closing, anti sway technology.
Benefits: Quick and efficient loading and sorting of scrap steel, improved productivity in the scrap warehouse.
Typical Loads: Scrap steel materials for recycling or processing.
Functions: Loading, unloading, and sorting scrap steel within the warehouse.
Electromagnetic Overhead Cranes:
Design: Specifically used for gripping scrap materials in steel scrap storage workshops, featuring an electromagnetic system for efficient material handling.
Features: Electromagnetic system for secure gripping, adjustable magnetic strength, remote control capabilities.
Benefits: Effective handling of scrap materials using magnetic force, enhanced safety during operations.
Typical Loads: Scrap steel materials requiring magnetic handling.
Functions: Gripping, moving, and positioning scrap steel using electromagnetic technology.
Slab Warehouse:
The Slab Warehouse stores billets and slabs used in the production line. A Slab Clamp Crane is typically used for handling these materials. This warehouse is important for storing and organizing semi finished steel products before further processing.
Design: Tailored for handling billets across the production line and within the warehouse, featuring specialized clamp mechanisms for secure lifting.
Features: Slab clamps for safe handling, adjustable clamping pressure, precise positioning controls.
Benefits: Efficient billet handling, reduced risk of damage, improved workflow in the slab warehouse.
Typical Loads: Billets and slabs of steel or other materials.
Functions: Lifting, transporting, and positioning billets within the production line and warehouse.
Finished Product Warehouse:
The Finished Product Warehouse stores the final steel products before distribution. Overhead cranes like Electromagnetic Hanging Beam Overhead Cranes and Coil Handling Cranes are used for handling finished steel plates and coils. This warehouse is vital for inventory management and timely delivery of steel products to customers
Electromagnetic Hanging Beam Overhead Cranes:
Design: Designed for handling finished steel plates and profiles, equipped with an electromagnetic beam for secure gripping.
Features: Electromagnetic beam for efficient handling, adjustable magnetic strength, remote control operation.
Benefits: Safe and effective handling of finished products, streamlined workflow in the finished product warehouse.
Typical Loads: Finished steel plates, profiles, and other products.
Functions: Gripping, moving, and positioning finished products with precision.
Coil Handling Cranes:
Design: Engineered to lift, transport, and position heavy coils efficiently, featuring specialized coil lifting mechanisms and controls.
Features: Coil handling equipment for safe lifting, adjustable lifting speeds, anti sway technology.
Benefits: Efficient handling of heavy coils, improved productivity in the finished product warehouse.
Typical Loads: Heavy coils of steel or other materials.
Functions: Lifting, transporting, and positioning heavy coils within the warehouse.
These specialized overhead cranes are designed to meet the unique requirements of each workshop or warehouse within a steel mill. By selecting the appropriate crane type for each specific area, steel mills can ensure efficient material handling, smooth operations, and enhanced safety. The right choice of overhead crane plays a crucial role in optimizing productivity and streamlining processes in steel mill operations.
