Efficient Overhead Crane and Gantry Crane Cranes for Precast Concrete Handling

Specialized overhead and gantry cranes streamline precast concrete element lifting, ensuring safety, efficiency, and precision in construction projects.

Importance of Precast Concrete Element Handling

Precast concrete elements play a vital role in modern construction projects. They are created in controlled, off-site environments and then transported to construction sites for assembly. These elements include items such as walls, beams, staircases, slabs, and other structural components that are essential for building infrastructure efficiently and reliably.

Efficiently handling these precast components is crucial for maintaining construction timelines, lowering labor costs, and ensuring safety on-site. Cranes, such as overhead and gantry cranes, are essential tools that make this handling seamless and accurate.

The Role of Cranes in Construction Projects

Cranes eliminate the risks and time delays associated with manual material movement. They allow heavy precast elements to be lifted, moved, and positioned safely and quickly. This reduces downtime and enables workers to focus on assembly and installation rather than transporting materials.

Crane systems improve productivity, cut costs, and improve overall construction safety. Their role is vital for moving precast concrete components from storage to the precise areas they are required during the building process.

Definition of Overhead Cranes and Gantry Cranes

What is an Overhead Crane?

An overhead crane is a lifting machine that operates on fixed tracks above a workspace. These cranes consist of a horizontal beam or series of beams connected to a trolley, allowing movement in two directions: horizontally along the beam and vertically for lifting. They are primarily used in indoor environments such as factories or construction workshops.

Overhead cranes offer:

• High lifting precision.
• Stability for safe material movement.
• Ability to lift heavy precast elements over obstacles.

These features make them essential for transporting and positioning precast concrete elements during the construction process.

What is a Gantry Crane?

A gantry crane operates on a track system at ground level and is usually mobile. Unlike overhead cranes, which are fixed, gantry cranes can move across open spaces, including outdoor areas, offering great versatility.

They are equipped with their own tracks and can handle heavy loads, often spanning larger areas compared to overhead cranes. Gantry cranes are ideal for outdoor construction sites, large-scale lifting, or projects with changing conditions.

Gantry cranes provide:

• Greater mobility and flexibility.
• Adaptability for outdoor use and varying site conditions.
• Cost-effective heavy lifting solutions.

Both overhead and gantry cranes have their advantages depending on the environment, project type, and scale.

Why Choose Overhead or Gantry Cranes for Precast Concrete Handling?

Key Advantages of Using Cranes

Crane systems are vital in precast concrete element handling due to their speed, safety, and cost benefits. They provide multiple advantages:

• Efficiency: Cranes streamline the movement of precast concrete components, ensuring that construction projects stay on schedule.
• Safety: They reduce the risk of worker injuries by automating lifting and material handling.
• Speed: Cranes can transport heavy precast components quickly, cutting construction delays.
• Cost Savings: The use of cranes reduces reliance on labor, lowering labor costs while minimizing material waste.
• Precision: They ensure accurate placement of heavy loads in tight spaces, improving assembly accuracy.

Both overhead cranes and gantry cranes are efficient options for construction projects, but each has unique features that make them suitable for different environments.

The Versatility Factor: Overhead vs. Gantry Cranes

Overhead Cranes:

• Best suited for indoor construction areas or controlled environments.
• Offer stable and precise control for heavy lifting over a defined area.

Gantry Cranes:

• Designed for open spaces and outdoor construction sites.
• Can move across large distances and adapt to changing site conditions.

Construction managers can choose the type of crane based on factors such as site size, environment type, material handling needs, and budget constraints.

Final Thoughts: Choosing the Right Crane

When handling precast concrete elements, both overhead cranes and gantry cranes are effective tools. They ensure safe, quick, and cost-effective movement of heavy components, allowing construction projects to proceed on time and within budget.

Selecting the right crane depends on the project requirements:

• Indoor Construction Sites: Overhead cranes are efficient and effective for controlled environments with tight handling needs.
• Outdoor or Large-Scale Construction Sites: Gantry cranes are better suited for flexibility and mobility across open spaces.

Both crane types are integral to optimizing productivity, enhancing safety, and improving timelines in the precast concrete handling process.

Types of Cranes Used for Precast Concrete Handling

When working with precast concrete elements, choosing the right crane system is vital for ensuring efficiency, safety, and cost-effectiveness. Overhead cranes, gantry cranes, and specialized cranes all offer unique capabilities suited to specific construction environments. Below is a detailed look at the different types of cranes used for handling precast concrete elements.

Overhead Cranes

Overhead cranes are essential for indoor construction areas, warehouses, and precast concrete handling facilities. They are mounted to fixed tracks or beams and are designed to lift and move heavy materials with high precision. Two primary subcategories exist: Single Girder and Double Girder Overhead Cranes.

Single Girder vs. Double Girder Overhead Cranes



Single Girder Overhead Cranes:

• Simpler and lighter design.
• Best suited for lighter loads and smaller-scale construction projects.
• Typically more cost-effective.
• Good for tight spaces or facilities with limited headroom.

Double Girder Overhead Cranes:

• Designed for heavier loads and larger-scale construction.
• Offer higher lifting capacities and greater stability.
• Ideal for handling large precast concrete slabs and beams with precision.

Top-running vs. Underhung Overhead Cranes

Overhead cranes can be categorized into top-running and underhung designs depending on their configuration:

Top-running Overhead Cranes:

• Operate on tracks mounted above the workspace.
• Commonly used for high-volume lifting and heavy-duty construction needs.
• Superior stability and larger load capacities.

Underhung Overhead Cranes:

• Suspended from beams below the tracks.
• Best suited for smaller facilities with restricted overhead space.
• Easy to maneuver in confined areas or indoor workshops.

Features and Capacities for Precast Handling

Overhead cranes are equipped with advanced features for effective precast concrete handling:

• Lifting Capacity: Can range from 1 to 100 tons depending on the application.
• Speed Control: Variable speeds ensure safe movement when lifting heavy precast items.
• Precision Operation: Equipped with advanced trolleys for accurate movement and placement.
• Adaptability: Available with custom configurations to fit unique facility or project layouts.

Overhead cranes are widely used for handling beams, slabs, staircases, and other structural precast concrete components due to their speed, reliability, and lifting precision.

Gantry Cranes

Gantry cranes are a versatile alternative to overhead cranes, capable of moving heavy loads over a wider area. Unlike overhead cranes that operate on fixed beams, gantry cranes move along a track system on the ground, offering mobility and flexibility.

Single Leg vs. Double Leg Gantry Cranes

Gantry cranes are commonly divided into two designs:

Single Leg Gantry Cranes:

• Operate with one set of support legs, creating flexibility for movement in constrained areas.
• Suitable for light to medium lifting tasks and areas with space constraints.

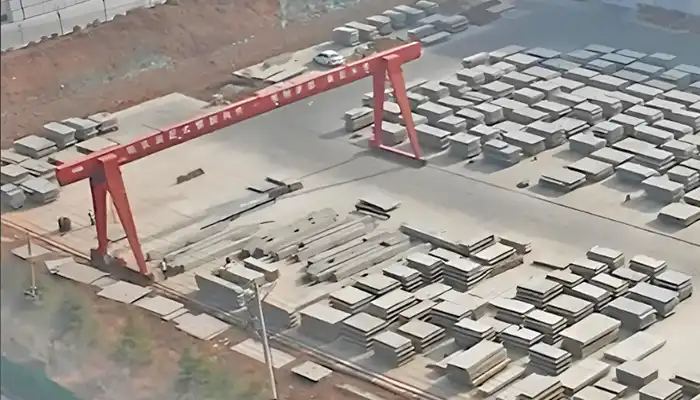

Double Leg Gantry Cranes:

• Equipped with two sets of legs for increased stability.
• Better suited for larger construction projects requiring the handling of heavier precast components.

Features of Full Gantry Systems for Large Loads

Full gantry crane systems are known for their ability to manage large loads over long distances. Features include:

• Adjustable height for better load clearance.
• Robust design to handle weights of up to 50 tons or more.
• Adaptability to both indoor and outdoor construction sites.

These cranes are excellent choices for lifting large concrete slabs and components quickly and safely over long spans.


double girder gantry crane with rubber tyred gantry crane


Applications in Open Construction and Indoor Workshops

Gantry cranes are especially effective for:

• Outdoor construction sites with wide open spaces.
• Indoor workshops with multiple stations for moving precast concrete efficiently.
• Assembly lines for precast concrete projects.

Their mobility and stability make them a top choice when cranes need to be deployed across various zones within a construction site.

Specialized Cranes for Precast Concrete Elements

Beyond traditional overhead and gantry cranes, specialized cranes provide unique solutions for specific challenges in precast concrete handling. These cranes offer advanced features and adaptability to meet specialized construction requirements.

Remote-controlled Gantry Cranes

Remote-controlled cranes eliminate the need for workers to be in close proximity to heavy loads. They offer:

• Improved worker safety by removing the operator from potentially hazardous areas.
• Increased precision, as remote systems allow for better maneuverability.
• Streamlined operation in confined spaces.

Magnet Cranes & Electromagnetic Applications

Magnetic cranes use electromagnetic forces to handle ferrous precast concrete components with ease. They are ideal for:

• Lifting steel-reinforced concrete slabs or elements.
• Reducing the need for complex rigging and chains, which can slow down construction workflows.
• Ensuring safe and fast material handling during large-scale concrete handling processes.

Specialized cranes like these can streamline the process of moving heavy precast concrete components, improving construction timelines while maintaining safety.

Comparison: Overhead Cranes vs. Gantry Cranes

Both overhead cranes and gantry cranes are essential for precast concrete handling, but they offer different features that make them suitable for different construction environments. Here’s how they compare:

Overhead Cranes

• Advantages: High lifting precision, stable load handling, and strong lifting capacities.
• Best suited for: Indoor construction projects with limited open space or tight headroom.
• Limitations: Fixed structure makes them less adaptable for open construction sites.

Gantry Cranes

• Advantages: Flexibility, mobility, and adaptability to varying environments and large spans.
• Best suited for: Outdoor construction sites and areas with large spaces for crane movement.
• Limitations: May have a slightly lower load capacity compared to double girder overhead cranes.

Choosing the right crane depends on factors such as the type of precast components being moved, the size of the construction site, the environmental conditions, and budget constraints.

In conclusion, The differences and unique capabilities of overhead cranes, gantry cranes, and specialized cranes allows construction managers and project planners to select the most efficient and cost-effective options for handling precast concrete components.

Key Features of Overhead and Gantry Cranes for Precast Concrete Handling

Overhead and gantry cranes are essential for the efficient and safe handling of precast concrete elements. Their effectiveness in construction projects depends on their technical features, load handling capabilities, and safety enhancements. This section explores the key features that make overhead and gantry cranes reliable tools for precast concrete lifting and positioning.

Load Capacity

One of the most critical aspects of overhead and gantry cranes for precast concrete handling is their load capacity. Cranes are designed to accommodate a range of heavy loads based on the type of precast elements being moved.

Common Lifting Capacities in Precast Concrete Applications:

• 5 tons to 50+ tons:
  These range from smaller concrete elements like staircases and slabs to larger, heavier beams and structural panels.
• Small-scale precast loads (5-10 tons): Suitable for light structural components and smaller slabs.
• Medium-scale loads (10-30 tons): Ideal for handling beams, walls, and reinforced slabs.
• Heavy-duty loads (30-50+ tons): Used for large structural panels, long beams, or oversized elements in industrial-scale projects.

The versatility of these load capacities allows overhead and gantry cranes to cater to a variety of precast concrete lifting and transportation tasks.

Hoisting Mechanisms

Hoisting mechanisms are vital components of overhead and gantry cranes. They ensure efficient, smooth, and precise lifting of precast concrete elements. Several hoisting options are commonly used in precast handling applications:

Wire Rope Hoists:

• Designed for heavy-duty operations with a high load capacity.
• Built for durability, especially in tough industrial environments.
• Effective for long-term use in construction sites and warehouses.

Electric Chain Hoists:

• Reliable and simple to operate.
• Well-suited for medium-load applications.
• Offer smooth lifting capabilities with low maintenance costs.

Hydraulic Systems:

• Used for specialized lifting applications requiring variable and controlled load movements.
• Offer exceptional lifting power and enhanced precision for specialized precast elements.
• Commonly employed in heavy industrial settings or for highly specific lifting requirements.

The choice of hoisting mechanism depends on factors such as load capacity, operational environment, and lifting frequency.

Safety Mechanisms

Safety is a top priority in any construction operation involving heavy machinery like overhead and gantry cranes. These cranes are equipped with advanced safety systems to protect workers and ensure the integrity of the materials being handled.

• Emergency Stop Features:Allow operators to quickly halt the crane in case of emergencies.Essential for preventing accidents during unexpected equipment malfunction or environmental risks.
• Anti-Sway Systems:Reduce the swinging of loads during lifting and movement.Prevents damage to precast elements and enhances operator control, especially in tight spaces.
• Overload Protection Systems:Detect when a crane is lifting a weight beyond its safe capacity.Automatically disengage or stop operations to prevent equipment failure and accidents.

These safety mechanisms not only improve operational safety but also reduce downtime and protect both workers and equipment.

Customization Options

Overhead and gantry cranes are highly versatile, with features that can be tailored to meet specific project needs. Customization options allow these cranes to handle specialized precast concrete lifting requirements efficiently:

• Tailoring to Specific Lifting Capacities: Designed to handle unique load requirements for different precast elements.
• Adapting to Specific Site Conditions: Can be modified for tight spaces, variable ceiling heights, or different environmental conditions.
• Specialized Attachments: Equipped with magnets, hooks, or custom lifting tools for various precast concrete elements.
• Variable Track Systems: Adjusted to fit irregular site layouts or specialized construction projects.

By offering flexibility, these customization options ensure that overhead and gantry cranes can meet the demands of unique precast handling projects.

Mobility & Maneuverability

Overhead and gantry cranes must be versatile and mobile to function efficiently in different environments. Mobility features directly affect the speed and ease of moving precast concrete elements:

• Traveling Speed:Designed for quick movement across construction sites to ensure efficient load transport.Adjustable to adapt to site requirements or varying load weights.
• Adjustable Track Systems:Allow cranes to be easily repositioned to cover varying areas of a construction site.Enhance flexibility and adaptability for moving precast elements across open spaces and confined areas.

These features improve operational flexibility and reduce time spent transporting concrete components across large construction sites.

Operation Modes

Overhead and gantry cranes are designed to accommodate different levels of automation, offering flexibility based on operator needs and project requirements:

• Manual Operation:Allows operators to have direct control over crane movements.Suitable for smaller jobs or specialized lifting applications with limited automation needs.
• Semi-Automated Operation:Combines the precision of automation with operator input for more complex or dynamic lifting tasks.Balances efficiency with the flexibility of manual adjustments.
• Fully Automated Operation:Enhances consistency, accuracy, and speed.Reduces the risk of human error and improves productivity on high-volume precast concrete projects.

The choice of operation mode depends on the scale of the construction project, the complexity of precast element handling, and the experience level of crane operators.

In conclusion, the features of overhead and gantry cranes, such as load capacity, hoisting mechanisms, safety systems, customization options, mobility, and operation modes, make them essential tools for handling precast concrete. Their adaptability and precision directly contribute to safe, efficient, and cost-effective construction operations.

Applications of Overhead & Gantry Cranes in Precast Concrete Handling

Overhead and gantry cranes are integral to the precast concrete industry due to their versatility, efficiency, and safety features. They are employed across various stages of precast concrete handling, from lifting and transporting elements to loading, unloading, and precise positioning. The following are the primary applications of these cranes in precast concrete projects:

Moving Lattice Gird Slabs

Lattice gird slabs are commonly used in the construction of bridges, multi-story buildings, and other structures. Their movement and installation rely heavily on cranes due to their size, weight, and complexity.

• Efficient Transport: Overhead and gantry cranes lift lattice gird slabs with precision, ensuring safe transport across construction sites.
• Reduced Construction Time: These cranes streamline the movement of gird slabs, minimizing the time needed for manual handling.
• Enhanced Safety: With specialized hoists, cranes ensure the stable and secure movement of these heavy elements, reducing the risk of accidents.

The ability to maneuver lattice gird slabs into place quickly and safely is crucial for the timely completion of large-scale projects.

Lifting Precast Walls and Sandwich Wall Panels

Precast walls and sandwich wall panels are integral structural elements, offering excellent insulation and load-bearing properties. Overhead and gantry cranes handle these efficiently due to their weight and size:

• Safe Lifting: Cranes equipped with appropriate hoisting tools ensure the walls are moved without risk of structural damage.
• Versatile Movement: Specialized crane systems transport these elements to various locations within the construction site for accurate positioning.
• Streamlining Installation: Cranes speed up the installation process by placing panels directly into their designated locations on-site, reducing the need for labor-intensive methods.

These features save time, labor costs, and effort during large-scale construction operations.

Handling Staircases and Structural Components

Staircases and smaller structural precast components must be handled with care due to their design and configuration. Overhead and gantry cranes simplify their transport, ensuring safe and accurate movement:

• Precision Movement: Cranes lift and position staircases with accuracy to ensure proper alignment and installation into building frameworks.
• Variety of Designs: Cranes can handle staircases in multiple sizes and shapes, depending on project needs.
• Time-Saving: Using cranes reduces manual labor, improving efficiency on construction sites and minimizing delays.

Effective handling of these components ensures that precast staircases integrate seamlessly into the final structure.

Positioning Precast Beams and Supports in Assembly Lines

Precast beams and structural supports play a vital role in the construction of buildings, bridges, and other infrastructure projects. Properly positioning these elements is essential for structural stability and alignment:

• Accurate Placement: Overhead and gantry cranes can precisely place precast beams and supports into their designated slots, ensuring alignment.
• High Load Capacity: These cranes accommodate the heavy weight of beams and structural supports while maintaining stability.
• Streamlined Assembly Lines: Their use in assembly lines speeds up the construction process by quickly and safely positioning these large structural elements into place.

With their load capacity and lifting capabilities, cranes ensure efficient and accurate beam handling.

Loading/Unloading from Transport Vehicles

Efficient loading and unloading of precast concrete elements from transport vehicles is critical to maintaining productivity on construction sites. Overhead and gantry cranes are indispensable for these tasks:

• Safe and Quick Transfers: Cranes handle the heavy lifting of precast elements onto trucks and remove them safely upon delivery.
• Minimized Damage: With controlled and precise movements, cranes reduce the risk of damaging precast components during handling.
• Adaptability: Cranes can handle a variety of transport vehicles, including flatbeds and specialized containers, to fit different logistical needs.

By ensuring efficient and safe transfer, overhead and gantry cranes enhance the supply chain for precast concrete projects.

Supporting Modular Precast Construction

Modular construction relies heavily on the movement and integration of precast elements into pre-assembled building modules. Overhead and gantry cranes support this process in several ways:

• Efficient Lifting of Modules: These cranes are capable of lifting entire precast modules into position for assembly, reducing the need for extensive labor.
• Quick Assembly: They ensure that precast concrete components are aligned accurately and integrated into modular systems quickly.
• Adaptability to Various Environments: Cranes work effectively both indoors and outdoors, allowing modular construction to proceed regardless of weather conditions or site constraints.

This application highlights the role of overhead and gantry cranes in modern modular construction practices, contributing to faster build times and reduced costs.

Overhead and gantry cranes have proven to be indispensable in the precast concrete industry. Their ability to lift, transport, and position large and heavy precast elements quickly and safely has revolutionized construction practices. Whether handling lattice gird slabs, sandwich wall panels, beams, or modular precast systems, these cranes contribute to efficiency, safety, and timely project delivery.

Benefits of Using Overhead Cranes & Gantry Cranes in Precast Concrete Handling

Overhead cranes and gantry cranes are essential in the precast concrete industry due to their operational efficiency, flexibility, and safety benefits. These cranes provide several advantages compared to traditional methods and manual handling. Below are the key benefits:

Increased Construction Speed

One of the most significant advantages of using overhead and gantry cranes is their ability to dramatically improve construction speed. They are much faster and more efficient compared to manual handling and traditional lifting methods.

• Comparison to Manual Handling: Manual labor involves multiple workers lifting and positioning concrete elements, which is time-consuming and increases the likelihood of errors. Overhead and gantry cranes automate these processes, saving hours of labor.
• Streamlined Operations: Cranes can lift and position precast concrete elements within a fraction of the time required by manual methods.
• Reduced Downtime: Overhead and gantry cranes allow continuous operation, reducing delays caused by workforce availability or other site constraints.

By replacing time-intensive manual handling with efficient crane operations, construction projects experience faster completion times.

Enhanced Worker Safety

Worker safety is a top priority in all construction projects, and overhead and gantry cranes significantly enhance safety by reducing the need for manual labor and minimizing risk exposure.

• Reducing Manual Labor: Workers are no longer required to physically handle heavy precast concrete elements, which reduces the risk of strain injuries, falls, or accidents.
• Improved Operational Safety: Cranes operate using advanced safety systems such as anti-sway technology and overload protection, ensuring controlled and safe lifting.
• Eliminating Hazards: By automating the handling of heavy materials, cranes minimize exposure to common hazards like falls from heights or being struck by falling loads.

This increased focus on safety reduces workplace incidents, ensuring that workers can focus on their roles without unnecessary risks.

Cost Savings

Another key benefit of overhead and gantry cranes is their ability to optimize costs associated with labor and operations.

• Optimizing Labor Costs: Cranes reduce the need for large labor forces, cutting down on wages and overhead associated with manual labor.
• Reducing Operational Costs: Efficient lifting and transport reduce delays and errors during construction, saving time and money.
• Improving Equipment Utilization: Overhead and gantry cranes allow fewer workers to handle larger, heavier loads effectively, optimizing resource use.

By improving efficiency, overhead and gantry cranes minimize unnecessary expenses, allowing construction companies to allocate resources to other critical areas of the project.

Flexibility and Adaptability

Overhead and gantry cranes are known for their versatility and ability to meet custom lifting requirements. This adaptability makes them ideal for a variety of precast concrete handling tasks.

• Adapting to Various Loads: Cranes can handle a wide range of weights, from light precast elements to heavier components weighing tens of tons.
• Customizable Design: Overhead and gantry cranes can be tailored to fit unique construction environments and project needs, such as limited space or variable lifting points.
• Multi-Purpose Use: These cranes can switch between lifting different types of precast elements such as beams, walls, and staircases, improving efficiency on dynamic construction sites.

Their flexibility ensures that construction projects can adapt to changing site conditions and different precast elements without the need for extensive equipment changes.

Reducing Material Damage Risks

Handling precast concrete elements carries a risk of damage, especially when moving large, heavy, or fragile components. Overhead and gantry cranes minimize these risks through precise handling and control.

• Precise Lifting and Placement: Cranes are equipped with advanced hoisting mechanisms that ensure smooth and controlled movements, reducing the risk of sudden impacts or misalignment that could damage the precast materials.
• Anti-Sway Features: Modern cranes incorporate anti-sway systems that ensure stable movements during lifting and transfer, reducing the chance of accidental drops.
• Load Protection: With well-maintained hoists and lifting mechanisms, cranes maintain the structural integrity of concrete components throughout their movement and placement.

This minimizes repair costs and delays, as damaged elements would otherwise need to be replaced or remanufactured.

The use of overhead and gantry cranes in precast concrete handling offers a wide range of benefits that contribute to efficient, safe, and cost-effective construction. Their ability to increase construction speed, enhance worker safety, reduce costs, adapt to unique lifting needs, and minimize material damage risks makes them indispensable for modern precast concrete projects. Incorporating these cranes into construction workflows leads to faster project delivery, improved operational efficiency, and safer work environments.

Choosing the Right Crane for Your Precast Concrete Needs

Selecting the right crane is essential to ensure efficient, safe, and cost-effective handling of precast concrete elements. Different construction sites, lifting requirements, and precast element specifications demand unique crane solutions. Below are key factors to consider when choosing the most suitable crane system for your precast concrete needs.

Assessing the Type of Precast Elements to Handle

Before selecting a crane, it is important to understand the types of precast concrete elements involved in your construction project. Different elements may have varying weight, size, and shape, which will influence the choice of crane type.

• Weight Requirements: Consider the heaviest concrete element that will need to be lifted. Common precast concrete elements include lattice gird slabs, precast walls, staircases, beams, and sandwich panels.
• Size Considerations: Large, oversized precast elements may require cranes with extended reach or specific lifting capabilities.
• Shape Factors: Unusual or irregular shapes can influence the type of hoisting mechanism or attachments required. For instance, a crane may need custom clamps or magnets for certain elements.

The type of precast elements being handled will ensure the crane system selected can effectively manage the specific characteristics of your project's lifting needs.

Analyzing Load Requirements

Next, analyze the typical load requirements for your project. Knowing the maximum load capacity will guide the selection of the right overhead crane or gantry crane system.

• Typical Lifting Capacities: Most precast concrete applications range from light lifting capacities of 5 tons up to 50+ tons, depending on the elements being moved.
• Frequency of Use: Understand how often the crane will be lifting heavy loads. Regular, repetitive lifting may require a crane with higher durability and robust hoisting systems.
• Load Variability: Precast concrete projects often involve varying weights, so ensure the crane has the flexibility to handle a wide range of weights without overloading.

Matching the crane's capacity with the demands of the precast concrete operation ensures safety, efficiency, and cost-effectiveness.

Evaluating Your Construction Site Layout

The environment where the crane will be used is critical to making the right choice. Site layout can determine whether certain types of cranes are practical or feasible.

• Indoor vs. Outdoor Environments:Indoor Construction Sites: Require cranes with compact designs, precise maneuverability, and minimal environmental wear.Outdoor Construction Sites: May demand cranes with weather-resistant designs and higher lifting capacities to manage larger, heavy loads over open spaces.
• Availability of Tracks for Movement:Check whether tracks are already installed or if the crane system will need a custom track installation.Consider how movement paths will affect lifting speed and the ability to reach various parts of the construction site.

Properly analyzing the site layout ensures the crane system can operate seamlessly and without logistical issues.

Considering Maintenance and Operational Costs

Selecting the right crane is not just about initial costs. It is also about evaluating the long-term maintenance and operational expenses associated with crane ownership.

• Maintenance Requirements:Overhead and gantry cranes need periodic inspections and servicing to maintain optimal performance.Cranes exposed to harsh environmental conditions may need more frequent upkeep.
• Operational Costs:Fuel or electricity costs depend on the type of crane system and how it will be powered. Electric cranes are often more cost-efficient compared to diesel-powered systems.Operator training and labor costs should also be factored into the overall cost analysis.

Choosing a crane with manageable operational costs and a maintenance schedule tailored to your project's needs will ensure the crane remains cost-effective over its lifetime.

Customization and Features Selection

Precast concrete operations vary, and sometimes standard crane systems will need customization to meet specific needs. Selecting cranes with specialized features can significantly improve productivity and efficiency.

• Specialized Hoists:Depending on the concrete elements being lifted, cranes may need unique hoists (wire rope hoists, electric chain hoists, or hydraulic hoists) to handle weight and positioning.
• Custom Tracks:Tracks that can be adjusted for complex site layouts or uneven terrain are vital in optimizing crane movement and ensuring smooth operations.
• Advanced Control Systems:Features such as remote control, anti-sway technology, automated lifting modes, or precision maneuvering systems improve safety and operator efficiency.

Tailoring cranes with the right set of features to align with project demands will ensure improved handling capabilities and adaptability during construction.

Choosing the right crane for precast concrete handling involves a thoughtful analysis of the type of precast elements, load requirements, construction site layout, long-term operational costs, and customization options. By carefully considering these factors, construction managers can select a crane system that ensures efficient handling, improved safety, and cost savings. The right crane will optimize the entire precast concrete workflow, from lifting to positioning, enabling the timely and successful completion of construction projects.

Maintenance & Operational Best Practices for Cranes

Maintaining cranes in optimal working condition is critical to ensure their longevity, reliability, and safety. Regular maintenance minimizes downtime and enhances operational efficiency, while proactive practices can prevent costly breakdowns. Below are essential maintenance and operational best practices for overhead and gantry cranes used for precast concrete handling.

Regular Inspection Guidelines

Regular inspections are vital to identify potential issues before they escalate into significant failures. Inspections should be comprehensive and address all key components of crane systems.

• Structural Integrity Checks:Inspect the crane's structural elements, including girders, beams, and joints, for signs of wear, deformation, or damage.Look for cracks, rust, or other corrosion that could compromise the crane's strength and stability.
• Hoist and Motor Inspections:Regularly check the hoist system, motor, and associated gear mechanisms for signs of wear or misalignment.Ensure proper functioning of the hoist by examining cables, brakes, and pulleys for fraying, wear, or improper operation.
• Track & Wheel Inspection:Ensure that wheels and tracks are free from debris and are properly aligned to maintain smooth movement.Replace worn-out components to avoid unnecessary strain on the crane system.

Implementing a strict inspection schedule ensures early detection of potential issues, avoiding costly repairs or downtime.

Lubrication & Preventive Maintenance

Lubrication is a critical aspect of maintaining crane efficiency and reducing wear and tear on moving parts.

• Regular Lubrication:Apply appropriate lubricants to gears, hoists, bearings, and other moving components to minimize friction and prevent overheating.Use only manufacturer-recommended lubricants to ensure optimal performance.
• Preventive Maintenance:Replace worn-out parts before they lead to failures. Preventive maintenance reduces the risk of unexpected breakdowns.Follow a regular schedule for checking belts, chains, and hydraulic systems.
• Hydraulic System Maintenance:Monitor hydraulic fluid levels and replace or top off as necessary.Inspect hoses, connections, and valves for leaks or degradation to ensure system efficiency.

By adhering to proper lubrication and preventive maintenance routines, cranes are less prone to malfunctions and will perform consistently under heavy loads.

Troubleshooting Common Issues

Breakdowns can lead to costly delays and project setbacks. Understanding and addressing common crane issues promptly is crucial.

Overhead & Gantry Crane Breakdowns:

• Motor Failure: Inspect for overheating, inadequate lubrication, or wear on motor components.
• Hoist Malfunctions: Common causes include frayed wires, worn-out cables, or misalignment. Regularly check and replace cables as needed.
• Brake Failure: Ensure the braking system is inspected regularly to prevent accidents.
• Structural Misalignment: Misaligned tracks or wheels can lead to uneven movements. Regularly inspect tracks and wheel paths for proper alignment.

Preventive Action:

• Implement a response plan for handling issues such as sudden stops, power losses, or equipment vibrations.

Timely detection and effective troubleshooting extend crane life and avoid unnecessary interruptions to construction timelines.

Ensuring Operational Safety Compliance

Safety should always be a top priority when operating cranes. A combination of regular safety protocols and proper training will mitigate risks during daily operations.

• Recommended Safety Training:Ensure all crane operators receive comprehensive training on proper crane operation, emergency response, and safe handling of precast concrete elements.Train operators on how to recognize signs of crane wear or potential malfunctions.
• Regular Safety Audits:Conduct routine safety audits to ensure compliance with local safety standards and industry best practices.
• Emergency Stop Systems:Ensure emergency stop systems are operational and accessible at all times.
• Load Limits:Always adhere to the crane's rated load limits to avoid overloading and unnecessary strain.

A well-trained and safety-conscious workforce reduces the risk of workplace accidents and ensures smooth crane operations.

Spare Parts and Replacement Programs

Having access to quality spare parts is essential for minimizing downtime during maintenance or unexpected breakdowns.

• Maintain an Inventory of Spare Parts:Keep an inventory of critical spare parts, such as hoist cables, brakes, hydraulic components, and gear mechanisms.Ensure that these spare parts are compatible with your crane's specifications and approved by the manufacturer.
• Regular Replacement:Replace worn or outdated components on a scheduled basis to maintain performance and reliability.
• Supplier Relationships:Establish relationships with reliable suppliers to ensure quick delivery of necessary replacement parts when needed.

Having a proactive spare parts program ensures the crane can return to operation quickly and reduces the likelihood of extended delays caused by unavailability.

Effective maintenance and operational practices are vital to ensure the reliability, longevity, and safety of overhead and gantry cranes used for precast concrete handling. Regular inspections, timely lubrication, preventive maintenance, and proper training contribute to smooth operations, reduced costs, and extended crane lifespan. Additionally, maintaining an organized spare parts program ensures that any unforeseen issues can be resolved efficiently, minimizing downtime and maintaining construction timelines. By implementing these best practices, crane systems will continue to deliver efficient and safe performance throughout their operational life.

Industry Case Studies

Analyzing real-world case studies offers valuable insights into the successful use of overhead and gantry cranes in precast concrete handling projects. These examples highlight practical applications, operational benefits, and challenges faced by industries implementing these crane systems. Below are three detailed case studies showcasing the role of overhead and gantry cranes in precast element production and large-scale construction projects.

Case Study: Successful Use of Overhead Cranes in Precast Element Production

Project Overview:

A major precast concrete manufacturer was tasked with building modular housing components for a large urban development project. The company relied on overhead cranes to streamline production and efficiently transport concrete elements from the casting beds to storage and delivery points.

Operational Goals:

• Improve production speed by reducing manual handling.
• Ensure safety and reduce risks associated with lifting heavy concrete loads.
• Minimize delays in transferring elements to designated storage and delivery areas.

Solution Implemented:

The manufacturer installed a series of single girder overhead cranes in their casting yard. These cranes were equipped with electric chain hoists and safety monitoring systems, including emergency stop functions and anti-sway technology.

Key Benefits:

• Increased Speed: Overhead cranes cut the time required to transport large slabs and panels, reducing delays and boosting overall productivity.
• Enhanced Safety: Worker exposure to heavy lifting operations was minimized, with overhead cranes handling all movement.
• Cost Savings: Automation reduced labor costs by eliminating much of the physical labor previously required.

Results:

• The company reported a 20% increase in production efficiency within the first six months of implementing the overhead crane system.
• Worker safety improved with fewer accidents related to manual lifting or equipment malfunctions.

This case demonstrates how integrating overhead cranes into a precast production line can drastically improve efficiency, safety, and operational costs.

Case Study: Gantry Cranes in Large-Scale Precast Construction

Project Overview:

A large-scale infrastructure project involved the construction of a new high-speed railway system. The project required the handling and positioning of heavy precast concrete beams, girders, and slabs, which were vital components of the railway’s foundation and track system.

Operational Goals:

• Efficiently handle very heavy loads such as girders and support beams.
• Enable smooth loading and unloading from delivery trucks and storage yards.
• Operate in a wide, open construction site without fixed overhead systems.

Solution Implemented:

The construction team employed double-leg gantry cranes to meet the demands of the project. These cranes were mounted on steel tracks and equipped with heavy-duty hoists capable of lifting loads up to 50 tons. They allowed for precise movement and efficient loading/unloading of precast elements directly onto assembly points.

Key Benefits:

• Versatility: Gantry cranes could move along long spans of track, reaching multiple sections of the construction site without requiring fixed structures.
• High Load Capacity: The cranes easily handled the heaviest precast concrete elements without overloading.
• Ease of Transport: Gantry cranes improved the movement of large, heavy precast beams between delivery areas, assembly lines, and installation points.

Results:

• The project finished on schedule due to efficient handling and transportation enabled by gantry cranes.
• Project teams noted a reduction in material handling costs by optimizing movement between key project stages.

This case highlights how gantry cranes provide flexibility and strength in managing extremely heavy precast concrete elements across large, open construction sites.

Lessons Learned & Key Takeaways from Real-World Applications

These two case studies offer a variety of practical insights into the use of overhead and gantry cranes for precast concrete handling. Below are the key lessons learned:

• Efficiency Depends on Proper Equipment Selection:Overhead cranes are ideal for confined production environments with defined pathways, while gantry cranes excel in open sites or areas with irregular layouts.
• Safety Should Be a Top Priority:Incorporating anti-sway systems, emergency stop mechanisms, and proper training significantly reduces risks associated with heavy lifting operations.
• Customization Improves Results:Tailoring cranes with specific hoist systems, tracks, and load capacities to project needs leads to improved operational success.
• Integration Reduces Costs:Automated systems and mechanization, through the use of overhead and gantry cranes, reduce labor costs while improving safety and productivity.
• Regular Maintenance and Inspections Are Crucial:Continuous monitoring of equipment integrity, regular inspections, and proactive maintenance are essential to avoid breakdowns and maintain productivity during projects.

These key takeaways serve as practical guidance for industries planning to implement crane systems for precast concrete handling.

The real-world applications showcased in the case studies highlight the transformative impact of overhead and gantry cranes on precast concrete handling operations. Overhead cranes optimize production in confined environments, while gantry cranes are invaluable for large-scale projects with expansive, open construction sites. Both options provide safety, efficiency, and cost savings, depending on the specific needs of the project. These insights emphasize the importance of careful planning, proper maintenance, and adherence to safety standards for successful crane operations.

Conclusion

Overhead and gantry cranes play a vital role in the handling, transportation, and positioning of precast concrete elements within construction projects. These crane systems are essential for ensuring efficiency, safety, and cost savings during the movement of heavy and complex precast components, such as lattice gird slabs, sandwich wall panels, beams, staircases, and support structures.

Recap of the Role of Overhead Cranes and Gantry Cranes in Precast Concrete Handling

• Overhead Cranes: These are ideal for indoor production facilities and confined spaces, offering precise movement for transporting precast elements from casting areas to storage or delivery points.
• Gantry Cranes: These are better suited for open construction sites and projects requiring movement across long distances or irregular layouts without requiring fixed infrastructure.

Both systems offer flexibility, speed, and safety, handling heavy loads with ease while reducing the need for manual labor. They are designed to meet the unique demands of various precast concrete handling requirements.

Final Thoughts on Choosing the Right Crane System for Your Project

Selecting the right crane system depends on several key factors, including:

• The weight, size, and type of precast elements being handled.
• The construction site environment (indoor vs. outdoor, available tracks, and space constraints).
• The project scale and scope, determining the capacity needed for efficient handling.
• The need for customization options to address unique operational demands.

Choosing between overhead cranes and gantry cranes requires a comprehensive assessment of these factors. When the selection aligns with project needs, it can lead to reduced costs, enhanced efficiency, improved safety, and shorter construction timelines.

Encouragement for Strategic Planning, Customization, and Regular Maintenance

To ensure long-lasting crane performance and reliability:

• Strategic Planning: Carefully assess the scope, construction environment, and lifting needs of your project before choosing and implementing crane systems.
• Customization: Adapt crane systems with specialized features, hoist capacities, and tracks to better suit unique project requirements.
• Regular Maintenance: Establish a maintenance program to regularly inspect and maintain cranes, ensuring safety, minimizing breakdowns, and prolonging the lifespan of equipment.

By investing time and resources into strategic planning, proper customization, and routine maintenance, you can optimize the performance of your crane systems and ensure smooth, efficient precast concrete handling operations throughout your project.

Overhead and gantry cranes are more than just machinery—they are strategic assets that streamline construction workflows and contribute to overall project success. Choosing the right system, maintaining it properly, and utilizing it effectively can transform the way precast concrete elements are managed, ultimately contributing to safer, faster, and more cost-effective construction projects.
