Crane Project Case Study

Crane Project Case Study

15 Ton 40M Electric Chain Hoist for Sale Singapore | High Safety

15 ton electric chain hoist  for sale Singapore with Double Hoisting & Travelling Speed, Double Control, Double Braking to ensure safety & efficiency.

Initial inquiry of 15 ton 40 m electric hoists

The Singapore client send us the electric hoist inquiry on our web, when he left us the information as following:

15T-40M Wire Rope Hoist. Low headroom. The span of the beam is 10M.

Solution 1: 15 ton 40 m electric wire rope hoist hoist with low headroom design

Based on his requirements, the low headroom wire rope hoist is recommended for it is not only headroom design but also very cost-effective. What’s more, the lead time is short.

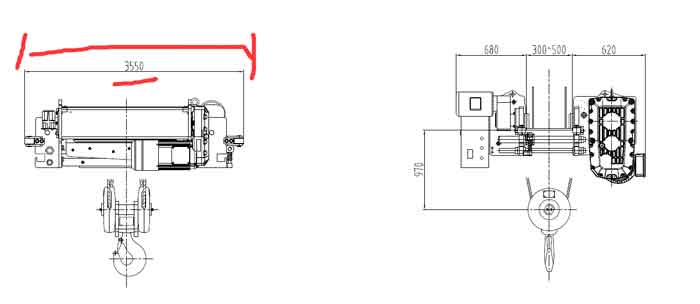

15 ton 40 m electric wire rope hoist hoist with low headroom design

The Singapore customer looked at the electric wire rope hoist drawings carefully and found that the size of the electric wire rope hoist was too large. It's almost 4m, which is not good for the application.






Solution 2: European style 15 ton 40 m electric wire rope hoist hoist with low headroom design

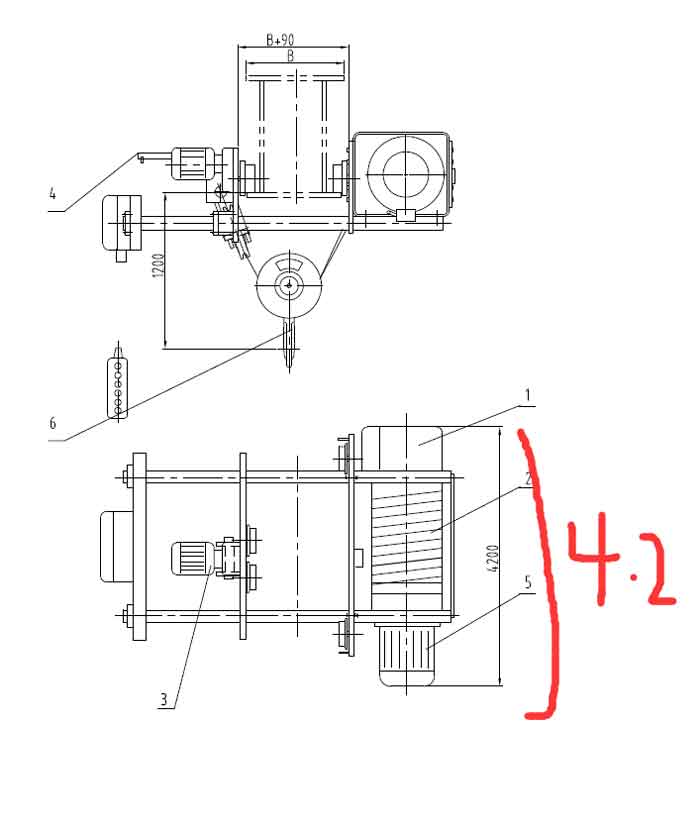

European style 15 ton 40 m electric wire rope hoist hoist with low headroom design
European style 15 ton 40 m electric wire rope hoist hoist with low headroom design

With deep communication, the low headroom electric hoist is required to be with dual hoisting speed, dual travelling speed, dual controls with remote control & pendent control, and dual braking. What’s more, the concern of the Singapore client is the delivery time, hoist price and hoist dimensions.

Due to the delivery time of European style wire rope hoist is 70 days at that time, the European style wire rope hoist solution is not selected by the Singapore client.

Option 3: 15 ton 40 m electric chain hoist with Import configuration

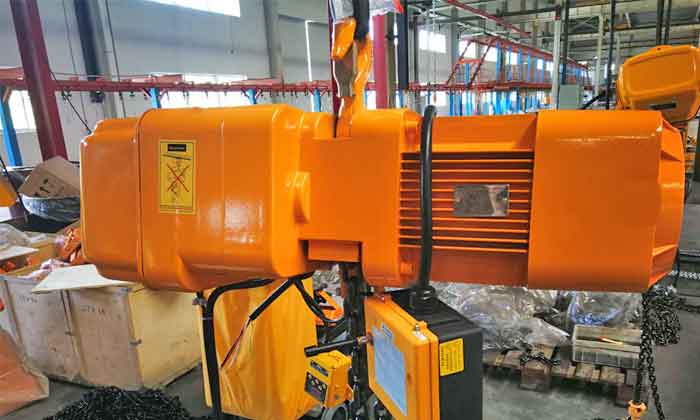

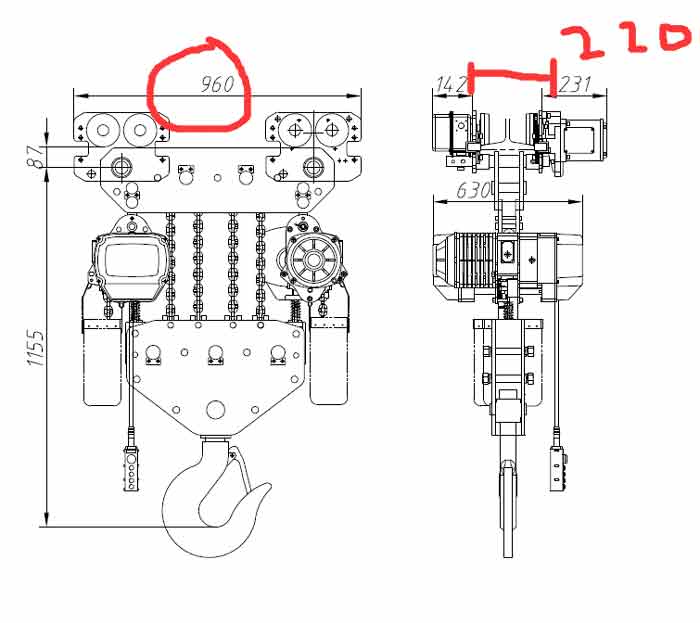

15 ton 40 m electric chain hoist with Import configuration

Lifting capacity : 15 ton , Lifting height: 40 m

The European type electric chain hoist can meet the requirement of low headroom design and small size but with a little expensive price. For the 15 ton electric chain hoist adopt Schneider configuration and FEC chain.And all other requirements are all fulfilled, including the double hoisting and travelling speed, double control and double braking,etc. All of the these  will ensure the safety and efficiency during operation.

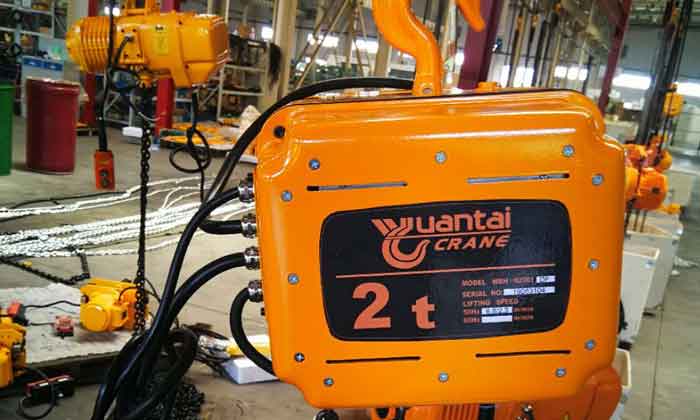

15 ton 40 m electric chain hoist with Import configuration

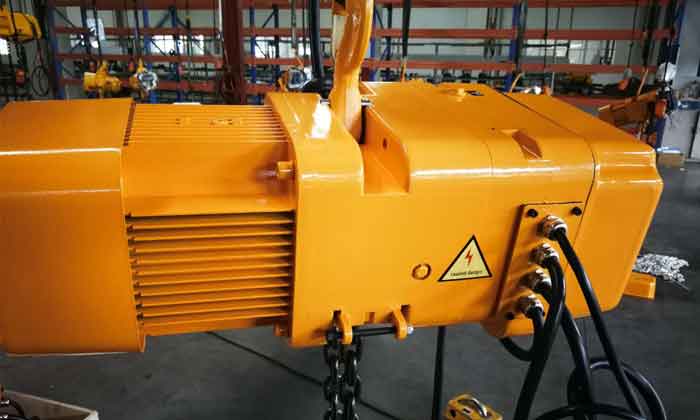

15 ton 40 m electric chain hoist with Import configuration

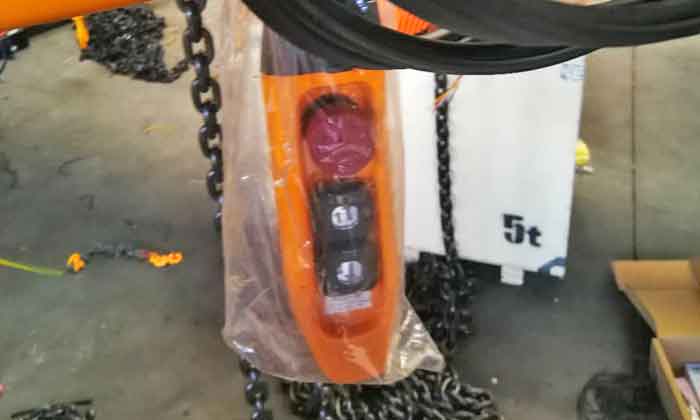

15 ton 40 m electric chain hoist with Import configuration

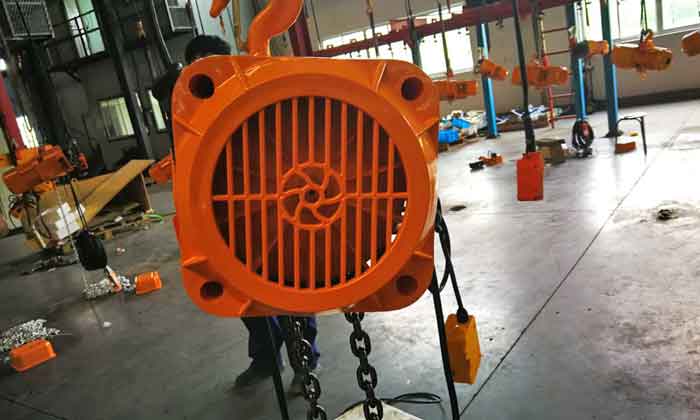

15 ton 40 m electric chain hoist with Import configuration
15 ton 40 m electric chain hoist with Import configuration
