2 Ton Portable Gantry Crane for Sale Metro Construction

Portable jib crane for sale Mauritius. Portable gantry crane 2 ton, 7 width， 3 + 3m lifting height, 2 ton electric chain hoist , for metro construction.

Efficient and Affordable Crane Design and Manufacturing for Your Material Handling and Lifting Needs"

Looking for a reliable and affordable solution for your material handling and lifting requirements? Look no further than our expert crane design and manufacturing services!

Yuantai Crane team of experienced engineers and technicians are dedicated to providing high-quality, functional, and cost-effective lifting equipment to meet the specific needs of your project. We specialize in the design, manufacture, and installation of a wide range of cranes, including gantry cranes, overhead crane, jib cranes, and portable cranes.

Yuanti cranes are designed to meet the highest safety standards and are equipped with advanced features to ensure safe and efficient operation. We understand that every project is unique, which is why we work closely with our clients to customize each crane to meet their specific requirements.

We pride ourselves on delivering projects on time and within budget, without compromising on quality. Our manufacturing process is streamlined and efficient, allowing us to provide our clients with competitive pricing without sacrificing quality.

Whether you're looking for a crane for a metro construction project or any other material handling and lifting requirements, we have the expertise and experience to deliver a solution that meets your needs. Contact us today to learn more about our crane design and manufacturing services and how we can help you achieve your project goals.

2 Ton Portable Gantry Crane Meet Your Needs functionally or financially

Maybe the final lifting equipment is not what you need at very beginning , but after discussion and comparison , our lifting crane can meet your need! Both functionally or finally!

What we provide is a sanctifying solution but just the lifting equipment.

At very beginning, the 2 ton jib crane as shown in the below picture is what client looking for.Even though the one is not our product,we also would like to offer our help since we have plenty of experience for material handling equipment at metro construction site.

2  ton jib crane inquiry

Dear Sir,

Hope you are fine.

We have requirement of below type of Crane for Mauritius Metro project. Do you manufacture these types of cranes?

 2 ton jib crane required

Based on the features of the 2 ton jib crane required by client, the 2 ton portable jib cranes are suggested.

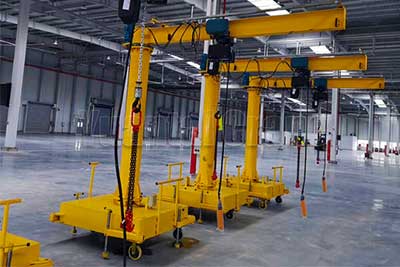

We have a similar mobile jib crane, please check the photo for your reference.

If you need quotation, we can send our mobile jib crane for you.

 2 ton portable jib cranes for sale

“Adventurous spirits who are always eager to explore and embrace new chances and experiences “ . The client was very happy to know the 2 ton portable jib crane solution and their price accordingly. With their help, the detailed specifications of the portable jib cranes are confirmed quickly.

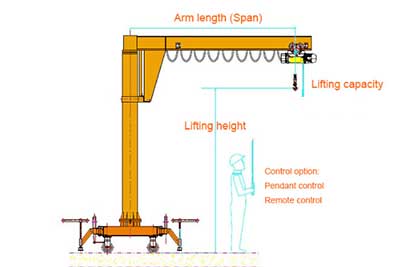

 2 ton portable jib crane specification confirmation

• Lifting capacity: 2 tons
• Arm length: __ 3__ m (Max. length is 3 meters)
• Lifting height: _ 3___ m  (Max. height is 3 meters)
• Power supply you have:  400V 3 Phase

Based on the needs, the 2 ton portable jib crane price is quoted accordingly.

Portable crane design changed with your requirements and needs

Hope you are doing well and happy New year!
Pls confirm the jib crane type of this new inquiry:

Lifting capacity:4-5t
Lifting height:?m 3 m. Please check the attached pic for more clarity.
Arm length:max. length up-to 6 meters
Arm need rotated(360°? 270°？ 180°？) or fixed type? 360°
Crane type: mobile Jib Crane or Pillar Mounted Jib Crane?Movable Crane
We will update the quotation and drawing for you.
Before updating quotation and drawing for us, please confirm that with these parameters you have Crane available with you.
After your confirmation, for the Crane availability with the mentioned parameters, I will just take up with the Client and will update you to send quotation and drawing accordingly.

If any issues or problem, we can have a team meeting for a better understanding.

As for the new inquiry, the arm length,also refers to the travelling length of the electric hoist,  is 7 meters. As mentioned above, the maximum arm length of the 2 ton portable jib crane is 3 meter. And the arm length can be longer when the the lifting capacity lowered such as, 1 ton or 500kg. As for this situation, the 2 ton portable jib crane with 7 meters arm length is not practical. However, based on the particular lifting requirement and conditions, the 2 ton portable gantry cranes are suggested to the client, which not only meet client’s needs functionally and finally.

Comparison of portable jib cranes & portable gantry cranes

Here are some comparisons between portable jib cranes and portable gantry cranes:

• Weight Capacity: Portable gantry cranes have a higher weight capacity compared to portable jib cranes. Gantry cranes can lift heavier loads, while jib cranes are used for lighter loads.
• Coverage Area: Portable jib cranes have a circular coverage area around the mast, while portable gantry cranes have a linear coverage area along the beam. Jib cranes are suitable for lifting materials in a specific area, while gantry cranes can cover a larger area.
• Structures: Portable jib cranes consist of a vertical mast and a horizontal boom, while portable gantry cranes consist of two uprights and a horizontal beam. Gantry cranes have a wider base compared to jib cranes, which makes them more stable.
• Mobility: Both jib cranes and gantry cranes are designed to be easily moved and set up in various locations. However, jib cranes are generally smaller and more lightweight, which makes them easier to move around.
• Applications: Jib cranes are commonly used for lighter lifting applications in workshops, warehouses, and loading docks, while gantry cranes are used for heavier lifting applications in construction sites, manufacturing facilities, and warehouses.
• Cost: Portable jib cranes are generally more affordable than portable gantry cranes due to their smaller size and weight capacity. Gantry cranes are more expensive because they can lift heavier loads and cover a larger area.

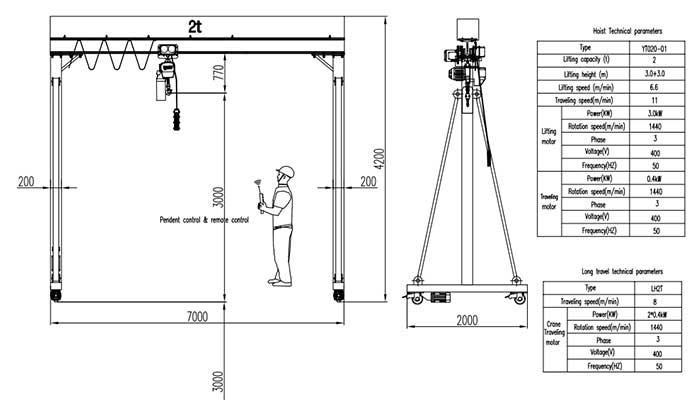

Crane drawing updated with new requirements

Main specification of  portable gantry crane for metro application

• Capacity : 2 ton
• Crane span: 7 meters
• Lifting height: 3+ 3m ( 3 meter above the ground + 3 meters underground )
• Lifitng speed: 6.6 m/min
• Travelling speed: 11
• Gantry travelling: electric motorized travelling

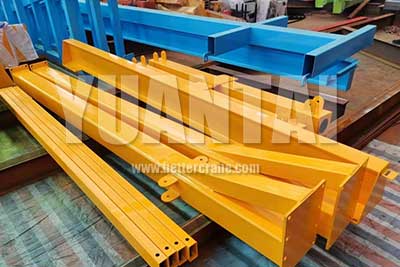

 2 ton portable gantry crane main steel structures

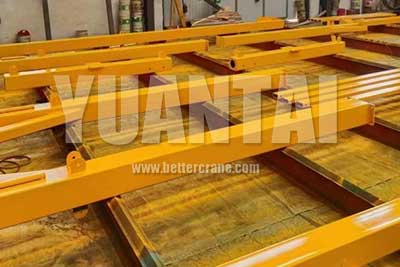

 Main gantry structure painting

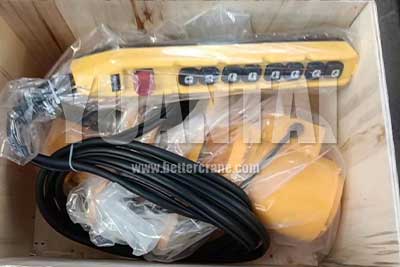

 Pendant crane control for 2 ton portable gantry crane

Electric  cahin hoist 2 ton and parts for portable gantry

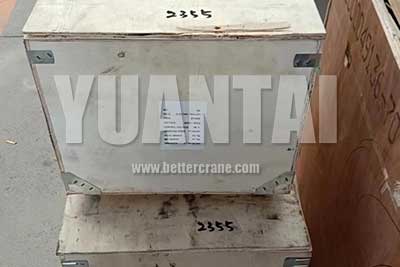

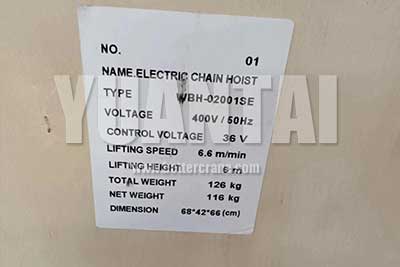

  Gantry hoist packed in the box with side mark

 2 ton portable gantry cranes, electric hoists, and parts packed for delivery

Inspection of 2 ton portable gantry cranes

Dear Lareina,

Hope you are fine.

Kindly share the Inspection test Plan (ITP) for this crane.

Also inform if you could arrange the third-party inspection by yourself.

Regards,

Rohit

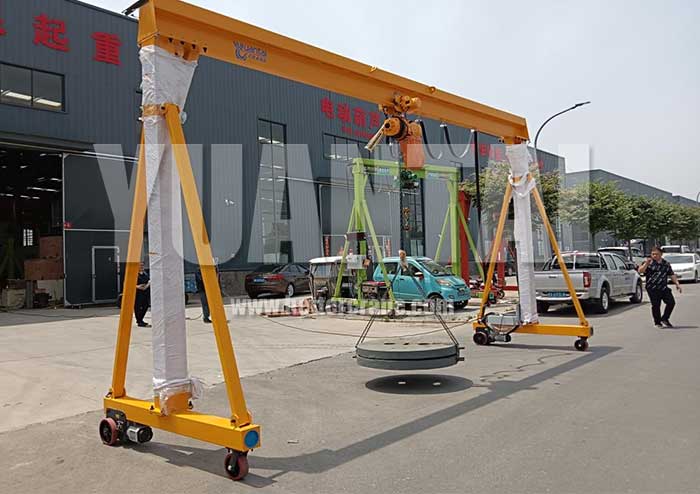

 2 ton portable gantry cranes

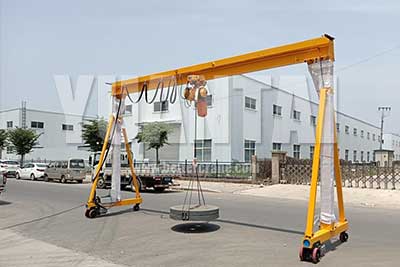

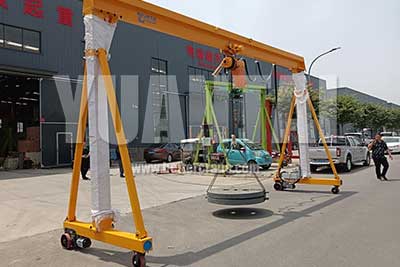

 Load testing of 2 ton portable gantry crane

Features of 2 ton portable gantry crane

As for the 2 ton portable gantry cranes, one of the most signification features is the typical application conditions where the lifting operations concerns the underground operations.

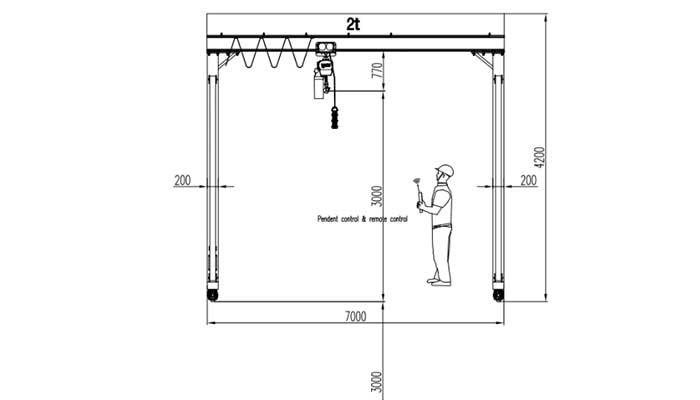

 lifting height of the 2000kg gantry crane is 3 meters + 3 meters

For the lifting height will largely affect the gantry crane design and gantry hoist design. For   the upper ground height and underground height will all together will affect the lifting height of lifting crane hoist, and the lifting height will defines the length of wire rope , and eventually affect the weight of the crane hoist, and then it will affect the design of the portable gantry crane height and supporting loads.  Therefore it is important to confirm the actually lifting height of lifting cranes.

How to confirm the lifting height when your material handling involving upper and underground operations?

When material handling involves both upper and underground operations, it is important to confirm the lifting height to ensure safety and avoid accidents. Here are some steps to confirm the lifting height:

• Measure the distance: The first step is to measure the distance between the upper and underground areas. This can be done using a measuring tape or other measuring tools.
• Determine the maximum lifting height: Once the distance is measured, you can determine the maximum lifting height required for the job. This will depend on the height of the upper area, the depth of the underground area, and any other factors that may affect the lifting height.
• Check for obstructions: Before lifting any materials, it is important to check for any obstructions that may interfere with the lifting process. This includes overhead power lines, tree branches, and other obstacles that may be in the way.
• Use proper lifting equipment: When lifting materials between upper and underground areas, it is important to use proper lifting equipment such as cranes, hoists, and slings. This will help to ensure that the materials are lifted safely and securely.
• Follow safety guidelines: It is important to follow all safety guidelines and regulations when working with lifting equipment. This includes wearing appropriate personal protective equipment (PPE), following safe work practices, and ensuring that all equipment is properly maintained and inspected before use.

By following these steps, you can confirm the lifting height and ensure that your material handling operations involving upper and underground areas are conducted safely and efficiently.
