Single & Double Girder Crane Kit for Sale Myanmar 3 Ton & 10 Ton
3 ton single girder overhead crane kit & 10 ton double girder overhead crane kit for sale Myanmar with no main girder, cost-effective bridge crane solution
HD Series of single girder overhead crane
Our company has developed an advanced HD Single Girder Overhead Crane product that adheres to international standards such as DIN (Germany), FEM (European), and ISO (International). This crane boasts a strong rigidity and light weight, and its outstanding design structure allows for effective space and cost-saving investments. Its special traveling structure makes it the optimal choice for machinery manufacturing, metallurgy, petroleum, petrochemicals, ports, railways, civil aviation, electricity, food, paper, building material, electronic industries, warehouses, and other material handling applications. The crane is designed for use with ND type steel wire rope electric hoists and has a rated lifting capacity of 3.2t~16t. It is particularly well-suited for applications that require precise positioning of materials, such as handling large parts and precision assembly. The HD Single Girder Overhead Crane can operate in temperatures ranging from -25 to 40℃.

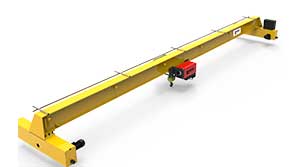

HD Single Girder Overhead Crane
- Loading Capacity: 1 ton to 20 ton
- Max. Lifting Height: 6m~30m
- Span: 7.5m~35m
- Control model: Pendant pushbutton control or remote control
- Product description: HD Single Girder Overhead Crane is our company has developed the word's advanced level single girder overhead crane product.
HD single girder overhead crane, customized for client from Myanmar with the following specifications
The client from Myanmar needed two 3-ton single girder overhead cranes for their manufacturing facility in Yangon. They required cranes that could handle heavy loads, had precise positioning capabilities, and were easy to operate.
The European style HD series of 3-ton single girder overhead crane for sale Myanmar can fully meet their requirements. The 3 ton overhead crane is designed to handle loads up to 3 tons and features a single beam that runs the length of the crane and supports the hoist and trolley. The crane is equipped with a special traveling structure that allows for precise positioning of the load. It also complies with international standards such as DIN (Germany), FEM (European), and ISO (International).
For lowering transportation cost , an economical solution is provided that the main girder will be produced and assembled according the manufacturing drawing provided by Yuantai crane by themselves. In this way, the transportation cost will be saved a lot.
3 ton bridge crane kit customized for project in Myanmar
- Main specification: HD3T-7.71M H12M
- Lifting capacity: 3 ton
- Crane span: 7.71 m
- Lifting height: 12m
3 ton bridge crane kit customized for project in Myanmar
- Main specification: HD3T-7.71M H18M
- Lifting capacity: 3 ton
- Crane span: 7.71 m
- Lifting height: 18m

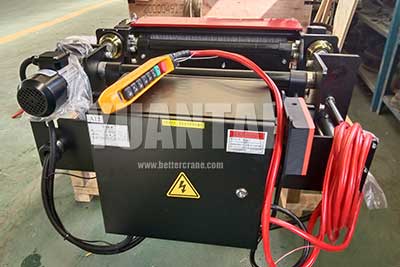

Europan style electric hoist and control of 3 ton overhead crane kit with 12 m lifting height

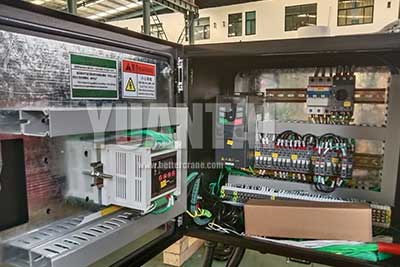

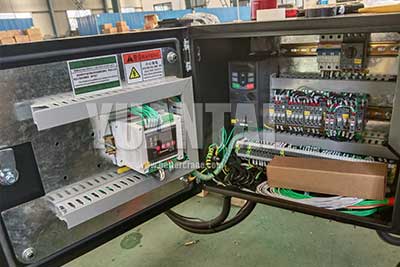

Electric cabinet fo 3 ton 12 m overhead crane kit project in Myanmar

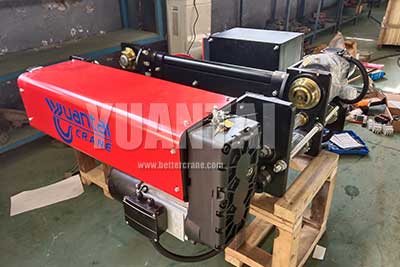

3 ton 12 m electric hoist for single crane kit for sale Myanmar

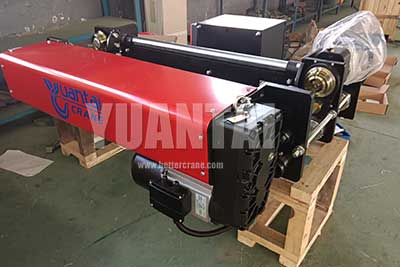

3 ton 18 m single girder crane kit - electric hoist
3 ton 18 m low headroom design electric hoist for 3 ton single girder bridge crane kit
3 ton overhead single girder eot crane kit

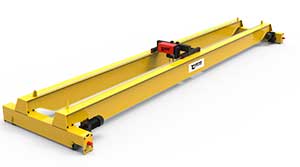

European style double girder overhead crane kit with European style hoist trolley
The European style double beam bridge crane is designed to maximize factory space by minimizing the headroom and the limit distance between the hook and the two side walls. The European design concept reduces the overall weight of the crane, resulting in significant cost savings for the plant. The crane features advanced double speed or frequency double speed control, ensuring stable start, acceleration, and deceleration of the crane, and minimizing the swing of the loaded goods. This results in faster and more accurate loading positioning.
The ground control of the crane features a suspension type controller with ergonomic design, allowing operators to control the crane from any convenient location within the span range. Wireless remote control is also available for the safest and most efficient operation and control mode.
- 10 ton bridge crane customized for Myanmar
- Main specification: HD3T-7.71M H9M
- Lifting capacity: 10 ton
- Crane span: 7.71 m
- Lifting height: 9m

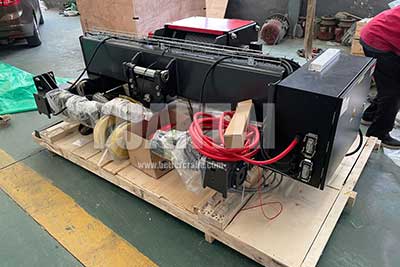

10 ton overhead double girder crane kit - hoist part
10 ton double girder overhead crane kit - end carriage

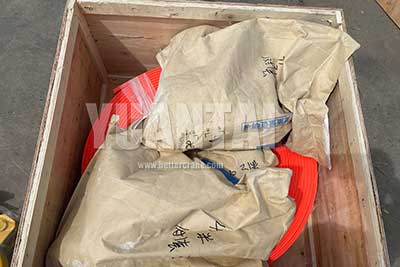

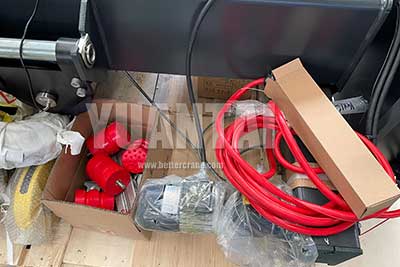

Hoist, control, wires, buffers and other parts for 10 ton double girder overhead crane kit

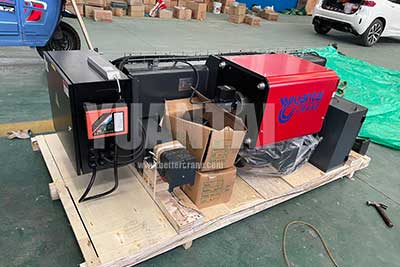

10 ton doulble girder crane kit What is an overhead crane kit?
An overhead crane kit is a set of components that includes the main structural components, hoist and trolley, electrical controls, and other necessary items to construct an overhead crane system. These kits are designed for those who want to build their own crane system rather than purchasing a pre-built crane.
1. What are the main components included in an overhead crane kit?
An overhead crane kit typically includes several main components that are necessary for the crane to function properly. These components may vary depending on the specific manufacturer and model, but some common components include:
- Bridge: This is the main horizontal beam that spans the length of the crane and supports the hoist and trolley.（ For some clients from overseas, who have the ability or experiences to produce the steel beam by themself, they prefered to produce the main girder according to the drawing by themself or they would like to have the steel mill plate produce the crane girder locally. This is a very economical solution. )
- Hoist: This is the lifting mechanism that is used to raise and lower the load. It typically consists of a motor, drum, and wire rope or chain.
- Trolley: This is the mechanism that moves the hoist along the bridge.
- End trucks: These are the components that support the bridge and allow it to travel along the runway.
- Runway: This is the track that the crane travels on, and it is typically mounted to the ceiling or walls of the building.
- Controls: These are the devices used to operate the crane, such as pendant controls or radio remotes.
- Electrical components: These include wiring, motors, and other electrical components necessary for the crane to operate.
It's important to note that some kits may include additional components, such as safety features or specialized controls, depending on the intended use of the crane.
2. Can an overhead crane kit be customized to fit specific needs?
Yes, an overhead crane kit can be customized to fit specific needs. Overhead crane kits typically come with standard components such as bridge beams, end trucks, hoists, and controls. However, manufacturers often offer customization options to accommodate unique requirements such as increased capacity, special lifting devices, or specific operating environments. It is important to consult with the manufacturer or a qualified engineer to ensure that the customized kit meets all safety and performance standards.
3. Is it difficult to assemble an overhead crane kit?
Assembling an overhead crane kit can vary in difficulty depending on the specific kit and the level of experience of the person assembling it. Some kits may come with detailed instructions and be relatively easy to assemble, while others may require more technical expertise and experience. It is important to carefully review the instructions and any safety guidelines before attempting to assemble an overhead crane kit. Additionally, it may be helpful to seek assistance from a professional if you are unsure about any aspect of the assembly process.
4. Are there different types of overhead crane kits available for different applications?
Yes, there are different types of overhead crane kits available for different applications. The type of kit you need will depend on factors such as the weight and size of the materials being lifted, the height and distance the materials need to be moved, and the environment in which the crane will be used. Some common types of overhead crane kits include single girder cranes, double girder cranes, gantry cranes, and jib cranes. Each type of crane has its own unique features and benefits, so it's important to choose the right one for your specific needs.
