3.2 Ton Freestanding Jib Cranes for sale Australia

3.2 ton jib crane for sale Australia,Demag Jib Crane Standard, China Jib Crane Price. 3.2 ton jib crane design & jib crane foundation solution for your reference to get your quality and cost-effective material handling jib crane design.

Background of Australian 3.2 ton jib crane client

P*** Pty Ltd, is a professional conveyor manufacturer with a history dating back to 1880. As a benchmark in the industry, it designs and manufactures conveyors for mines, ports and other large bulk material processing plants. It is the world's largest manufacturer of high-quality conveyors and an industry leader. Factories are located in Australia, Canada, the United States, Chile, Brazil and other countries.

Timeline of Cooperation

This cooperation on the 3.2 ton free standing jib crane  is the second cooperation for the Australian client and Yuantai Crane.

• Inquiry time: December 12, 2019
• Customer PO time: May 14, 2020
• Advance payment due date: June 4, 2020
• Final payment received: September 25, 2020

Initial inquiry on 3.2 ton jib crane.

First letter, Yuantai Crane has received on the 3.2 5ton jib crane as following :

You were selected as a potential supplier for the delivery of a 3.2T Jib crane in Australia.

Please read carefully below specification and prepare your best quote according to following requirements:

• 3.2T Free Standing Jib Crane
• Type: Pillar Mounted Jib Crane
• Crane Class: c3/M5+
• Capacity: 3,200 KG
• Height of Lift: 3,728 mm
• Swing: 6,000 mm
• Height u/S Jib: 4,500 mm
• Overall Height: 5,102 mm
• Slew: 180 Deg.Powered
• Slew Speed: 0.57 RPM
• Hoist Type: Electric Chain Hoist
• Hoisting speed: 4 / 1 m/min
• Trolley Speed: 14/ 3.5 m/min
• Control Type: Hoist Suspended Pendant.
• Paint Specification: Crane Structure Alkyd Resin to 75 microns -Traffic Yellow
• Lead Time (Ex works): very Urgent! Please inform
• Warranty Period: 12 months
• Operating Conditions: Indoors
• Quantity: One (1)
• Scope of Supply
• Crane structure, hoist, end carriages, wheels, drives & electrics

Manuals and Documentation

Documentation:

The following standard documentation is included;-Test manual with EC-Certificate of Conformity-General Arrangement drawing of the crane

- Operation, Maintenance & Spare Parts manual in electronic form

Quality Control:

The quality of PEMAG products is guaranteed by means of a Quality Assurance System in accordance with DIN ISO 9000/ EN 29001.

Compliance:

The crane structure will be designed to DIN 15018

Interpretation of inquiry parametersof 3.2 ton cantilever jib crane

•  European configuration
• The customer may have inquired about the price of Demag, and then send the parameters of Demag to other suppliers for inquiry.
• The project is in a hurry, urgent! It seems that all the projects of the customer are urgent!
•  Initial quotation on 3.2 ton free standing jib cranes

Initial 3.2 ton jib cranes and price quotation

After several communications emails and details confirmed, our engineer provided the following design of the 32. ton jib crane for the Australian client.

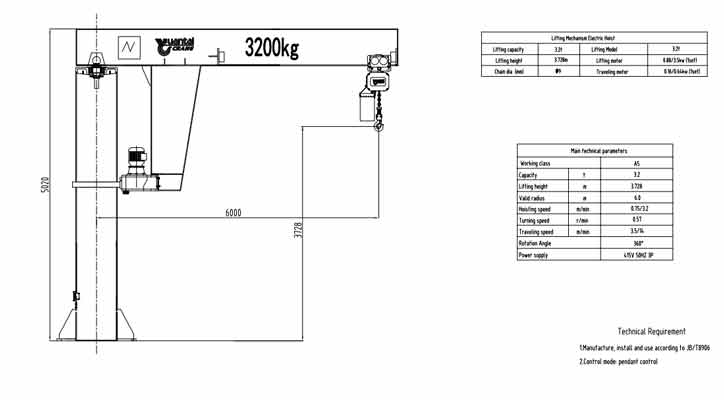

3.2 ton jib crane design drawing for Australian client

Pillar Jib Crane

• Capacity=3.2 ton
• Valid Working Radius=6mlifting height= 3.728 m
• crane Slewing: Electrically
• Hoist: European type Electric chain hoist
• working Class: A5
• Voltage : 415v 5ohz 3p
• Color: Traffic Yellow
• china Port Charge by LCL container

Further communications on foundation of 3.2 ton floor mounted jib cranes

Good day Sandy

Please could you make it Shanghai port

Also, could you please send through the foundation drawing for the 3.2T jib crane

Please find enclosed our drawing and specification which has been sent to David last December.

l want to know you would ask your local supplier to follow our foundation design or ask them to design the foundation by themselves, if you prefer to design the foundation by your local supplier, we will need to change jib crane accordingly to accommodate.

Sandy

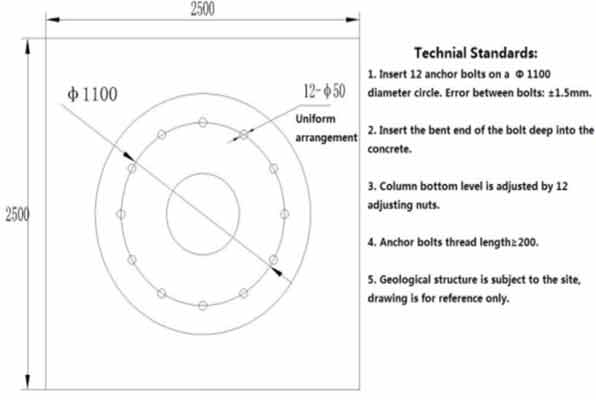

Initial foundation design for 3.2 ton jib crane for sale Australia

Initial foundation design for 3.2 ton jib crane for sale Australia

Good day Sandy

Hope this email finds you well

We had engineers design the foundation for the 3.2T Jib Crane and the one requirement is to manufacture a plate that fit the steel column base of the jib crane

our supplier that will be making this plate would like :" to make sure they put the bolt holes to suit this layout .

The layout is from their provided drawing but it did not really have 100% accurate sizing.So just to make 100% sure"

First two attachments you sent us. Please could you review the 3 rd attachment to ensure that it ill ft the 3.2TJio crane steel column base(the holes in particular)

3.2 ton jib crane foudnation drawing

Cooperation achieved

Good day Sandy

Thank you very much for all the information, please find attached the PO for the 3.2T Jib Crane

Please could you assist with the following:

1. Send through a timing plan (to include timing on manufacture, FAT and packaging)2. Send through preliminary packing dimensions

a. Once we finalise the shipping details with our forwarder we will send through the PO for USD 6o (China port charge and transport FOB Shanghai Port)

lf you have any queries regarding the above, please let me know.

Thank you

3.2 ton pillar jib cranes packed for delivery to Australia

All of the steel material of 3.2 ton floor mounted jib crane is pre-processed by shot blasting  and carefully derusted.

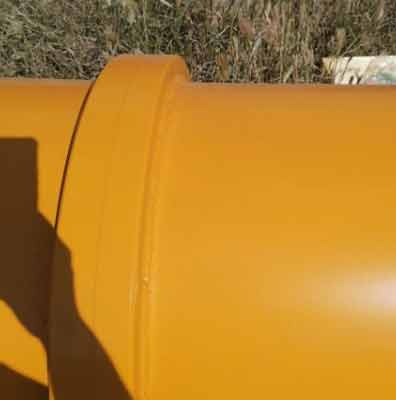

3.2 ton pillar jib crane rotating part

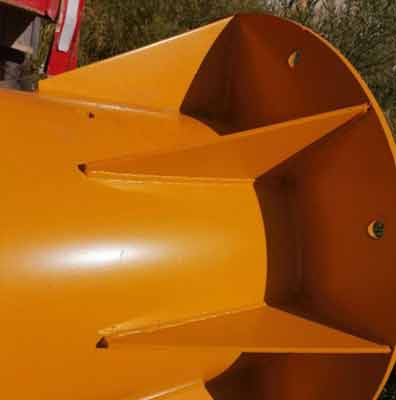

3.2 ton pillar jib crane steel plate detail picture

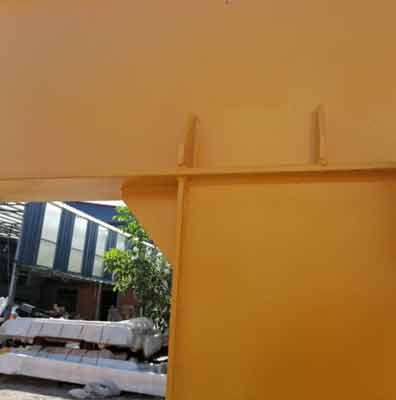

3.2 ton pillar jib crane detail picture

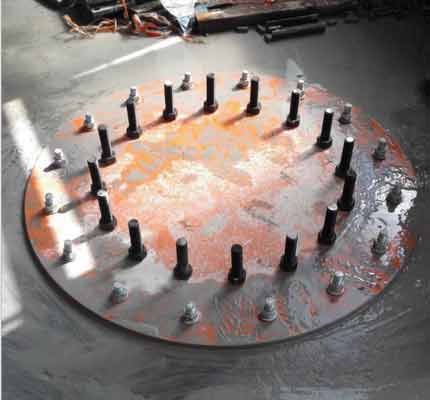

3.2 ton pillar jib crane steel plate detail pictrue

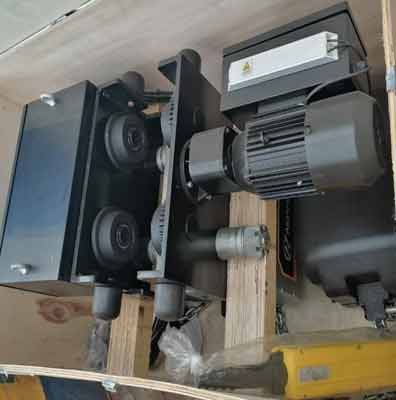

3.2 ton pillar jib hoist and trolley

3.2 ton pillar jib crane electrical box

If you are in need of a jib crane, either floor mounted jib crane or wall mounted or travelling jib crane, please feel free to contact us. We will provide the jib crane which will well suit to your application and meet your lifting requirement. And also, we can manufacture the jib crane you need based on your jib crane design drawing. Hope the 3.2 ton jib crane project sharing will be helpful for your selection of your jib crane. Contact us today to check what we can do for you!
