Customized 3 Ton Portable Gantry Crane for Sale in Australia

A customized 3-ton portable gantry crane in Australia, designed for flexible, efficient lifting with 4m span and height.

This case study explores the design, customization, and application of a 3 Ton Portable Gantry Crane developed for a client in Australia. The crane’s specifications include a 3-ton lifting capacity, a 4-meter span, and a 4-meter lifting height, powered by a 415V, 50Hz, 3-phase power supply. The crane was designed to provide a mobile, flexible, and safe solution for lifting heavy components within a workshop setting.

Client's Operational Requirements

The client, an Australian industrial manufacturer, faced several challenges that required a specialized lifting solution. These challenges included:

  • Heavy Lifting Needs: The client regularly needed to move components weighing up to 3 tons in various areas of their workshop.
  • Space Constraints: The workshop space was compact, necessitating a crane that could operate effectively without obstructing other machinery or workflows.
  • Portability: The crane had to be easy to move and relocate for different lifting tasks, ensuring flexibility in a dynamic workshop environment.
  • Power Compatibility: The crane had to be designed to work with the standard 415V, 50Hz, 3-phase power supply used in the Australian industrial sector.

Design and Features of the 3 Ton Portable Gantry Crane

The 3 Ton Portable Gantry Crane was customized to meet the client's specific requirements. The crane's design integrates key features that enhance performance, safety, and mobility.

The crane is designed to lift up to 3 tons, making it suitable for heavy-duty lifting applications. It is ideal for moving medium-weight components such as machinery parts, heavy materials, and equipment.

With a 4-meter span, the crane provides enough clearance to maneuver large components and ensures efficient coverage of the workshop. The 4-meter lifting height ensures the crane can lift components to the required height without interference from overhead obstacles.

The crane is built with adjustable legs and casters, allowing it to be easily relocated across the workshop. The modular frame can also be disassembled for storage or transport, making it ideal for mobile use.

The crane is constructed with high-strength steel to support heavy loads while maintaining structural integrity. The frame is coated with a corrosion-resistant finish, ensuring durability even in harsh workshop conditions.

Operated by a 415V, 50Hz, 3-phase electrical system, which is standard for industrial applications in Australia, the crane features an electrical hoist that provides smooth and reliable lifting capabilities. The hoist is controlled via a wireless remote, allowing operators to move loads safely from a distance.

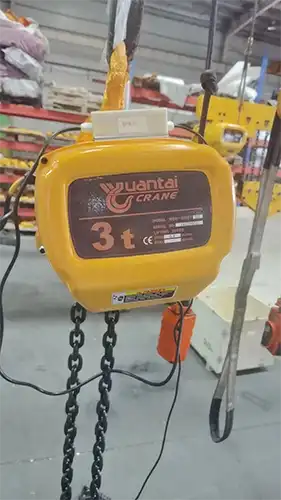

single girder overhead crane 3 ton electric hoist

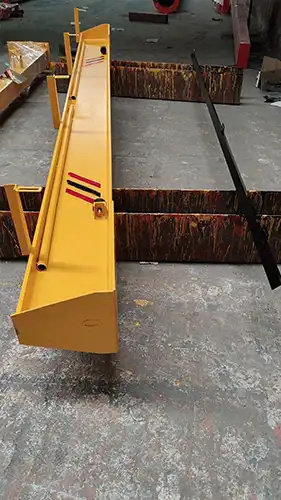

underhung overhead crane main girder
single girder overhead crane gantry legs

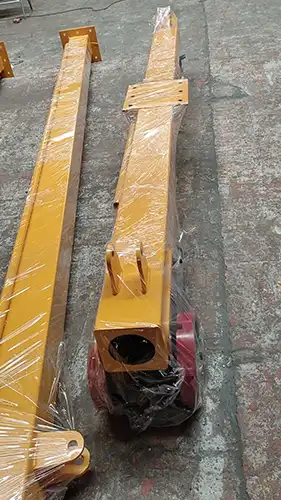

underhung overhead crane ground beams

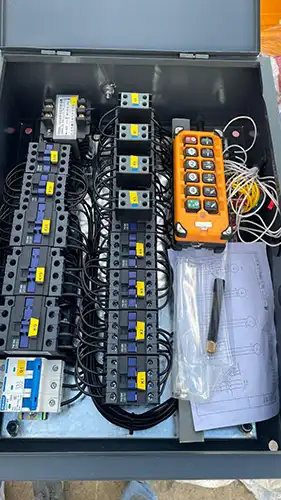

single girder overhead crane electrical box

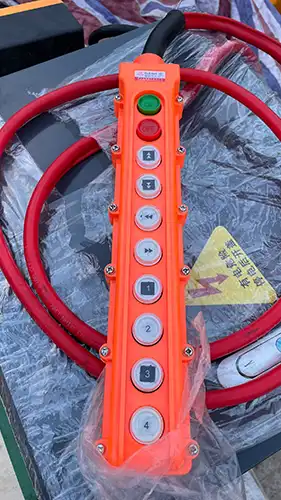

underhung overhead crane pendant control

Addressing the Client’s Challenges

  • Space Constraints To fit the available workshop space, the crane was designed with a low profile and compact structure, maximizing its functionality without occupying unnecessary space. The adjustable span and height options allow the crane to be customized further if space or operational needs change in the future.
  • Portability and Flexibility The crane is equipped with heavy-duty casters that allow it to be easily maneuvered to different areas of the workshop, increasing operational flexibility. Its easy assembly and disassembly features enable the crane to be stored or transported without hassle.
  • Environmental Factors The crane was treated with a high-quality anti-corrosion coating, ensuring it can withstand the potential hazards of dust, moisture, and chemicals typically found in industrial environments. The steel construction, combined with the corrosion-resistant coating, ensures the crane’s reliability and longevity in demanding conditions.

Installation and Testing

  • The installation and commissioning of the 3 Ton Portable Gantry Crane were completed with minimal downtime.

  • Quick Setup The crane's modular design made the installation process straightforward, requiring only basic tools for assembly. It was installed and tested on-site within a few hours, ensuring that the client could quickly put the crane into use.
  • Load Testing and Safety Compliance The crane underwent thorough load testing to verify that it could safely handle the maximum capacity of 3 tons. It was also subjected to a comprehensive safety inspection to ensure compliance with Australian industrial standards, including stability checks and electrical system verification.

Performance in the Client’s Operations

Once installed, the crane quickly became a critical tool in the client’s workshop operations.

  • Efficient Lifting Operations The 3-ton lifting capacity allowed the client to easily handle heavy parts and equipment, significantly improving productivity. The 4-meter lifting height and span enabled the crane to access hard-to-reach areas and perform a variety of lifting tasks.
  • Flexibility and Mobility The crane’s portability allowed it to be moved between workstations, enabling quick and easy transfer of loads without interrupting other processes. This mobility enhanced workflow efficiency, as operators could position the crane exactly where it was needed without delay.
  • Operator Safety The crane’s remote control system minimized operator exposure to potential hazards, ensuring a safer working environment. By reducing manual intervention, the system also improved ergonomics and reduced operator fatigue.

Benefits Realized by the Client

  • Increased Productivity The crane's portability and lifting capacity streamlined operations, reducing time spent on manual lifting and improving overall workflow. The crane’s ability to easily move between workstations minimized downtime and maximized productivity.
  • Cost Efficiency The customized design allowed the client to invest in a crane that fit their exact needs without overpaying for unnecessary features. The corrosion-resistant coating and high-strength materials reduced maintenance and repair costs, offering a long-term solution for the client.
  • Operational Safety The remote control system and robust construction of the crane contributed to a safer working environment, reducing the risk of accidents associated with manual lifting and crane operation. The crane met all safety standards, ensuring compliance with Australian regulations and providing peace of mind to the client.

Conclusion

The 3 Ton Portable Gantry Crane has proven to be an invaluable asset to the client in Australia, delivering significant improvements in productivity, safety, and cost-effectiveness. By customizing the crane’s design to meet the specific needs of the client’s workshop, the solution not only addressed their immediate lifting challenges but also provided long-term value. This case study demonstrates how tailored lifting solutions can transform operations in compact, dynamic environments.

For more information on the 3 Ton Portable Gantry Crane for Sale in Australia or to inquire about customization options, please contact us today.
