5 Ton Pillar Mounted Jib Cranes for Dam Maintenance

Customized 5-ton pillar jib cranes support efficient, safe dam maintenance with high lifting capacity and 360° rotation for accessibility.

Introduction to Pillar Mounted Jib Cranes in Dam Maintenance

Overview of Dam Maintenance Needs

Maintaining a dam is a specialized job that requires careful planning and the right equipment. Dams are vital structures that help control water flow, provide water for irrigation and drinking, and generate hydroelectric power. Over time, these structures need regular maintenance to ensure they continue to function safely and efficiently.

Some key tasks in dam maintenance include:

• Inspecting and Repairing the Structure: This involves checking the concrete, metal parts, and other elements of the dam for any damage and making repairs as needed.
• Maintaining Hydraulic Systems: Dams have gates and turbines that need regular maintenance to make sure they operate smoothly and safely.
• Handling Heavy Equipment: Large machines and replacement parts often need to be moved around the dam for repair or replacement.
• Working in Difficult Locations: Some parts of the dam may be high up, deep underground, or in confined spaces, requiring specialized equipment to access and perform the work.

In these demanding environments, cranes are essential for moving heavy loads, tools, and equipment. They help workers reach difficult areas safely and efficiently, especially in wet, high, or hard-to-reach locations.

Importance of Customized Jib Cranes

Customized pillar-mounted jib cranes are ideal for dam maintenance due to their ability to handle the unique challenges that come with working on dams. Here’s why these cranes are so valuable:

• Flexibility: These cranes can rotate 360°, which means they can move loads around tight spaces and reach different areas of the dam. This is especially helpful in places with limited access, where flexibility is key.
• Tailored for Specific Needs: Customized jib cranes are designed to meet the exact requirements of the dam maintenance tasks. Whether it’s lifting capacity, height, or reach, these cranes can be built to handle the specific demands of the project.
• Safety and Durability: Safety is a top priority when working on critical infrastructure like dams. Customized jib cranes come with features like overload protection and automatic shutoffs to prevent accidents. They are also built to last, with strong materials and protective coatings that can handle tough conditions like moisture and fluctuating temperatures.
• Heavy Lifting: Dam maintenance often requires moving large and heavy objects, such as equipment or parts. Customized jib cranes are designed to lift these heavy loads safely and efficiently, ensuring smooth operation even with challenging materials.
• Accessing Hard-to-Reach Areas: Working on a dam means accessing areas that are often high up, deep underground, or in confined spaces. Pillar-mounted jib cranes are perfect for these tasks because they can be positioned in tight spots and provide a safe, stable lift for workers and materials.

In summary, customized pillar-mounted jib cranes are the perfect solution for dam maintenance. They offer the flexibility, safety, and power needed to handle the specific challenges of dam work. By tailoring the cranes to the task at hand, they ensure smoother operations and help maintain the dam’s long-term functionality.

Technical Specifications of the Jib Cranes

• Crane Type: Pillar Jib Crane with 360° Rotation
• Crane Capacity: 5 Ton
• Crane Span: 6.5m Outreach
• Lifting Height: Max Lifting Height 41m (6m Column Height + 35m Below Ground)
• Quantity: 2

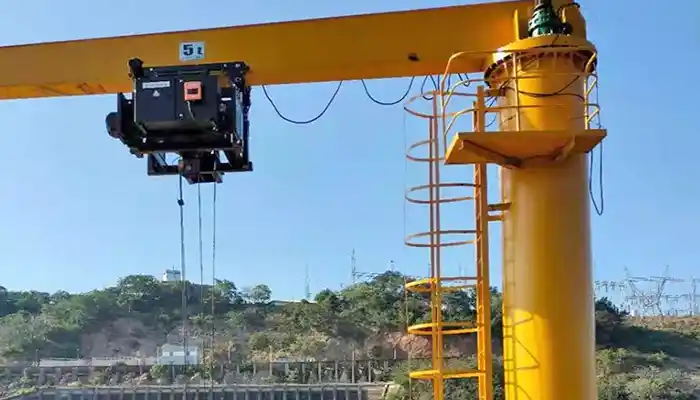

Similiar project on 5 ton pillar mounted jib crane for dam maintenance  for your reference

Crane Type: Pillar Jib Crane with 360° Rotation

The pillar-mounted jib crane is designed to be mounted on a solid base, usually on the floor or ground, and allows for a full 360° rotation. This feature is essential for dam maintenance tasks where the crane needs to reach multiple points without repositioning. With its rotating arm, the crane can cover a large area and move heavy materials or tools to different locations around the dam efficiently. The 360° rotation increases flexibility, making the crane highly adaptable to the demanding and confined spaces typically found on dam sites.

Crane Capacity: 5 Ton

The crane is capable of lifting up to 5 tons, which is an optimal capacity for many dam maintenance tasks. This includes lifting heavy machinery, replacement parts, and other large equipment used in inspections, repairs, and routine maintenance. The 5-ton capacity ensures that the crane can handle the required loads without strain, maintaining safety and operational efficiency during its use.

Crane Span: 6.5m Outreach

The crane has a span of 6.5 meters, which refers to the maximum horizontal reach of the crane's jib arm. This outreach ensures that the crane can cover a wide area without the need to reposition, making it ideal for working around large structures like dams. The 6.5-meter span allows the crane to access various parts of the dam for maintenance tasks while maintaining stability and precision.

Lifting Height: Max Lifting Height 41m (6m Column Height + 35m Below Ground)

The maximum lifting height of the crane is 41 meters, which is particularly important for dam maintenance that involves both above-ground and underground work. The 6-meter column height allows the crane to reach elevated positions, while the additional 35 meters of lifting capability below ground enables it to access deeper areas of the dam or surrounding infrastructure. This high lifting capacity ensures the crane can handle complex tasks that involve lifting objects from various levels, whether above or below ground.

Quantity: 2 Units

Two units of the pillar-mounted jib crane are required for efficient operation on the dam. Having two cranes ensures that there is minimal downtime in case one crane is being serviced or requires maintenance. It also provides greater flexibility, allowing one crane to operate while the other is set up in a different area of the dam, increasing overall productivity and reducing wait times. With two units, the dam maintenance team can perform tasks simultaneously in different locations, ensuring a quicker and more efficient maintenance process.

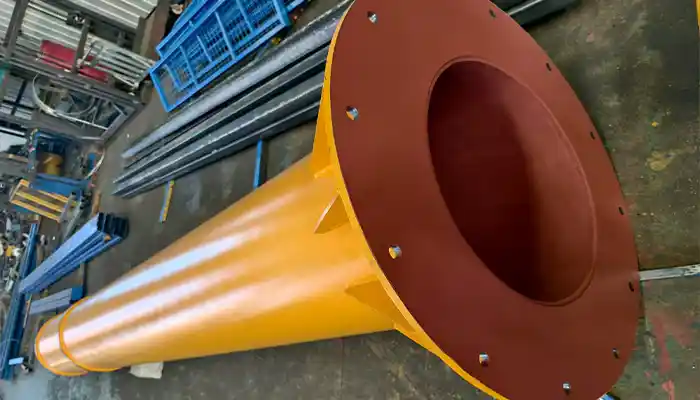

crane column of 5 ton pillar mounted jib crane

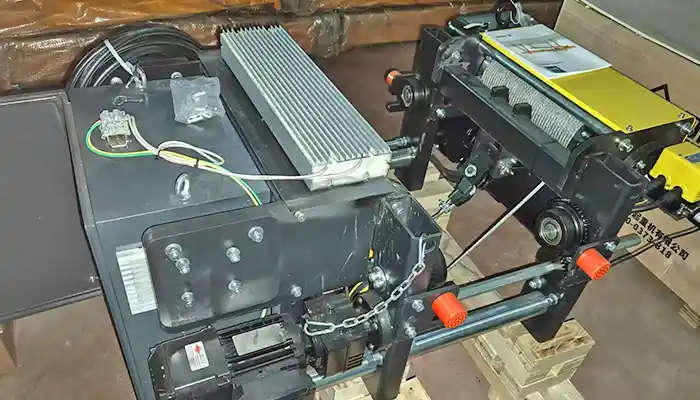

5 ton electric jib crane hoist

Purpose and Applications in Dam Maintenance

Specific Purpose

Pillar-mounted jib cranes play a critical role in supporting various maintenance and repair activities at dams. These cranes are specifically designed to handle the heavy lifting and intricate tasks required for the upkeep of dam infrastructure. Key purposes include:

• Handling Heavy Machinery and Replacement Parts: Dam maintenance often involves lifting and moving large, heavy machinery such as turbines, pumps, and motors. The 5-ton capacity of pillar-mounted jib cranes makes them well-suited for these tasks, ensuring the safe transport and positioning of vital equipment for maintenance or replacement.
• Supporting Structural Inspections and Repairs in Hard-to-Reach Areas: Dams are large structures with many hard-to-access areas, such as elevated platforms or confined spaces. Jib cranes help position workers and tools in these difficult-to-reach spots, ensuring that inspections and repairs can be completed efficiently and safely.
• Facilitating Maintenance of Hydraulic Equipment and Other Large Components: Hydraulic systems, which control water flow and power generation, are critical to dam functionality. These systems require regular maintenance, and pillar-mounted jib cranes assist in lifting and positioning heavy hydraulic components, such as valves and pipes, for repair and servicing.

Challenges in Dam Maintenance

Dam maintenance comes with unique challenges that demand specialized equipment, particularly cranes that can handle difficult conditions. Pillar-mounted jib cranes are designed to meet these challenges head-on:

• Working in High-Altitude Areas: Many dams are located in mountainous regions or at high elevations. This presents a challenge for maintenance workers who must operate in high-altitude conditions. Pillar-mounted jib cranes offer the necessary height and stability, allowing workers to access elevated sections of the dam safely and efficiently.
• Harsh Weather Conditions: Dams are often exposed to extreme weather, including heavy rain, snow, and strong winds. Customized jib cranes are built to withstand these harsh elements with weather-resistant materials and corrosion-resistant coatings, ensuring reliable performance even in the most adverse conditions.
• Complex Underground Structures: Many dams have intricate underground systems that require regular maintenance, such as water tunnels and foundations. Accessing these underground structures can be difficult, but pillar-mounted jib cranes with their high reach and maneuverability are perfectly suited to lift and position equipment in confined or submerged spaces.

By addressing these challenges, pillar-mounted jib cranes provide reliable, efficient, and flexible solutions for dam maintenance. Their customized design ensures that they can handle high-altitude work, adverse weather, and complex underground environments, making them indispensable tools for maintaining the structural integrity of dams.

Features of the Customized Jib Cranes for Outdoor Applications

Customization for Outdoor Environments

Customized jib cranes for dam maintenance are specifically designed to meet the challenges of working outdoors, often in harsh or hazardous conditions. These features make them highly suitable for use in environments exposed to weather, moisture, and other demanding factors:

Weather-Resistant Coatings and Anti-Corrosion Designs: Dams are typically located in areas that are exposed to extreme weather conditions, including heavy rain, snow, and high humidity. Customized jib cranes are equipped with weather-resistant coatings and anti-corrosion treatments to protect against rust, wear, and degradation. These protective features ensure the cranes maintain optimal performance and longevity even when subjected to challenging outdoor environments.

Enhanced Safety Features: Safety is critical when working with cranes, especially in outdoor or potentially hazardous environments. Customized jib cranes come with built-in safety systems, including:

• Overload Protection: Prevents the crane from lifting beyond its rated capacity, protecting both the crane and operators from potential accidents.
• Emergency Stop Systems: These systems allow for an immediate shutdown of the crane in case of an emergency, preventing further damage and ensuring the safety of workers.
• Stability Mechanisms: The crane’s base and foundation are designed for maximum stability, ensuring that the crane remains steady even in high winds or other unpredictable conditions.

Custom-Built Lifting Mechanisms: To accommodate the diverse tasks required in dam maintenance, these jib cranes are equipped with lifting mechanisms tailored to specific needs. Whether it’s lifting heavy turbines, moving large structural components, or positioning equipment in confined spaces, the crane’s lifting systems are designed for versatility and precision, making them suitable for a wide range of applications.

Durability and Longevity

The durability and longevity of pillar-mounted jib cranes are essential when working in the harsh conditions typically found around dams. These environments can include extreme weather, high moisture levels, and physical wear from constant use. Here’s how these cranes are built for resilience:

• Resistance to Extreme Weather: Outdoor cranes are exposed to various weather conditions, such as freezing temperatures, heavy rain, and intense heat. The customized jib cranes are built with robust materials, including weather-resistant steel and corrosion-resistant coatings, that ensure the equipment performs reliably regardless of temperature fluctuations or precipitation. This durability extends the lifespan of the crane and reduces maintenance needs, ensuring it remains functional over many years of use.
• High Moisture Resistance: Dams are often located near bodies of water or in areas with high humidity, which can accelerate corrosion. Customized jib cranes are designed with materials that can withstand high moisture levels without degrading. Additionally, seals and protective coatings are applied to prevent water from seeping into critical mechanical parts, ensuring smooth operation even in wet or submerged environments.
• Low Maintenance Requirements: The heavy-duty construction and special protective coatings of these cranes mean they require less frequent maintenance, even in harsh environments. This reduces downtime and ensures that the crane is always ready for operation when needed for maintenance tasks, making them a reliable and long-lasting asset to dam maintenance teams.

In summary, the customized jib cranes for outdoor dam maintenance are engineered to handle the most demanding conditions. Their weather-resistant designs, advanced safety features, and durable construction make them ideal for operating in challenging environments, ensuring reliability, safety, and longevity throughout their service life.

Safety Features and Standards

Safety Features

Safety is a top priority when operating jib cranes, especially in outdoor or hazardous environments like dam maintenance. These cranes are equipped with a range of advanced safety features to protect both the equipment and the workers involved in maintenance tasks:

• Anti-Collision Systems: Pillar-mounted jib cranes are often used in confined or crowded spaces, making collision risk a concern. Anti-collision systems use sensors to detect obstacles and automatically adjust crane movement to avoid collisions, minimizing the risk of damage to the crane and surrounding infrastructure.
• Load Limiters: To prevent overloading, load limiters are installed on the crane. These devices monitor the weight of the load being lifted and automatically stop the crane from lifting beyond its rated capacity. This ensures the crane operates within safe limits, preventing accidents caused by overloading.
• Emergency Stop Functions: Emergency stop systems are built into the crane’s control mechanisms. In case of an emergency, operators can instantly stop all crane functions, ensuring the safety of both the equipment and personnel. This feature is vital for quickly halting operations during unforeseen circumstances.
• Wind Speed Monitoring Systems: For outdoor applications, wind speed monitoring systems are critical to prevent crane operation in unsafe conditions. These systems measure wind speed and automatically disable the crane’s lifting functions when wind speeds exceed safe limits, preventing accidents caused by high winds.

Compliance with Safety Standards and Regulations

Safety in dam maintenance is not only a matter of best practices but also a legal requirement. Compliance with industry safety standards and regulations is essential for ensuring that crane operations meet or exceed safety expectations. These standards cover various aspects, including:

• Operational Safety: Regulations ensure that all equipment is designed, tested, and maintained to operate safely under all conditions, from normal operations to emergency scenarios.
• Worker Safety: Standards focus on the protection of crane operators and maintenance personnel, specifying safety features such as secure operator cabins, emergency systems, and fall protection.
• Environmental and Structural Safety: Since dam maintenance often takes place in high-risk environments (e.g., near water bodies, in extreme weather conditions), adhering to these standards ensures that cranes can function safely in such conditions without compromising the dam’s integrity.

Maintenance and Inspection Protocols

Routine maintenance and inspections are essential for keeping pillar-mounted jib cranes in optimal working condition, especially in demanding applications like dam maintenance. Regular checks help to identify and resolve potential issues before they cause downtime or equipment failure. Key maintenance protocols include:

• Routine Maintenance Schedules: Jib cranes should undergo regular maintenance according to a defined schedule. This includes checking critical components like hoists, motors, and structural integrity. Routine maintenance ensures all parts are in good working order and helps extend the crane’s lifespan.
• Inspections for Wear and Tear: Regular inspections should be conducted to check for signs of wear, corrosion, or other damage, particularly on outdoor cranes exposed to harsh environmental conditions. This includes checking for issues in the lifting mechanism, control systems, and safety devices. These inspections help identify problems early, reducing the risk of failures during operations.
• Preventive Measures: Preventive measures involve actions taken to avoid breakdowns, such as lubricating moving parts, cleaning components, and ensuring that safety systems are fully operational. Proper lubrication helps reduce friction and wear on crane components, improving performance and reducing maintenance costs.
• Significance of Regular Inspections for Critical Infrastructure: Given that cranes are used in critical infrastructure like dams, ensuring their continued safe operation is vital for the overall safety and functionality of the facility. Regular inspections and maintenance help to mitigate risks, such as structural damage or failure of lifting systems, which could lead to costly repairs or unsafe working conditions. By adhering to rigorous maintenance protocols, the cranes’ reliability and performance are guaranteed, which is especially important in environments where safety is paramount.

In conclusion, the safety features of pillar-mounted jib cranes, coupled with strict adherence to safety standards and regular maintenance protocols, ensure that these cranes can operate efficiently and safely in demanding dam maintenance applications. Regular inspections and preventative maintenance help minimize the risks of failure, ensuring the long-term reliability and safety of the equipment.
