What are the explosion-proof grades of explosion-proof cranes?

In order to ensure the safe production of enterprises, cranes installed and used in flammable and explosive environments must be explosion-proof single-girder cranes or explosion-proof bridge cranes produced by professional units with corresponding manufacturing license qualifications. The explosion-proof principle of explosion-proof cranes is to take corresponding measures to control the detonation source. Different flammable environments and explosive environments have different requirements for the explosion-proof grade of cranes. The editor of Yuantai Hoisting Machinery will explain the explosion-proof grade classification of explosion-proof cranes.

Explosion-proof cranes are classified and grouped according to the environment in which they are used and the high surface temperature allowed by the electrical enclosure.

1. The electrical equipment of explosion-proof cranes for explosive gas environments is divided into Class I and Class II according to relevant regulations. The corresponding explosion-proof cranes are classified as:

Class I: explosion-proof cranes for coal mines
Class II: Explosion-proof cranes for other explosive gas environments except coal mines.
Among them, Class II explosion-proof "d" and intrinsically safe "i" explosion-proof cranes are divided into IIA, IIB, IIC explosion-proof cranes.
For IIB class explosion-proof cranes, it can be applied to the use conditions of IIA class explosion-proof cranes; IIC class can be applied to IIA and IIB class explosion-proof cranes.

2. The electrical equipment of explosion-proof cranes used in combustible dust environments is divided into A type and B type according to relevant regulations, which are represented by DIPA and DIPB respectively. According to the temperature grouping, they can be divided into the following groups:

High surface temperature of electrical equipment of Class I explosion-proof cranes -When coal dust may accumulate on the surface of electrical equipment, it cannot exceed 150 degrees Celsius;When the surface of electrical equipment will not accumulate or measures (such as sealing dust or ventilation) can prevent coal dust from the regulations, it should not exceed 450 degrees Celsius.
The high surface temperature of electrical equipment of Class II and dust explosion-proof cranes is grouped as follows: T1-T6 are: 450, 300, 200, 135, 100, 85 degrees Celsius.

Manufacturers who purchase explosion-proof cranes must pay attention that the purchased cranes must meet the requirements for use to avoid potential safety hazards.The explosion-proof grade classification of explosion-proof cranes is organized and released by Yuantai crane manufacturers, hoping to help everyone.

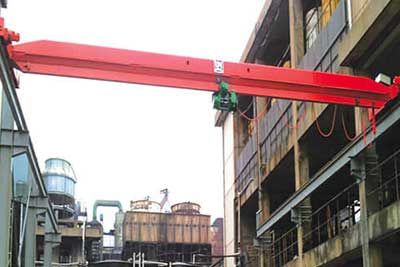

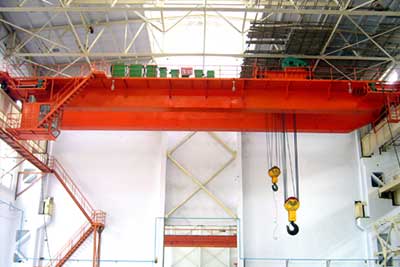

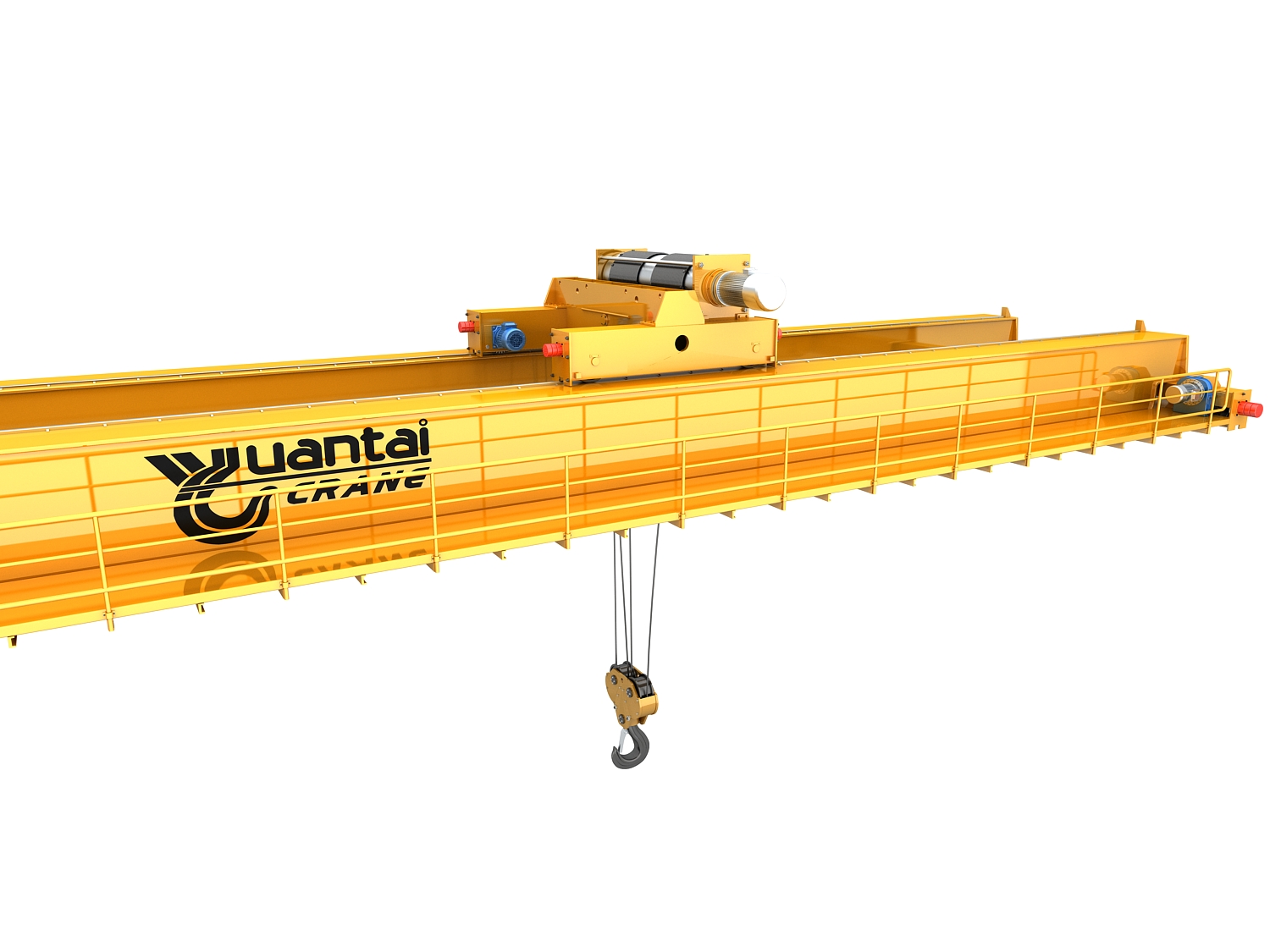

Explosion Proof Overhead Crane

We design and manufacture quality and cost-effective explosion proof overhead crane for safe and reliable lifting operation. The crane is suitable for severe working environments such as chemical plants, coal mine and factories where exist explosive or flammable substance. Backed by professional technical team, our overhead cranes can be custom designed and built to meet your individual requirements.
