Small Overhead Crane & Bridge Crane for Sale USA 10 Sets Good Price

Small Overhead Cranes 1 ton for Sale in the USA

A company specializing in the sale of industrial equipment was looking to expand their product offerings by adding small overhead cranes to their inventory. They wanted to find a reliable and cost-effective solution that would meet the needs of their customers.

After conducting extensive research, the company decided to source 10 sets of small overhead cranes with the following specifications:

• Crane capacity ： 1 ton capacity
• Crane span: 5.28 meter span
• Crane lifting height: 5 meter lifting height
• Power supply : 480V60HZ3P power supply

The company was impressed with the quality and durability of the cranes, which were designed to withstand heavy use in industrial settings. The cranes were also easy to install and operate, making them an ideal choice for businesses of all sizes.

The company was able to successfully market and sell the small overhead cranes to a wide range of customers, including manufacturing plants, warehouses, and construction sites. Customers appreciated the cranes' ability to lift heavy loads quickly and safely, while also providing a cost-effective solution for their lifting needs.

Overall, the company was pleased with their decision to add small overhead cranes to their product offerings. The cranes proved to be a popular choice among their customers, helping the company to expand their business and increase their revenue.

Production pictures of 10 sets of small overhead bridge cranes for sale America

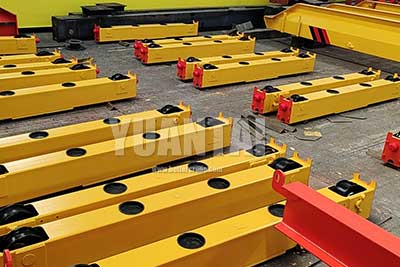

 End carriages of 10 sets of small single girder overhead crane with capacity of 1 ton

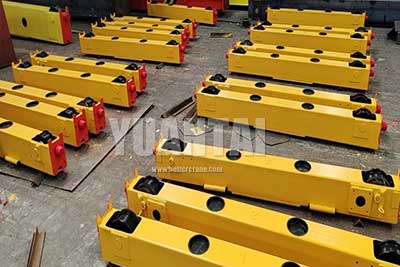

 End carraiges of overhead crane for sale USA

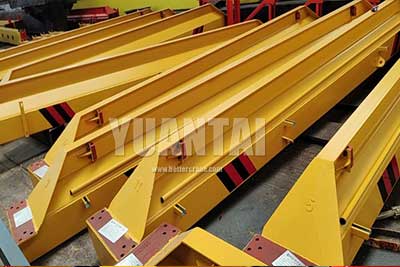

 Main girder, classical main girder with u shaped box girder + I beam design for small and light overhead crane

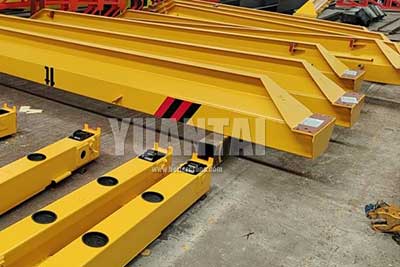

 main girder and end carriages

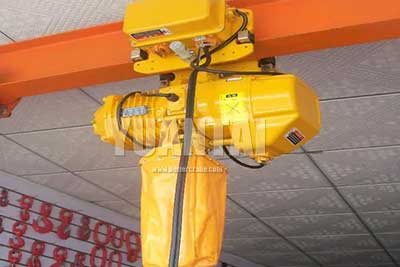

 1 ton hoist for small hoist crane

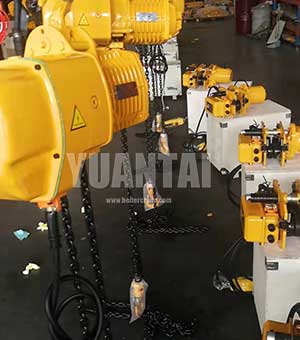

 10 sets of  electric chain hoists

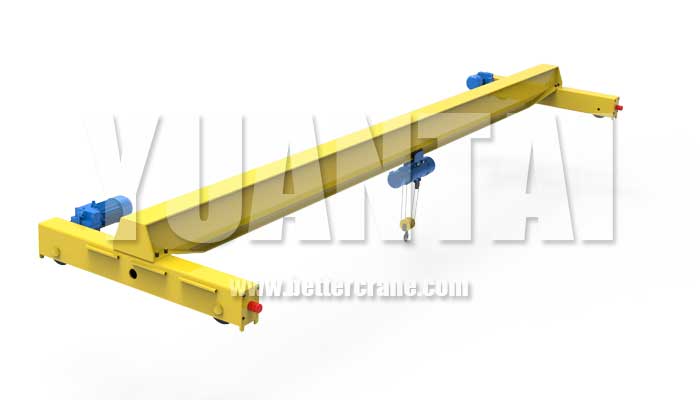

 Economical Small Overhead Crane from China, Classic Crane Design  LD Series

The LD type of small overhead crane is a type of top running single girder overhead crane, which are consisted of u shaped box girder + I beam main girder and economical electric hoist, either electric wire rope hoist or electric chain hoist. The typical lifting capacity is from1 to 20 ton. They are widely used to lift and move heavy loads in industrial settings.

Advantages of using an LD small overhead crane

LD small overhead cranes offer several advantages, including:

• Cost-effective: LD small overhead cranes are more cost-effective compared to double girder overhead cranes, making them a popular choice for light to medium-duty lifting applications.
• Easy to install: These cranes are relatively easy to install and require minimal space for installation, making them ideal for small workshops and factories.
• Easy to operate: LD small indoor hois cranes are easy to operate, and their simple design ensures that maintenance is minimal.
• Versatile: These cranes can be used in a variety of applications, including warehouses, workshops, and assembly lines.
• Improved safety: The use of an overhead crane reduces the risk of accidents and injuries associated with manual lifting and handling of heavy loads.

Overall, LD small overhead cranes are an excellent choice for businesses looking for a reliable, cost-effective, and versatile lifting solution.

Selection of small hoist cranes

There are two main types of small crane hoists: electric chain hoists and wire rope hoists.

Electric chain hoists use a chain to lift and transport loads, while wire rope hoists use a wire rope. Both types of hoists have their own advantages and disadvantages, and the choice between them will depend on the specific needs of the application.

Electric chain hoists are ideal for lifting lighter loads and are known for their ease of use and low maintenance requirements. They are also typically less expensive than wire rope hoists. However, electric chain hoists may not be suitable for heavy-duty lifting applications, as they have a lower lifting capacity compared to wire rope hoists.

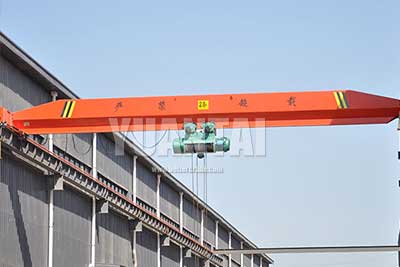

Wire rope hoists are designed for heavy-duty lifting applications and are capable of lifting much heavier loads compared to electric chain hoists. They are also known for their durability and reliability, making them ideal for use in harsh industrial environments. However, wire rope hoists may require more maintenance compared to electric chain hoists, and they can be more expensive.

When selecting between electric chain hoists and wire rope hoists, it is important to consider factors such as the weight of the load, the lifting height required, the frequency of use, and the environment in which the hoist will be used. Consulting with an expert in industrial equipment can help in selecting the most appropriate type of crane hoist for a specific application.

Types of small cranes for your selection

There are several types of small hoist cranes available for use in various industrial settings, besides bridge cranes. Some of these include:

• Jib cranes: These are small cranes that are typically mounted on a wall or column and feature a horizontal arm (jib) that can rotate to lift and transport loads.
• Gantry cranes: These are similar to bridge cranes, but they are smaller and more portable. They feature a horizontal beam that is supported by two upright legs and can be moved to different locations as needed.
• Monorail cranes: These are small cranes that feature a single rail that is suspended from the ceiling or mounted on a wall. They are ideal for lifting and transporting loads along a fixed path.
• Portable cranes: These are small cranes that can be easily moved from one location to another. They are typically lightweight and easy to assemble and disassemble.
• Articulating cranes: These are small cranes that feature a multi-jointed arm that can be maneuvered into tight spaces and used to lift and transport loads in various directions.

Overall, there are many different types of small hoist cranes available besides bridge cranes, each with their own unique features and advantages. The choice of crane will depend on the specific needs of the application, such as the weight and size of the load, the lifting height required, and the available space.

Industrial use of economical small bridge crane

• LD small overhead cranes are commonly used in various indoor workshops and also can used outdoors.
• The small indoor cranes are widely used in industries such as manufacturing, warehouses, construction, and transportation.
• They are particularly useful for tasks that require precision and control, such as assembly lines, loading and unloading cargo, and maintenance work.

Safety features of LD small overhead crane

When operating an LD small overhead crane, several safety features should be considered to ensure the safety of the operator and those around the crane. Here are some of the most important safety features to consider:

• Overload protection: The crane should be equipped with sensors that can detect when the load exceeds the crane's capacity. This will prevent the crane from lifting too much weight, which could cause it to tip over or collapse.
• Emergency stop: An emergency stop button should be easily accessible to the operator in case of an emergency. This will allow the operator to quickly stop the crane if something goes wrong.
• Limit switches: Limit switches should be installed on the crane to prevent it from traveling too far in any direction. This will prevent the crane from hitting an obstacle or going beyond its safe operating range.
• Anti-collision system: An anti-collision system can be installed to prevent the crane from colliding with other cranes or structures in the area.
• Warning devices: Warning devices such as lights and horns can be used to alert workers in the area when the crane is in operation.

By considering these safety features and implementing them when operating an LD small overhead crane, you can minimize the risk of accidents and ensure a safe working environment.
