Ceiling Mounted Bridge Cranes

Ceiling mounted bridge cranes are an integral component of many industrial settings, designed to move heavy loads across a fixed path within a facility. Unlike traditional floor-mounted cranes, these cranes are affixed to the ceiling, maximizing floor space and allowing for more streamlined operations. Typically, they consist of a bridge that spans the width of the work area, supported by runways attached to the ceiling structure, and equipped with a hoist and trolley system to move loads horizontally and vertically.

Importance in Industrial Applications

In modern industrial applications, efficiency and space utilization are paramount. Ceiling mounted bridge cranes address these needs by providing a versatile and robust solution for material handling. Here’s why they are crucial:

• Maximized Floor Space: By being mounted overhead, these cranes eliminate the need for floor-based support structures, freeing up valuable floor space for other operations, storage, or machinery placement.
• Enhanced Safety: These cranes reduce the need for manual lifting and handling of heavy materials, significantly decreasing the risk of workplace injuries. Additionally, by keeping the work area clear of obstructions, they minimize tripping hazards and improve overall safety.
• Improved Workflow Efficiency: With the ability to move heavy loads quickly and precisely across a designated area, ceiling mounted bridge cranes streamline production processes. This efficiency translates into reduced handling times and increased productivity.
• Versatility: Ceiling mounted bridge cranes can be tailored to meet specific operational needs, whether it’s the span, lifting capacity, or the type of control system. This adaptability makes them suitable for a wide range of industries, from manufacturing and warehousing to automotive and heavy machinery.
• Load Handling Capacity: These cranes are engineered to handle significant weights, often several tons, which is essential in industries where large and heavy items are commonplace. This capability ensures that even the most demanding lifting tasks can be performed safely and efficiently.
• Reduced Facility Wear and Tear: Because the cranes are suspended from the ceiling, there is less wear on the floor structure compared to traditional floor-mounted cranes or forklifts. This can lead to longer-lasting flooring and reduced maintenance costs over time.

In essence, ceiling mounted bridge cranes are not just a lifting device; they are a critical component that enhances the operational efficiency, safety, and versatility of industrial environments. Their ability to adapt to different industrial needs while maintaining a high standard of performance makes them indispensable in many sectors.

Types of Ceiling Mounted Bridge Cranes

Ceiling mounted bridge cranes come in various configurations, each designed to meet specific operational needs and constraints. Understanding the different types can help in selecting the most suitable crane for your application. Here are the main types:

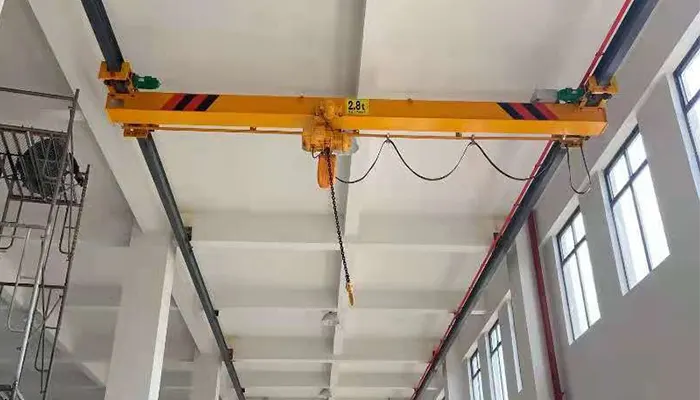

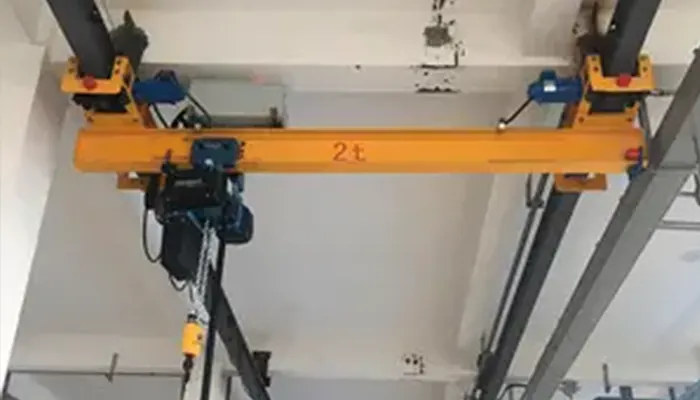

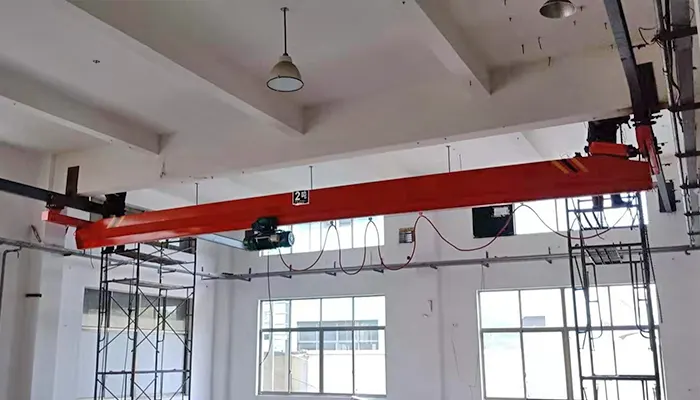

Underhung bridge cranes, also known as under-running cranes, are designed with the bridge supported from the ceiling structure rather than on top of runways. This configuration offers unique benefits:

• Space Efficiency: By hanging from the ceiling, underhung cranes maximize overhead space and minimize interference with floor operations.
• Flexibility in Layout: These cranes can be used in facilities with limited headroom or complex layouts, providing greater flexibility in crane placement and operation.
• Smooth Operation: Underhung cranes often feature smooth and precise movement, which is essential for applications requiring careful handling of materials.
• Modular Design: The modular design of underhung cranes allows for easy expansion or modification, making them a scalable solution for growing operations.

Each type of ceiling mounted bridge crane has its own set of advantages, tailored to meet different industrial needs. Whether you need the cost-effectiveness of a single girder crane, the heavy lifting capacity of a double girder crane, or the space-saving benefits of an underhung crane, understanding these options will help you choose the best crane for your specific application.

Single Girder Ceiling Mounted Bridge Cranes

Single Girder Ceiling Mounted Bridge Cranes are designed for light to medium-duty applications where cost-effectiveness and operational efficiency are key. Here are some key points:

• Design and Construction: Single Girder cranes feature a single bridge girder supported by end trucks running on a runway system mounted on the building's ceiling. This design maximizes headroom and workspace below, making them suitable for facilities with height restrictions.
• Load Capacity: Typically designed to handle loads ranging from 1 ton to 20 tons, making them ideal for tasks involving lighter materials or products.
• Cost-Effectiveness: They are generally more economical to install and maintain compared to Double Girder cranes, making them a practical choice for facilities with moderate lifting requirements.
• Applications: Commonly used in workshops, assembly lines, maintenance areas, and smaller manufacturing operations where space optimization and efficient material handling are essential.

Double Girder Ceiling Mounted Bridge Cranes

Double Girder Ceiling Mounted Bridge Cranes are robust solutions suitable for heavy-duty industrial applications requiring higher load capacities and longer spans. Here are the key aspects:

• Design and Construction: Double Girder cranes feature two bridge girders mounted on top of end trucks, offering greater stability and load-bearing capacity. They require a higher ceiling clearance due to their design.
• Load Capacity: Designed to handle heavier loads ranging from 5 tons to over 200 tons, making them suitable for industries such as steel fabrication, automotive manufacturing, and heavy machinery production.
• Strength and Durability: Their robust construction allows them to withstand rigorous operational demands, providing long-term reliability and durability.
• Customization: They can be customized with additional features such as multiple hoists, specialized lifting attachments, and automation systems to meet specific operational requirements.
• Applications: Widely used in industries where lifting heavy materials, large components, or equipment is routine, requiring efficient and reliable material handling capabilities.

Both Single Girder and Double Girder Ceiling Mounted Bridge Cranes offer distinct advantages depending on the operational needs and environment of the facility, ensuring efficient and safe material handling solutions tailored to specific industry requirements.

Components and Design

Ceiling mounted bridge cranes are composed of several key components, each playing a crucial role in their functionality and performance. Understanding these components can help in selecting, operating, and maintaining the crane effectively. Here are the main components:

Bridge (Girder)

• Function: The bridge, or girder, is the main horizontal beam that spans the width of the crane’s working area. It supports the hoist and trolley, allowing them to move along the length of the bridge.
• Types: Bridges can be single or double girder, depending on the load capacity and application requirements.
• Material: Typically made from high-strength steel to ensure durability and stability under load.

End Trucks

• Function: End trucks are located at both ends of the bridge and house the wheels that allow the bridge to move along the runway.
• Design: They are equipped with wheels or rollers that run on the runway beams, facilitating the horizontal movement of the bridge.
• Durability: End trucks are designed to withstand the stresses of repeated movement and heavy loads, often incorporating robust construction and high-quality materials.

Hoist

• Function: The hoist is the lifting mechanism that raises and lowers the load. It can be electric, pneumatic, or manual.
• Types: Hoists come in various types, including chain hoists and wire rope hoists, each suited for different load capacities and lifting requirements.
• Capacity: The hoist’s capacity must match the maximum load it will need to lift, ensuring safe and efficient operation.

Trolley

• Function: The trolley carries the hoist along the length of the bridge, allowing for precise positioning of the load.
• Types: Trolleys can be either manual or motorized. Motorized trolleys are more common in industrial applications due to their efficiency and ease of use.
• Movement: Trolleys are designed for smooth and controlled movement, often incorporating features such as variable speed control for enhanced precision.

Control Systems

• Function: Control systems manage the operation of the crane, including the movement of the bridge, trolley, and hoist.
• Types: Control systems can range from basic pendant controls to advanced wireless remote controls and automated systems.
• Safety Features: Modern control systems often include safety features such as emergency stop buttons, overload protection, and collision avoidance systems.

Runway System

• Function: The runway system consists of the tracks or beams that the end trucks run on, supporting the entire crane structure.
• Design: Runways must be precisely aligned and securely mounted to the ceiling structure to ensure smooth and reliable operation of the crane.
• Maintenance: Regular inspection and maintenance of the runway system are crucial to prevent misalignment and wear, ensuring the crane operates safely and efficiently.

The components and design of a ceiling mounted bridge crane are meticulously engineered to ensure optimal performance, safety, and reliability. Each component, from the bridge and end trucks to the hoist, trolley, control systems, and runway, plays a vital role in the crane’s overall functionality. Understanding these components helps in making informed decisions regarding crane selection, operation, and maintenance, ensuring that the crane meets the specific needs of the application.

Selection Criteria of Ceiling Mounted Bridge Cranes

Choosing the right ceiling mounted bridge crane for your facility involves considering several key factors to ensure it meets your operational needs. Here are the critical selection criteria:

Load Capacity

• Definition: Load capacity refers to the maximum weight the crane can safely lift and transport.
• Importance: It’s essential to select a crane with a load capacity that matches or exceeds the maximum weight of the loads you intend to handle. Overloading a crane can lead to equipment failure and safety hazards.
• Considerations: Assess the weight of the heaviest items you need to lift regularly and consider any potential future increases in load requirements.

Span Length

• Definition: Span length is the distance between the runway beams that the bridge spans.
• Importance: The span length must cover the width of the area where the crane will operate. It directly impacts the crane’s ability to reach all necessary areas within the facility.
• Considerations: Measure the width of your work area and ensure the crane’s span length is sufficient. Also, consider any obstructions or architectural features that might affect the crane’s movement.

Lift Height

• Definition: Lift height is the maximum vertical distance the hoist can travel from the lowest point to the highest point.
• Importance: Adequate lift height is crucial for lifting and placing loads at varying heights within the facility. It ensures that the crane can perform the required tasks without limitations.
• Considerations: Determine the highest and lowest points you need to reach with the crane, and ensure the hoist has enough travel distance to accommodate these needs.

Duty Cycle

• Definition: Duty cycle refers to the frequency and duration of the crane’s operation within a given period.
• Importance: The duty cycle impacts the selection of the crane’s components, such as the hoist and motor, which must withstand the operational demands.
• Considerations: Evaluate how often and for how long the crane will be used daily. For heavy or continuous use, opt for a crane designed for high-duty cycles to ensure longevity and reliability.

Environmental Conditions

• Definition: Environmental conditions encompass factors like temperature, humidity, dust, chemicals, and other elements in the operating environment.
• Importance: Environmental conditions can affect the performance and durability of the crane. Choosing a crane suited to the specific conditions of your facility ensures optimal operation and longevity.

Considerations: Consider the following:

• Temperature: Select components rated for the temperature range of your facility.
• Humidity: High humidity may require corrosion-resistant materials.
• Dust and Debris: Enclosed or protected components may be necessary in dusty environments.
• Chemical Exposure: Use materials resistant to any chemicals present in the operating environment.

Selecting the right ceiling mounted bridge crane involves careful consideration of load capacity, span length, lift height, duty cycle, and environmental conditions. Each criterion ensures that the crane not only meets your immediate operational needs but also performs reliably and safely in the long term. By thoroughly evaluating these factors, you can make an informed decision that enhances efficiency, safety, and productivity in your facility.

Advantages and Disadvantages

Understanding the advantages and disadvantages of ceiling mounted bridge cranes helps in making an informed decision about their implementation. Here are the key benefits and potential drawbacks:

Benefits of Ceiling Mounted Bridge Cranes

Maximized Floor Space:

• Benefit: By mounting the crane to the ceiling, floor space is freed up for other operations, storage, or machinery placement.
• Impact: This leads to a more efficient use of available space, enhancing overall facility layout and workflow.

Enhanced Safety:

• Benefit: These cranes reduce the need for manual lifting and handling of heavy loads, significantly lowering the risk of workplace injuries.
• Impact: Improved safety contributes to a healthier work environment and can reduce costs associated with workplace accidents.

Increased Productivity:

• Benefit: Ceiling mounted bridge cranes allow for the quick and precise movement of heavy loads, streamlining production processes.
• Impact: This efficiency can lead to reduced handling times and increased throughput, boosting overall productivity.

Versatility:

• Benefit: These cranes can be customized to meet specific operational needs, including various load capacities, spans, and lifting heights.
• Impact: Their adaptability makes them suitable for a wide range of industries and applications, from manufacturing to warehousing.

Load Handling Capacity:

• Benefit: Ceiling mounted bridge cranes are designed to handle substantial weights, often several tons.
• Impact: This capability ensures that even the most demanding lifting tasks can be performed safely and efficiently.

Reduced Facility Wear and Tear:

• Benefit: Since these cranes are suspended from the ceiling, there is less wear on the floor compared to traditional floor-mounted cranes or forklifts.
• Impact: This can lead to longer-lasting flooring and reduced maintenance costs over time.

Potential Drawbacks

Initial Installation Cost:

• Drawback: The initial cost of purchasing and installing a ceiling mounted bridge crane can be high, including structural modifications to the facility.
• Impact: This can be a significant investment, especially for smaller businesses or those with budget constraints.

Structural Requirements:

• Drawback: The ceiling structure must be strong enough to support the weight of the crane and the loads it will carry.
• Impact: In some facilities, reinforcing the ceiling or making other structural modifications may be necessary, adding to the installation complexity and cost.

Maintenance Requirements:

• Drawback: Regular maintenance is crucial to ensure safe and efficient operation. This includes inspecting and servicing the crane’s components.
• Impact: Maintenance can be time-consuming and may require specialized skills, potentially leading to downtime and additional costs.

Limited Mobility:

• Drawback: Ceiling mounted bridge cranes are fixed in place and can only move along their designated paths.
• Impact: This limits their flexibility compared to mobile lifting equipment like forklifts, which can operate in different areas as needed.

Height Restrictions:

• Drawback: In facilities with low ceilings, the installation and operation of a ceiling mounted bridge crane may be challenging or impractical.
• Impact: This can limit their applicability in certain environments, particularly older buildings with lower ceiling heights.

Operational Complexity:

• Drawback: Operating a ceiling mounted bridge crane requires training and adherence to safety protocols.
• Impact: Ensuring that all operators are properly trained and that safety measures are consistently followed can be a significant undertaking.

Ceiling mounted bridge cranes offer numerous benefits, including maximized floor space, enhanced safety, increased productivity, versatility, and robust load handling capacity. However, potential drawbacks such as initial installation cost, structural requirements, maintenance needs, limited mobility, height restrictions, and operational complexity must be carefully considered. By weighing these pros and cons, you can determine whether a ceiling mounted bridge crane is the right solution for your facility’s material handling needs.

Applications

Ceiling mounted bridge cranes are utilized across various industries due to their efficiency, safety, and ability to handle heavy loads. Here are some of the key applications:

Manufacturing Facilities

• Usage: In manufacturing plants, ceiling mounted bridge cranes are essential for moving raw materials, components, and finished products between different stages of production.
• Benefits: They enhance workflow efficiency by allowing quick and precise movement of items, reducing production time and labor costs.
• Examples: Assembly lines, metal fabrication, electronics manufacturing, and food processing facilities.

Warehouses

• Usage: Warehouses often use these cranes to handle large and heavy goods, especially in high-density storage areas.
• Benefits: They optimize space utilization by lifting items vertically and moving them across the facility, minimizing the need for floor-based storage solutions.
• Examples: Distribution centers, logistics hubs, and storage facilities for bulky items like furniture and building materials.

Automotive Industry

• Usage: In the automotive sector, ceiling mounted bridge cranes are used for lifting engines, vehicle bodies, and other heavy components during assembly and maintenance processes.
• Benefits: They improve safety and efficiency in handling heavy automotive parts, reducing the risk of damage and injuries.
• Examples: Car manufacturing plants, assembly lines, and repair shops.

Heavy Machinery Operations

• Usage: Industries that deal with heavy machinery, such as construction equipment manufacturing or shipbuilding, rely on these cranes for lifting and positioning large and heavy components.
• Benefits: They ensure precise placement and safe handling of oversized and heavy machinery parts, which is crucial for assembling complex machines.
• Examples: Construction equipment manufacturers, shipyards, and aerospace component manufacturing.

Ceiling mounted bridge cranes are indispensable in a wide range of industries, including manufacturing facilities, warehouses, the automotive industry, and heavy machinery operations. Their ability to handle heavy loads efficiently and safely makes them a critical component in improving productivity, optimizing space utilization, and ensuring workplace safety. By understanding the specific applications and benefits in each industry, businesses can better leverage these cranes to enhance their operations.

Case Studies

Examining real-world examples of ceiling mounted bridge crane implementations can provide valuable insights into their practical applications, benefits, and potential challenges. Here are two case studies illustrating successful implementations and the lessons learned from these experiences:

Successful Implementations

Case Study 1: Automotive Assembly Plant

Background: A leading automotive manufacturer needed to enhance its assembly line efficiency. The plant was dealing with increased production demands and required a solution to improve the handling of heavy vehicle components.

Implementation: The plant installed multiple ceiling mounted double girder bridge cranes along the assembly line. Each crane was equipped with motorized trolleys and hoists capable of lifting up to 20 tons.

Results:

• Efficiency: The cranes significantly reduced the time required to move heavy components between assembly stations, increasing overall production speed.
• Safety: By automating the lifting and moving processes, the risk of workplace injuries due to manual handling was drastically reduced.
• Flexibility: The cranes' versatility allowed for quick adjustments to the assembly line layout, accommodating new vehicle models and production techniques.

Lessons Learned:

• Customization: Tailoring the cranes' specifications to the specific needs of the assembly process was crucial for maximizing their effectiveness.
• Training: Comprehensive training programs for operators ensured safe and efficient crane usage, minimizing downtime and accidents.

Case Study 2: Warehouse Distribution Center

• Background: A large distribution center for a major retail chain required a solution to handle the high volume of goods being moved in and out of the facility daily. The goal was to improve throughput and reduce handling times.
• Implementation: The center installed several ceiling mounted single girder bridge cranes with a span length covering the entire width of the storage area. The cranes were equipped with advanced control systems for precise load handling.

Results:

• Throughput: The cranes enabled faster and more efficient loading and unloading of goods, increasing the facility's throughput by 30%.
• Space Utilization: By utilizing overhead space for material handling, the center maximized floor space for additional storage racks and inventory.
• Operational Costs: The improved efficiency and reduced need for manual labor led to a significant reduction in operational costs.

Lessons Learned:

• Planning: Detailed planning and layout design ensured optimal crane placement, maximizing their reach and effectiveness.
• Maintenance: Implementing a proactive maintenance schedule helped maintain crane performance and prevent unexpected breakdowns.

Lessons Learned

• Customization and Flexibility: - Tailoring crane specifications to the specific operational needs is crucial for maximizing effectiveness. - Flexibility in design allows for easy adjustments and future scalability.
• Comprehensive Training: - Investing in thorough training programs for operators ensures safe and efficient use of the cranes, reducing accidents and downtime.
• Proactive Maintenance: - Regular maintenance schedules prevent unexpected breakdowns and maintain crane performance, ensuring long-term reliability.
• Detailed Planning and Layout Design: - Proper planning and layout design are essential for optimal crane placement, ensuring maximum reach and effectiveness.
• Safety and Efficiency: - Automation of lifting and moving processes significantly enhances safety and efficiency, reducing manual handling risks and operational costs.

These case studies highlight the significant benefits that ceiling mounted bridge cranes can bring to various industrial applications, from improving efficiency and safety in automotive assembly plants to enhancing throughput and space utilization in warehouse distribution centers. By learning from successful implementations and understanding the lessons learned, businesses can better plan and execute their own crane installations, ensuring maximum operational benefits.

Ceiling mounted bridge cranes are essential for modern industries, optimizing space and improving safety. They come in types like Single and Double Girder, each suited to different needs. Key components include the bridge, hoist, and control systems. Advantages include space efficiency and enhanced safety, while considerations like initial costs and maintenance are important. They find applications in various sectors, requiring careful assessment of needs and environmental conditions. Prioritizing safety, customization, and maintenance ensures optimal performance and long-term benefits.
