Workstation Bridge Cranes

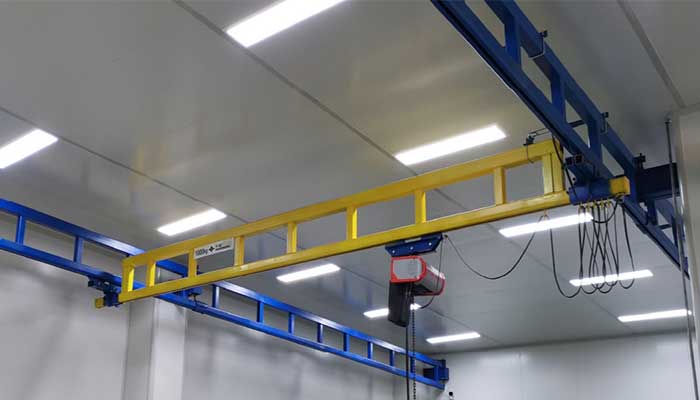

Ceiling mounted workstation bridge crane is one types of workstation bridge crane. Compared with floor mounted workstation crane, the ceiling mounted crane design can maximize your floor space. The ceiling mounted workstation bridge crane has its unique features compared with the jib crane and gantry cranes. The ceiling mounted crane may be is the perfect solution for your materiel handling and hoisting needs.

Ceiling Mounted Bridge Cranes for Workstations

The ceiling mounted workstation crane can be a helping hand , which is a safe, productive, ergonomic solution for overhead materials handling operations in your workstation

• The ceiling mounted cranes are perfect for moving heavy loads weighing up to 2 tons workstations.
• Without manual material handing, you will be able to move your loads safely with pendant control or remote control to guaranteeing the health of your workers.
• With precise load positioning design, it will improve your efficiency  and time to locate the loads along the desired runway length,
• Workstation bridge Cranes are easy to maneuver.

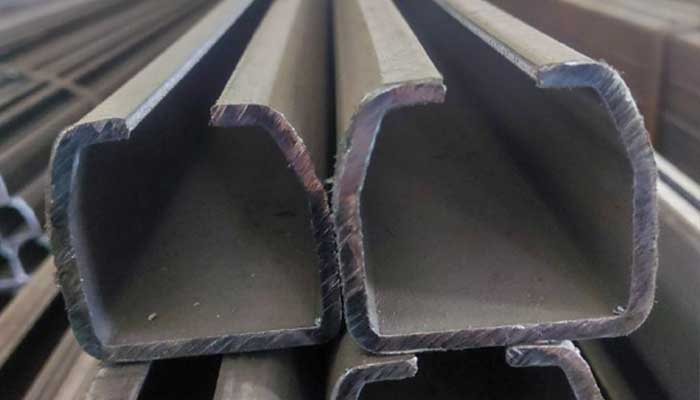

Rigid enclosed track design allows for easy movement and a long lifespan.

 Steel structured workstation bridge crane systems make use of sealed track that is both strong and light.

• Enclosed track cranes of ceiling mounted cranes are lighter and easier to move than conventional overhead bridge cranes.
• The design of ceiling mounted workstation crane practically eliminates dirt and dust from the rolling surface, reducing wear on the trolley and end truck wheels.
• The smooth running surface means reduced rolling resistance.
• Because of the low profile of the steel rail / track, the ceiling mounted crane system can be placed in areas where workstation headroom is limited.
• The light weight of the track lowers the applied forces on the supporting structure of your workstation facility.

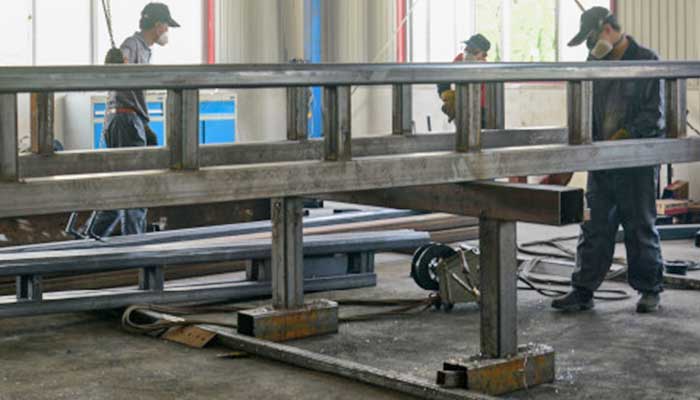

• Long spans enable ceiling mounted bridge crane systems to be placed in locations where hanging points are infrequent. (up to 30 feet with the steel truss design).
• With different types of crane track sizes for selection,  the customized ceiling mounted bridge cranes can be customized to keep bridge weights and costs to a minimum.

Rigid runways for stable and precision positioning of loads

The ceiling mounted workstation bridge cranes are placed to rigid crane runways. They are not able to shift laterally or longitudinally. Furthermore, the floating end trucks with horizontal wheels help to avoid binding. The combination of these design characteristics results in unrivaled positioning and movement ease.

The ceiling mounted bridge crane moves smoothly down the runways, with no variation in movement no matter where a load is positioned on the bridge. This enables for more precise load positioning.Another benefit of rigid runways of workstation cranes is that they can be reinforced , making them usable for long spans. This eliminates the need for costly intermediate support stringers and reduces total installation costs of ceiling mounted cranes.

Ceiling Mounted Workstation Bridge Crane Systems with Mixed Capacity

The dead weight reduction of workstation bridge crane means better ergonomic solutions.Mixed-capacity workstation crane systems permit the use of numerous lower capacity bridges on higher capacity runways, as long as the equivalent center loads are verified at the factory to guarantee that runways and hangers are not overloaded. For example, four 500kg workstation bridge cranes can be suspended from a 2000kg runway using mixed-capacity end trucks, allowing for side-by-side use of all four workstation cranes without overloading the system. Mixed-capacity workstation crane systems give reduced bridge dead weight, easier movement, and lower cost by combining bridges of different sizes and capacities.

Rrated capacity of workstation crane system

The rated capacity is the maximum live weight that the workstation crane system can lift and handle. The workstation crane system's design load is based on the rated capacity + 15% for hoist and trolley weight (capacity x 1.15) and an additional 25% for impact (capacity x 1.25) for a total design of capacity x 1.4 (Note: a 25% impact factor is adequate for hoist speeds up to 50 f.p.m.). A 1000kg  workstation crane , for example, can lift up a 1000 kg load if the hoist weighs 150 kg. or less and the hoist speed is less than 50 feet per minute.

The design load for deflection calculations is based on the rated capacity + 15% for hoist and trolley weight. (capacity x 1.15). The bridge crane should never be loaded beyond its rated capability.

 Ceiling mounted crane & floor mounted cranes

How to select the right bridge crane from ceiling mounted and floor mounted workstation crane ?  In the following, the main factors will help you to select the right workstation crane for your application.

• Do you intend to relocate or expand your present bridge crane  location?
•  Have you installed the required support beams?
•  What is the size of the building where you want to install?

When you can answer these questions, making a decision becomes much easier.

•  Because floor mounted crane options are not a permanent fixture in your building, they can be simply relocated in the future. Installation is frequently much simpler and places no strain on the building's roof structure.
• Ceiling mounted workstation crane systems are the way to go when floor space is limited or other equipment access is needed.

Yuantai Crane workstation bridge cranes provide easy and reliable overhead materiel handling solution for a broad range of applications. With the help of workstation crane system, your workstation productivity and safety will be improved through the ease of movement and high precision position. Quality materials and construction guarantee the operation of workstation bridge crane system reliability safety, and long life with minimal maintenance.Contact us to get your customized workstation crane design now.
