Wire Rope Rolling Drum for rope drum hoist,hoist drum crane & overhead crane drum cranes, etc. Customized rolling drum, drum hoist and cranes for sale.

A wire rope drum is used to fill in, entwine, and store wire rope. It is a component of wire rope hoist and crane lifting mechanisms. The wire rope rolling drum has a drum shaft, an annular gear with a flange, a hub, bearings, a bearing pedestal, etc.

Overviews of wire rope hoist and crane rolling drum & rope reel

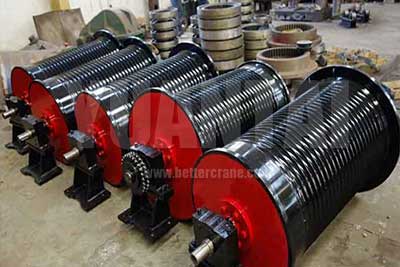

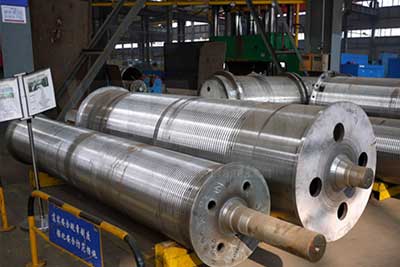

• Rolling drum: The wire rope drum is a component of the crane's hoisting system or lifting mechanism and is used to wound steel wire rope as a winch for hoisting operations.
• Main components of rolling drum: The wire rope drum, gearwheel, hub, shaft, bearing, and bearing housing make up the drum unit.
• Materials: For specific usage, welding steel plate made from Q235B or Q345B or ZG25, ZG35, or no less than HT20-40 cast iron may be used as the material for wire rope drums.
• Applications: The wire rope drum units are used with high-performance large tonnage hoisting equipment, such as, types of electric wire rope cranes and open winch drum crane, wire rope winches, etc.
• Offering : Yuantai Crane provides customized crane, hoist, and winch drum designs to meet your needs and all types of rolling drums, open winch drum cranes, and all kinds of electric wire rope drum cranes, etc.

Category of rolling drum

• According to the drum shape and groove desgin : There are smooth drum, spiral groove drum, single drum, double drum, broken line drum, etc.
• According to the installation and reducer matching: take-over reel with gear plate, reel with external gear, reel with coupling, reel with brake disc, European-style reel, etc.
• According to the matching equipment: electric hoist drum, double beam drum group, hoist drum, winch drum, stereo garage drum, etc

Functions of rolling drum

The wire rope cable drum is one of the most crucial parts of the lifting hoist and crane equipment because it winds the wire rope, supports the tension and strain of the heavy things being lifted, and carries out the lifting and handling of those heavy objects with the assistance of other pertinent lifting mechanisms.

A pplications of wire rope drum

As parts of hoist, crane and winch for winding hoisting wire ropes, they are typically used for electric wire rope hoist, single girder wire rope hoist crane, double girder wire rope hoist crane , double girder open winch drum crane, all types of wire rope winches, etc.

Additionally, the rolling drum is frequently employed in many types of lifting equipment, including all terrain cranes, stereo garages, ship winches, beam lifting machines, and other lifting equipment.

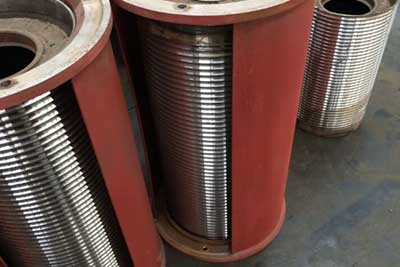

Electric wire rope hoist drum for CD/MD electric wire rope hoists

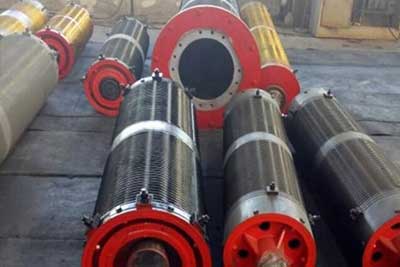

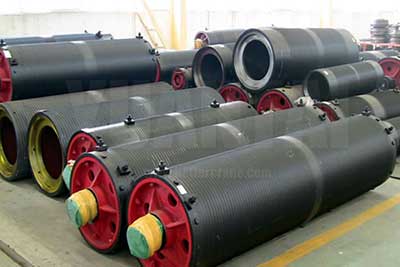

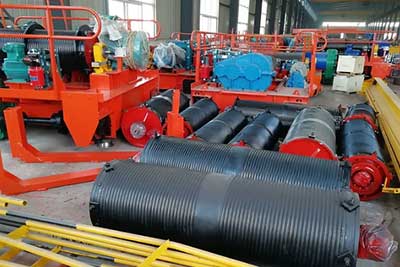

Overhead crane winch drum for heavy duty double girder overhead crane

Types of wire rope drum hoists

Yuantai Crane offers drum cranes for material handling, including, single drum hoist and double drum hoist crane. The wire rope drum hoist is a very important part of overhead crane, which use the drum hoist for entwine, store and unwinding wire rope to lift up and down loads and objects. Based on different cable drum hoist designs, there are various types of wire rope drum hoists. In the following , the main type sof wire rope drum hoists are presented for for your refererence.

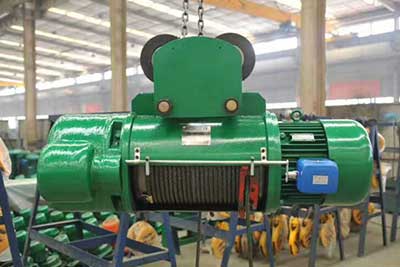

Electric wire rope drum hoists for all types of single girder cranes, ld types single girder overehad crane & MH type single girder gantry drum hoist crane

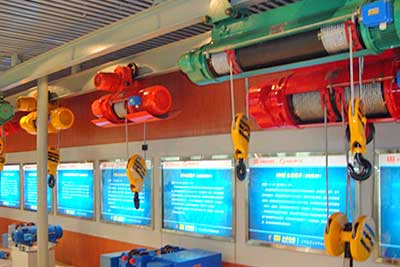

Large wire rope drum hoist with double hoist hook -  the large drum hoists are typical used for super lifting height wire rope hoist or hoists will double hooks for long, large and synchronized hoisting opeerations.

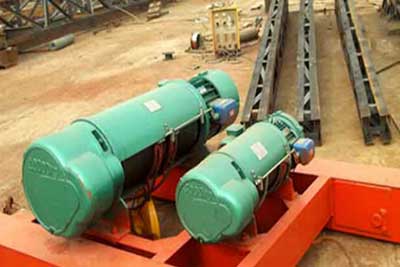

Double girder wire rope drum hoist for double girder cranes for such as, double girder drum hoist overehad cranes, etc.

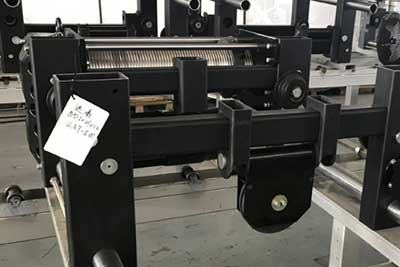

European style Rope drum hoists for single girder cranes & double girder cranes

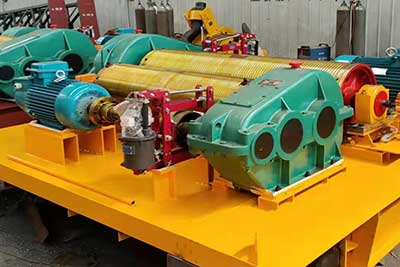

Chinese style overhead crane winch drum for heavy duty double girder cranes including QD overhead cranes MG gantry cranes.

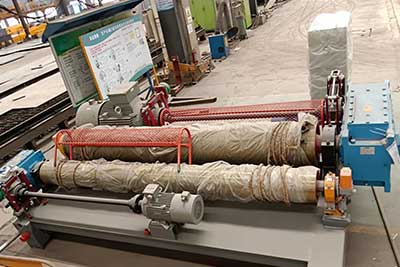

European style overhead crane winch drum for QDX European style double girder bridge cranes, etc.

Advantages of Yuantai Crane rolling drum

Customized services
According to customer specifications and application conditions, we can design the hoist and crane drum parts, drum hoists and overhead cranes accordingly to meet your special setup and lifting requirements.

High quality, & quality control
 To assure the quality of each part or item and each piece of equipment, every production step is checked, supervised and documented.

Hight safety of wire rope hoist drum and winch drum

• To increase the contact area between the wire rope and the drum body and to fix the wire rope's winding position on the drum to prevent the influence of adjacent wire ropes rubbing against one another, the surface of the single-layer winding drum is cut with a spiral groove with an arc-shaped section.
• To prevent the wire rope from slipping out, the multi-layer winding drum's surface is typically smooth and devoid of spiral grooves. There are also flanges at both ends of the drum body. The layers are stacked and rubbed against one another as a result of the close arrangement of the wire ropes, which has a negative effect on the wire rope's lifespan. The predicted diameter of the reel, one of its structural parameters, is crucial since it has an impact on the lifespan of the wire rope.

• When the pick-up device is lowered to the lower limit position, in addition to the fixed loop of the wire rope, 1.5 to 3 safety loops should be reserved on the reel in order to ensure the reliable fixation of the wire rope tail and alleviate the stress on the pressure plate or wedge. This is known as the load-relief ring, and it has been considered in the reel's design. The force acting on the pressure plate or wedge of the wire rope tail decreases with the number of loops that are retained during operation, making the rope tail safer. If the pick-up device's lower limit position is too low and the remaining number of wire ropes on the drum is less than the designed number of safe loops, the force on the wire rope's tail will exceed the pressing force of the pressure plate or wedge, causing the wire rope to be pulled off and the heavy object to fall.

Packing & Delivery of Wire Rope Drum:

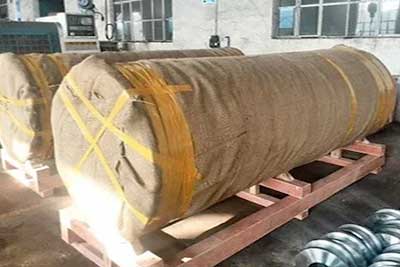

Crane drums will be packaged in plastic woven cloth.

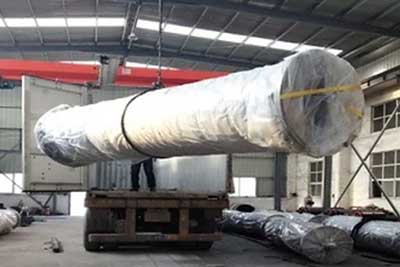

 Overhead crane drum delivery

Double girder open winch drum delivery

Pre-Sales Service:Pre-Sales Service: * Engineers will select the best design. * Drawing for confirmation.* Adjustment based on actual working conditions. Crane Manufacturing Factory Visiting on Line or On Site.

After-Sales Service: Drum hoist and crane engineers may guide installation and commissioning. * Technical Engineer support is available at all times. * Low price for continuous maintenance after the guarantee has ended (one year warranty). Learn more to check our webpage on crane services.

Contact us to get your wire rope rolling drum, drum hoist, drum crane & drum winch, now.
