Fixed Gantry Crane, Bolts Fixed Gantry, Heavier Loads Handling

Fixed gantry crane for sale. Bollted fixed gantry, with Monorail hoiist for stabile &  heavier loads handing up to 10 Ton.Customized fixed gantry crane available.

Unlike portable cranes, the fixed gantry crane is kind of  permanent gantry cranes  which  has gantry crane frame bolted on the ground froor, which provides  enhanced stability and enable heavier loads handling possible.

Yuantai Crane is a leading manufacturer of fixed gantry cranes in China. Whatever your needs are, and whatever you need to lift, we can help you in finding a stationary gantry crane that optimizes operations inside your workspace or for outdoor use with rain covers.

Specifications of fixed gantry crane

• Capacity: 500kg, 800kg, 1000kg, 1600kg, 2000kg, 3200kg, 4000kg, 5000kg
• Crane span（m): 2,3, 4, 5, 6, 7, 8, 9, 10,
• Lifting height(m): as your request

Standard configuration

This fixed gantry crane has a very simple structure with 2 floor anchored  gantry frame to support a monorail beam.

Freestanding gantry design

The fixed gantry crane is a lifting structure that is independent of any building. The installation is completed without any modifications to the walls, steel framework, or ceiling. That structure must be chemically fixed in a concrete slab with a minimum depth of 160 mm. That method is particularly suited to buildings with varying ground levels.

Easy extendtion fixed gantry

You can install more equipment when your workstations expands around this structure. It is therefore possible to place one or more jib cranes on the legs using appropriate plates.

Alternatives for fixed gantry cranes

• Anchorage type, electric or manual hoist,
• motorization of moving devices, wireless industrial remote control,
• Special paint, Corrosion protection: paint, galvanization, metallization,
• Outdoor covering, Stainless steel bolts,
• Supply ducting, Galvanized or stainless steel power supply line,
• ATEX or food industry version, Full stainless steel 360L version

A fixed gantry crane is a type of light duty gantry crane that is normally intended for light use.The gantry crane can be customized to meet your individual job site and lifting needs. At our company, you may purchase high-quality gantry crane equipment made of high-quality components at a factory price. Furthermore, we offer a comprehensive after-sales support to address any issues that may arise during the order process.

Personalized fixed gantry crane design

Our fixed gantry cranes can carry a variety of capacities and are built with a knockdown design for quick erection and removal. When not built and ready for use, they fold up into a small package for transport or storage.

Fixed gantry cranes are available in a variety of styles. They can be mounted to goal post supports (much like a monorail crane) or employ an A-frame crane design like our portable choices.

 Customized fixed gantry crane can be anchored in foundations with different height

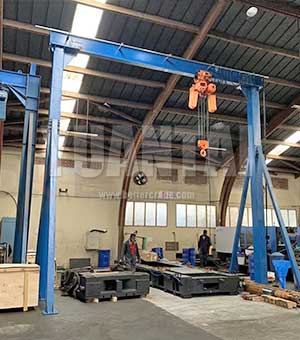

 Customized fixed gantry crane 10 ton for sale

Fixed gantry cranes are commonly regarded as low duty lifting devices, however they can sustain safe operating loads of up to 10 tonnes if necessary.

Fixed gantry cranes are a type of A-frame gantry crane that is stationary. There are other portable versions available. To learn more, see our mobile gantry crane and portable gantry crane pages.

10 ton fixed gantry crane vs. Portable gantry crane

• 10 Ton Fixed Gantry Crane
• Load capacity: 10t
• Span:7.4m
• Lift height:7.4m
• Hoist speed:2.7m/min
• Travel speed:11/min



• 10 Ton Portable Gantry Crane
• Load capacity: 10t
• Span:5m
• Lift height:6m
• Hoist speed:2.5m/min
• Travel speed:12/min

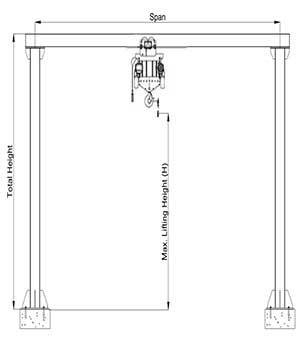

 Fixed gantry crane drawing for your reference

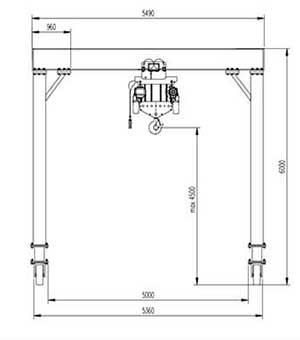

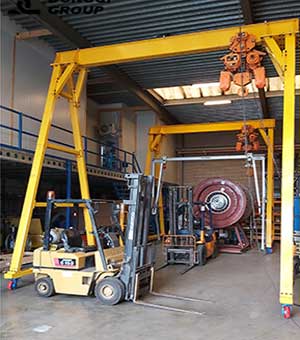

Portable gantry crane 10 ton for your reference

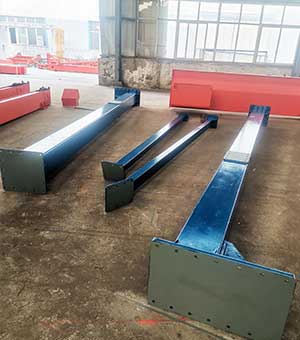

 Fixed gantry leg for your reference

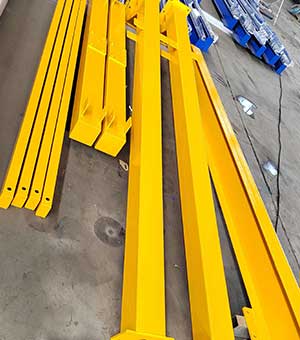

Portable gantry crane leg for sale

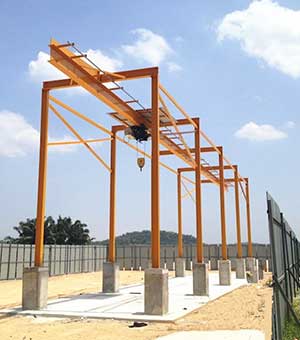

Fixed gantry crane - fixed gantry frame with monorail beam & hoists

 Fixed gantry crane with monorail hoists

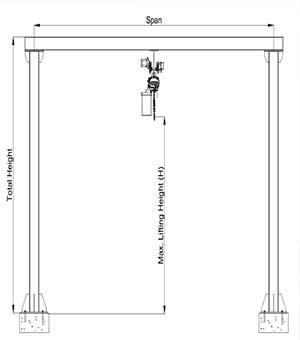

Fixed gantry crane with monorail hoist drawing

Main specications of fixed gantry frame with monorail hoists

• Capacity: 0.5 t, 1t, 1.5 t, 2 t, 3 t, 5 t, 8t, 10 t,
• Span: 2~25m, customized
• Lifting Height: 2~15m, customized
• Class: Option A3, A4, customized
• Powered via cable reel or diesel generator

Application

• Workshop, Concrete plant, all factories, etc.
• For assembly, loading, unloading area, etc.
• Bolted to your workplace floor

Advantages

Low power consumption and running costs Fixed design improves stability and carrying heavier loads

How to buy a fixed gantry crane ?

You can purchase the crane through our official website's contact forms. You can also send us an email or call us with the crane parameters you require. Once we get your order, our sales manager and crane engineer will work with you to finalize the details.

According to your design brief, our design department conceive a custom-made structure:

• Height under beam (HSF)
• Span
• Overall height
• Anchorage on several ground levels

As one source of gantry crane service provide, we can provide you the Personalized fixed crane solution, Rapid product delivery service operator training,Professional after-sales support, etc. If you have any need or requirements, please feel free to contact us.
