Floor Mounted Gantry Crane & Floor Mounted Crane Rails

Floor mounted gantry crane for sale. Floor mounted rail travelling gantry crane design & crane rails services for you, custom floor mounted gantry crane.

Yuantai Crane is committed to offering  floor mounted gantry crane and wall travelling gantry crane solutions for a wide range of industrial uses. To meet the diverse requirements of our customers, we offer a wide range of gantry crane types, capacities, and sizes, including single girder cranes, double girder cranes, semi-gantry cranes, portable gantry cranes, rubber tyred gantry cranes, and customized industrial gantry cranes for personalized application and uses.

The floor mounted gantry crane is a piece of material handling equipment, which  is specifically designed and built to improve your work productivity and safety. We not only design and manufacture the suitable gantry crane equipment, but we also offer a comprehensive after-sales crane service to ensure that our customers' hoists and cranes operate smoothly. Are you looking for Yuantai Crane floor mounted gantry cranes? Feel free to contact us to get your customized gantry crane design for free!

Floor mounted gantry crane

 Floor Mounted Gantry Crane is a  frequently used  gantry crane. With European style design, the advanced gantry cranes are wieldy welcomed around the world. Unlike demag crane & Kone crane, Yuantai’s floor mounted gantry cranes are affordable and at same time can help you meet your lifting requirement with quality assurance.

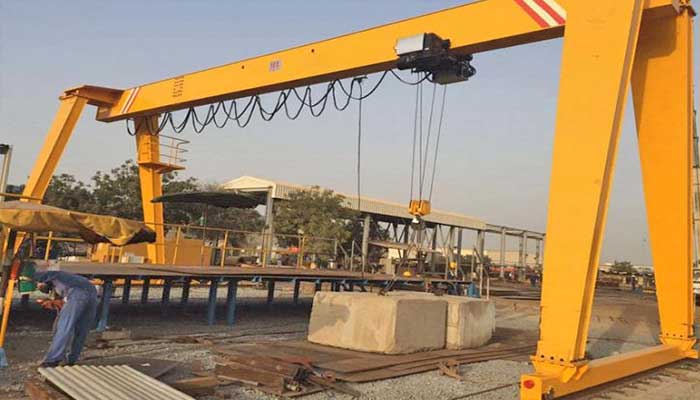

Single girder floor mounted rail gantry crane

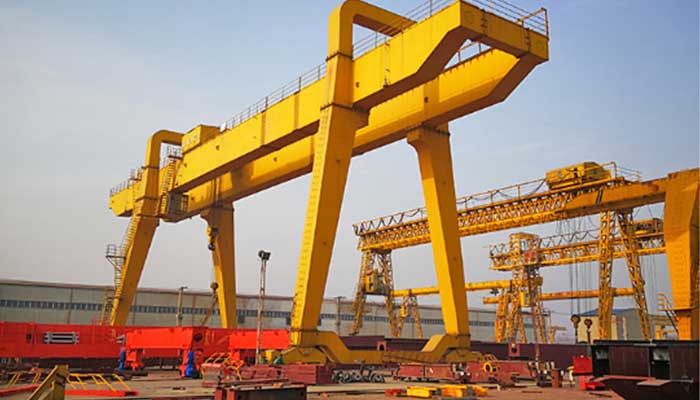

double girder floor mounted rail gantry crane

Floor Mounted Gantry Crane Steel Structure

There are two primary girder and support leg structures to choose from:

• 1. Advantage of truss type floor mounted gantry crane: a. Small  windward side and wind resistance.b. Low expense and light dead weight.c. Nice design & Appearance. .
• 2. Advantages of box type floor mounted gantry crane: a. compact structure, excellent rigidity, high lifting capability, and indoor use.b. Slim body, which saves on transportation costs.

Features of Floor Mounted Gantry Crane

• 1.Material: Q235,Q345B/Q345D for European Type Rail Travelling Floor Mounted Gantry Crane.
• 2. Relaible box type, no-welding joint type, powerful and beautiful.
• 3.Wheels are vacuum casting by our factory,intermediate frequency quenching.
• 4.CNC machining ensure precision production of wheels, wire rope, drums, gears, and couplings.
• 5.Standard configuration: Nanjing special Nanjing Brand motor or huang he explosion-proof, China's highest grade.SEW, ABB, and ABM used for high configuration.
• 6.Electrics from Siemens or Schneider.
• 7.Control method: You can select two of the following: cabin control, cordless remote control, or pendant control.
• 8. Customized gantry cranes are available based on your particular demand and lifting requirements.

Floor Mounted Gantry Crane Safety Features

• 1. Overload protection device.
• 2. Top quality long time bearing polyurethane materials buffer.
• 3. Gantry crane traveling limit switch.
• 4. Voltage lower protection function.
• 5. Emergency stop are available for floor mounted gantry crane.
• 6. Lifting height limit device.

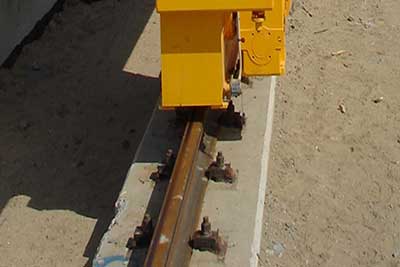

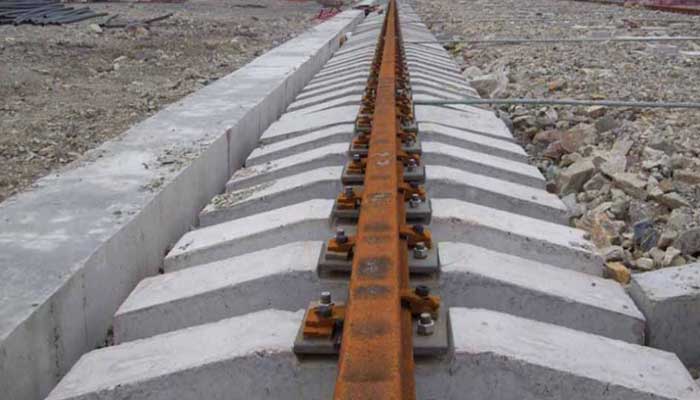

Track design for rail travelling floor mounted gantry cranes

Gantry crane track design is critical to the effective operation of the floor mounted rail travelling gantry cranes. To maximize efficiency and reduce operational downtimes, the rail and supporting foundation tolerances are essential, especially with automated cranes.Yuantai Crane designs and manufactures floor mounted gantry cranes and crane rail tracks for every industrial purpose, from portal cranes to steel-slab cranes, ship unloaders, and Goliath cranes. All of our material handling equipment are exposed to harsh, demanding conditions as well as severe weather. (heat, cold, humidity, dusty or corrosive environments).

The rail travelling floor mounted gantry crane is an indispensable equipment  in the hoisting of various large structures and loads, but in the construction of construction projects, the gantry crane is mostly used temporarily as auxiliary equipment, so the track foundation of the floor mounted gantry crane at the construction site cannot be like the gantry crane used in the freight yard and wharf In that way, special design is carried out, and most of them are designed by the technicians of the construction unit. If you have any, please feel free to contact us.

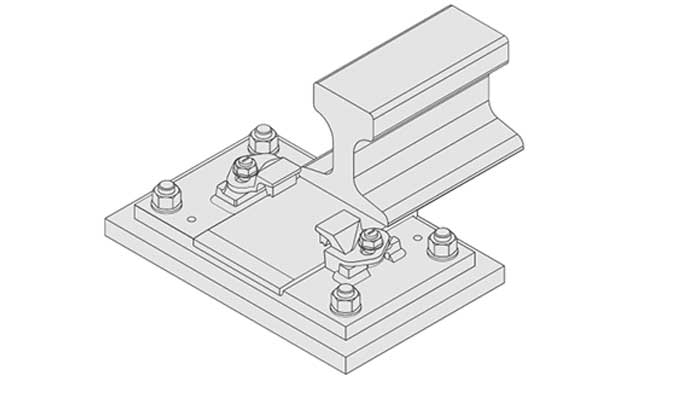

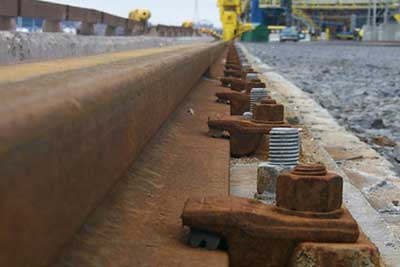

What to do when install crane rail for your gantry crane?

• Crane rail verification and technical calculation -There are very few design principles that fully cover crane rail installation. Cranes and the floor mounted foundation structures on which the crane rail is mounted must adhere to strict construction guidelines. Your crane rail floor fountaions and crane rails much be inspected to make sure that they are desined and constructed based on the principles and guidelines.
• Surveys prior to rail installation -Rail mounted cranes requires proper crane rail and tracks, which needs the calculation of specialized experts. Tolerances are more stringent than in standard structural engineering. As a result, it is prudent to conduct a structural inspection prior to rail installation. There may be movement of the structure and foundations in instances where rails have been in use for a long period. Again, surveying is essential before beginning renovation work.

Yuantai Crane works on any size project

Yuantai Crane has worked on gantry cranes projects of all sizes and in a variety of sectors. For heavy duty floor mounted rail travelling gantry crane with capacity up to 320 ton and 550 ton to small rail travelling gantry crane with capacity of 500kg, we are able to provide the most suitable gantry crane design to ensure your maximum efficiency and safety. Yuantai Crane has worked on a wide range of industrial gantry crane projects in difficult environments all over the globe.

Yuantai Crane devotes significant resources to assisting consultants, users, and contractors from crane design to installation and future maintenance. If you have any question or need on the floor mounted gantry crane, and please feel free to contact us.

Types of Rail travelling floor mounted gantry crane

A frame floor mounted gantry crane

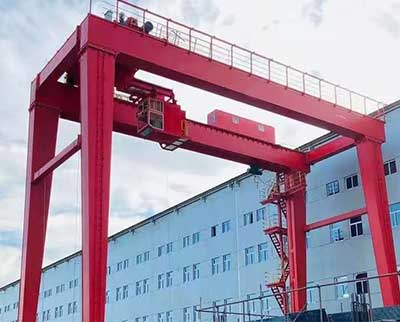

U frame floor mounted gantry crane

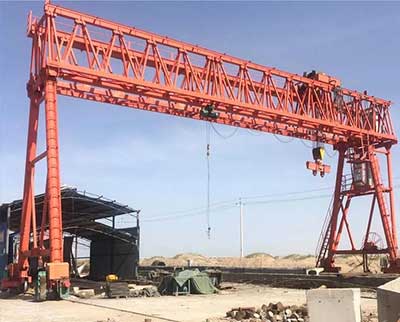

Truss girder floor mounted gantry crane

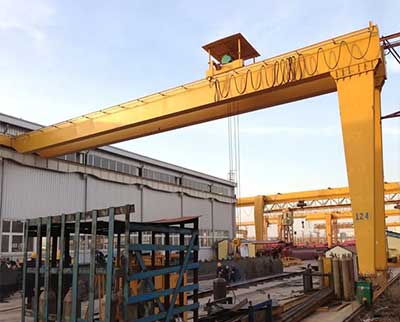

Semi gantry floor mounted gantry crane
