Freestanding Floor Mounted Workstation Crane for Glass Handling
Freestanding workstation crane for glass handling. Custom floor mounted workstation crane, with vacuum lifter, up to 2000kg, economical bridge crane.
A floor mounted workstation crane is the best option when a facility’s ceiling or wall structures is not durable or reliable enough to support an overhead bridge crane system, and whereas your workshop or facility has very high ceilings, or the work space is in an outdoor environment.
- Due to the floor mounted workstation crane systems are not a permanent installation in your workshop and factory, they can be easily relocated in the future. Installation is frequently much easier and does not place stress on the building's roof structure.
- Quality materials and construction ensure operational reliability and safety, allowing for long life with minimal upkeep.
Supply scope of floor mounted workstation cranes
- Lifting Capacity: 100~2000 Kg
- Span: 1-9 m
- Lifting Height: according your needs
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: M4
- Ambient Temperature: -25~40℃
Benefits of freestanding floor mounted workstation cranes
- All kits are custom sized to fit the available area.
- Rigid runways provide better load positioning with good precision.
- The enclosed track allows for simple movement and a long life.
- The smooth rolling surface allows for simpler movement of the bridge and trolleys.
- Fits any standard 6′′ concrete floor surface.
- Multiple track profiles and span features; competitive pricing.

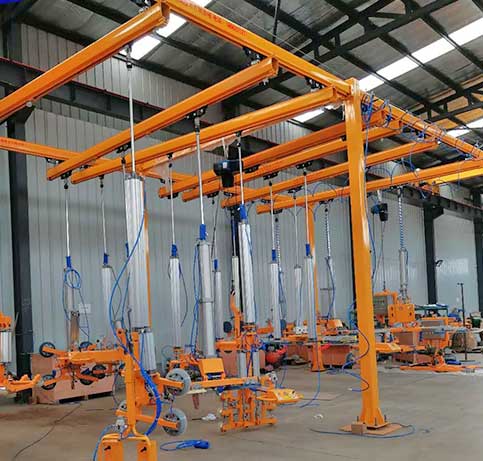

Flexible floor mounted workstation crane

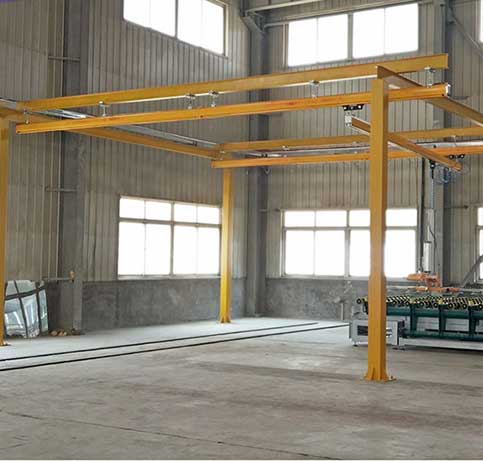

Freestanding floor mounted workstation crane

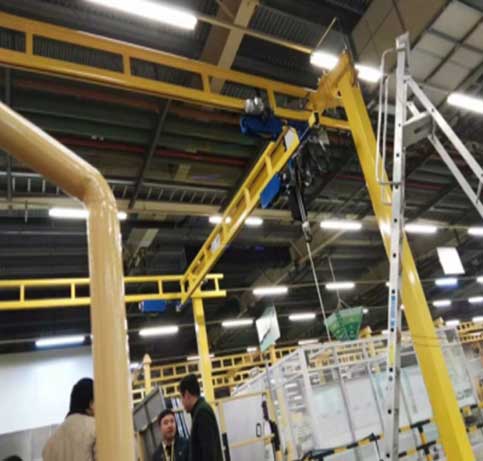

Rigid workstation crane

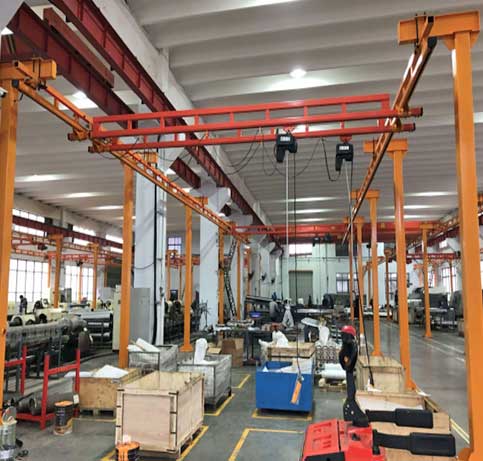

Rigid enclosed track workstation crane Vacuum Glass Lifter
Vacuum glass lifters have become popular for lifting glass sheets in the plant and installing glass walls outside.
One of the primary benifit for using vacuum glass lifters is for safety and efficiency. This lifting devices is widely used with workstation crane system for loads handling to reduce the number of people needed to move loads, and also to reduce the risk of injury to ground personnel. Glasses are moved and stacked securely without the need for additional employees in the unloading area.
Features of Workstation Crane with Glass Vacuum Lifter System
- Individualized pillar height, frame length, and travel beam breadth
- Individualized safe operating load.
- Both can be used with the suction lifter or the hoist.
- Extension vacuum lifter arms for different configurations.
- Imported vacuum pads with temperature resilience ranging from -20 to 90 degrees Celsius.
When to use floor mounted workstation crane system
- When there is more floor space than headroom, the floor mounted cranes is a great substituent to use I beam overhead crane and ceiling mounted crane system.
- These stand-alone arches, or pillars, are best used when the weight capacity is insufficient, or when they need to be readily reliability because the stand-alone pillars are simple to assemble, disassemble, and move when needed.
- In most cases, a floor-mounted workstation crane system is the best choice. In addition, if the roof is uneven or contains obstacles for a ceiling-mounted system, a floor-mounted workstation bridge crane system addresses this problem as well. Another reason to use this floor mounted crane system is if the work area has very high ceilings, making the vacuum or hoist lift difficult to use. Finally, for outdoor work spaces with no roof structure, this floor crane system is your best option.
- A floor-mounted workstation crane system can be adjusted to install around all corners of the work space or to remain confined to a specific area. This ability is excellent for devoting it to a particular area. The floor mounted free standing crane system can be designed with arches and pillars, making it adaptable to a variety of work area layouts.
Contact us freely to learn more on how we can tailor a solution to your specific workflow requirements.
Workstation Bridge Crane Applications
Because floor mounted workstation cranes are ergonomic and have high lifting capacities, they can be used for a variety of tasks in production and material transportation. The workstation cranes are useful at the following industrial sites:
- Maintenance facilities and mechanic garages: The floor mounted workstation cranes are a perfect material handling solution for maintenance garages that are too small for forklifts. For simple material movement, the workstation crane can support multiple work areas — even the entire building.
- Manufacturing workshop and warehouses: As part of the manufacturing and warehousing process, an floor workstation crane transports materials from one location to another. They can be used at particular task workstations or throughout the facility.
- Agriculture equipment manufacturing factory and service centers: Because agricultural equipment is cumbersome and heavy, manual work is too dangerous. Workstation cranes can move loads weighing thousands of pounds across the shop while covering the complete service area.
- Besides, the floor mounted workstation cranes also can be used in various applicaitons and uses such as, Work Cells, Shipping rooms, Machine shops, Assembly operations, Pump stations , Tool and die areas, Injection molding areas, Core handling, etc.
All You Want to Know About Floor Mounted Workstation Cranes
In the following, the frequently asked questions about the floor mounted workstation cranes are presented for your reference. If you have any need or other questions, please feel free to contact us to get your customized workstation crane solutions.
How much does a floor mounted workstation crane cost?
A floor mounted workstation crane is a low-cost option for lifting requirements. It is frequently less expensive than an overhead crane and more flexible than a jib crane or gantry crane.
What if there isn't enough room for a floor mounted workstation crane?
Concerned about a workstation crane's support supports taking up too much floor space? You have the choice of mounting your workstation crane to the ceiling. The ceiling mounted workstation crane may be a better choice if you don't want to take up any floor space. If you want to know more about the ceiling mounted crane, please feel free to contact us.
What if I have problems after the workstation crane installation?
Complete after sale services are available from us to provide technical service, parts supply and performing repairs. The majority of our products are covered by a standard one-year materials and labor warranty.
What services is required for my floor mounted workstation cranes?
Regular inspections and upkeep on your floor mounted workstation crane system are critical for reducing downtime and excessive repair costs.
How often should my workstation cranes be inspected?
The workstation cranes should be examined on a daily, monthly, and yearly basis. Each interval has a distinct level of inspection criteria to ensure the crane's correct maintenance and function. If you want to know more about the workstation cranes, please feel free to contact us.
Is it possible to move a workstation crane to a new building?
Yes, many PWI workstation crane packages are intended for bolt-together installations that enable for future expansion or relocation.
What kind of assistance do I require for a desktop crane?
Workstation cranes can be either ceiling or floor fixed. Ceiling-mounted systems require a strong building support framework. Floor-mounted devices must have sufficient concrete thickness (6") or be able to brace the crane to an existing structure.
Freestanding Workstation Bridge Cranes for Sale, Get Your Custom Design
The freestanding floor mounted workstation crane is equipped with a freestanding column system, enabling it to be used in areas where there is no secure overhead building structure or where there are ceiling obstructions. The floor mounted workstation cranes are ideal for working in large areas and are adaptable to potential workflow or facility changes.
Telescoping bridges on the freestanding workstation crane systems allow you to load components into a machine or another workstation or stretch over and under obstacles. There are runway rails between the two bridges, with bridge buffers to prevent the bridges from exceeding the crane's capacity.
Based on your particular conditions and lifting requirement, the workstation cranes can be customized to meet your particular applicaiton and needs.

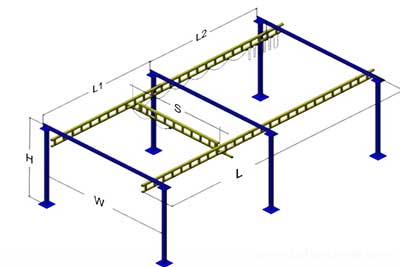

- W(S)= ____m H=____m L=____m L1=____m L2=____m
- Lifting capacity: ____Kg
- Crane travel type: A. Electrical type B. Manual type
- Voltage: ____V____Hz____Phase(If electrical type)
- ontrol Mode: A. Remote control B. Pendant Control
- Hoist type: A. Electric chain hoist B. Electric wire rope hoist C. Manual chain hoist
- How many bridge cranes are running on the same track?
