Overhead Hook Crane & Hook Gantry Crane

Hook crane of Better Crane is one of the most frequently used overhead cranes for material handling with capacity from 500 kg -100 ton with standard design. The hook crane are widely seen in various industries, with working class of A4 to A7. Customized hook crane is available from Yuantai Crane, with capacity up to 500 ton.

Overhead hook crane

Hook gantry crane

Hook overhead crane

The overhead hook crane can be used to lift loads from 5 tons to 550 tons, which is widely used to upload and move of general loads in the fixed crossing space and also can work with various special designed electric hoist or winch trolley in special operations.

Hook crane with bridge crane design

As one of the most frequently used material handling equipment, hook overhead crane is an overhead crane with the hook as the lifting device. The lifting capacity of the hook crane is 5 to 550 tons, and the working class is A4 to A7. The specifications of the hook crane is as follow:

Application of overhead crane with hook

The hook crane is widely used for general loads handling and transportation in the fixed crossing space and in various special purpose hoists in special operations. However, it is not allowed to be used in combustible, explosive or corrosives environment.

Types of hook overhead cranes

The hook overhead crane is custom made, which means the overhead crane size, lifting capacity and crane designs are perfectly suitable to your requirements and application environment.

• Traditional cheap electrical hoist hook crane 1~32 ton - China Traditional cheap electrical hoist overhead hook crane is widely used in the factory, ware house, stockyard, etc.
• Explosion proof hook crane 1~20 ton - Explosion proof hook crane is designed for hazardous environment, such as, gas, dusty environment to enhance safety.
• Low headroom hook crane 1~32 ton - Low headroom hook cranes are designed for low height plant and factory, where the lifting room is limited but lifting height is high.
• FEM electrical hoist hook crane 1~20 ton - FEM hoist hook crane is designed with features of Sturdy quality,Good price, One year quality assurance, Full set of after sales service.
• European underslung hook crane 1 ton -10 ton - European underslung single girder underslung crane is installed on the roof of the workplace without bracket, saving space and lowering cost.
• Traditional suspension hook crane 1~10 ton - China Traditional suspension hook crane is a small light lifting equipment, economical price, which is widely used in the factory, warehouse, stockyard, etc.

Hook crane with double girder design

• European hook crane 3~ 80 ton - FEM hook crane meets all the European crane standards with CE certificates.
• Electric Hoist hook crane 5~63 ton - Electric hoist double girder overhead hook crane is widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, stock ground, and power station, textile industry and food industry.
• Double Girder Overhead Winch Crane 5-550 ton - General use double girder overhead electric winch crane is widely used to upload and move of normal weight in the fixed crossing space and also can work with various special-purpose hoist in special operations.
• Explosion Proof hook crane 5~75 ton - Explosion proof overhead crane is designed for explosive gas atmospheres with explosion-proof electrical equipment.
• Electromagnetic hook crane 5~32 ton - The electromagnetic overhead crane is used in metallurgy factory or outdoor place to load and transport electromagnetic black metal materials, such as , steel ingot, merchant steel and pig iron, etc.
• Double Trolleys hook crane (2.5+2.5)~(200+200) ton - The double trolley overhead crane is used to lift long and big loads.
• Insulation hook crane 5~50 ton - The insulation overhead crane is used to handle electrolyse non-ferrous metals such as magnesium, aluminum.
• Ladle hook crane 5~74 ton - Ladle overhead crane are widely used in the smelting industry to convey, pour and charge the liquid hot metal in the process of smelting.

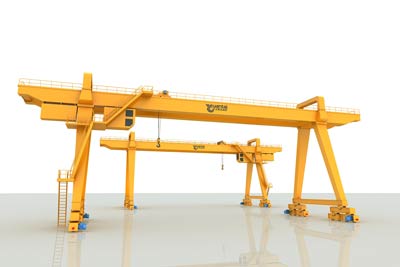

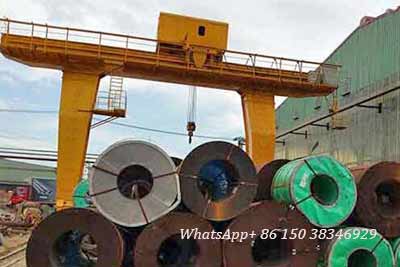

Hook Gantry Crane

Hook gantry crane is heavy gantry crane with double girders, which is widely used for general purpose. Hook gantry crane are heavy duty crane, used at indoors and outdoors places where overhead cranerunways are not practical. The lifting capacity of the hook gantry crane is 1 to 500 tons. The working class of the gantry crane is A3 and A6.

Hook gantry crane main parameters

The main parameters of hook gantry crane are as follow:

Application of hook gantry crane

Hook gantry crane is usually used to open warehouse or along rail for general material handling and lifting work, such as, freight yard or dock, etc.

Gantry crane specifications of Yuantai Crane

• Hook gantry crane with single girder design 1~20 ton - Single girder gantry crane is equipped with duel-speed electric hoist, widely used in workshop, storage, port, and hydroelectric power station and outdoor places.
• Hook gantry crane with L shaped leg design 5~32 ton - L type gantry crane is used to meet the general outdoor material handling requirements.
• Hook gantry crane with semi gantry design / single leg design 2~10 ton - Semi-gantry crane is a small or middle crane, widely used for materials handling, outdoor place and warehouse for loading and unloading.
• Hook gantry crane with truss girder design 1~50 ton - Truss crane is for windy environment with high safety, lower price and lighter weight.
• Hook gantry crane with double girder design 5 -500 ton - hook gantry crane is applied to the open warehouse or rail along for general handling and lifting work.

Single hook crane & double hook crane

For general loads handling, the overhead cranes and gantry cranes are usually equipped with one single hook for loads handling, which has talked on the previous paragraph. As for double hook crane, is an overhead crane or gantry crane which are equipped with double hooks for large, long and heavy loads handling or to realize a special handling handling. The double hook cranes will be shown in the following paragraph.

Double Hook Crane

One trolley with Main hook & auxiliary hook crane

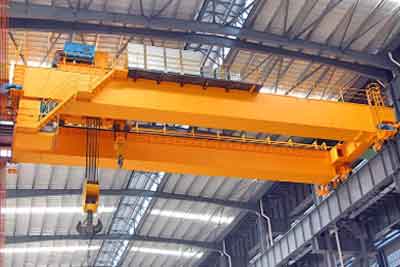

Double hook overhead crane with main hook & auxiliary hook

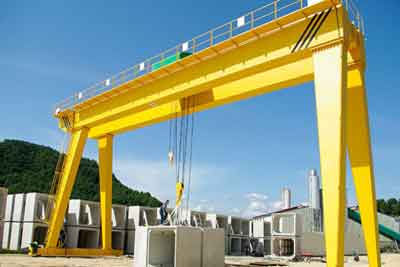

Double hook gantry crane with main hook & auxiliary hook

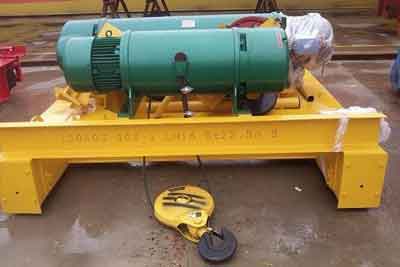

Double hook hoist trolley

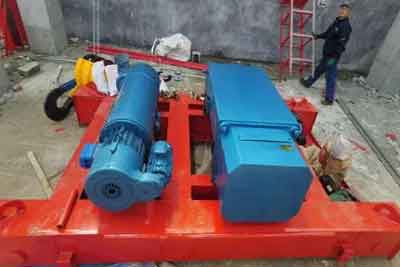

Heavy duty double hook hoist trolley

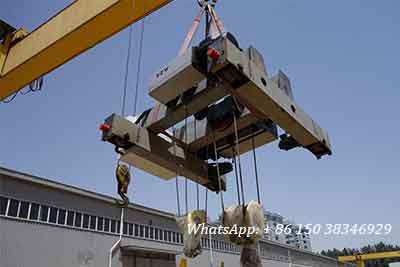

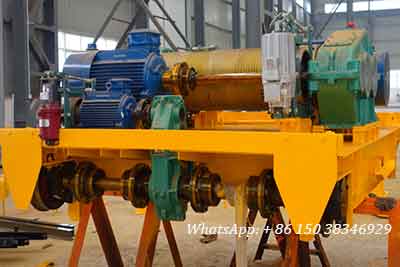

Open winch with double hook

Heavy duty open winch

Double trolley & Double Hook Cranes

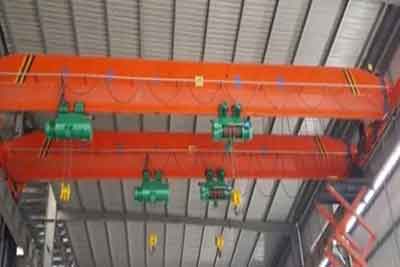

Double hook and double hook overhead crane

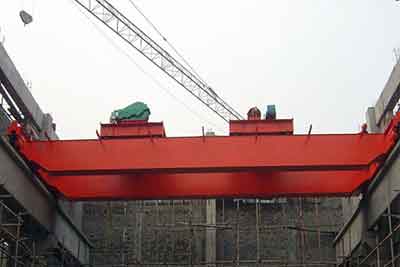

double trolley double hook overhead crane

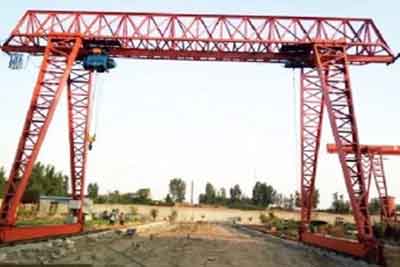

double hoist double hook gantry crane

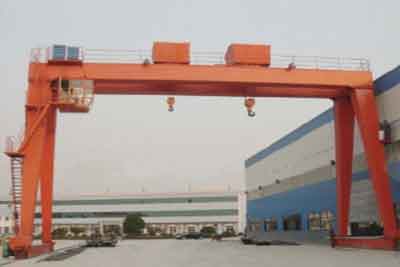

double trolley double hook gantry crane

Overview of Crane hook

Crane hook is one kind of material handling devices, a tool used to lift and move loads. Crane hooks can be divided into different categories, such as single hooks, double hooks, C-shaped hooks, and laminated plate hooks.

The single hook is simple to produce and is frequently used by cranes to lift items weighing no more than 75 tons.

Large capacity cranes frequently use two hooks due to the favorable loading conditions.

The laminated plate hook is a type of load hook that is made up of many sheets or discrete segments and is joined together by rivets. The laminated plate hook is primarily used to move heavy loads, such as casting ladles filled with molten liquid materials.

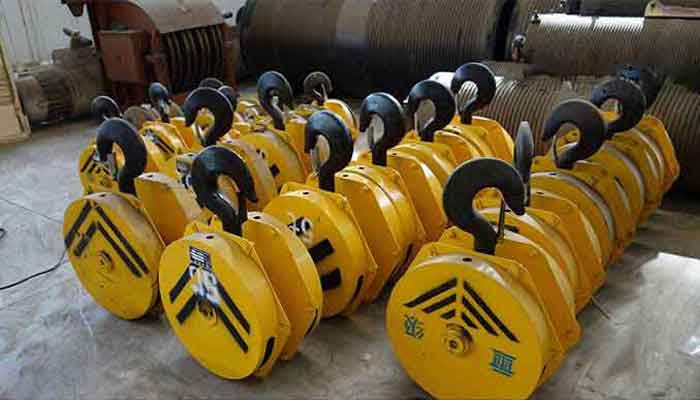

Crane hook and hook pulley system for sale

Types of crane hook

Crane hooks can be divided into several categories based on various standards, including single and double hooks, forging and laminated hooks, closed and semi-closed hooks, and additional hooks such electric rotary hooks. These varieties of crane hooks are frequently employed in a variety of applications, depending on their various qualities.

1) Concerning hooks' design

Crane hooks can be classified in to single hook, C type hook, and double hook, etc.

For handling weights weighing less than 75 tons, a single crane hook is typically employed. It has the advantages of being easily manufactured and convenient to use, etc.

The double Crane hook is frequently used to handle high loads because of its excellent bearing capacity.

2) Manufacturing techniques

Forging hook and laminated hook are two different categories of crane hooks that can be based on production techniques.

Forging hook

High-quality low carbon steel or low carbon alloy steel, such as 20 high-quality low carbon steel, 16Mn, 20MnSi, and 36MnSi, which is annealed after forging, is used to make the forging hook.

Although the forging hook is simple to make and simple to use, its stress condition is not as excellent as the laminated hook. Therefore, loads under 80 tons are often handled by the forging hook. And while managing huge weights, double hooks will be used.

Laminated hook

Steel plates are welded together with laminated hooks. The laminated hook offers excellent safety since even if one plate is flawed, the entire hook can still function without suffering damage. Laminated hooks are frequently employed with big lifting capacity cranes, such as steel ladle cranes, due to their high safety and enormous dead weight.

Laminated hooks also can be grouped into into single hooks and double hooks.

3) Closed crane hook and semi-closed crane hooks

4) Electric rotary hook

5) Other types of crane hooks

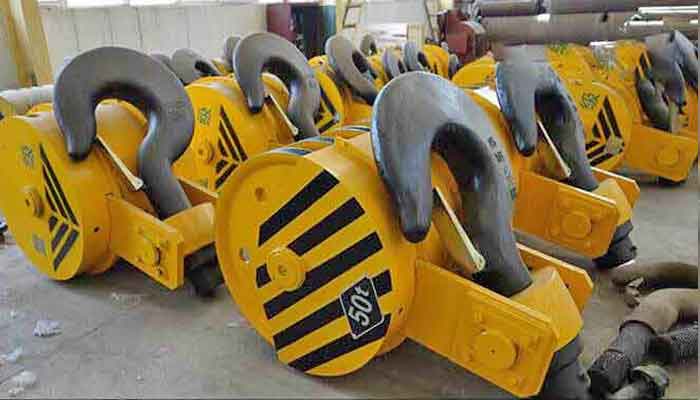

50 ton crane hook and hook pulley system
