Indoor gantry cranes: Types of Indoor Gantry Cranes for Selection

Indoor gantry cranes for sale. Types of indoor gantry cranes for your selection, portable, single girder & double girder gantries customized for your indoor use. Check now.

A indoor gantry crane is an ideal lifting solution for indoor material handling that require flexible and easy material handling. The indoor gantry is frequently used in closing work environments which has to take the facility building limitation in mind, such as workstations, garages, indoors, machine shops, and other factories.

For material handling, the indoor gantry cranes can be customized based on your indoor conditions and lifting requirements. The portable gantry for light and flexible loads handling with economical price for small and medium factories where material handling is not so busy and has limited space. The rail travelling gantry cranes is widely used for workshops or workstation where heavy loads handling or high working speed , such as, steel mill warehouse, where steel coils needs to handle efficiency.

For many years, we have specialized in the production of indoor gantry cranes. We are happy to assist you in selecting the appropriate indoor cranes for your needs, or we may provide a customized gantry crane to meet your specific needs.

Types of indoor gantry cranes for sale

We offer a wide range of gantry cranes to meet your small and large lifting requirements in various industrial workshops, workstation, and warehouse, etc. . These indoor gantries are available in a variety of sizes and capacities to suit a wide range of applications and industries.

The portable gantry cranes for indoor can be grouped into two types , the height adjustable and fixed height.(standard).

Portable gantry cranes are commonly used in assembly workshops, machining workshops, assembly molds, research laboratories, maintenance workshops, small freight stations, indoors, and repair shops, and other other places. Especially ideal for environments where working area clearance is limited.

The compact electric gantry crane can move fast, disassemble and reassemble, and cover a small area. The structure is properly designed, can handle 500 10000 kg weight, and spans up to 10 meters.

Based on your lifting requirements, the portable indoor gantry cranes can be designed with hand push travelling and electric motorized travelling to meet your lifting requirements and keep the crane cost within your budget.

Portable gantry crane for indoor use

Model	Portable Gantry Crane
Load capacity	0.5-10t
Span	2-16m
Lifting height	2-12m
Lifting speed	0.9-7.2m/min
Trolley running speed	11m/min
Crane running speed	6m/min or manual operation
Work duty	A2

Semi Gantry Crane for space limited indoor

The semi gantry crane is ideal for indoors where the facility space is limited. It can make use of indoor structure where a wall-mounted rail can be be installed to support the one end of gantry crane bridge and the other side supported by two legs. The

Semi gantry crane for indoor use with signle girder design

Model	BMH
Load capacity	3-20t
Span	8-30m
Lifting height	6-18m
Lifting speed	0.33-8m/min
Trolley running speed	20m/min
Crane running speed	20m/min
Work duty	A3, A4

Semi gantry crane for indoor use with double girder design

Model	BMG
Load capacity	5-32t
Span	12-30m
Lifting height	6-12m
Lifting speed	6-11.5m/min
Trolley running speed	37-40.1m/min
Crane running speed	37.7-40.1m/min
Work duty	A3-A6

Full Gantry Crane

The full gantry crane are usually adopted by large and heavy material handling indoor, which is typical features of large capacity with self supporting legs, travelling on ground rails which reduce the limited of the indoor supporting rigidity. The lifting capacity of full gantry cranes is from 5 ton to more than 500 tons.

Full gantry crane for indoor use with single girder design

Model	MH
Load capacity	3-20t
Span	8-35m
Lifting height	6-18m
Lifting speed	0.33-8m/min
Trolley running speed	20m/min
Crane running speed	20m/min
Work duty	A3, A4

Full gantry crane for indoor use with double girder design

Model	MG
Load capacity	5-500t
Span	18-35m
Lifting height	6-18m
Lifting speed	1.5-11.5m/min
Trolley running speed	10-40.1m/min
Crane running speed	16-50m/min
Work duty	A3-A7

Why to use indoor gantry crane over indoor overhead crane?

In some circumstances, a gantry crane for indoor is less expensive than an overhead crane since the gantry crane equipment eliminates the requirement for support columns, resulting in significant material cost savings.

Indoor gantry cranes are an excellent alternative to overhead cranes since they can run on the ground rather than on elevated runways. As a result, no supporting columns or above runways are required for the indoor gantry crane.

Gantry cranes for indoors can be designed with various designs and configurations to meet different indoor conditions. Besides, with roller travelling gantry cranes, and rail travelling gantry crane design, the lifting capacity of the gantry cranes will not be affected by indoor rigidity.

Indoor gantry cranes are built to last and operate admirably, allowing you to significantly enhance your output. We provide a variety of overhead gantry crane models to meet your specific lifting needs.

For the most cost-effective material handling indoor cranes solution, contact us!

Yuantai indoor cranes for your factory material handling

With more than 3 decades of experiences in crane design and manufacturing, Yuantai Crane can provide types of indoor crane systems for your selection besides the indoor gantry cranes.

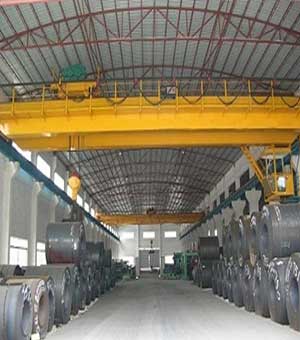

• Overhead crane for indoor: double girder overhead crane, single girder overhead crane, etc.
• Gantry crane for indoor : semi gantry crane, single girder gantry crane , double girder gantry crane , etc.
• indoor hoist: electric hoist, wire rope hoist , electric chain hoist , etc.
• Yuantai indoor cranes and indoor hoist can be used for different material handling requires, with lifting capacity from 1ton, 3ton, 5ton, 10ton and up to 100ton.

There are various types of warehouse cranes and lifting devices, each serving a particular purpose. Some of the most typical warehouse lifting solutions are as follows:

• High bay warehouse cranes
• Warehouse overhead cranes
• Bridge cranes
• Jib cranes
• Gantry cranes
• Hoists
• Workstation cranes
• Monorail cranes

How to Choose a Proper Indoor Cranes

Because overhead material handling equipment is critical to the indoor workshop material handling efficiency, selecting the right indoor cranes is critical. The issue is determining how to select the best overhead crane for your needs. One of the most crucial things is to carefully and clearly assess your individual demand. Some points to consider include, but are not limited to:

• The products or objects required to be handled in your indoor as well as the specifications necessary for your overhead crane, such as lifting capacity, lifting height, and crane span.
• Suitable indoor cranes types include: overhead cranes, gantry cranes, and hoists.
• The frequency with which the material handling crane is used. Some lifting cranes are light duty and cannot be utilized in a busy and frequent working environment, but others are heavy duty and can undertake heavy work on a continuous basis. As a result, you should determine how frequently you will use the equipment.
• The price you intended to spend for a indoor cranes purchasing. How much money do you have set aside to buy a indoor cranes ? We can deliver the best crane solution for your needs while keeping at reasonable price.
• What are your preferred crane control? There are three general methods: pendant control, remote control, and cab operation. You can select one of them or two combinations based on your needs.
• We recommend that you carefully consider these considerations, and then we will assist you in selecting the best indoor cranes solution. We also offer customized indoor material handling equipment.
• The cost you are intended to pay for a crane. How many budget you allocate to purchase a indoor cranes ? Which type do you prefer to choose? We can provide the best crane solution within your budget.
• The way you decide to operate the overhead crane. Generally there are three methods, pendant control, remote control and cab operation. You can choose one of them or two combinations on the basis of your requirement.

We suggest you think about these factors carefully, and then we will help you select the most suitable solution for the indoor cranes . In addition, we provide customized overhead lifting equipment.

Custom gantry cranes for your indoor material handling

Based on your lifting requirements and indoor conditions, the indoor gantry cranes can be customized in the following aspects：

• Travelling type: Roller travelling, rail travelling, or wall travelling & ground rail travelling for semi gantry crane.
• Gantry girder: single girder, double girder, & I beam girder
• Gantry hoist： chain hoist, rope hoist, manual hoist
• Customized specifications； Capacity, lifting height, crane span, voltage, travelling length, crane control, etc.

The customized gantry cranes for a particular indoor will be the most suitable and economical solutions .

In the following, the most frequently used gantry cranes for indoor are presented for your reference. Bases on the main specifications and features, your can select a proper one for your use or just leave a message about your indoor dimensions and load dimension, we can design the gantry cranes for your indoor.

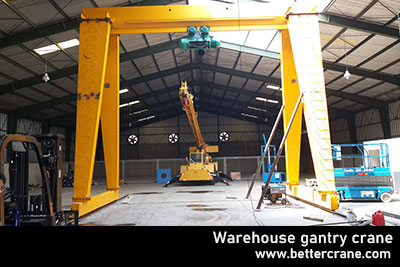

Warehouse indoor gantry crane

Workshop indoor gantry crane

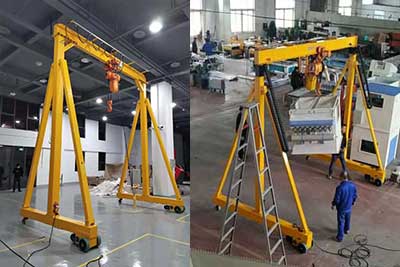

Garage indoor gantry cranes

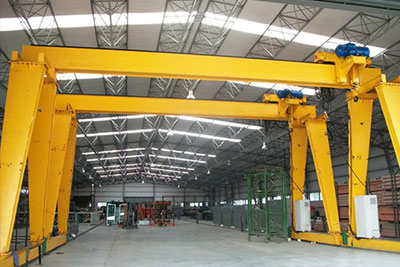

Customized indoor gantry cranes

How much does a indoor crane cost?

Many factors affect the cost and design of a indoor cranes system. Here are some of the most common factors that may alter the cost of any crane application:

• indoor cranes type
• The hook height (lifting height) and, crane span, and runway length, etc.
• The lifting capacity rating
• Weight and type of material or objects
• The crane duty cycle or amount of time in use regularly
• The indoor environment
• Particular installation or structural requirements
• Length of runway bay
• Crane speed
• r $80,000

What crane services can we provide you?

• Various high-quality indoor and outdoor gantry cranes
• provide a crane purchase guide and 24-hour online service
• Gantry crane package with caution
• Prompt shipping
• Free crane installation, inspection, and maintenance
• Complimentary operator training 7.Intimate after-sales service
