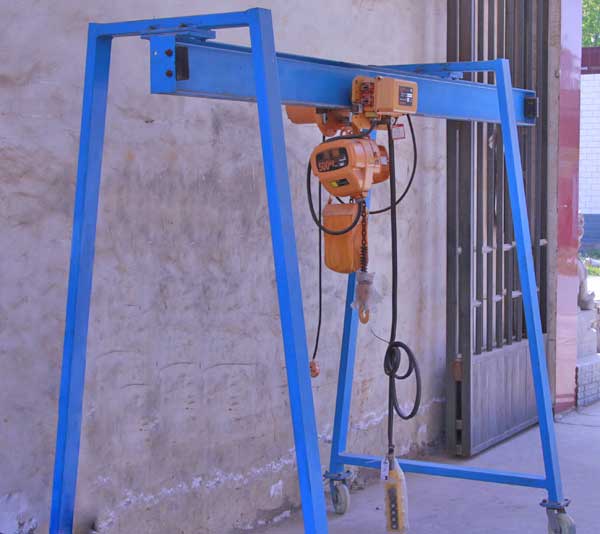

Light gantry crane with Low headroom Design for Sale
Do your workshop or facility have any height restrictions on the height of gantry crane? Are you looking for a fixed or adjustable height and width range? Do you need an economical portable gantry crane for light load handling?
With these questions answered, we can recommend a low headroom portable gantry crane system that is ideal for you. Please keep in mind that we sell a wide range of material handling equipment, including. Yuantai Crane has a fixed height portable gantry crane for your needs. Light gantry cranes are a simple and cost-effective way to move materials around your facility.
Why to have headroom crane design ?
Low headroom cranes are extremely delicate in terms of dimension and dead weight. Such a design could conserve warehouse space while increasing operational efficiency. When compared to traditional gantry cranes, low clearance gantry cranes have lower requirements for minimum limiting distance on the overhead space. It has a lower requirement for headroom and a higher lifting height specification. A delicate and optimized design in its wheel pressure, resulting in a lighter dead weight than traditional gantry cranes. It then saves a significant amount of money on construction fees. The main advantage of the low headroom light gantry crane is that it saves energy and money.
Low headroom H beam gantry crane for light load handling
Low HeadroomPortable Gantry Crane：
- Height adjustable
- Up to 6 meter span
- Lifting Weights: within 2,000 kg
- Application: Most widely used for applications such as, low ceiling workshop, warehouse and workshop without power supply, etc.
- Design Standards: national standard and non-national standard
|
Lifting weight(kg) |
250 |
500 |
1000 |
2000 |
3000 |
4000 |
|
Working duty |
A3-A6 |
|||||
|
Span(Ft) |
8,10,15,20,25,30 |
|||||
|
Lifting height(Ft) |
|
|
|
|
|
|
|
6-39 |
||||||
|
Lifting speed(Ft/Min) |
39 |
26 |
26 |
24 |
23 |
19 |
|
Power supply |
380V 50HZ 3PHS(or according to your demand) |
|||||
Features of Light Gantry Crane：
- Squat tubing uprights, knee braces, and a channel base ensure stable lifting and movement.
- The connection of the bolted beam to the upright ensures safety.
- Molded phenolic casters are standard and allow for simple movement.
- The phenolic wheel.
Advantages of low headroom light gantry crane
- Low clearance and a minor dimension.
- Light deadweight
- More operative working place.

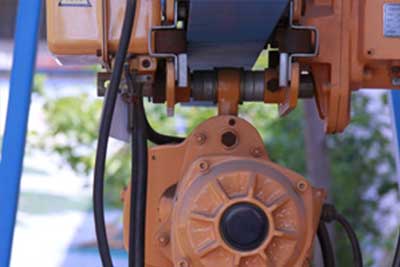

- Low headroom electric hoists can be equipped.
- Double lifting speed and inverter traveling speed are optional to meet your lifting requirements and application conditions.
Main parts and components of light gantry crane

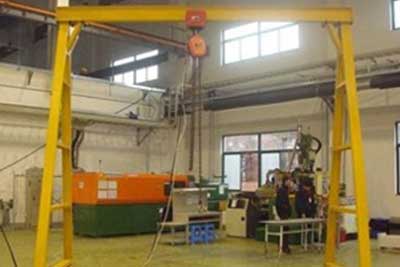

Low headroom H beam light gantry craneThe portable gantry crane with low headrom designs is widely appliedto factories, farms and stations. Because of its compact design, easy operation, the light gantry crane system is welcomed among customers. Yuantai Crane provided custom light gantry crane according to your application dimensions.
Types of gantry cranes for Your selection
Gantry cranes are primarily used to load and unload outdoor freight yards, material yards, and bulk cargoes. Its metal structure is shaped like a door frame, with two legs under the main beam. It is capable of walking directly on the track. Overhanging cantilever beams at the two ends of the main beam can effectively increase the crane's working range. Gantry cranes are classified into various groups using various classification methods. Gantry cranes can be classified as follows:
- By structure: single girder gantry crane, double girder gantry crane, box type gantry crane, truss Gantry crane, and semi gantry crane are available.
- Cantilever: There are single cantilever gantry cranes, double cantilever gantry cranes, and no cantilever gantry cranes (Full gantry cranes).
- Mounting type: There are rail mounted gantry cranes and mobile gantry cranes for support.
- By picking device: hook gantry cranes, grab gantry cranes, electromagnetic gantry cranes, and so on.
- There are light type single girder gantry cranes, heavy type single girder gantry cranes, light type double girder gantry cranes, and heavy type double girder gantry cranes based on their working duty.
- By load weight and crane capacity: There is a 10 ton gantry crane. Gantry crane 15 tons, Gantry crane 20 tons,Gantry crane 30 tons,Gantry crane 45 tons. Gantry crane 50 tons,Gantry crane 80 tons, and gantry crane above 100 ton, etc.
