Overview of workstation cranes

Workstation cranes & Workstation Bridge Crane & Jib Crane System Workstation crane overview, all types of workstation bridge cranes, workstation gantry crane & jib crane system to check features & uses & get your design.

Workstation cranes, also known as bridge cranes, overhead cranes, or workstation bridge cranes, are lifting devices commonly used in industrial settings to move and transport heavy loads within a confined workspace. They consist of a horizontal bridge that spans the workspace and moves along a set of overhead rails or tracks. The bridge is equipped with a hoisting mechanism, which can be manual or powered, to lift and lower loads.

There exists a variety of workstation cranes, each offering its own set of advantages and drawbacks, rendering them suitable for distinct work applications. These workstation crane types encompass bridge cranes, both those that are ceiling-mounted and freestanding, gantry cranes, jib cranes, and enclosed track rail systems.

Yuantai Crane  is a manufacturer that produces all the components required for constructing a workstation crane. This includes everything from the chain and hoist to the end trucks and rail trolleys. Whether your application necessitates intersecting runways or takes the form of a linear workstation, our team of workstation crane experts is at your disposal, ready to assist you in crafting the perfect solution.

Here are some key features and aspects of workstation cranes:

• 1. Types of Workstation Cranes: Manual Workstation Cranes: These are operated by human power and are suitable for lighter loads. They require manual effort to move the bridge and lift loads using a hand chain or lever.
•   Powered Workstation Cranes: These are equipped with electric or pneumatic hoists and are capable of lifting heavier loads. They can be controlled with push-button pendant controls or through more advanced automation systems.
• 2. Applications: - Workstation cranes are commonly used in manufacturing, warehouses, assembly lines, and other industrial settings. - They are ideal for tasks such as moving materials from one work area to another, positioning heavy components, and facilitating precise placement of objects.
• 3. Advantages: - Improve productivity by reducing the need for manual lifting and carrying of heavy items. - Enhance worker safety by minimizing the risk of injury associated with manual lifting. - Allow for precise positioning of loads, which can be crucial in manufacturing and assembly processes. - Save floor space compared to floor-mounted crane systems.
• 4. Installation: - Workstation cranes can be either ceiling-mounted or freestanding, depending on the specific requirements of the workspace. - Ceiling-mounted cranes are attached to the existing building structure and are a good choice when floor space is limited. - Freestanding cranes do not require support from the building structure and are more flexible in terms of installation location.
• 5. Customization: - Workstation cranes can be customized to suit the specific needs of the application, including the capacity, span, and lifting height required. - Various accessories such as hooks, trolleys, and special lifting attachments can be added to accommodate different types of loads.
• 6. Maintenance: - Regular maintenance is essential to ensure the safe and efficient operation of workstation cranes. - Maintenance tasks typically include inspections, lubrication of moving parts, and ensuring that electrical components are in good working condition.

Workstation cranes are valuable tools in industrial settings, providing a safe and efficient means of handling heavy materials and products. They contribute to increased productivity, reduced labor costs, and improved workplace safety.

Workstation bridge cranes

Let's delve into the specifics of workstation bridge cranes. When your goal is to transport loads efficiently from one location to another, our aluminum-rail workstation cranes emerge as a lightweight yet robust option compared to their larger, high-capacity counterparts. Furthermore, our Unified Industries brand offers workstation crane configurations that encompass both manual and automated setups. These configurations encompass both ceiling-mounted and freestanding systems, featuring diverse sizes and lifting capacities. These workstation cranes are ingeniously designed to seamlessly integrate with Columbus McKinnon's comprehensive range of powered and manual hoists, thus providing a comprehensive lifting solution.

Ceiling-Mounted Workstation Crane When ground space is limited or you prioritize keeping your lifting equipment away from foot and vehicle traffic, ceiling-mounted setups offer an excellent solution. These configurations excel, especially in cases involving extended runways featuring multiple bridge systems. Furthermore, these installations can be easily adapted should your operational needs expand, or your facility undergoes size adjustments. A ceiling-mounted bridge crane proves highly efficient when integrated into a structure constructed from materials like concrete, steel, or aluminum, capable of handling loads of up to 4,000 lbs. at their maximum capacity.

Ceiling-mounted and floor-mounted workstation bridge cranes are two common configurations of workstation bridge cranes used in industrial and commercial settings. They differ primarily in how they are installed and supported within a workspace:

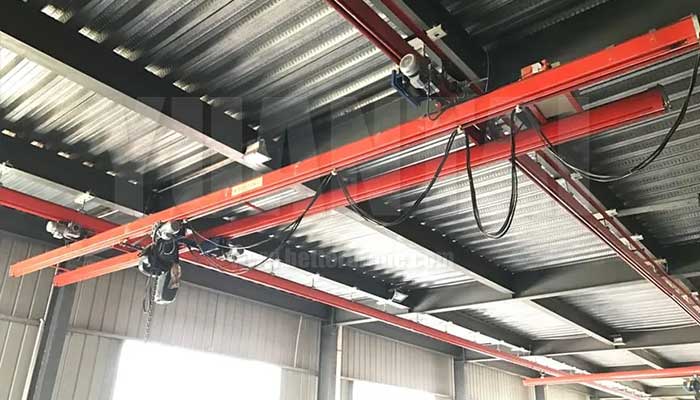

 Ceiling mounted workstation bridge crane system

Ceiling-Mounted Workstation Bridge Crane:

•   Installation: A ceiling-mounted workstation bridge crane is installed by attaching the crane's horizontal bridge and hoist assembly to the ceiling structure of the building. It is typically suspended from the overhead building structure using mounting brackets, beams, or other secure attachment methods.
•   Support: These cranes rely on the structural integrity of the building's ceiling or roof to support their weight and the loads they carry. Therefore, they do not require additional support structures on the floor or walls.
•   Advantages:
•      - Maximizes floor space: Because they are mounted overhead, ceiling-mounted cranes keep the floor clear of obstructions, making them ideal for areas with limited space.
•      - Efficient load movement: They allow for smooth and efficient load movement within the workspace.
•      - Ideal for covering large areas: Ceiling-mounted cranes can span a wide area, making them suitable for handling materials across a broad work zone.
•   Applications: Ceiling-mounted workstation bridge cranes are often used in manufacturing plants, warehouses, and assembly lines where floor space optimization is critical.

Freestanding Workstation Crane Free-standing structures offer the utmost flexibility as they can be positioned anywhere within the factory floor, allowing for straightforward relocation when operational requirements evolve. These bridge cranes are specifically engineered to be firmly anchored to the ground, ensuring their capability to manage both horizontal and vertical load movements. Such equipment proves particularly advantageous in confined workspaces or locations with delicate ceilings that cannot support a ceiling-mounted bridge crane.

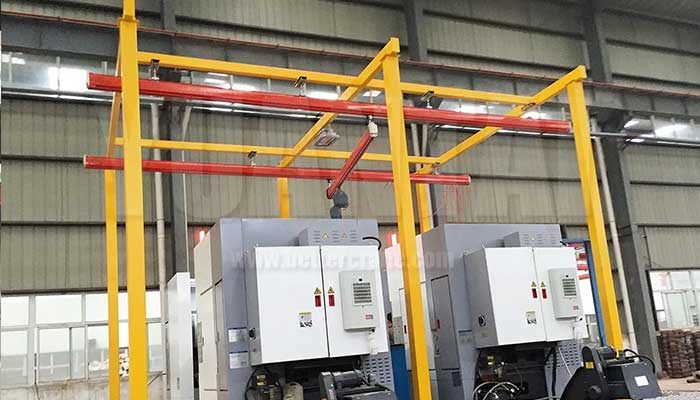

 Floor mounted workstation bridge crane system

Floor-Mounted Workstation Bridge Crane:

•   Installation: A floor-mounted workstation bridge crane is installed on the floor of the workspace. It consists of vertical support columns or posts that are anchored securely to the floor, along with the horizontal bridge and hoist assembly.
•   Support: These cranes rely on the strength and stability of the floor and the support columns. They do not require attachment to the building's ceiling or walls.
•   Advantages:
•      Versatile placement: Floor-mounted cranes can be installed anywhere on the floor, making them flexible and easy to reposition as needed.
•        Independent of building structure: They are not affected by the building's ceiling height or structure, making them suitable for spaces with low ceilings or structural limitations.
•        Quick installation: Floor-mounted cranes can be set up relatively quickly without the need for structural modifications to the building.
•   Applications: Floor-mounted workstation bridge cranes are commonly used in workshops, garages, maintenance facilities, and other locations where the building structure may not be suitable for ceiling-mounted cranes, or where frequent crane relocation is necessary.

Both ceiling-mounted and floor-mounted workstation bridge cranes offer advantages depending on the specific requirements of the workspace. The choice between them typically depends on factors such as available space, building structure, load capacity, and the need for overhead clearance.

Workstation Gantry Cranes

Workstation gantry cranes, also known as portable gantry cranes or mini gantry cranes, are versatile lifting devices designed for handling heavy loads in various industrial and commercial settings. These cranes are distinct from larger, fixed gantry cranes because they are smaller, more mobile, and often used for localized material handling within a workspace. Here are key features and aspects of workstation gantry cranes:

 Workstation gantry crane system

• 1. Portable Structure: - Workstation gantry cranes consist of a horizontal beam (or gantry) supported by two upright A-frame legs. The crane is typically equipped with wheels or casters at the base of the legs, allowing for easy mobility within a facility.
• 2. Ease of Movement: - The portability of workstation gantry cranes makes them highly adaptable to changing work environments. Users can easily move the crane to different locations as needed, providing flexibility in material handling.
• 3. Load Capacity: - These cranes are available in various load capacities, ranging from a few hundred pounds to several tons, depending on the specific model and design. Users can choose a crane with the capacity that matches their lifting requirements.
• 4. Adjustable Height and Span: - Many workstation gantry cranes offer adjustable height and span options, allowing users to customize the crane's configuration to suit different tasks and load sizes.
• 5. Ease of Assembly: - Assembly and disassembly of workstation gantry cranes are typically straightforward, requiring minimal tools and labor. This feature is valuable for facilities that need to set up or relocate cranes quickly.
• 6. Applications: - Workstation gantry cranes find applications in a wide range of industries, including manufacturing, workshops, warehouses, construction sites, and more. - They are used for tasks such as moving machinery, loading and unloading heavy items, assembling components, and transporting materials within a confined workspace.
• 7. Lifting Mechanism: - These cranes can be paired with various lifting mechanisms, such as manual chain hoists, electric chain hoists, or pneumatic hoists, depending on the lifting capacity and power source requirements.
• 8. Safety Features: - Safety is a critical aspect of workstation gantry cranes. They often include features like locking casters, anti-tip brackets, and overload protection to ensure safe operation.
• 9. Cost-Effective Solution: - Workstation gantry cranes are a cost-effective alternative to larger, more permanent crane installations. They provide the benefits of mobility and load handling capabilities without the need for significant structural modifications to the workspace.
• 10. Customization: - Users can often customize workstation gantry cranes with accessories like hooks, trolleys, and specialized lifting attachments to meet specific material handling requirements.

Workstation gantry cranes are designed to enhance productivity, reduce manual lifting, and improve workplace safety by providing a mobile and efficient means of handling heavy loads in confined spaces. Their versatility and ease of use make them a valuable asset in many industries.

Workstation Jib Cranes

Workstation jib cranes, also known as workstation jib arms or pillar jib cranes, are lifting devices designed to handle materials and loads within a limited work area. They consist of a vertical support column (pillar) and a horizontal jib arm, which can rotate to position loads precisely. Workstation jib cranes are commonly used in industrial and commercial settings for tasks that require precision and efficiency in material handling. Here are key features and aspects of workstation jib cranes:

 Workstation jib crane system

• 1. Design: - Workstation jib cranes have a simple and compact design, consisting of a vertical support column securely anchored to the floor and a horizontal jib arm that extends from the top of the column. The jib arm can rotate horizontally, usually through a full 360 degrees, providing a wide range of motion.
• 2. Load Capacity: - These cranes come in various load capacities, typically ranging from a few hundred pounds to several tons, depending on the specific model and design. Users can select a jib crane with the appropriate capacity for their material handling needs.
• 3. Rotation Mechanism: - The jib arm of the crane is equipped with a rotation mechanism that allows for smooth and precise load positioning. Some models may have manual rotation, while others feature powered rotation, making it easier to move heavy loads.
• 4. Foundation Requirements: - Workstation jib cranes require a stable foundation for the vertical support column. The foundation can be concrete or another suitable material to ensure the crane's stability during operation.
• 5. Mounting Options: - There are typically two main mounting options for workstation jib cranes: Free-Standing: The crane is anchored directly to the floor, making it independent of building structures. Wall-Mounted: The crane is attached to an existing wall or building structure, saving floor space.
• 6. Applications: - Workstation jib cranes are used for a variety of material handling tasks, including loading and unloading machinery, positioning heavy components during assembly, moving materials within a work area, and transporting items from one location to another.
• 7. Lifting Mechanisms: - Workstation jib cranes can be paired with different types of lifting mechanisms, such as manual chain hoists, electric hoists, or air-powered hoists, depending on the specific lifting requirements and user preferences.
• 8. Safety Features: - Many workstation jib cranes are equipped with safety features like limit switches, overload protection, and locking mechanisms to ensure safe and efficient operation.
• 9. Customization: - Users can often customize workstation jib cranes with various accessories, including hooks, slings, lifting attachments, and specialized end-effectors to handle specific loads and materials.

Workstation jib cranes are valued for their versatility and ability to provide ergonomic and efficient material handling solutions within a confined workspace. They contribute to increased productivity and reduced physical strain on workers, making them a valuable asset in manufacturing, assembly, and other industries.

Applications of workstation cranes

• Work Cells
• Shipping rooms
• Machine shops
• Assembly operations
• Pump stations
• Tool and die areas
• Injection molding areas
• Core handling
