1Ton Jib Cranes for Steel Plate Loading CNC Fiber Laser Cutting Machine

Efficient Steel Handling: The Role of a 1000kg Jib Crane in Fiber Laser Cutting

The steel processing industry plays a crucial role in modern manufacturing, providing materials essential for a wide range of applications, from construction to automotive. As industries continue to evolve, there is an increasing demand for more efficient handling systems to optimize productivity and enhance safety. One highly effective solution for this need is the integration of a 1000kg jib crane with fiber laser cutting machines. This combination not only streamlines steel handling operations but also contributes to improved workflow efficiency, worker safety, and cutting precision.

The Steel Processing Industry's Growing Demands

Steel is the backbone of several critical sectors, including automotive, aerospace, and infrastructure. As manufacturers face increasing demand for high-quality steel components, there is a growing emphasis on precision cutting and material handling. Fiber laser cutting, known for its speed and precision, is one of the most common methods for processing steel sheets and plates. However, to fully leverage the capabilities of these advanced machines, having an efficient and safe method for handling the steel sheets is vital.

The Role of Jib Cranes in Steel Handling

A jib crane is a highly versatile lifting device designed for the efficient handling of materials in various industrial applications. The crane’s main components include a horizontal arm (jib), a vertical post (which is often mounted on the floor or on a fixed base), and a rotating head. The jib arm can be manually or motorized for movement, providing a wide range of lateral reach to move materials around the workspace. Jib cranes are ideal for handling smaller to medium-sized loads with great precision, making them an ideal solution for steel handling.

Jib crane 1000kg for sale, customized jib crane solution from 1 ton to 16 ton

Features of a 1000kg Jib Crane:

• Compact Design: The compact design allows for easy integration into tight spaces, which is particularly valuable in steel fabrication workshops where space can be limited.
• Load Capacity: With a 1000kg (1-ton) capacity, this crane is perfectly suited for handling standard steel sheets, plates, and parts typically used in fiber laser cutting applications.
• Enhanced Reach and Flexibility: The jib crane's rotating arm and adjustable hook height provide excellent flexibility to position steel sheets with ease, allowing operators to feed material into the laser cutting machine efficiently.
• Manual or Powered Operation: Depending on the workload, the crane can be either manually operated for lighter duties or motorized for more demanding tasks.

Fiber Laser Cutting Machines and Their Need for Efficient Steel Handling

Fiber laser cutting technology is known for its superior precision and speed in cutting metals, particularly steel. However, these machines require efficient material handling systems to ensure maximum productivity. Steel sheets, often weighing hundreds of kilograms, need to be loaded and positioned correctly on the cutting table.

In such environments, a 1000kg jib crane plays a vital role. It facilitates the quick and safe movement of large steel sheets from storage to the cutting machine and even between cutting operations. These cranes can also be used for unloading steel sheets from trucks, reducing the need for manual lifting and minimizing the risk of worker injury.

Streamlining Operations with Jib Cranes in Laser Cutting

• Improved Loading Efficiency: Steel sheets can be easily lifted, tilted, and moved into position with the jib crane, significantly reducing the time it takes to load materials into the laser cutting machine. This increase in speed contributes to a faster production cycle.
• Safety Enhancements: By using a crane, operators no longer need to manually handle heavy steel sheets, reducing the risk of back strains, lifting injuries, or accidents related to improper material handling.
• Enhanced Precision: The jib crane allows for the precise placement of materials, ensuring that the steel sheets are positioned correctly on the cutting bed. This reduces material waste and improves the quality of the cut.
• Space Optimization: Unlike larger gantry or overhead cranes, a jib crane requires minimal floor space, making it an ideal solution for smaller shops or areas with limited room. Its compact design allows for better space utilization in busy workshops.

Benefits of Integrating a Jib Crane with Fiber Laser Cutting Systems

• Cost Savings: By reducing the manual labor required to handle steel sheets, businesses can save on labor costs while improving operational efficiency.
• Increased Productivity: The ability to load and unload steel sheets quickly and accurately means that fiber laser cutting machines spend less time waiting for material, increasing their overall output.
• Reduced Equipment Wear and Tear: By handling steel more efficiently, there is less risk of damage to both the steel material and the cutting machine itself. This reduces wear and tear on the equipment and extends the longevity of the machines.
• Improved Ergonomics: With a jib crane handling the heavy lifting, operators can focus on tasks such as machine settings and quality control without worrying about the physical strain of moving large steel pieces.
• Scalability: As the business grows, additional jib cranes can be added to improve efficiency in other parts of the steel handling process. Their scalability makes them a flexible solution for expanding operations.

In today’s competitive manufacturing environment, companies are continually looking for ways to improve efficiency, reduce operational costs, and ensure the safety of their workforce. The integration of a 1000kg jib crane with fiber laser cutting machines is a proven method to achieve all of these goals. By streamlining the handling of steel sheets, reducing manual labor, and enhancing the accuracy of material placement, this combination optimizes the entire steel processing workflow. Whether you are a small fabrication shop or a large manufacturing facility, investing in a jib crane for your laser cutting operations can lead to significant improvements in productivity and safety, positioning your business for future success.

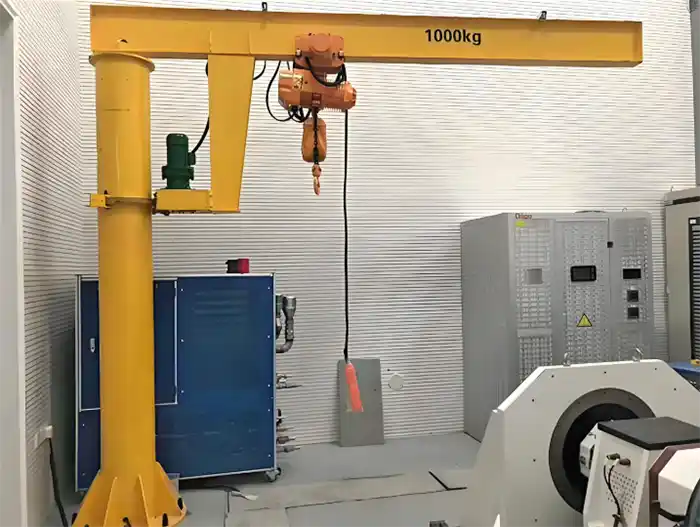

jib crane details: jib crane arm, hoist and rotating system

Considerations for Implementation

Effective planning and training are crucial for successfully integrating a jib crane into any facility.

Key Specifications of a 1000kg Jib Crane

Lifting Capacity:Up to 1000 kg: Ideal for handling heavy items such as steel plates, machinery, and other bulky materials.

Arm Length and Rotation Capabilities:

• Arm Length: Typically around 4 meters, providing a good reach for various applications.
• Rotation: The jib can rotate, offering flexibility in movement and allowing operators to position loads accurately.

Safety Features:

• Overload Protection: Prevents lifting beyond the crane's capacity to avoid mechanical failure.
• Emergency Stops: Enables immediate cessation of operations in case of an emergency.
• Limit Switches: Ensures that the crane cannot exceed its designed operational limits, enhancing safety.

Additional Considerations

• Installation Requirements:Requires a solid foundation to ensure stability during operation.
• Maintenance:Regular inspections and maintenance are essential for safe and efficient operation.
• Applications:Commonly used in warehouses, manufacturing plants, and construction sites for lifting and moving heavy loads.

Integrating a 1000kg jib crane for steel plate handling in fiber laser cutting operations significantly boosts operational efficiency.

• Recap of Benefits:Implementing a jib crane enhances productivity, safety, and efficiency in material handling processes.
• Future Trends:Ongoing innovations in crane design and automation may lead to even greater efficiencies, such as improved load sensors and automated controls.
• Final Thoughts:Investing in the right equipment, such as a 1000kg jib crane, is vital for success in the competitive steel processing industry. By adopting advanced lifting solutions, companies can optimize their operations and create a safer, more productive workplace.

Jib cranes are essential tools in various industries, providing efficient and safe lifting solutions for heavy loads. Their design and safety features make them suitable for a wide range of applications.

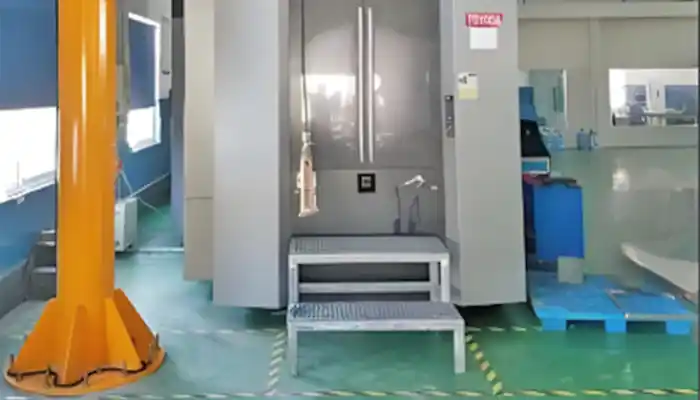

jib crane details: pillar column and bottom plate

The Fiber Laser Cutting Machine

Fiber laser cutting technology has revolutionized the steel processing industry by utilizing highly concentrated laser beams to achieve extreme precision in cutting metal. This method is particularly suited for materials like steel, offering unparalleled speed, accuracy, and cost-effectiveness compared to traditional cutting technologies.

How Fiber Laser Cutting Works

Fiber lasers work by amplifying light through a fiber optic cable, producing a focused beam that is used to cut metal. This concentrated beam can be controlled with pinpoint accuracy, allowing for fine detailing and intricate cuts. Unlike conventional laser cutters, fiber lasers use solid-state technology, which contributes to greater energy efficiency and less maintenance.

Benefits of Using Fiber Lasers for Steel Processing

• Speed: Fiber lasers operate at significantly faster cutting speeds compared to traditional methods like plasma or oxy-fuel cutting. This increases overall productivity, especially in industries that require high throughput, such as automotive and aerospace.
• Quality: Fiber laser cutting produces clean cuts with minimal heat-affected zones. This means there's less distortion of the material, reducing the need for post-cutting finishing work. The quality of the cut results in better fitment and more accurate parts, which are crucial in industries requiring tight tolerances, such as aerospace and automotive manufacturing.
• Cost-Effectiveness: Although the initial investment in fiber laser technology can be high, its speed and efficiency quickly make it a cost-effective solution. The reduced need for secondary operations, along with the longer lifespan of the cutting heads, make fiber lasers an economically viable solution in the long term.
• Versatility: Fiber lasers can cut a wide range of materials including carbon steel, stainless steel, aluminum, and non-ferrous metals. The technology’s versatility makes it ideal for various applications in different industries.

Key Applications of Fiber Laser Cutting Machines

• Automotive Industry: In automotive manufacturing, fiber laser cutting machines are used for cutting complex shapes and components, including body panels, brackets, and structural parts. Precision is crucial for these applications to ensure components fit together correctly in assembly lines.
• Aerospace: Aerospace components require extremely precise cuts due to the stringent tolerances needed in aircraft manufacturing. Fiber laser cutting is used to manufacture lightweight parts, including intricate designs like structural frames, engine components, and panels.
• Construction: Fiber lasers are widely used in construction to cut steel sheets and plates for structural applications. The ability to cut thick steel efficiently and accurately makes fiber laser machines indispensable for building high-rise structures, bridges, and other infrastructure.
• Heavy Equipment Manufacturing: Manufacturers of heavy machinery use fiber laser cutting to create precise parts for large-scale machines, like mining equipment, cranes, and excavators, where precision and strength are paramount.

Integration of Jib Crane with Fiber Laser Cutting Machine

The combination of a 1000kg jib crane and a fiber laser cutting machine can significantly enhance operational efficiency, safety, and precision in steel processing. Jib cranes are ideal for handling steel sheets before and after the cutting process, helping streamline the workflow and reduce the need for manual labor.

Loading Steel Plates onto the Fiber Laser Cutting Machine

A key challenge in steel processing is loading heavy steel plates onto the cutting machine. A 1000kg jib crane plays a vital role in this process, offering numerous advantages:

• Lifting Steel Plates: The jib crane efficiently lifts steel plates from storage areas or inventory racks. It can handle steel sheets weighing up to 1000kg, making it ideal for both small and large plates commonly used in laser cutting.
• Precise Positioning: Once the plate is lifted, the jib crane helps position the steel sheet accurately on the cutting bed. The precision in positioning is critical for ensuring that the fiber laser cuts are made in the correct areas. Improper placement can lead to cutting errors and increased material waste, undermining the efficiency of the operation.
• Reduced Material Handling Time: With a jib crane, the time spent handling steel plates is minimized. The crane allows for smooth, quick loading and unloading, which contributes to increased throughput, reducing downtime between cutting cycles.

Unloading Finished Products

After the laser cutting process is completed, the jib crane plays an equally important role in unloading the finished components.

• Removing Finished Pieces: The jib crane quickly removes cut steel pieces from the laser cutting machine. It can handle large and often irregularly shaped finished products with ease, which would otherwise be challenging to handle manually.
• Streamlining Workflow: By moving cut pieces out of the work area promptly, the crane ensures that the machine is ready for the next cutting operation without delays. This efficient unloading process reduces labor time and helps maintain a continuous flow of work, leading to higher productivity.
• Labor Savings: With the crane doing the heavy lifting, there is a significant reduction in the number of workers needed for manual handling. This contributes to labor cost savings and allows workers to focus on other critical tasks.

Advantages of Using a 1000kg Jib Crane in Steel Handling

Incorporating a 1000kg jib crane into the steel processing workflow, particularly in conjunction with fiber laser cutting, offers several important benefits:

• Increased Productivity. The crane speeds up both the loading and unloading processes, ensuring the laser cutting machine operates continuously without unnecessary downtime. Faster material handling translates to shorter production cycles and higher output.
• Enhanced Safety Measures. Handling heavy steel plates manually exposes workers to various risks, including back injuries and crushing accidents. Jib cranes reduce these hazards by taking over the heavy lifting tasks. The use of a jib crane also minimizes the potential for accidents caused by improper handling or operator fatigue.
• Flexibility in Handling Various Steel Plate Sizes and Weights. The 1000kg capacity allows the jib crane to handle a wide range of steel plate sizes and weights, providing versatility in the manufacturing process. Whether you're handling thinner sheets or thicker plates, the crane can be adjusted to suit different needs.
• Space Optimization. Jib cranes are compact and require less space than overhead gantry cranes, making them ideal for workshops where space is limited. The crane's ability to move in various directions allows it to fit into tight spaces, optimizing the use of available floor area.

Considerations for Implementation

While integrating a jib crane into your fiber laser cutting operations can bring substantial benefits, there are a few critical factors to consider to ensure successful implementation.

Space Requirements and Installation

• Adequate Space: Ensure there’s sufficient space around the jib crane to allow full swing radius and movement. The area for loading and unloading materials should be clear of obstructions to ensure smooth operations.
• Proper Installation: The crane should be installed according to the manufacturer’s specifications to guarantee its safe and efficient operation. A solid foundation and secure mounting are essential to support the crane’s weight and operational loads.

Training for Operators

• Comprehensive Training: Operators must be well-versed in the safe use of the jib crane. This includes knowledge of its controls, load limits, and best practices for safe lifting.
• Emphasizing Safety Protocols: Regular training and safety drills help reinforce the importance of following safety protocols, reducing the likelihood of accidents and ensuring smooth operations.

Maintenance and Safety Checks

• Regular Maintenance: Routine checks and maintenance are necessary to ensure the crane remains in optimal working condition. Mechanical components, lubricants, and wear and tear should be regularly inspected to prevent operational disruptions.
• Routine Safety Checks: Performing safety checks helps identify potential hazards and prevent accidents. Inspections should focus on crane integrity, load-bearing capacity, and potential malfunctions.

Conclusion: Streamlining Steel Processing with a 1000kg Jib Crane

The integration of a 1000kg jib crane with fiber laser cutting machines brings significant operational benefits. By enhancing the efficiency of steel handling processes, reducing the risk of injuries, and increasing overall productivity, this combination plays a crucial role in modern steel processing operations. Investing in advanced equipment like jib cranes and fiber laser cutters positions businesses for success in an increasingly competitive industry. If you have any questions regard to the material handling in your cnc workshops, please feel free to contact us.
