Cantilevered vs. Non-Cantilevered Gantry Cranes: Which Design Suits You?

Compare cantilevered and non-cantilevered gantry cranes to find the best design for your material handling needs and space requirements.

Overview of Gantry Cranes

A gantry crane is a type of crane where the structure is supported by legs that move along rails. These cranes are used primarily in material handling applications to lift and move heavy loads. Unlike traditional overhead bridge cranes, which are suspended from the ceiling, gantry cranes are designed to operate on the ground or on specific tracks, making them versatile in various industrial environments.

There are two main types of gantry cranes:

• Cantilevered Gantry Cranes – These cranes have an extended arm or structure that protrudes beyond the main frame. This extra reach allows them to access areas that are otherwise difficult to reach with a standard crane.
• Non-Cantilevered Gantry Cranes – These cranes have a more straightforward design, with all structural components falling within the crane’s legs, providing balance and stability. They are suitable for applications where extended reach is not needed.

Gantry cranes are crucial in industries such as construction, shipping, and manufacturing, where heavy and bulky materials need to be lifted and transported within a defined space. They are particularly useful in areas with limited overhead clearance or where cranes need to move materials along a fixed path.

Cantilevered Gantry Cranes

Definition and Key Features

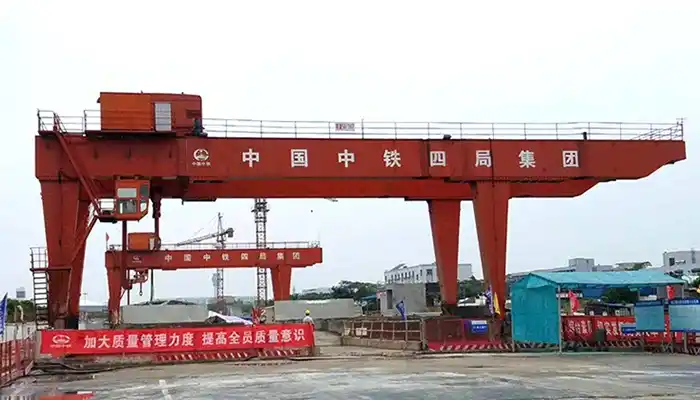

A cantilevered gantry crane is a type of crane where the main structure of the crane extends beyond its support legs, creating an overhanging arm or cantilever. This extension allows the crane to reach areas that are otherwise difficult to access with a standard gantry crane. The cantilever can be a single or double extension, depending on the specific needs of the operation.

The design of the cantilevered crane allows it to lift and move materials over obstacles, such as walls, machinery, or storage containers, while remaining within the safety parameters of the operating space. The structure consists of:

• Main girder: The horizontal beam that carries the load.
• Cantilever arm: The extended section that reaches beyond the main frame.
• Support legs: Typically equipped with wheels or tracks for mobility along the worksite.

The cantilevered design enhances the crane’s versatility, enabling it to handle tasks that other types of cranes might find challenging due to space constraints or the need for greater reach.

Common Applications

Cantilevered gantry cranes are used in industries where space limitations or specialized material handling requirements demand cranes with extended reach. These applications typically involve working in confined or congested spaces, or where materials must be lifted over obstacles.

Common industries and environments where cantilevered gantry cranes are used include:

• Shipbuilding: For lifting and moving large, heavy parts or materials over ship hulls or docks.
• Construction: In tight spaces where materials need to be lifted over scaffolding, walls, or other equipment.
• Port and Harbor Operations: For unloading cargo containers from ships, often requiring reach over the sides of ships or other obstacles.
• Heavy Manufacturing: For moving large or irregularly shaped materials that require more reach than a standard crane can provide.

Examples of tasks requiring extended reach:

• Lifting and positioning overhanging or oversized loads.
• Unloading materials from one location to another without moving the crane itself.
• Handling materials across wide areas, where a non-cantilevered crane might not be able to reach.

Advantages of Cantilevered Gantry Cranes

Cantilevered gantry cranes offer several advantages that make them ideal for certain types of material handling tasks:

• Increased Reach and Maneuverability in Confined Spaces: The cantilevered design allows the crane to extend beyond its base, making it possible to lift and position materials in areas that would otherwise be difficult to reach. This is particularly useful in factories, construction sites, and shipyards with limited space.
• Ability to Handle Large, Irregular, or Overhanging Loads: The extra reach provided by the cantilever makes it easier to lift and move large, heavy, or irregularly shaped materials that might not fit within the typical span of a non-cantilevered crane. For example, lifting steel beams, large machinery parts, or cargo containers from ships can be done with ease.

These advantages make cantilevered gantry cranes indispensable in environments where space is tight or where the tasks require precision handling of large and difficult-to-move materials.

Considerations for Using a Cantilevered Gantry Crane

While the cantilevered gantry crane offers many benefits, there are some important considerations that need to be addressed:

• Structural Stability Requirements: The cantilevered arm extends beyond the main crane frame, which places extra stress on the crane’s structure. To ensure safety, the crane’s structural integrity must be carefully designed and regularly maintained. This can involve using stronger materials and reinforcing the base to handle the added load and dynamic forces during operation.
• Potential Limitations: The cantilevered design introduces a balance challenge. The further the cantilever extends, the more susceptible the crane becomes to tipping or instability under heavy loads. Proper weight distribution and operational limits need to be carefully monitored.
• Higher Initial Cost and Maintenance Considerations: Cantilevered gantry cranes are typically more expensive to manufacture and maintain than non-cantilevered cranes. The added complexity of the cantilever design means that these cranes often have higher initial costs and may require more frequent maintenance to ensure they remain structurally sound and safe. Parts such as the cantilever arm, support beams, and track systems may experience more wear and tear due to the added stress.

When selecting a cantilevered gantry crane, it’s important to weigh these considerations against the operational needs of the application. Proper design, regular maintenance, and an understanding of the crane's limitations are crucial to ensuring safety and efficiency.




Non-Cantilevered Gantry Cranes

Definition and Key Features

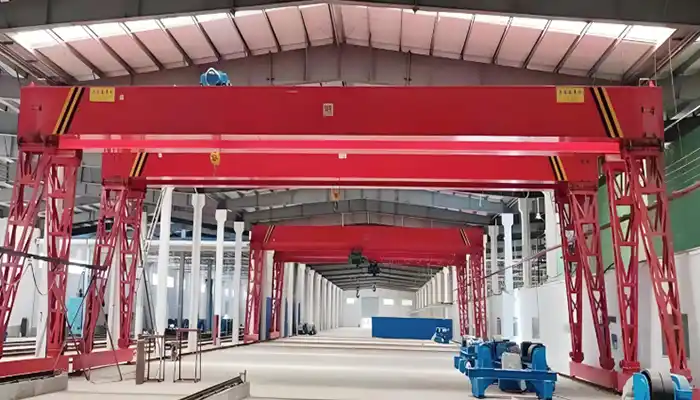

A non-cantilevered gantry crane is a type of gantry crane that does not feature the extended arm or cantilever. In this design, the crane’s main structural components—including the girder and support legs—are contained within the same footprint, providing a simpler, more balanced structure.

This type of crane typically consists of:

• Main girder: A horizontal beam that spans between the legs and supports the load.
• Support legs: These are positioned underneath the girder, with wheels or tracks to allow for movement along the workspace.
• Rails: The crane travels along fixed rails or tracks within the designated workspace.

The non-cantilevered design is inherently stable due to the balanced alignment of its frame, making it ideal for handling loads in open spaces where extended reach isn’t required.

Common Applications

Non-cantilevered gantry cranes are commonly used in applications where the primary need is to lift and transport materials over a fixed, open area. Since they do not require extended reach, these cranes are suited to environments where space is not restricted by obstacles or tight corners.

Industries and environments best suited for non-cantilevered cranes:

• Warehousing: Ideal for lifting and moving goods within wide, open aisles.
• Assembly lines: Used for transporting components or materials along a production line where no extra reach is needed.
• Storage facilities: Perfect for picking up and storing large, uniform loads in open storage areas.
• General manufacturing: Used in settings where materials or products are consistently moved along a fixed path and clearances are not an issue.

Tasks where extended reach isn’t necessary:

• Lifting standard loads such as palletized goods or uniformly sized parts.
• Handling materials in wide, unobstructed spaces where the crane’s span can easily cover the entire workspace.
• Moving materials along predefined paths within an open warehouse or production environment.

Advantages of Non-Cantilevered Gantry Cranes

Non-cantilevered gantry cranes offer several advantages, particularly in environments that prioritize stability and cost-effectiveness over extended reach.

• Superior Stability and Cost-Effectiveness: Because the crane’s structural components are contained within a balanced frame, non-cantilevered cranes have a lower risk of tipping or instability. This design is naturally more stable under heavy loads, making it a safe and reliable choice. Additionally, the simplified design means lower initial costs compared to cantilevered cranes, and the reduced complexity translates to lower operational costs.
• Easier Maintenance and Operation in Open Spaces: With fewer components to maintain and a simpler structural design, non-cantilevered gantry cranes are generally easier to inspect, maintain, and repair. Their balanced structure allows for smoother operation in open environments where mobility and ease of access are essential. Maintenance schedules are typically less frequent, and parts may last longer due to the less stressed structure.

Considerations for Using a Non-Cantilevered Gantry Crane

While non-cantilevered gantry cranes offer significant benefits, there are specific limitations and considerations that must be taken into account:

• Limitations in Handling Large or Irregularly Shaped Loads: The absence of a cantilever means that non-cantilevered cranes cannot extend beyond their base to reach over obstacles or lift materials in tight spaces. This limits their ability to handle oversized, irregularly shaped, or overhanging loads. In environments where these types of materials need to be handled, a cantilevered crane may be a more suitable option.
• Smaller Reach, Best for Open Spaces: Non-cantilevered cranes are best used in open, unobstructed areas where the crane’s reach is sufficient to cover the entire workspace. In confined spaces, or where materials need to be lifted over or around other structures, non-cantilevered cranes may not provide the necessary reach, making them less ideal for specialized material handling tasks.

Despite these limitations, non-cantilevered gantry cranes remain a reliable, stable, and cost-effective option for a wide range of applications where the extended reach of a cantilevered crane is not required.

Key Differences Between Cantilevered and Non-Cantilevered Gantry Cranes

Design and Structure

The primary difference between cantilevered and non-cantilevered gantry cranes lies in the design and structure.

• Cantilevered Gantry Cranes: These cranes feature an extended arm (the cantilever) that allows the crane to reach over obstacles or into spaces that a non-cantilevered crane cannot access. The design requires careful engineering to ensure the extended arm does not compromise the crane’s structural integrity. The cantilever places additional stress on the crane’s base and support legs, requiring more robust structural reinforcement to balance the load.
• Non-Cantilevered Gantry Cranes: These cranes have a simpler structure, with the crane’s main girder and support legs all contained within a fixed base, offering a more stable and balanced design. Since there is no cantilever to extend beyond the crane frame, the overall stress is distributed more evenly, leading to greater structural stability under typical loading conditions. However, non-cantilevered cranes lack the flexibility to reach over obstacles, which can limit their versatility.

Reach and Maneuverability

The design of the crane greatly affects its reach and maneuverability, especially in tight or constrained spaces.

• Cantilevered Gantry Cranes: The extended reach provided by the cantilever allows these cranes to work in constrained spaces or lift materials over obstacles such as walls, machinery, or other structures. This design is highly beneficial for environments where materials need to be positioned above or around objects, such as in construction sites, shipyards, or warehousing with narrow aisles. The added extension allows for greater maneuverability, making it possible to reach otherwise inaccessible areas.
• Non-Cantilevered Gantry Cranes: These cranes offer less flexibility when it comes to reaching over obstacles. Their design is best suited for open spaces where the crane’s span can easily cover the area. While they may not have the same level of reach, they excel in environments where space is not limited and materials can be easily lifted and transported without the need to reach beyond the crane’s frame.

Cost and Maintenance

The cost and maintenance needs of each crane type vary significantly, due to differences in complexity and design.

• Cantilevered Gantry Cranes: The inclusion of the cantilever adds both initial purchase costs and long-term maintenance requirements. The additional structural complexity means that these cranes are typically more expensive to manufacture and maintain. The cantilever requires regular inspections for structural wear and tear, as it is subject to additional stress. Over time, this can lead to higher maintenance costs for repairs or part replacements, particularly for the cantilever arm, support legs, and rails.
• Non-Cantilevered Gantry Cranes: These cranes tend to be more cost-effective due to their simpler design. The initial purchase price is typically lower, and the lack of an extended arm means there are fewer components subject to wear and stress. As a result, maintenance costs are generally lower over time, with fewer parts to repair or replace. Non-cantilevered cranes are also easier to maintain due to their straightforward structure, which translates to less downtime and simpler repairs.

Safety and Stability

Safety and structural stability are key considerations when selecting a crane design, especially in heavy-duty material handling.

• Cantilevered Gantry Cranes: While the cantilever design provides greater reach, it also introduces additional safety concerns. The cantilevered arm places extra stress on the crane's frame and legs, making stability more difficult to maintain when handling heavy loads. Tipping hazards can occur if the load is not properly balanced or if the crane is operated outside of its rated capacity. Therefore, cantilevered cranes require careful operation and regular inspections to ensure they maintain structural integrity. They also need to be equipped with advanced safety features like load sensors and stability monitoring systems to ensure safe operation.
• Non-Cantilevered Gantry Cranes: These cranes are naturally more stable due to their simple and balanced design. Since the crane’s weight and load are more evenly distributed within the frame, the risk of tipping is lower. Non-cantilevered gantry cranes tend to have fewer structural failure points and require less safety intervention. Their simplicity and balance make them ideal for environments where stability is paramount, such as warehouse operations or assembly lines where materials are uniformly sized and less prone to irregular handling.

In conclusion, the key differences between cantilevered and non-cantilevered gantry cranes come down to their design complexity, reach flexibility, cost, and safety considerations. Cantilevered cranes are well-suited for complex, confined spaces where extended reach is critical, while non-cantilevered cranes are ideal for open environments where stability and cost-effectiveness are more important. Understanding these distinctions can help you choose the right crane design for your specific material handling needs.

Choosing the Right Gantry Crane for Your Needs

Selecting the right gantry crane for your material handling needs requires careful consideration of several key factors. Below are the important aspects to evaluate before making a decision between a cantilevered or non-cantilevered gantry crane.

Factors to Consider

Space Constraints

The available workspace and clearance within your environment significantly impact your crane choice.

• Cantilevered Gantry Cranes: Ideal for confined or narrow spaces where the crane needs to reach over obstacles, such as machinery or walls. If your work environment includes limited overhead space or areas that require the crane to extend beyond its base, the cantilever design is beneficial. It allows for greater reach into tight corners, narrow aisles, or over obstacles.
• Non-Cantilevered Gantry Cranes: These cranes are best suited for open, unobstructed spaces where the crane's full span is enough to cover the work area. They require less vertical clearance and are perfect for larger, more open environments where reach is not an issue, such as warehouses, assembly lines, or large storage facilities.

Load Types

The size, weight, and shape of the materials you plan to handle are critical factors in selecting the appropriate crane.

• Cantilevered Gantry Cranes: If your operation involves handling large, irregularly shaped, or overhanging loads, a cantilevered crane will be more effective. The extended arm allows for the safe lifting and transportation of materials that need to be maneuvered around obstacles or over other structures. It’s perfect for construction sites, shipyards, or applications where loads need to be positioned above other objects.
• Non-Cantilevered Gantry Cranes: Best for standard-sized loads, uniformly shaped materials, or tasks where extended reach is unnecessary. These cranes perform excellently in environments where materials are stored and moved in open spaces without the need to lift over obstacles. They are ideal for warehousing, light manufacturing, or applications where handling regular, predictable loads is the main priority.

Budget Considerations

When selecting a crane, it’s essential to compare initial costs and long-term maintenance expenses.

• Cantilevered Gantry Cranes: These cranes tend to have higher initial purchase costs due to their more complex design and additional structural components. The need for regular maintenance on the cantilever arm and support structures can increase long-term operating costs. Furthermore, as the crane is subjected to more stress, the parts may require more frequent inspections and replacements, which impacts the overall maintenance budget.
• Non-Cantilevered Gantry Cranes: These cranes are typically more cost-effective to purchase and maintain. Their simpler design means lower initial investment and less frequent maintenance. The lack of a cantilever reduces the wear and tear on the crane’s structure, leading to lower long-term operational costs. Non-cantilevered cranes are the preferred option for budget-conscious operations with straightforward material handling needs.

Operational Requirements

The operational needs of your facility will also influence the crane choice. Consider factors such as frequency of use, load handling volume, and safety standards.

• Cantilevered Gantry Cranes: If your operation requires high-frequency use of a crane with complex handling tasks (e.g., irregular loads, overhead lifts, or tight maneuvers), a cantilevered crane is a suitable option. Its ability to extend reach allows for greater flexibility in handling specialized material movements. However, the complexity of the crane means you must adhere to stringent safety standards, ensuring that the crane is operated within its capacity limits to avoid risks associated with its extended arm.
• Non-Cantilevered Gantry Cranes: These cranes are ideal for routine operations where frequent, repetitive lifting of standard-sized loads occurs. Their simple design makes them easier to operate and maintain, and they are less demanding when it comes to safety management. If your facility does not require specialized reach or complex movements, a non-cantilevered crane may be sufficient for the job.

Final Decision-Making Guide

To help you choose the best crane design, here’s a step-by-step guide based on your specific needs:

Evaluate the Space Constraints:

• If your workspace is tight or restricted with obstacles that need to be reached over, a cantilevered crane is the right choice.
• If your environment is open and you have no need to lift over or around objects, a non-cantilevered crane is more suitable.

Assess the Load Types:

• For large, irregular, or overhanging loads, or when extended reach is required, opt for a cantilevered crane.
• If your materials are standard-sized or have a uniform shape, and extended reach is not a concern, go for a non-cantilevered crane.

Consider Your Budget:

• If your budget allows for the higher initial investment and maintenance associated with a cantilevered crane, and the extended reach is crucial, then it is a worthy investment.
• If cost-effectiveness and lower maintenance are your primary concerns, a non-cantilevered crane would be the more economical choice.

Determine Your Operational Needs:

• If your operations involve complex, frequent lifting and require flexibility in reaching over obstacles, the cantilevered crane will be the better fit.
• If your work involves routine handling of predictable loads and doesn’t require extended reach, the non-cantilevered crane is a more efficient and simple option.

By following this guide and considering the factors outlined above, you can make an informed decision about which type of gantry crane best meets your material handling requirements. Whether you choose a cantilevered or non-cantilevered design, ensure that the crane you select aligns with your operational needs, space limitations, and budget.

Conclusion

Summary of Key Points

In this comparison between cantilevered and non-cantilevered gantry cranes, we explored the distinct characteristics of both designs and how they impact material handling efficiency.

• Cantilevered Gantry Cranes: These cranes offer extended reach, making them ideal for confined spaces and applications requiring lifting over obstacles. They are suitable for irregularly shaped, overhanging loads, and operations where maneuverability in tight areas is essential. However, their complexity leads to higher initial costs, maintenance needs, and structural stability concerns due to the extended design.
• Non-Cantilevered Gantry Cranes: With a simpler design and superior stability, these cranes are a cost-effective solution for open spaces and tasks that don’t require extra reach. They offer easier operation, lower maintenance, and reduced initial investment. However, they are less suitable for irregular loads or environments with tight space constraints where extra reach is needed.

Final Recommendations

Choosing between a cantilevered and non-cantilevered gantry crane ultimately depends on the unique requirements of your operation. To help guide your decision:

Select a Cantilevered Gantry Crane if:

• Your workspace is narrow or congested, and you need the crane to reach over obstacles.
• You handle large, irregular, or overhanging loads that require the crane's extended reach.
• You are prepared to manage the higher initial investment and potential increased maintenance.

Opt for a Non-Cantilevered Gantry Crane if:

• Your facility has ample space and you don’t need to lift over or around obstacles.
• You handle standard-sized, uniform loads that don’t require extended reach.
• You prioritize cost-effectiveness, reduced maintenance, and operational simplicity.

Consider space constraints, load types, budget, and long-term operational requirements as the key factors in making your final decision. By carefully weighing these factors, you can choose the crane design that will best suit your material handling needs and contribute to a more efficient, cost-effective operation.
