Comparative Analysis of Ceiling-Mounted Cranes: KBK, Bridge, and Monorail Systems

This analysis compares ceiling-mounted KBK, bridge, and monorail crane systems, evaluating their design, efficiency, load capacity, and application suitability.

Ceiling-mounted cranes play a vital role in many industrial applications, offering efficient material handling solutions while saving valuable floor space. These crane systems are mounted directly to the ceiling structure, making them ideal for facilities with limited room for traditional floor-mounted cranes. By utilizing overhead space, they help improve workflow, increase production efficiency, and enhance safety in environments where heavy lifting is required.

Selecting the right crane system is crucial for optimizing operational processes. Each type of ceiling-mounted crane—whether it be KBK, bridge, or monorail—has distinct features, strengths, and limitations. The choice depends on factors like the type of load, the layout of the workspace, and the specific movements required during operations. A mismatched crane system can lead to inefficiencies, increased maintenance costs, and potential safety risks.

This comparative analysis aims to provide a detailed evaluation of the three main ceiling-mounted crane systems: KBK, bridge, and monorail. By examining their designs, capabilities, and applications, this guide will help decision-makers choose the most suitable crane system for their unique industrial needs, ensuring optimal performance and long-term cost-effectiveness.

Ceiling-Mounted Cranes

Definition and Types of Ceiling-Mounted Cranes

Ceiling-mounted cranes are material handling systems that are suspended from the ceiling of a facility, eliminating the need for floor support structures. These cranes are designed to move loads efficiently across large areas, making use of overhead space that would otherwise remain unused. Ceiling-mounted cranes typically fall into three categories: KBK modular cranes, bridge cranes, and monorail cranes, each of which serves specific operational needs.

• KBK Ceiling-Mounted Crane Systems: These are highly flexible, lightweight cranes that utilize a modular rail system. They are ideal for light-duty applications and allow for easy reconfiguration to adapt to different workspace layouts.
• Bridge Ceiling-Mounted Cranes: These cranes consist of parallel runways attached to the ceiling with a movable bridge that spans the width. They are often used for heavy-duty operations where precise load handling and wide coverage are required.
• Monorail Ceiling-Mounted Cranes: A monorail crane consists of a single overhead rail, along which the hoist travels. This system is best for operations requiring linear or curved movement, such as assembly lines or conveyor-based processes.

Benefits of Ceiling-Mounted Systems

Ceiling-mounted crane systems offer several advantages over traditional floor-mounted cranes, making them a popular choice in industrial settings:

• Space-Saving: One of the most significant benefits of ceiling-mounted cranes is that they free up valuable floor space. Since they are suspended from the ceiling, these cranes do not require columns or support structures on the ground, which allows for more efficient use of the workspace.
• Enhanced Workflow: Ceiling-mounted cranes can be customized to cover large areas, including complex layouts, improving the flow of materials across workstations. This makes them ideal for environments where materials need to be moved frequently across a wide production floor.
• Flexibility and Adaptability: KBK systems, in particular, offer a modular design that allows for easy adjustments as operational needs change. Even bridge and monorail systems can be adapted to fit specific layout requirements, giving businesses the ability to modify the crane systems as their production demands evolve.
• Increased Safety: By keeping the lifting equipment overhead, ceiling-mounted cranes help reduce the risk of accidents related to cluttered or obstructed floors. This makes for a safer work environment, especially in facilities with high foot traffic or frequent vehicle movement.
• Load Capacity and Precision: Depending on the system, ceiling-mounted cranes can handle a wide range of loads—from light objects in assembly lines (using KBK systems) to heavy machinery in manufacturing (using bridge cranes). They also offer precise control over load movement, ensuring that materials are handled safely and efficiently.

Common Industrial Applications of Ceiling-Mounted Cranes

Ceiling-mounted cranes are used across a variety of industries due to their versatility and adaptability. Some common applications include:

• Manufacturing: In manufacturing plants, ceiling-mounted cranes are used for moving components along assembly lines, transporting raw materials to production areas, or handling finished products for packaging.
• Warehousing and Distribution: These cranes help with loading and unloading goods, organizing products in storage, and transferring heavy materials across large warehouses without taking up floor space.
• Automotive Industry: In vehicle assembly lines, ceiling-mounted cranes are used to move large components, such as engines or frames, into position for assembly. Their precision and wide-area coverage make them ideal for handling complex tasks.
• Aerospace and Aviation: For handling large and heavy parts like aircraft components, ceiling-mounted systems ensure efficient movement and assembly in large hangars or manufacturing facilities.
• Food Processing: In facilities where cleanliness and efficient production are key, ceiling-mounted cranes can transport goods without coming into contact with the ground, minimizing contamination risks.

By understanding the types, benefits, and applications of ceiling-mounted cranes, businesses can make informed decisions that improve productivity, safety, and operational efficiency.

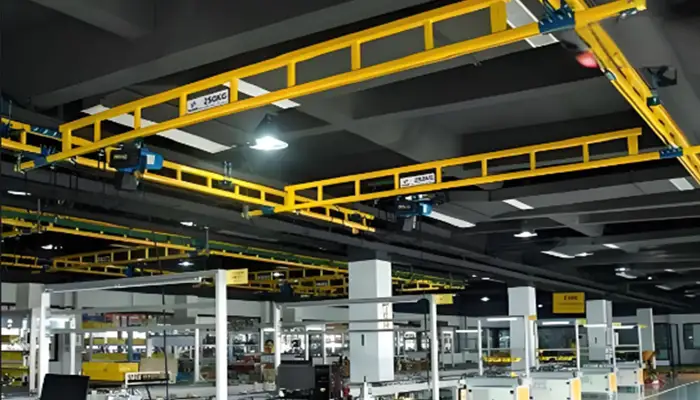

KBK Ceiling-Mounted Crane System

Design Overview

The KBK ceiling-mounted crane system is known for its modular construction, which provides exceptional flexibility in both design and operation. This system is made up of lightweight aluminum or steel rails, making it suitable for facilities where space optimization and ease of movement are crucial. The modular nature of the KBK system allows it to be easily customized to fit different layouts and workflows, providing a scalable solution for industries with evolving production needs.

One of the key design aspects of the KBK system is the option for both manual and motorized configurations. In manual systems, operators can easily push or pull the load along the lightweight rail for quick handling. For more automated or higher-volume operations, motorized versions offer increased efficiency, allowing loads to be transported with precision and minimal effort. This versatility makes the KBK system ideal for environments that handle light to medium loads and require flexibility in movement.




Key Features

• Adaptability to Changing Production Needs: The KBK crane system is highly adaptable and can be reconfigured or extended as production requirements evolve. This is particularly beneficial for industries where new equipment or production lines are frequently introduced, allowing the crane system to grow with the facility.
• Ease of Installation and Extension: Due to its lightweight materials and modular design, the KBK system is easy to install and extend. This makes it a cost-effective option for businesses that require fast setup or modifications without extensive downtime. Adding new rails, tracks, or even entire sections of the crane is a straightforward process, ensuring that the system can adapt to changing operational demands.
• Cost-Effectiveness for Light to Medium Loads: The KBK system is designed primarily for handling lighter loads, typically up to 2 tons, which makes it an economical choice for industries that do not require heavy-duty lifting. Its simple structure and lower material costs also contribute to its affordability, while still delivering reliable performance.

Advantages

• Scalable and Customizable for Different Applications: The modular KBK crane system can be tailored to suit various operational requirements. Whether it's for a small workshop or a large-scale production facility, the KBK system can be easily expanded or reconfigured, allowing businesses to adapt their material handling systems as their operations grow or change.
• Smooth Handling of Loads: The lightweight design of the rails, combined with advanced engineering, ensures smooth and precise handling of loads. This reduces wear and tear on both the crane and the materials being transported, improving longevity and reducing maintenance costs over time.

Limitations

• Limited to Lighter Loads (Usually Under 2 Tons): One of the main limitations of the KBK system is its load capacity. While it excels at handling light to medium loads, it is not suitable for heavy-duty operations. This makes it less ideal for industries where large or bulky materials are frequently lifted and transported.
• May Require More Planning for Complex Layouts: In more complex operational settings, where production lines are intricate or space is limited, additional planning may be required to ensure the KBK system is properly configured. Though the system is flexible, designing an optimal layout that maximizes efficiency can take more time, especially in facilities with unique challenges.

The KBK ceiling-mounted crane system offers a highly versatile and cost-effective solution for industries with light to medium load handling needs. Its adaptability and modular design make it a popular choice for growing businesses, while its smooth operation and ease of installation further enhance its appeal. However, it is important to consider its limitations in load capacity and the potential for more complex planning when configuring the system for intricate layouts.

Ceiling-Mounted Bridge Crane System

Design Overview

The ceiling-mounted bridge crane systemis a versatile material handling solution designed for facilities that require efficient movement of moderate loads, typically not exceeding 10 tons. This system operates using two fixed or adjustable parallel runways mounted on the ceiling, with a movable bridge that spans across these runways. The movable bridge allows for smooth, horizontal load movement, enabling the crane to cover large areas within a workspace.

Equipped with motorized lifting and horizontal movement options, this type of crane offers precise control over load positioning. Operators can easily manage the vertical and horizontal movement of loads, improving operational efficiency while minimizing manual effort. The combination of these movements allows the crane to lift and transport materials with precision, making it ideal for moderately heavy tasks in various industrial settings.

Ceiling mounted overhead bridge crane, underrunning crane for sale 1 ton to 10 ton

Key Features

• Capable of Handling Moderate Loads (Up to 10 Tons): Unlike heavy-duty cranes, the ceiling-mounted bridge crane systemis best suited for handling lighter to moderate loads, typically up to 10 tons. This capacity makes it ideal for industries that need efficient load handling but do not require the lifting of extremely heavy materials.
• Efficient in Covering Wide Work Areas: One of the main advantages of this system is its ability to cover a broad workspace. With the bridge moving along the parallel runways, it provides extensive reach, making it effective for transferring loads across large areas in manufacturing plants, workshops, or warehouses.
• Common in Manufacturing, Assembly, and Warehousing: Bridge ceiling-mounted cranes are frequently used in manufacturing environments to move machinery or parts along production lines. They are also useful in assembly operations, helping to transport materials between different workstations. In warehousing, these cranes assist in organizing and moving goods, particularly where space is at a premium and floor-based systems would be impractical.

Advantages

• Moderate Load Capacities and Wide Coverage: While designed for lighter applications compared to heavy-duty cranes, this system still offers significant load-handling capabilities and covers a wide span. Its ability to move up to 10 tons of materials across expansive work areas makes it a reliable option for businesses that deal with medium-scale material handling tasks.
• Can Be Tailored for Specific Operational Requirements: Bridge cranes are highly customizable, with various features available to meet specific operational needs. From automated hoist controls to motorized travel, the system can be modified to fit different applications. Whether used in assembly lines, maintenance areas, or warehouses, it offers flexibility and efficiency for moderate material handling operations.

Limitations

• Higher Installation Costs: Although smaller in scale compared to heavy-duty cranes, bridge ceiling-mounted cranes still come with relatively high installation costs. This is largely due to the need for robust ceiling structures to support the runways and movable bridge. Additionally, the cost of motorization and customizations can add to the total investment.
• Requires Sufficient Structural Support: The installation of a bridge crane system necessitates a sturdy ceiling structure capable of handling both the crane's weight and its maximum load capacity. In cases where the existing structure is insufficient, additional reinforcements may be required, which can increase the cost and complexity of the project.

The ceiling-mounted bridge crane systemprovides an efficient solution for industries needing reliable, moderate load-handling capabilities. With a typical capacity of up to 10 tons, this system offers wide-area coverage, making it an excellent choice for manufacturing, assembly, and warehousing operations. However, the higher installation costs and need for structural support are important considerations when planning for this type of crane.

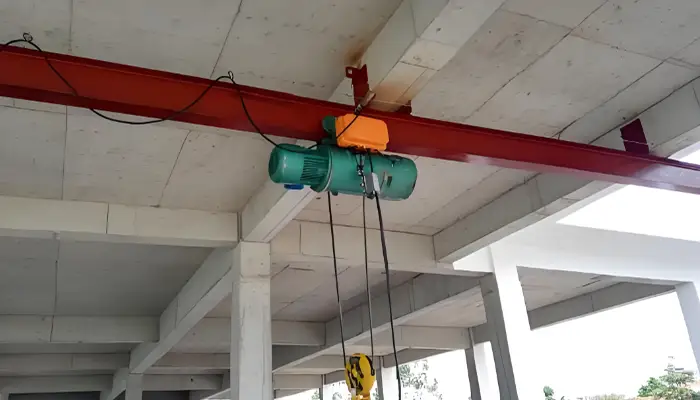

Monorail Ceiling-Mounted Crane System

Design Overview

The monorail ceiling-mounted crane system is designed for applications requiring straightforward, linear movement of materials. This system features a single overhead rail along which a hoist travels, moving loads in a fixed path. The rail can either be straight or curved depending on the specific needs of the facility, offering flexibility in layout design while maintaining simplicity in operation. This makes monorail cranes ideal for specific tasks like transporting materials along production lines or between workstations, especially when the movement is confined to a predetermined route.

The hoist operates along the rail, typically in a motorized fashion, though manual configurations can be used for lighter loads. Monorail systems are often seen in environments where materials need to move continuously along a fixed path without the need for complex directional changes.




Key Features

• Ideal for Linear Movement Applications: Monorail systems excel in environments where materials need to travel along a straight or slightly curved path. This makes them perfect for industries like manufacturing, where components are transported down a production line, or for warehousing tasks where items are moved in a predefined sequence.
• Suitable for Production Lines and Material Transport Between Workstations: Given their linear design, monorail systems are highly suited for facilities that require the transport of goods from one point to another in a direct manner. These systems can streamline production by efficiently moving materials between workstations, reducing the need for manual handling or forklifts.

Advantages

• Simple and Efficient for Straightforward Workflows: The simplicity of monorail cranes is one of their greatest strengths. They are easy to operate, with fewer moving parts compared to more complex crane systems. This simplicity not only improves operational efficiency but also enhances safety by reducing the risk of mechanical failure.
• Lower Maintenance Requirements: Monorail systems have fewer components than multi-directional cranes, such as bridge or KBK systems. As a result, they require less frequent maintenance, reducing downtime and operational costs. This makes them an attractive option for businesses seeking reliable, low-maintenance solutions for material handling.

Limitations

• Restricted to Linear Movements: While monorail cranes are highly efficient for linear workflows, they are limited to single-directional movement along the rail. This restriction means they are not suitable for covering large areas or for operations that require complex, multi-directional load handling. Facilities that need more flexibility may find monorail systems too restrictive.
• Limited Flexibility in Adapting to Changing Operational Layouts: Once a monorail system is installed, it is best suited for fixed processes. Unlike modular systems like KBK cranes, which can be easily reconfigured, a monorail's rail layout is difficult to change. This lack of adaptability makes it less ideal for facilities that frequently adjust production lines or need to accommodate different operational needs over time.

In summary, the monorail ceiling-mounted crane system is a cost-effective, low-maintenance solution for linear material transport in production lines or between workstations. However, its limited movement options and adaptability make it less suitable for operations that require coverage of larger, more complex areas.

Comparative Analysis

Load Capacity

• KBK Ceiling-Mounted System: This system is ideal for light to medium loads, with a maximum capacity typically up to 2 tons. It is well-suited for tasks where the materials are lighter and need to be moved with agility.
• Bridge Ceiling-Mounted System: While bridge cranes are known for handling heavy loads, the ceiling-mounted version typically manages loads up to 10 tons. It is designed for moderate-scale operations, allowing for safe and efficient handling of medium-heavy materials.
• Monorail Ceiling-Mounted System: The monorail system is also designed for light to medium loads, similar to the KBK system, but its key feature is its ability to move materials along a fixed linear path.

Flexibility

• KBK System: This system is highly flexible and adaptable, making it perfect for layouts that require frequent changes. Its modular construction allows for easy reconfiguration as operational needs evolve.
• Bridge System: The bridge crane offers high flexibility in terms of load handling and area coverage, as it can move loads across wide workspaces. However, it requires more complex installation and planning due to its structural requirements.
• Monorail System: The monorail system offers low flexibility, as it is designed for fixed paths. It excels in environments with linear workflows, but it lacks adaptability for facilities that may need to change layout or process flow over time.

Installation and Maintenance

• KBK System: The KBK crane is known for its easy installation and minimal maintenance needs. Its lightweight structure and modular design make it quick to install, and it does not require heavy structural support.
• Bridge System: This system requires significant structural support for its parallel runways and movable bridge. The installation process is more complex, and it may need moderate maintenance over time to ensure smooth operation.
• Monorail System: Monorail cranes feature a simple installation process due to their single overhead rail. They require low maintenance compared to multi-directional cranes, making them a reliable, long-term solution for linear workflows.

Cost Efficiency

• KBK System: For light-duty applications, the KBK system is highly cost-effective. It provides excellent value for facilities that need flexibility and ease of use without the high costs of heavier cranes.
• Bridge System: While bridge cranes have higher initial costs due to installation complexity and structural requirements, they are a worthwhile investment for businesses that need to handle heavier loads and cover large areas.
• Monorail System: The monorail system is cost-efficient for specialized applications that involve linear material movement. Its low maintenance needs and straightforward design make it a practical option for facilities with fixed processes.

Applications

• KBK System: Commonly used in assembly lines, warehouses, and light manufacturing, the KBK system is perfect for industries that require flexibility and light to medium load handling.
• Bridge System: Found in heavy manufacturing, warehousing, and assembly, the bridge ceiling-mounted crane is ideal for operations that demand reliable handling of medium to heavy loads over large areas.
• Monorail System: Best suited for production lines and material transport between workstations, the monorail system is designed for facilities with straightforward, linear workflows that do not require extensive load movement across large space

Choosing the Right System

Factors to Consider

When selecting a ceiling-mounted crane system, understanding your specific operational needs is key to making the right choice. Several critical factors need to be evaluated:

• Load Requirements: The type and weight of the loads your facility handles are among the most crucial considerations. For lighter loads (typically under 2 tons), a KBK system might be the best option due to its simplicity and adaptability. For more substantial loads, up to 10 tons, a bridge crane offers greater capacity, while a monorail system may suffice for linear load movement within a light to medium capacity range. It's essential to match the crane’s capacity with your current and anticipated load demands to avoid overloading and ensure safe operations.
• Space Limitations: Each system has different space requirements. The KBK system is highly flexible and can be installed in areas with limited space, providing maximum material handling efficiency without taking up floor space. The bridge crane system requires more headroom and structural support, making it ideal for larger facilities but less practical in smaller or constrained environments. Monorail systems are typically used in narrow spaces with fixed paths, which is ideal for long, linear workflows but unsuitable for wide-area material handling.
• Operational Workflow: Consider how materials need to move within your facility. KBK cranes are perfect for dynamic workflows where loads need to be moved in multiple directions across varied paths. Bridge cranes offer comprehensive coverage of large workspaces, moving both horizontally and vertically with ease. In contrast, monorail systems are suited to operations where loads are transported along a single, predefined path, making them efficient for linear processes but less adaptable to more complex workflows.

Customization Options for Each System

Each crane system comes with various customization options that can enhance its functionality and performance, depending on your specific needs:

• KBK System: This system’s modular design allows for easy customization. Additional rails, hoists, or motorized configurations can be added as your production requirements change. This modularity makes it easy to adjust the system to fit evolving layouts or new sections of your facility.
• Bridge Crane System: Bridge cranes offer tailored designs to meet specific operational demands. This can include custom spans, motorized lifting configurations, or specialized hooks and attachments to handle different types of materials. These systems can be engineered to fit the exact specifications of your facility, providing long-term scalability.
• Monorail System: While monorail systems are more limited in terms of layout flexibility, they can still be customized with curved rails, specialized hoists, and various load handling attachments to better suit your workflow. They are particularly useful for linear production lines where items must move between fixed stations.

Future-Proofing Considerations

Selecting a crane system isn’t just about current needs; it’s also about planning for the future. Here are some factors to consider when ensuring your system remains scalable and adaptable over time:

• Scalability: If your business is likely to expand or change, choosing a crane system that can scale with your operations is critical. The KBK system excels in this area, as its modular design allows for easy expansion, letting you add new sections of rails or hoists as needed. Bridge cranes are also highly scalable, but any modifications or expansions require significant planning due to their structural complexity. The monorail system is less adaptable in terms of layout but can be expanded by extending the rail or adding additional curves to fit growing production lines.
• Potential Expansions: Consider future production demands when selecting your crane system. If your operations are likely to grow, investing in a system like KBK or bridge cranes can provide long-term flexibility and reduce the need for costly upgrades. If you anticipate that your workflow will remain consistent, a monorail system could provide a cost-effective solution for straightforward, long-term processes.

By weighing load requirements, space limitations, and operational workflow, while also factoring in future scalability, you can choose the most suitable ceiling-mounted crane system for your facility. Customizing the system based on these considerations will ensure that your investment is both practical for current operations and adaptable for future growth.

Conclusion

The comparative analysis of KBK, bridge, and monorail ceiling-mounted crane systems reveals distinct advantages and limitations for each. The KBK system is the most flexible and modular, making it ideal for light to medium loads (up to 2 tons) in industries that require adaptable layouts and frequent changes. The bridge crane system stands out for its ability to handle heavier loads (up to 10 tons) and cover larger areas, making it suitable for operations that need comprehensive coverage and higher load capacities. In contrast, the monorail system is designed for linear material movement, ideal for production lines and workflows with a fixed path, but with limited flexibility in layout changes and area coverage.

Recommendations Based on Industry-Specific Needs

• KBK System: Recommended for light manufacturing, assembly lines, and warehouses that require a highly adaptable crane system to handle lighter loads with easy installation and scalability. Industries that value flexibility and modular design will benefit most from this system.
• Bridge System: Best suited for medium manufacturing operations, assembly, and warehousing, where higher load capacities and large workspace coverage are essential. It is recommended for facilities with stable layouts and the need for heavy-duty material handling without excessive changes.
• Monorail System: Ideal for linear production lines, material transport between stations, and industries like automotive manufacturing or food processing where movement follows a fixed path. Its simple design and lower maintenance needs make it a cost-effective solution for straightforward workflows.

Selecting the most suitable ceiling-mounted crane system depends heavily on the specific requirements of your facility, including load capacity, layout flexibility, and future scalability. The KBK system offers unparalleled versatility for light-duty applications, while the bridge crane provides robust performance for more demanding load handling. The monorail system is a practical choice for industries with linear processes that prioritize simplicity and efficiency. By understanding the unique strengths of each system and aligning them with your operational needs, you can ensure long-term efficiency, productivity, and cost-effectiveness for your material handling operations.
