Balancing Crane Capacity, Cost, and Steel Coil Handling Efficiency

Importance of Crane Selection for Steel Coil Handling

Steel coils are indispensable in industries such as automotive, construction, and manufacturing, where they are used to produce everything from car parts to structural beams. These coils vary greatly in size and weight, and these variations play a critical role in determining the type of overhead crane required to handle them effectively.

Choosing the right crane for steel coil handling is not just about lifting capacity; it’s about finding the optimal balance between crane size, operational efficiency, and cost. In this article, we’ll explore how steel coil weight and size impact crane selection and how to balance capacity and cost to make the best choice for your operations.

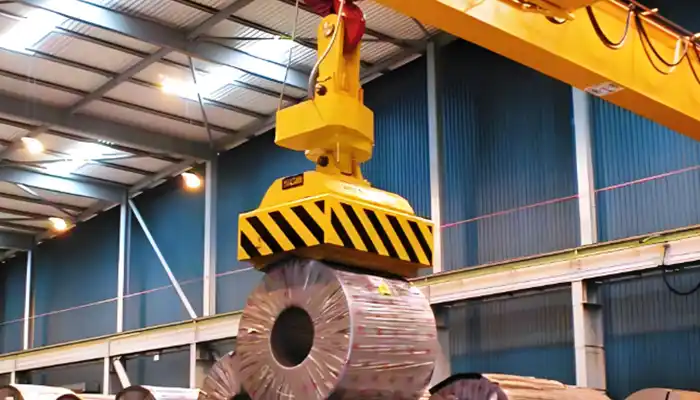

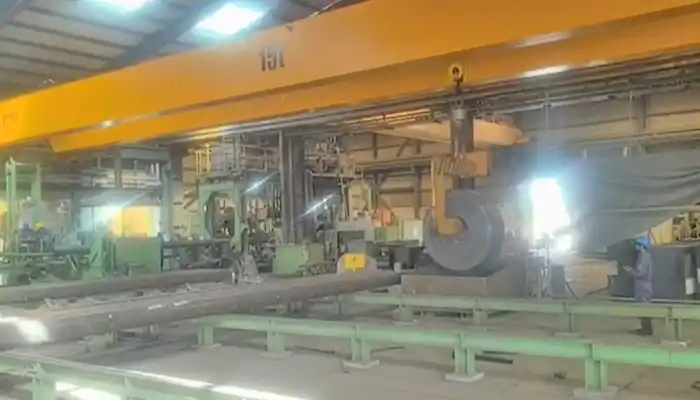

overhead crane for different coil handling with different lifters

Steel Coil Weight and Size Variations

When selecting the right crane for steel coil handling, understanding the variations in steel coil weight and size is crucial. Steel coils come in a wide range of sizes and weights, which directly influence the crane specifications needed to handle them efficiently and safely. Below, we will explore the common weight and size variations of steel coils and how they impact crane selection.

Weight Range of Steel Coils

Steel coils come in various weight ranges, which are typically categorized into small, medium, and heavy coils. These weight categories have a direct impact on the crane's lifting capacity and operational requirements.

• Small Coils: Typically weigh between 2–5 tons. These coils are often used in lighter manufacturing applications, such as the production of small components or machinery parts.
• Medium Coils: Range from 10–15 tons and are commonly found in industries like automotive manufacturing, machinery production, and light construction. These coils require a crane with moderate lifting capacity.
• Heavy Coils: Weigh 20 tons or more and are often found in heavy-duty industries such as steel production, construction, and large-scale manufacturing. Cranes handling these coils need higher lifting capacities and added stability.

The weight of the steel coil directly influences the lifting power required from the crane. Heavier coils require cranes that are more robust and can handle greater stress. Therefore, the weight of the coil is a major factor in crane selection.


Size Variations of Steel Coils

In addition to weight, steel coils also vary in size, including diameter, width, and thickness. These size variations impact crane requirements in terms of reach, hook height, and the need for specialized lifting attachments.

• Diameter and Width: Steel coils can have diameters ranging from 1 meter to over 2 meters and widths between 1.2 meters to 2.5 meters. Larger diameter coils require cranes with an extended hook height and reach to handle the load efficiently.
• Thickness: Coils can range from thin, lightweight materials (as thin as 0.3 mm) to thicker, heavier coils used for structural applications. Thicker coils may require cranes with additional stability and specialized lifting gear.

Larger coils may necessitate cranes with a higher lifting height and extended reach, while smaller coils can be efficiently handled by cranes with less demanding specifications. Additionally, thicker coils may require the use of specialized lifting accessories such as coil grabs or tongs to ensure secure and stable handling.

The weight and size variations of steel coils directly influence the crane capacity and design required for safe and efficient handling. Understanding these variations allows for selecting the right crane and ensures that the equipment is tailored to the specific needs of your operation. Larger, heavier coils require more powerful cranes with higher lifting capacities, greater reach, and specialized features, while smaller coils can be handled by more cost-effective and less demanding cranes.

coil sizes for your reference: inner idameters, outdoor diameters, and width


Crane Capacity: The Heart of Steel Coil Handling

Selecting the right crane capacity is the first step in ensuring efficient and safe steel coil handling. A crane’s lifting capacity is determined by the maximum weight it can safely lift. But it’s not just about lifting power—understanding the dynamic forces involved is essential to ensuring safe and efficient operations.

Defining Crane Capacity

• Lifting Capacity: This is the maximum weight the crane can lift at a specific height and reach. When calculating the required capacity, be sure to include the weight of the steel coil plus any lifting accessories (e.g., coil grabs, slings).
• Safety Margin: It’s essential to add a safety margin—typically 10–20% above the expected load to account for dynamic forces during lifting, which can cause temporary increases in load.

Calculating Required Crane Capacity

• Assess the load weight: Understand the maximum weight of the steel coils that will be handled, including any additional lifting accessories.
• Factor in safety margins: Add an extra 10–20% to the total load weight to ensure the crane can handle variations in coil weight or unforeseen dynamic loads.

Choosing a crane with the right capacity is key to maintaining safety standards while optimizing operational performance.

The Relationship Between Crane Capacity and Cost

While it’s important to choose a crane with sufficient lifting capacity, it’s equally crucial to balance capacity with cost considerations. Cranes with higher lifting capacities tend to be more expensive upfront, but the investment can pay off in terms of performance and reliability.

High-Capacity Cranes

• Increased lifting power: Cranes designed for heavier coils require stronger components, which increases manufacturing costs.
• Advanced control systems: Cranes with higher capacities also come equipped with more advanced control systems to manage the added load and ensure smooth operations.
• Longer lifespan: These cranes are built for durability and can handle more demanding tasks without frequent maintenance.

Cost-Effective Crane Selection

• Initial purchase cost: A crane with a larger lifting capacity will cost more upfront, but it may be necessary for handling heavier loads or future scalability.
• Operational costs: Higher-capacity cranes generally consume more energy, which can increase operational costs. However, they are often more efficient in the long run, reducing downtime and maintenance needs.

It’s important to consider whether investing in a larger, more expensive crane will provide the efficiency gains and long-term savings needed for your operation.

Crane Type Selection for Steel Coil Handling

Choosing the right type of crane is essential for efficient steel coil handling. The crane type should be matched to the weight, size, and specific operational requirements of the coils.

Single Girder Cranes

• Ideal for lighter coils (up to 15 tons): Single girder cranes are simpler in design, more affordable, and offer the flexibility to handle smaller to medium-sized coils.
• Advantages: These cranes are cost-effective, easier to install, and suitable for general-purpose lifting of lighter loads.

Double Girder Cranes

• Best for heavier coils (20+ tons): Double girder cranes are more robust, providing greater stability and lifting capacity.
• Advantages: They are better suited for high-volume lifting and heavy-duty applications, offering improved safety and lifting power for larger steel coils.

Custom Crane Features

• Extended Reach: Some steel coils are stored in hard-to-reach areas, requiring cranes with extended reach or longer lifting heights.
• Specialized Lifting Accessories: Coil grabs, custom hooks, or adjustable lifting beams may be required to handle coils securely and efficiently, adding to the crane’s overall cost.

The crane type you select should align with the specific steel coil sizes and handling conditions in your operations.

Case Studies: Real-World Crane Selection for Steel Coil Handling

Real-world case studies provide valuable insights into how crane selection varies depending on the size, weight, and handling requirements of steel coils. Below are two case studies that highlight the practical applications of crane selection for different steel coil weights.

Case Study 1: Small Coil Handling

Crane Type: Single Girder Crane with 7-Ton Capacity

Application: This crane is used in a manufacturing plant that handles small steel coils weighing around 5 tons. These coils are typically used for light machinery and automotive parts.

Outcome:

• The single girder crane is an economical and efficient solution for handling small coils. Its 7-ton lifting capacity is well-suited to handle the typical load, providing a safety margin to accommodate minor variations in coil weight.
• This crane type offers greater flexibility and is easy to install, requiring less space and lower maintenance compared to more complex crane types.
• The choice of a single girder crane ensures that the plant can meet its steel coil handling needs without overspending on capacity. The crane delivers the required performance for handling lighter coils and ensures smooth operations at a lower operational cost.

Case Study 2: Heavy Coil Handling

Crane Type: Double Girder Crane with 40-Ton Capacity

Application: In a construction and steel production facility, the crane handles heavier steel coils weighing between 20–30 tons, which are used in large-scale construction projects and heavy industrial applications.

Outcome:

• A double girder crane is chosen due to its superior lifting capacity and increased stability, which are essential when handling heavy loads. The crane provides the power required for lifting large coils while ensuring that they are handled with precision and safety.
• The crane is equipped with enhanced safety features such as overload protection and stability control, which are crucial when lifting very heavy materials in a dynamic environment.
• The 40-ton capacity of the crane ensures that it can easily handle the weight of the coils, and its design supports heavy-duty applications in environments with large-scale production or storage requirements.

Learn from Case Studies

• Single Girder Cranes are ideal for handling lighter coils (up to 7 tons), offering an affordable and flexible solution for small-scale operations.
• Double Girder Cranes are essential for handling heavier coils (20 tons and above), providing the necessary lifting power, stability, and safety features needed for heavy-duty operations.
• The correct crane selection ensures operational efficiency, safety, and cost-effectiveness by tailoring the crane's capacity to the specific coil weight and application requirements.

These case studies demonstrate that the right crane selection, based on load requirements, can lead to smoother operations, reduced operational costs, and enhanced safety in steel coil handling.

Balancing Crane Capacity, Cost, and Operational Efficiency

When selecting a crane for steel coil handling, it’s crucial to strike the right balance between crane capacity, cost, and long-term operational efficiency. Choosing the appropriate crane involves more than just meeting the immediate weight requirements; it also involves understanding how the crane’s specifications impact both your budget and long-term operations.

How to Determine Your Crane’s Right-Sized Capacity

One of the most important decisions when choosing a crane is determining the right-sized lifting capacity. Here's how to approach this process:

• Assess Maximum Load Weight: Start by evaluating the heaviest steel coils your facility will need to handle. This gives you the base load requirement for crane selection.
• Factor in Future Scalability: Look ahead and consider potential increases in your workload or the handling of heavier steel coils in the future. Opting for a crane that can accommodate growth ensures that your investment remains relevant over time.
• Avoid Over- or Under-Capacity: A crane that’s too small will struggle with the load, leading to increased wear and tear, frequent maintenance, and even safety risks. Conversely, a crane with excessive capacity may be more expensive than necessary, wasting money on unused power. Select a crane with a lifting capacity that matches your current and future needs, factoring in both safety margins and operational flexibility.

Optimizing Total Cost of Ownership

Crane selection should not be based solely on initial purchase price. The total cost of ownership (TCO) includes not just the upfront costs, but also the ongoing operational costs. Consider the following factors when assessing the TCO:

• Upfront Purchase Price: Cranes with higher capacities generally come with a higher initial cost, but the additional investment might be worthwhile for larger facilities or industries that handle heavy loads.
• Energy Consumption: Larger cranes typically consume more energy, but modern cranes may come with energy-saving features such as regenerative drives or more efficient motors, helping reduce long-term electricity costs.
• Maintenance and Durability: Cranes with higher capacities are typically built with stronger components, which can reduce the frequency of breakdowns and need for repairs. Regular maintenance may be required for all crane types, but larger, more durable cranes are generally more cost-effective in the long term because they can handle demanding loads over extended periods.
• Reduced Downtime: A crane with the right capacity will be less prone to overloading and mechanical failure, meaning you’ll experience less downtime, resulting in more consistent operations and higher productivity.

By considering the long-term operational costs, a crane that may initially seem more expensive could be a more cost-effective choice in the long run due to its ability to handle heavier loads and require less frequent maintenance.

Making Informed Decisions

When evaluating crane capacity and operational costs, it's essential to think about future needs:

• Future Growth Considerations: If your business plans to expand operations or increase coil weights, it may be wise to invest in a crane with a slightly higher capacity than you need today. This provides room for growth and ensures that your crane can accommodate future workload increases without requiring a replacement.
• Balancing Capacity with Costs: While it might seem tempting to opt for the least expensive option, overpaying for capacity can be more economical in the long term if it leads to greater efficiency and fewer operational disruptions.
• Long-Term Investment: The right crane is not just a piece of equipment, but an investment in the future of your business. Carefully evaluating your current and future requirements will help you make a more informed decision, ensuring that you get the best return on your investment.

To summarize, balancing crane capacity, cost, and operational efficiency requires careful consideration of your immediate and future needs. Choosing the right crane involves assessing your steel coil handling requirements, ensuring you select a crane with the appropriate lifting capacity, and optimizing for the total cost of ownership. A slightly higher-capacity crane can be more cost-effective over time, offering better durability, reduced downtime, and increased efficiency—making it a smart long-term investment for your steel coil handling needs.

Conclusion: Smart Crane Selection for Steel Coil Handling

Choosing the right crane for steel coil handling is a vital decision that impacts both operational efficiency and safety. By understanding the relationship between coil size and weight, crane capacity, and associated costs, you can make an informed decision that balances short-term and long-term needs.

With the right crane in place, you’ll not only improve the safety and efficiency of your steel coil handling operations but also save on long-term costs, ensuring a better return on investment.
