Electromagnets for Heavy Lifting Overhead Cranes and Gantry Cranes

Learn how to choose and integrate electromagnets for safe, efficient heavy lifting in steel mills and scrap yards.

Why Electromagnets Matter in Heavy Lifting

In industries like steel mills and scrap yards, electromagnets are essential tools for lifting and moving heavy metal materials.
Without electromagnets, tasks that involve lifting steel plates, billets, rebar, or scrap would be slow, dangerous, and inefficient.

What They Do in Steel Mills and Scrap Yards

• Steel Mills: Electromagnets are used to lift steel plates, billets, and rebar bundles.
• Scrap Yards: They help handle irregularly shaped scrap metal, which can vary in size and weight.

Benefits of Using Electromagnets

• Efficiency: Electromagnets allow for faster lifting, reducing time spent on manual labor or mechanical lifting.
• Safety: Magnets reduce the risk of injury by safely lifting heavy materials without the need for physical handling.
• Consistency: With electromagnets, you get reliable lifts with minimal risk of load slippage or accidents.

What This Guide Will Cover

This guide aims to simplify the process of selecting the right electromagnet for your overhead or gantry crane.
We’ll cover the key factors you need to consider, like:

• The type of load you’re handling
• Crane specifications
• Environmental conditions

By the end of this guide, you’ll be able to confidently choose the right electromagnet for your needs, improving both safety and efficiency in your operations.

elctromagnet for overhead crane and gantry cranes

Key Considerations for Electromagnets in Steel Mills and Scrap Yards

Types of Loads Handled

In steel mills and scrap yards, you’ll handle a wide variety of loads. These can range from small pieces of metal to large, heavy items. Each load type requires a specific magnet.

• Steel Billets: Heavy, compact, and uniform, billets need strong magnets for secure lifting.
• Steel Plates: Large and flat, these require electromagnets with a high penetration depth.
• Rebar: Typically bundled together, magnets for rebar should have a good contact area to lift multiple bundles at once.
• Scrap Metal: Irregular in shape, scrap metal demands versatile magnets that can handle different sizes and weights.
• Coils: These require hybrid solutions, with magnets that can handle curved surfaces and include mechanical clamps.

Environmental Factors

Steel mills and scrap yards are tough environments. The conditions here can affect both the magnets and the cranes. Understanding these factors helps you choose the right electromagnet for the job.

• High Temperatures: Steel mills especially can reach extreme temperatures, which can affect the strength and durability of magnets. You’ll need magnets built to withstand heat.
• Dust and Moisture: These environments can cause wear and tear on equipment. Electromagnets must be dustproof and resistant to moisture to ensure long-term reliability.
• Corrosion: Metal dust and moisture can lead to corrosion. So, selecting magnets with corrosion-resistant coatings or materials is crucial for durability.

Workload and Duty Cycle

Electromagnets in steel mills and scrap yards work hard. They are used frequently and for long periods. This means you must account for their workload and how often they are used.

• Frequency of Use: High-frequency lifting means the magnets will be under constant strain. Choosing magnets designed for continuous use is key to ensuring their lifespan.
• Duration of Use: Some magnets will only be used intermittently, while others will be in constant use. Ensure the magnet is rated for the duty cycle needed, whether that’s a lower duty cycle or a higher one for heavy, continuous lifting.

Magnet Features for Industrial Use

When choosing an electromagnet for industrial settings like steel mills or scrap yards, you need to focus on several key features to ensure the magnet can perform under tough conditions.

• Strength and Holding Force: The magnet must be strong enough to handle the weight of the materials, with a secure hold to avoid accidents during lifting.
• Durability: Industrial magnets must be able to withstand rough handling, frequent use, and environmental stress. Opt for heavy-duty magnets built for tough conditions.
• Power Requirements: Ensure the magnet’s power requirements match your crane's capabilities. You don’t want to overload your electrical system.
• Cooling Systems: Some magnets generate heat during operation, especially during continuous use. A proper cooling system ensures the magnet doesn't overheat, which could damage both the magnet and your crane system.

Understanding Electromagnet Types for Lifting Heavy Loads

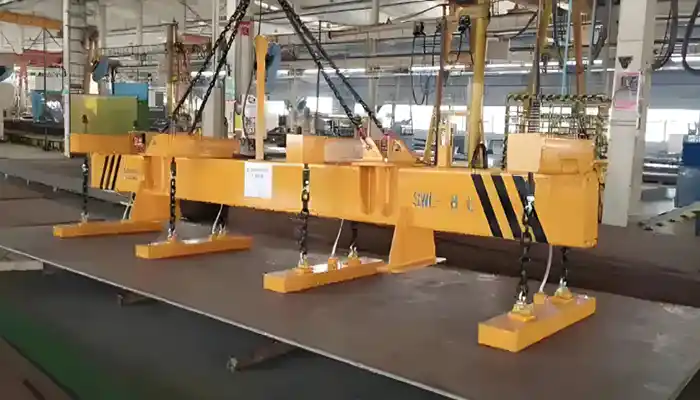

Rectangular Electromagnets

• Ideal for Flat, Large Surfaces like Steel Plates
  Rectangular electromagnets are the go-to choice for lifting flat and large surfaces, like steel plates.
  Their shape provides a wider contact area, which is crucial for ensuring the plate stays securely in place during lifting.
  Best for: Steel plates, large sheets, and metal surfaces that require a steady, flat lift.

Why Choose Rectangular Magnets?

• They cover a larger surface area for better grip.
• Perfect for handling materials with uniform thickness, like plates or large sheets.
• Easy to integrate with lifting beams for consistent handling.

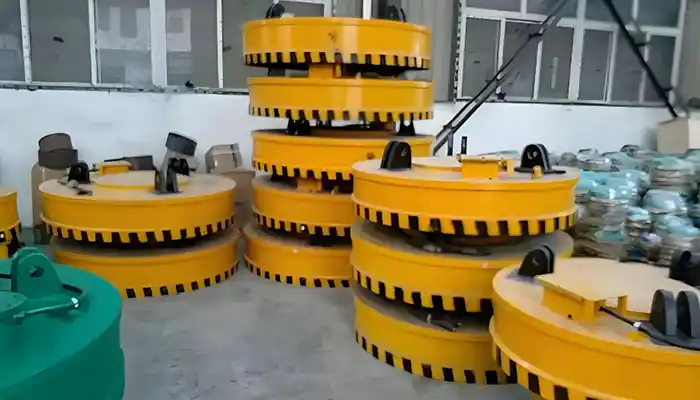

Circular Electromagnets

• Best for Irregular Scrap Steel Handling
  Circular electromagnets are ideal for handling irregularly shaped materials like scrap steel.
  Scrap metal is often in all different sizes and shapes, and a circular magnet can grip a variety of pieces, providing flexibility.

Why Choose Circular Magnets?

• The round shape allows for better handling of bulk, irregular materials.
• They are great for quickly grabbing and releasing scrap materials.
• Strong enough to handle different metal shapes, whether small or large.

MW Series Electromagnets

• Strong Holding Force for Billets and Heavy-Duty Lifting
  The MW Series is a popular choice for heavy-duty lifting in environments like steel mills.
  These magnets are built to lift heavy, compact items like billets or large metal sections that require a strong, secure hold.

Why Choose MW Series Magnets?

• High holding force ensures secure lifts for heavy-duty loads.
• They are designed for continuous operation in harsh environments.
• Perfect for lifting billets, slabs, and large metal pieces where strength is key.

Custom and Hybrid Solutions

• Combining Electromagnets and Mechanical Clamps for Coils or Round Materials
  Some materials, like steel coils, require special lifting solutions.
  In these cases, a combination of electromagnets and mechanical clamps can be used to ensure safe and efficient lifting.

Why Choose Custom and Hybrid Solutions?

• Hybrid solutions combine the power of electromagnets with the precision of mechanical clamps.
• Great for handling materials with unique shapes, like coils or round steel.
• Custom designs can be tailored to your specific lifting needs, ensuring maximum efficiency and safety.

Selecting the Right Electromagnet Based on Load Type

Rebar and Steel Bundles

Consider Bundle Size, Lifting Frequency, and Total Weight
When lifting rebar or steel bundles, it’s important to think about:

• Bundle Size: Larger bundles require stronger electromagnets with a larger surface contact.
• Lifting Frequency: High-frequency lifting means choosing a magnet that can withstand continuous use without overheating.
• Total Weight: The magnet must have the right holding force to securely lift the weight of the entire bundle without risk of slippage.

Key Magnet Features:

• Rectangular magnets provide better surface contact for lifting multiple bundles at once.
• Stronger holding force is necessary for heavy-duty lifting.

Steel Plates and Sheets

Plate Thickness, Width, and Need for Demagnetization
Steel plates and sheets come in various sizes, thicknesses, and weights. To lift these materials safely and effectively:

• Plate Thickness and Width: Thicker or wider plates require a magnet with deeper penetration and a larger surface area.
• Demagnetization: Some plates may require demagnetization after lifting to avoid material distortion or interference in subsequent processes.

Key Magnet Features:

• Flat, rectangular electromagnets are ideal for large, flat surfaces.
• Magnets with high penetration depth can securely lift thicker plates.
• Demagnetization capability ensures smooth material handling and prevents contamination.

Scrap Steel

Handling Irregular Shapes, Bulk Weight, and High-Duty Cycles
Scrap steel comes in different shapes and sizes, making it tricky to handle. Consider the following:

• Irregular Shapes: Circular magnets work best for gripping various shapes and sizes.
• Bulk Weight: The magnet must have enough power to lift a large quantity of scrap steel at once.
• High-Duty Cycles: Scrap yard magnets need to be built for high-frequency, continuous operation.

Key Magnet Features:

• Circular electromagnets are great for lifting irregular, bulk scrap.
• High-duty cycle magnets are designed for frequent use without compromising performance.
• Robust and durable construction ensures longevity in harsh environments.

Steel Coils

Curved Surface Matching, Anti-Slip Features, Hybrid Solutions
Steel coils require special handling because of their round shape. When selecting a magnet for coils, consider:

• Curved Surface: The magnet should match the curvature of the coil for better grip.
• Anti-Slip Features: Coils are heavy, and an anti-slip design ensures they remain securely held during transport.
• Hybrid Solutions: Using a combination of electromagnets and mechanical clamps ensures safe and secure lifting.

Key Magnet Features:

• Hybrid systems combine electromagnets with clamps to handle coils effectively.
• Anti-slip and curved surface compatibility ensure safety and efficiency.

Billets and Slabs

Handling Methods, Row Layout, and Spacing
Billets and slabs are often heavy and compact. Lifting them requires precise planning:

• Handling Methods: Ensure the magnet matches the lifting method, whether it’s picking up single or multiple billets at a time.
• Row Layout and Spacing: The magnet should be able to handle multiple billets in rows, taking into account their spacing and stack height.

Key Magnet Features:

• MW series electromagnets provide strong holding force for heavy billets.
• Custom beams may be required to ensure proper lift and handling.
• Synchronous lifting capabilities make it easier to lift multiple billets at once.

Key Features to Consider When Choosing Electromagnets

Magnet Strength and Holding Force

Ensuring a Strong Lift for Heavy and Large Loads
The magnet must have enough strength to handle the weight and size of the load you’re lifting.
Whether you’re lifting steel plates, rebar bundles, or heavy billets, the magnet’s holding force should exceed the load's weight to prevent accidents or load slippage.

• Tip: Always choose a magnet with a higher holding force than your load’s weight to ensure safety and efficiency.

Temperature Resistance

For High-Temperature Environments Like Steel Mills
Steel mills and other high-heat environments demand magnets that can withstand extreme temperatures without losing performance.
Look for magnets with heat-resistant coatings or designs specifically made for high-temperature operations.

• Why It’s Important: High temperatures can cause magnets to lose their magnetic force if they aren’t designed for the heat.
• Ideal for: Environments with consistent exposure to high temperatures, such as steel mills or foundries.

Magnet Control Systems

Wireless or Cabin Control, Remote Management
Modern electromagnets come with advanced control systems that allow for easy operation.

• Wireless Controls: Offer convenience for operators to control the magnet remotely, especially in larger or more complex setups.
• Cabin Control: Allows the operator to control the magnet from a safe position inside the crane cabin.
• Why It’s Important: Having flexible control options increases efficiency, safety, and ease of use, particularly when lifting materials in tough or hazardous environments.

Power Supply and Backup Systems

Battery Backup, Generator Systems for Power Failure
Consistent power is crucial for electromagnets to function properly. Power interruptions can lead to downtime or accidents.

• Battery Backup: Keeps the magnet operating even during power failures, ensuring you don’t lose control of the load.
• Generator Systems: Provide a more robust power solution for larger systems or high-demand applications.
• Why It’s Important: A backup power system ensures that your electromagnet continues to function safely, even when power disruptions occur.

Safety Features

Emergency Release, Overload Protection, and Monitoring Systems
Safety is paramount when working with heavy lifting equipment. Choose electromagnets that include the following features:

• Emergency Release: Allows for quick detachment of the load in case of a malfunction.
• Overload Protection: Prevents the magnet from lifting more than it can handle, reducing the risk of accidents.
• Monitoring Systems: Track magnet performance in real-time, alerting operators to any issues before they become critical.
• Why It’s Important: These features provide an extra layer of security, ensuring both the operator and the load remain safe throughout the lifting process.

This section covers the critical features you should look for when choosing an electromagnet. By understanding these factors, you can select a magnet that meets your specific needs and ensures safety and efficiency in your operations.

Integrating Electromagnets with Your Crane System

Crane Compatibility

Matching Electromagnets to Crane Hook, Lifting Beam, and Crane Controls
The electromagnet must be compatible with the crane’s physical structure.

• Crane Hook & Lifting Beam: Ensure that the magnet’s lifting capacity matches the crane’s hook and lifting beam specifications. The magnet should be securely mounted, and the lifting beam should be designed to handle the load distribution evenly.
• Crane Controls: The crane’s control system needs to be able to interface with the electromagnet’s control system for seamless operation.
• Why It’s Important: Ensuring compatibility ensures that the electromagnet can be safely and effectively used with the crane, avoiding mechanical strain or operational issues.

Power Supply Integration

Connecting the Magnet System to the Crane’s Electrical System
The electromagnet requires a reliable power source for operation.

• Power Connections: Make sure the magnet’s electrical system integrates smoothly with the crane’s power supply. This may include connecting it to the crane’s main power line or adding a dedicated power line if needed.
• Voltage & Current Specifications: Check that the magnet's power requirements match the crane's electrical output, especially when using high-capacity magnets.
• Why It’s Important: Proper power integration ensures that the electromagnet operates without interruption or power failures during operation, providing consistent performance.

Control System Integration

Syncing with the Crane’s Lifting Controls for Seamless Operation
The magnet's control system must work with the crane’s lifting control system to ensure smooth and coordinated movement.

• Wireless Control Options: If your crane is equipped with wireless controls, the electromagnet should sync with those controls for easy operation.
• Operator Safety: Ensure that operators have full control over the electromagnet's function and can monitor its status.
• Why It’s Important: Synchronizing the electromagnet with the crane’s control system ensures that both the crane and magnet work together seamlessly, enhancing lifting precision and operator control.

Safety and Backup Systems

Integrating Fail-Safes Like Emergency Stop and Battery Backups
Safety should be integrated into every aspect of electromagnet operation.

• Emergency Stop: Ensure the electromagnet system can be quickly deactivated in the event of a malfunction or emergency.
• Battery Backups: If power fails, a backup battery system will maintain magnet operation, reducing the risk of load drops or uncontrolled lifting.
• Overload Protection: Integrate overload protection to prevent lifting more than the electromagnet’s rated capacity.
• Why It’s Important: These safety measures are crucial to preventing accidents and ensuring that the magnet continues to function safely even in the event of system failures or unexpected situations.

This section covers the integration of electromagnets with your crane system, making sure the magnet works in harmony with the crane’s structure, electrical systems, and safety features. Proper integration ensures smooth, efficient, and safe lifting operations in heavy-duty environments.

Common Mistakes to Avoid

Ignoring Load Weight and Magnet Size

Ensuring the Magnet Can Handle the Total Lift Capacity
One of the biggest mistakes is choosing an electromagnet that doesn’t have enough lifting capacity for the total load.

• What Can Go Wrong: If the magnet is too small or weak for the load, it might not lift the material securely, leading to load drops or accidents.
• Solution: Always match the magnet’s lifting capacity with the total weight of the load, including any variations in load weight. Make sure the magnet can handle the maximum expected load with a sufficient safety margin.

Overlooking Environmental Factors

Choosing Magnets That Are Resistant to Heat, Dust, and Moisture
Steel mills and scrap yards have harsh conditions. Heat, moisture, and dust can cause premature wear on equipment if not considered.

• What Can Go Wrong: Ignoring environmental factors can result in magnet failure, loss of lifting power, or even complete system shutdown.
• Solution: Choose magnets designed for these environments, such as heat-resistant models for steel mills or dust-sealed models for scrap yards. This will ensure long-lasting performance and reliability in challenging conditions.

Failure to Test the Magnet System

Importance of Site Assessments and Load Testing Before Full Operation
Testing the magnet system before putting it into full operation is often overlooked, but it’s crucial for safety and performance.

• What Can Go Wrong: Skipping site assessments or load testing could lead to undetected issues, such as improper magnet strength or compatibility problems.
• Solution: Conduct thorough site assessments to evaluate the load conditions, crane setup, and environment. Perform load testing to ensure the magnet works properly under real-world conditions before you start regular operations.

By avoiding these common mistakes, you can ensure that your electromagnet system operates efficiently and safely. Proper planning, environmental consideration, and testing will go a long way in improving your lifting operations and extending the life of your equipment.

Conclusion

Recap of Key Points

• Importance of Choosing the Right Magnet for Heavy Lifting
  Selecting the right electromagnet is crucial for safe and efficient lifting in heavy-duty operations. Whether you're handling steel plates, scrap metal, or billets, ensuring your magnet matches the load type, size, and crane system is vital.
• How to Match Magnet Systems with Crane Specifications and Operational Needs
  Compatibility with crane capacity, lifting beams, and control systems is essential for seamless operation. Always account for environmental factors and ensure the magnet is suitable for the specific conditions of your facility.

Final Tips for Safe and Efficient Lifting

• Regular Maintenance and Safety Checks
  Regularly inspect the electromagnet system to ensure it’s functioning optimally. Perform routine safety checks to avoid malfunctions or accidents.
• Professional Advice
  If you're unsure about any aspect of electromagnet selection or integration, consult with experienced magnet and crane manufacturers. Their expertise can guide you to the best solution for your specific needs.
• Consult with Experienced Magnet and Crane Manufacturers for Customized Solutions
  Reach out to specialists who can provide tailored electromagnet systems that perfectly match your overhead or gantry crane and operational requirements. Custom solutions ensure maximum performance, safety, and efficiency for your heavy lifting tasks.

By following these guidelines and getting expert advice, you can ensure that your electromagnet systems are perfectly suited to your needs, boosting productivity while keeping operations safe.
