How to Calculate the Right Crane Capacity for Your Gantry Crane

Gantry Crane & Crane Capacity

What is a Gantry Crane?A gantry crane is used to lift and move heavy loads in a variety of settings, like factories and construction sites. It’s mounted on wheels or rails and can move along a track. The crane’s design allows for both horizontal and vertical movement, making it perfect for lifting heavy items such as steel beams and large machinery.

Why Crane Capacity Matters

Selecting the correct crane capacity is important for two main reasons:

• Safety: A crane that’s too small may not safely handle the load, leading to potential accidents.
• Cost Efficiency: A crane that’s too large means you’re paying for more capacity than you actually need.

Getting the right crane capacity ensures optimal performance, prevents damage to materials, and reduces unnecessary costs.

What This Guide Will Help You With

This guide will help you calculate the right crane capacity for your gantry crane. We’ll cover the key factors that affect crane capacity, such as load weight, reach, and environmental factors. By the end of this guide, you’ll have a clear understanding of how to select the right crane tonnage for your needs.

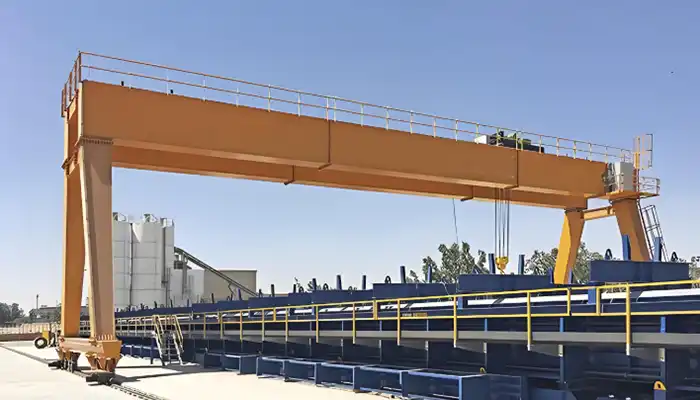

European style gantry crane  double girder with high lifting capacity from 3 ton to 500 ton and more

Understanding Crane Capacity: What Does it Mean?

Definition of Crane Capacity

Crane capacity refers to the maximum weight a crane can lift safely. It is usually measured in tons and tells you the weight the crane can handle without compromising safety. The capacity is directly related to the crane's lifting power—essentially, how much it can lift at any given time.

Choosing the right crane capacity ensures that the crane performs well under load and reduces the risk of equipment failure or accidents.

Key Factors Influencing Capacity

• Type of Materials Being Lifted:The weight and shape of the materials you need to lift will influence the crane’s required capacity. For example, lifting a steel beam may require more power than lifting a bundle of lighter materials like pipes.
• Frequency of Lifting Tasks:If the crane will be lifting heavy loads frequently, you may need a crane with higher capacity to handle the repeated strain. Regular use at maximum load can cause wear and tear on a smaller crane.
• Working Environment:Whether the crane operates indoors or outdoors can impact its capacity needs. Outdoor environments might require cranes with more robust capacities due to wind, temperature, and varying ground conditions. Indoor cranes might be used in more controlled conditions but still need enough capacity to handle the heaviest loads safely.

Main Capacity of Main Types of Gantry Cranes

Single Girder Gantry Crane

• Capacity: Typically ranges from 1 ton to 20 tons.
• Use: Suitable for light to medium lifting tasks, often used in smaller workshops or factories.

Double Girder Gantry Crane

• Capacity: Can range from 10 tons to 500 tons or more.
• Use: Ideal for heavy-duty lifting applications, offering greater stability and lifting power than a single girder crane.

Semi-Gantry Crane

• Capacity: Usually between 5 tons to 50 tons.
• Use: Combines features of a gantry crane and an overhead crane. Used in areas where a full gantry crane isn’t suitable due to space limitations.

Portable Gantry Crane

• Capacity: Typically ranges from 0.5 tons to 5 tons.
• Use: Lightweight and movable, suitable for small-scale lifting operations in areas with limited space or where flexibility is needed.

Rubber Tyred Gantry Crane (RTG)

• Capacity: Usually ranges from 40 tons to 100 tons.
• Use: Commonly used in container yards, ports, and logistics centers, these cranes are highly mobile and can move along the yard.

Rail Mounted Gantry Crane (RMG)

• Capacity: Typically ranges from 20 tons to 100 tons or more.
• Use: Common in port container handling and large industrial sites, these cranes are fixed to a rail track and provide heavy lifting capability over large areas.

Each type of gantry crane is suited for different environments and lifting needs, so selecting the right crane depends on factors like load weight, space, and mobility requirements.

Assessing Your Lifting Needs

Evaluating the Load Weight

Knowing the weight of the heaviest item you will lift is essential. It helps determine the minimum crane capacity needed for your tasks. If your heaviest load is 30 tons, for example, you’ll need a crane that can handle at least 30 tons of weight.

Example: 30 Ton Gantry Crane Load Calculation

• If your heaviest load weighs 30 tons, you’ll want to choose a crane with a 30-ton capacity or higher.
• Keep in mind that you should always consider a safety margin. If you regularly lift 30-ton loads, you may want a crane rated for 35 tons to avoid stressing the equipment.

Understanding Load Distribution

Load distribution refers to how the weight is spread out across the crane’s lifting surface. Will the load be evenly distributed or concentrated in one spot?

• Evenly Distributed Load: A load that is spread out evenly across the lifting surface is easier to lift and less likely to cause strain on the crane.
• Concentrated Load: If the load is concentrated in one spot (for example, a large, heavy object), the crane will need to be more powerful to lift it safely.

The way the load is distributed affects how much lifting power you need. A concentrated load may require a crane with higher capacity or special lifting techniques to prevent accidents.

Lifting Height and Reach

The height the crane needs to lift and the distance it needs to reach are also important factors.

• Lifting Height: The higher the load needs to be lifted, the more strain is placed on the crane, especially if the crane has a limited lifting range.
• Reach: The crane must be able to extend far enough to reach the load at its starting position and bring it to its intended destination. A crane with a longer reach or higher lift might need more capacity to maintain stability.

Factoring in lifting height and reach ensures that the crane you select is not only strong enough for the load but also capable of performing the necessary tasks efficiently.

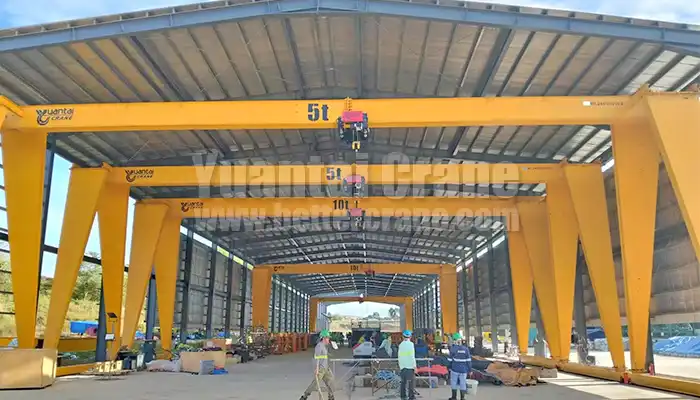

 Single girder gantry crane 1 ton to 20 ton

How to Choose Gantry Crane Capacity

Step 1: Calculate the Total Load Weight

The first step in selecting the right crane capacity is to determine the maximum weight your gantry crane will need to lift.

• Identify the heaviest load: Start by identifying the heaviest item you expect to lift. This will serve as the minimum capacity you need for your crane.
• Account for load variations: If the weight of the loads will vary, make sure to account for the heaviest possible load.
• Consider a safety margin: Always choose a crane with a slightly higher capacity than your maximum load to ensure safety.

Step 2: Consider Environmental Factors

Environmental factors play a key role in determining the appropriate crane capacity.

• Wind: Outdoor cranes may experience wind resistance, which affects lifting operations. If the crane will be exposed to strong winds, you might need a crane with more lifting power to compensate for wind forces.
• Temperature: Extreme temperatures, whether too hot or too cold, can impact crane performance. High temperatures may reduce the crane’s lifting power, while very cold conditions can make equipment more brittle.
• Working Space: The amount of available space can also influence crane selection. Tight spaces may limit the crane’s ability to move or position the load, requiring extra capacity for precision lifting.

Safety Margins

Safety margins account for unexpected conditions, such as fluctuating weights or environmental challenges. Always build in extra capacity to handle these situations. Typically, a 10-20% safety margin is recommended to ensure smooth, safe operation.

Step 3: Select the Right Capacity Based on Usage

Now that you know the total load weight and environmental factors, you can select the crane’s capacity based on your usage.

• Example 1: For a crane lifting loads up to 20 tons regularly, you may choose a crane with a 25-ton capacity for added safety.
• Example 2: If you plan to lift loads that range between 10 to 30 tons, and the heaviest load is 30 tons, a 35-ton crane might be appropriate to handle varying load weights safely.

In general, base your selection on the load weight you need to lift most often, but account for any unusual, heavy loads that may occasionally occur.

Step 4: Check Manufacturer Guidelines

Before making the final decision, always check the manufacturer’s guidelines for the crane you’re considering. Manufacturers provide specific recommendations for load capacity based on the crane’s design, material strength, and other factors.

• Ensure the crane meets your needs: Make sure the crane you choose is rated for your maximum load and aligns with safety standards.
• Manufacturer support: If you’re unsure, consult with the manufacturer or an expert to confirm the crane will be suitable for your lifting needs.

By following these steps, you’ll ensure that the crane you select is both safe and efficient for your specific lifting tasks.

Common Mistakes to Avoid

Overestimating or Underestimating the Required Crane Capacity

• Overestimating Capacity: Choosing a crane with too high a capacity can lead to unnecessary costs. While a larger crane may provide more lifting power, it can be more expensive to purchase and maintain, and it may not be used to its full potential.
• Underestimating Capacity: On the other hand, choosing a crane with too low a capacity can cause serious safety issues. If the crane cannot handle the heaviest load, it could lead to equipment failure, accidents, or damage to materials. Always choose a crane that can safely handle the maximum load you expect to lift.

Ignoring Load Distribution and Safety Factors

• Load Distribution: Whether the load is evenly distributed or concentrated affects how much strain is put on the crane. Ignoring this can lead to overloading certain parts of the crane, risking failure.
• Safety Factors: Safety margins are crucial. Not accounting for environmental factors like wind or temperature can increase the risk of accidents. Always factor in a safety margin of 10-20% above the maximum load to ensure the crane can handle unexpected situations.

Not Factoring in Long-Term Lifting Needs or Potential Changes in Operations

• Long-Term Needs: It's important to consider how your lifting needs might change over time. If you anticipate lifting heavier loads in the future, it’s wise to choose a crane with a higher capacity than what you need right now. This way, you won’t need to upgrade your crane as your operations grow.
• Operational Changes: Changes in your business, like more frequent lifting tasks or different types of materials, could affect crane requirements. Not factoring in these potential changes can result in choosing a crane that won’t be sufficient as your operations evolve.

Avoiding these common mistakes will help ensure that you choose a crane that is both cost-effective and safe for your needs.

Final Tips for Selecting the Right Gantry Crane Capacity

Consult with Crane Experts or Manufacturers

• Expert Guidance: If you’re unsure about which crane capacity is best for your needs, consulting with crane experts or manufacturers can provide valuable insights. They can help you consider all the factors specific to your operation, such as load weight, frequency, and environment.
• Manufacturer Support: Manufacturers often have experience with a wide range of applications and can guide you in selecting the right crane model with the correct capacity. They can also advise on the best crane for your operational setup.

Regular Inspections and Maintenance

• Ongoing Inspections: Regular inspections are essential to ensure that your crane continues to operate within its capacity limits. Over time, wear and tear can affect performance, so it’s important to check for any signs of stress or damage.
• Preventive Maintenance: Keeping up with scheduled maintenance will ensure the crane remains safe and efficient. This includes checking critical components like the hoist, gantry wheels, and electrical systems. Routine maintenance can also prevent costly repairs or equipment failure.

Consider Future Scaling and Operational Changes

• Plan for Growth: When selecting your crane, think ahead. Consider how your operations might change in the future. If you plan to handle larger loads or more frequent lifting tasks, it may be wise to select a crane with a higher capacity to accommodate these changes.
• Flexible Capacity: Future scaling might mean you need a crane that can handle different types of loads or heavier materials. Choosing a crane with some extra capacity now can save you from needing to upgrade in the near future.

By following these tips, you’ll be able to choose a gantry crane that meets your current needs while preparing for future growth and ensuring safety and efficiency for years to come.

Conclusion

How to Calculate the Right Gantry Crane Capacity

To pick the right gantry crane, start by figuring out the heaviest load you’ll need to lift. Consider how the load is distributed, the height and reach needed, and any environmental factors. Don’t forget to leave a safety margin and think about future needs. Always check the manufacturer's guidelines to make sure the crane can handle your tasks.

Why Careful Calculations Matter

It’s not just about lifting the heaviest load. The right crane capacity ensures safety, smooth operations, and prevents extra costs. By making accurate calculations, you can avoid accidents and unnecessary expenses.

Balancing Cost, Crane Size, and Lifting Needs

Choosing the right crane is about finding a balance. You need a crane strong enough to meet your lifting requirements but not too large that it’s inefficient or too expensive. By thinking ahead and considering safety and future changes, you’ll find a crane that offers the best value for your business.
