Gantry Cranes 4 Types for Maximizing Productivity in Steel Mills
The steel industry, often considered the backbone of modern civilization, plays a pivotal role in various sectors, from construction and manufacturing to transportation and infrastructurAs the demand for steel continues to grow, so does the need for efficient and productive steel mills. In this blog, we'll explore the vital role of gantry cranes in maximizing productivity within steel mills, enhancing their operational efficiency, and ensuring they meet the ever-increasing demand for steel products.
Overview of the Steel Industry
The steel industry is a cornerstone of modern industrialization and economic development. Steel, with its exceptional strength, versatility, and durability, is a fundamental material used in the construction of buildings, bridges, automobiles, and countless other products. The industry's reach extends across the globe, powering economies and shaping infrastructur
Importance of Productivity in Steel Mills
In the fiercely competitive world of steel production, productivity is the key to success. It directly impacts a mill's profitability, competitiveness, and sustainability. Maximizing productivity translates to higher output, reduced operational costs, and enhanced competitiveness in the global market. Achieving these goals requires streamlined processes, optimized resource utilization, and advanced material handling solutions.
Introduction to Gantry Cranes as a Productivity-Enhancing Tool
Enter gantry cranes, the unsung heroes of steel mills. Gantry cranes are heavy-duty material handling equipment that plays a vital role in various aspects of steel production. Their ability to lift, transport, and precisely position heavy loads, including steel coils and raw materials, makes them indispensable tools for enhancing productivity in steel mills.
The Role of Gantry Cranes in Steel Mills
Definition and Basic Functionality of Gantry Cranes
Gantry cranes, often referred to as portal cranes, are overhead cranes with legs that run on rails or wheels along the groun They feature a horizontal bridge that spans the working area, providing both vertical and lateral movement capabilities. This design allows gantry cranes to lift and transport heavy loads within the steel mill, contributing to efficient material handling processes.
Significance of Gantry Cranes in Steel Mill Operations
Gantry cranes are integral to various critical steel mill operations, including raw material handling, scrap recycling, steel coil handling, ladle handling, and finished product bundling. Their adaptability and versatility make them valuable assets for maintaining smooth and efficient production workflows.
Comparison with Other Material Handling Equipment
While gantry cranes are highly versatile and capable, it's essential to understand how they compare to other material handling equipment commonly used in steel mills, such as forklifts and overhead cranes. Gantry cranes offer distinct advantages in terms of load capacity, precision, and flexibility, making them a preferred choice for many critical tasks.
In the next sections of this blog, we will delve deeper into the types of gantry cranes used in steel mills, their specific applications, and the advantages they bring to the tablStay tuned for insights into how these impressive machines are revolutionizing steel mill operations.
The Role of Gantry Cranes in Steel Mills
Gantry cranes, often referred to as portal cranes, are the unsung heroes of steel mills, working diligently behind the scenes to ensure smooth and efficient operations. In this section, we will delve deeper into the crucial role played by gantry cranes in steel mill operations, their basic functionality, and how they compare with other material handling equipment.
Definition and Basic Functionality of Gantry Cranes
Gantry cranes are specialized overhead cranes with distinctive characteristics that make them indispensable in steel mills. Their design includes a horizontal bridge spanning the working area, supported by vertical legs that run on rails or wheels along the groun This unique configuration enables gantry cranes to perform both vertical and lateral movements with precision and eas
The basic functionality of gantry cranes can be summarized as follows:
- 1. Lifting Heavy Loads: Gantry cranes are engineered to lift heavy loads, often in the range of several tons to hundreds of tons. This capability is critical for handling steel coils, raw materials, and finished products within the mill.
- 2. Transportation: These cranes can transport loads horizontally, moving them from one location to another within the mill. The ability to traverse the entire length and breadth of the facility is a distinct advantag
- 3. Positioning: Gantry cranes offer precise load positioning, allowing for accurate placement of materials in various production processes. This level of control contributes to the overall efficiency of steel mill operations.
- 4. Adaptability: Gantry cranes can be customized to meet the specific needs of different tasks within the mill. Various below-the-hook attachments and configurations are available to handle different types of loads effectively.
Significance of Gantry Cranes in Steel Mill Operations
The significance of gantry cranes in steel mill operations cannot be overstate These remarkable machines play a vital role in multiple facets of steel production:
- 1. Raw Material Handling: Gantry cranes are employed to unload raw materials, such as iron ore and coal, from trucks, trains, or ships. They transport these materials to storage areas or directly to the production process, ensuring a continuous supply of essential inputs.
- 2. Scrap Handling and Recycling: Steel mills generate a significant amount of scrap metal during production. Gantry cranes facilitate the collection, transportation, and recycling of scrap materials, reducing waste and supporting sustainability efforts.
- 3. Steel Coil Handling: Handling heavy steel coils is a central task in steel mills. Gantry cranes excel in this role, precisely positioning coils for processing, storage, or shipment. Their ability to handle various coil sizes and weights makes them indispensabl
- 4. Ladle Handling and Steel Pouring: In steelmaking, ladles are used to transport molten steel from furnaces to casting areas. Gantry cranes are responsible for safely lifting, transporting, and pouring ladles, a critical process in steel production.
- 5. Finished Product Handling: Once steel products are ready, gantry cranes bundle, package, and transport them for storage or shipment. Their precision ensures that finished products meet quality standards.
Comparison with Other Material Handling Equipment
While gantry cranes are versatile and capable, it's essential to understand how they compare with other material handling equipment commonly used in steel mills, such as forklifts and overhead cranes:
- Load Capacity: Gantry cranes excel in handling heavy loads, far surpassing the capacity of forklifts. They are ideal for the movement of bulky steel coils and large raw materials.
- Precision: Gantry cranes offer precise load positioning, which is essential for the accuracy required in steel production. In contrast, forklifts may lack this level of precision.
- Flexibility: Forklifts are versatile but have limitations when dealing with extremely heavy loads or long steel coils. Gantry cranes, with their adaptability and various attachments, are better suited for such tasks.
- Range of Movement: Gantry cranes can traverse the entire facility, covering a vast area, while forklifts have a limited operational rang
In summary, gantry cranes stand out in steel mill operations due to their superior load capacity, precision, and adaptability, making them invaluable tools for enhancing productivity and efficiency.
*Stay tuned for the next section, where we will explore the various types of gantry cranes used in steel mills and their specific applications.*
Types of Gantry Cranes Used in Steel Mills
In the world of steel production, efficiency and precision are paramount. To achieve these objectives, steel mills rely on various types of gantry cranes, each tailored to specific tasks and operational requirements. In this section, we'll explore the four primary types of gantry cranes commonly used in steel mills.

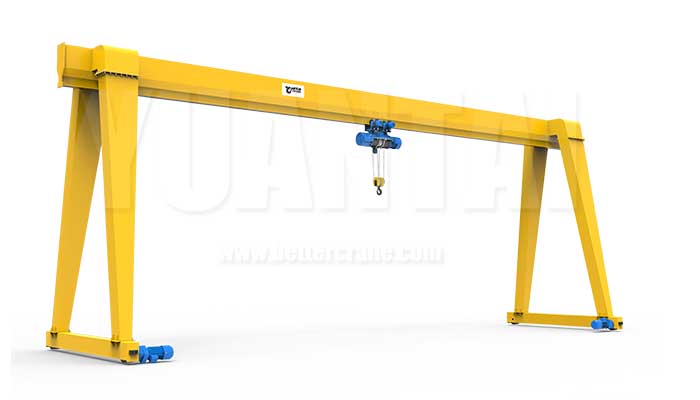

- Single girder gantry cranes are a versatile and cost-effective option for many steel mill applications. They feature a single horizontal beam (the girder) that spans the working area, supported by vertical legs on either sidThese cranes are known for their:
- Cost Efficiency: Single girder gantry cranes are often more affordable to purchase and install compared to their double girder counterparts, making them an attractive choice for smaller steel mills or tasks with moderate load requirements.
- Compact Design: Their design is relatively compact, which can be advantageous when space is limited within the mill.
- Quick Installation: Due to their simpler design, single girder gantry cranes can be installed relatively quickly, minimizing downtime during setup.
- Typical applications for single girder gantry cranes in steel mills include steel coil handling, scrap handling, and some raw material handling tasks.
- Double girder gantry cranes are heavy-duty workhorses known for their exceptional load capacity and durability. They feature two horizontal girders that span the working area, supported by vertical legs. These cranes offer several advantages:
- High Load Capacity: Double girder gantry cranes are designed to handle extremely heavy loads, making them suitable for tasks involving large steel coils or other massive materials.
- Durability: Their robust construction ensures longevity and reliability, even under demanding conditions.
- Precise Load Control: Double girder gantry cranes provide precise control over load positioning, which is crucial for critical steel mill operations.
- Double girder gantry cranes are often employed in steel mills for tasks like ladle handling, steel pouring, and transporting large steel components.

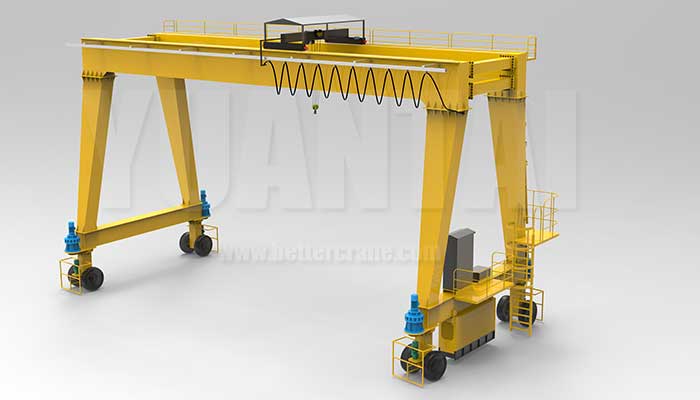

Rubber-Tired Gantry (RTG) Cranes
- Rubber-tired gantry (RTG) cranes are highly mobile gantry cranes equipped with rubber wheels that run on paved surfaces. Unlike rail-mounted gantry cranes, RTGs are not confined to fixed tracks, offering greater flexibility. Key features include:
- Mobility: RTG cranes can move freely within the mill, making them ideal for tasks that require transport over short distances.
- Quick Deployment: Their mobility allows for rapid deployment to various areas within the facility, reducing the need for extensive infrastructur
- Load Capacity: RTG cranes can handle substantial loads, making them suitable for steel coil handling and other material transport tasks.
- RTG cranes are particularly useful in steel mills for tasks like transporting steel coils from one processing station to another or loading/unloading materials from trucks.

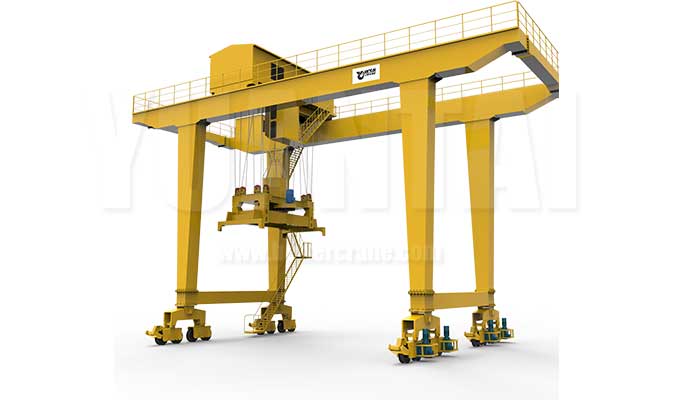

Rail-Mounted Gantry (RMG) Cranes
- Rail-mounted gantry (RMG) cranes are heavy-duty gantry cranes designed for precise and efficient container handling in steel mills with rail systems. Key characteristics include:
- Rail Guided: RMG cranes are guided by rail tracks, providing highly controlled and linear movement within the mill.
- High Throughput: They are optimized for high-throughput operations, making them suitable for busy steel mills with extensive rail networks.
- Automation Ready: RMG cranes can be easily automated, allowing for efficient, round-the-clock operations.
While RMG cranes are more commonly associated with container handling in ports and intermodal facilities, they find applications in steel mills for moving materials within rail-connected facilities.
Each type of gantry crane brings its own set of advantages and is chosen based on specific operational needs within a steel mill. The selection depends on factors such as load capacity, mobility requirements, and available infrastructurThese versatile machines play a vital role in ensuring the productivity and efficiency of steel mill operations.
Applications of Gantry Cranes in Steel Mills
Gantry cranes are the workhorses of steel mills, playing a pivotal role in a wide range of critical tasks. In this section, we will explore the diverse applications of gantry cranes within steel mills, shedding light on how these versatile machines contribute to seamless production processes.
Raw Material Handling
- Unloading: Gantry cranes are instrumental in unloading raw materials such as iron ore, coal, and other essential inputs from trucks, trains, or ships. Their exceptional load capacity and precise control ensure that materials are safely and efficiently transferred to storage or production areas.
- Storage: Gantry cranes are utilized for stacking and organizing raw materials in storage yards, optimizing space utilization and ensuring a constant supply of materials for steel production.
Scrap Handling and Recycling
Steel mills generate a significant amount of scrap metal during various stages of production. Gantry cranes are indispensable for collecting, transporting, and recycling scrap materials. Their adaptability allows for efficient handling of scrap, reducing waste and supporting sustainability efforts.
Steel Coil Handling and Storage
Handling heavy steel coils is a central task in steel mills, and gantry cranes excel in this are They are responsible for precisely positioning coils for processing, storage, or shipment. Whether handling large or small coils, gantry cranes ensure that these critical materials are managed with precision and car
Ladle Handling and Steel Pouring
In the steelmaking process, molten steel is transported from furnaces to casting areas using specialized ladles. Gantry cranes are essential for lifting, transporting, and pouring ladles safely and accurately. This critical function ensures the seamless flow of molten steel in the production process.
Finished Product Handling
Once steel products are ready for distribution, gantry cranes come into play again. They bundle, package, and transport finished products to storage areas or shipment points. The precision and versatility of gantry cranes ensure that finished products meet quality standards and are prepared for delivery.
Gantry cranes are versatile, adaptable, and capable of handling a wide range of materials and tasks within steel mills. Their contribution to raw material handling, scrap recycling, steel coil management, ladle operations, and finished product handling cannot be overstate These machines are the backbone of steel mill operations, ensuring efficiency, safety, and productivity.
Advantages of Gantry Crane Applications in Steel Mills
Gantry cranes are not just essential tools in steel mills; they are key drivers of enhanced productivity and operational efficiency. In this section, we will explore the numerous advantages that gantry crane applications bring to steel mill operations.
Improved Productivity and Throughput
One of the primary advantages of utilizing gantry cranes in steel mills is the substantial improvement in productivity and throughput. These cranes are engineered for heavy-duty tasks, allowing for the efficient handling of large and heavy materials. The benefits include:
- Faster Material Handling: Gantry cranes can quickly lift, transport, and position materials, significantly reducing material handling times and bottlenecks in production processes.
- Continuous Operations: The reliability and precision of gantry cranes ensure uninterrupted production, contributing to higher daily output and meeting tight production schedules.
- Optimized Workflows: Gantry cranes are adept at optimizing workflows within the mill, ensuring that materials flow seamlessly from one process to another.
Safety Enhancements in Material Handling
Safety is paramount in steel mill operations, and gantry cranes play a crucial role in enhancing workplace safety. Their safety features and precise control mechanisms lead to:
- Reduced Risk of Accidents: Gantry cranes offer precise load control, reducing the risk of accidents related to material mishandling or uncontrolled movements.
- Operator Safety: Operators of gantry cranes have better visibility of their surroundings and can operate the crane from a safe distance, minimizing the risk of injury.
- Load Monitoring: Advanced gantry crane systems often include load monitoring technology that alerts operators to potential issues, further enhancing safety.
Reduced Labor Requirements
Gantry cranes are efficient material handling solutions that can perform tasks that would otherwise require extensive manual labor. As a result, they contribute to labor savings in steel mills:
- Labor Efficiency: Gantry cranes can handle heavy loads with precision and speed, reducing the need for manual labor in material handling.
- Cost Savings: The reduced labor requirements translate into cost savings, contributing to the overall cost-effectiveness of steel mill operations.
Versatility and Adaptability in Various Operations
Gantry cranes are highly versatile machines that can be customized to meet the specific needs of different tasks within the mill. Their adaptability is a significant advantage:
- Various Load Types: Gantry cranes can handle a wide range of load types, from raw materials and scrap to steel coils and finished products.
- Custom Attachments: Below-the-hook attachments and accessories can be tailored to specific tasks, allowing a single gantry crane to perform multiple functions.
- Multiple Applications: Gantry cranes can be deployed in various areas of the mill, from raw material yards to production lines and shipping areas.
In summary, gantry crane applications bring a multitude of advantages to steel mills, including improved productivity, enhanced safety, labor savings, and adaptability to diverse tasks. These machines are indispensable assets in the quest to maximize efficiency and output in the steel industry.
Design Considerations for Gantry Crane Applications
Implementing gantry crane solutions in a steel mill requires careful planning and consideration of various factors to ensure optimal performance, safety, and efficiency. In this section, we will explore key design considerations that steel mills should keep in mind when deploying gantry crane applications.
Load Capacity and Size Requirements
- Load Capacity: Determining the appropriate load capacity is a fundamental consideration when designing gantry crane applications in steel mills. It's essential to assess the heaviest loads the crane will handle regularly, as well as any potential future increases in load sizes. Gantry cranes are available in a wide range of load capacities, from a few tons to hundreds of tons, ensuring that there is an appropriate solution for every requirement.
- Size Requirements: Consider the physical dimensions of the materials to be handled, including their length, width, and height. The gantry crane's hook height and span should be compatible with the materials' sizes to ensure safe and efficient handling. Adequate clearance and space for material movement must also be accounted for in the design.
Space Planning and Layout Optimization
- Facility Layout: Optimizing the layout of the steel mill facility is crucial to ensure that gantry cranes can move freely and access various work areas. Consider the placement of support structures, rail tracks (if applicable), and the arrangement of production lines to minimize congestion and maximize material flow.
- Clear Pathways: Design clear pathways and zones for gantry crane movement. Ensure that there are no obstructions or obstacles that could impede the crane's operation. Adequate space for turning, lifting, and lowering loads is essential for safety and efficiency.
Safety Features and Compliance with Industry Regulations
- Safety Features: Safety is paramount in steel mill operations. Select gantry cranes equipped with advanced safety features, such as overload protection, emergency stop buttons, anti-collision systems, and audible alarms. These features enhance workplace safety and protect both operators and materials.
- Compliance with Regulations: Ensure that the gantry crane design and installation comply with industry regulations and safety standards. This includes adherence to local, national, and international safety codes and regulations governing crane operations.
Maintenance and Upkeep Considerations
- Preventive Maintenance: Implement a regular preventive maintenance schedule for gantry cranes to ensure their continued reliability and longevity. Maintenance tasks should include inspections, lubrication, and the replacement of worn or damaged components.
- Spare Parts Availability: Maintain a stock of critical spare parts for gantry cranes to minimize downtime in the event of breakdowns. Quick access to spare parts ensures prompt repairs and reduces disruptions to production.
- Operator Training: Properly train crane operators and maintenance personnel to ensure safe and efficient crane operation. Well-trained operators are essential for maximizing crane performance and safety.
By carefully addressing these design considerations, steel mills can ensure that their gantry crane applications are optimized for productivity, safety, and efficiency. Gantry cranes are valuable assets that, when well-designed and maintained, contribute significantly to the success of steel mill operations.
