Garage Gantry Crane for Sale, Custom Gantry for Your Garage

Garage gantry crane is a type of small gantry cranes which has be designed with travelling roller or castors to ensure the flexible  and easy of transportation of loads. Due to the different dimensions and lifting requirements in various garages, the small gantry cranes can be designed with different configurations to fit the application.

The Design Features of Garage Gantry Cranes

These garage gantry crane design plans are based on the portable crane design. The supporting legs are designed with telescopic legs that can be adjusted from a low to a high position to meet the needs of different lifting heights. The small gantry crane will simply pass through a standard garage door in a lower height position, then expand up in several positions. Garage gantry cranes, with proper design, can be used to lift a boat or equipment to a trailer. Consider it a gantry design that makes the most of available space while still passing through a standard garage door.

• The garage gantry crane is strong enough to handle almost any material handling jobs in garage, but it disassembles for portability or storage. It has roll-around mobility with spring-loaded caster wheel mounts (for safety), so it won't roll away while lifting. Instead, it lays flat on the ground for safety.
• Steel cutting, welding, and drilling are all required during construction.
• Load capacity of garage gantry cranes varies according to options and ranges from 0.25 to 10 ton.
• Plans include illustrated instructions, a list of materials, details for constructing each piece, Construction Hints, and design options. Options include beam sizes, steel or aluminum, overall size, wheels, leg length, and so on.

Maximize Your Garage Gantry Crane

Utilize this excellent garage (or shop) crane. It can be equipped with different types of gantry hoists either hand hoist or electric hoist, which will be optional based on the lifting tasks. This garage gantry crane (mini or small gantry) is fully adjustable up and down, then with the I-Beam Connector Clamp, and also adjusts width-wise to fit your project — and available garage (or shop) space. It's simple to use, adjust, and disassemble for storage or portability.

Check out the crane accessories to make lifting even easier!

Many gantry cranes benefit from our manual chain hoist, electric chain hoist, and electric wire rope hoist. The I-Beam Connector Clamp, on the other hand, provides infinite width options without cutting or drilling additional holes in the top beam. Both are recommended, and both are used in our shop.

Beam trolley(s), winch, and lifting equipment are required for the garage gantry crane to function properly. The base crane is raised to the desired height by hand.

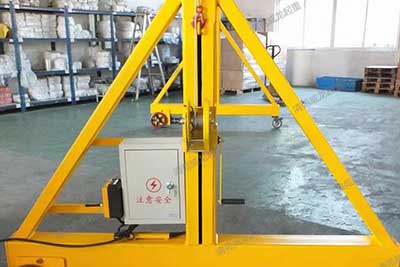

Raise & Lower the Top Beam with Ease

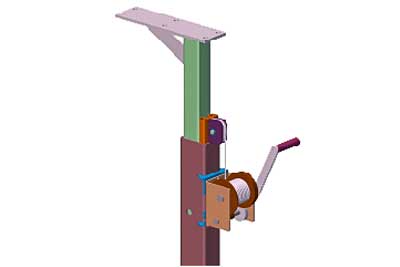

Build your garage gantry crane with a leg extender powered by a winch. This conversion makes it simple to raise and lower the top beam. It is doable by one person.

The plans demonstrate how to convert our other gantry crane plans. They include the drawings, instructions, and material and component lists needed to build it exactly as shown in the image. (Colors are not required.)

Plans for conversion are sold separately. Both the Crane Plans and these Top Beam Lifter Conversion Plans are required.

Fixed Height Gantry Crane

Portable Fixed Height Garage Gantry Crane
Steel Gantry Cranes are recommended for production, installation, and maintenance services where portability is required. The gantry is equipped with phenolic, poly coated, or forged steel heavy duty swivel casters, depending on the capacity. All caster types include roller bearings for easy movement and grease fittings for easy maintenance. On request, 'V' groove and flanged wheels are also available.

Fixed Height Gantry Cranes are movable while loaded and provide an affordable way to lift materials anywhere in your facility. You can easily move the gantry around your work area thanks to the casters. For areas with infrequent lifts, this is a more cost-effective lifting solution than a more expensive permanent structure. Our heavy duty end frame design, which includes square tubing uprights and bases, allows for stable lifting and movement.

• Moveable even when loaded - the  motorized travelling garage gantry crane can be moved easily even when loaded.
• Mobile - easily moveable for use in any location throughout your facility.
• Square tubing uprights and a channel base provide stability when lifting and moving loads.
• Bolted beam - improves the gantry crane's safety and durability.

Heavy Duty garage gantry cranes

Our garage gantry cranes are known for their safe operation, high cost performance, and long service life. Furthermore, as a portable gantry crane, it is easy to transport and operate. In general, we can design garage gantry cranes as single or double girder gantry cranes. There are also rail mounted gantry cranes and rubber tired gantry cranes to choose from. Our products are now successfully exported to over 100 countries and regions, including Indonesia, Malaysia, Pakistan, the Philippines, Italy, the United Kingdom, the United Arab Emirates, the United States, Nigeria, and Australia. And we have a solid reputation among our clients.

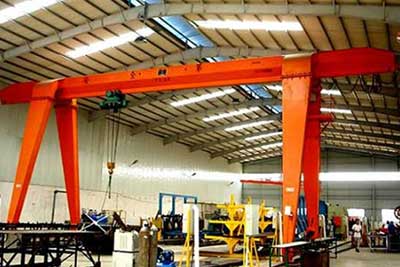

Single girder garage gantry crane

• Lifting Capacity: 3t~20t
• Span Length: 8~35m
• Lifting Height: 6~18m
• Lifting Speed: 0.33~8m/min
• Trolley Traveling Speed: 20m/min
• Crane Traveling Speed: 20m/min
• Working Class: A3, A4
• Provide Custom Option

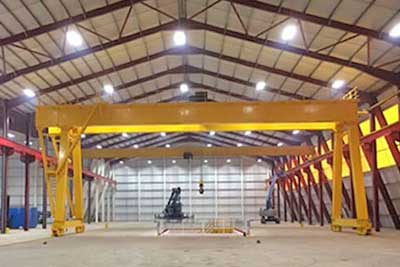

Double girder garage gantry crane

• Lifting Capacity: 5t~500t
• Span Length: 18~35m
• Lifting Height: 6~18m
• Lifting Speed: 1.5~11.5m/min
• Trolley Traveling Speed: 10~40.1m/min
• Crane Traveling Speed: 16~50m/min
• Working Class: A3-A7
• Provide Custom Option

The heavy duty gantry crane is not always to seen in the garage. But it your handling loads is above 10 ton, sing girder gantry crane will be a option.

What Type of Garage Gantry Crane  Is Best For Your Business?

Garage gantry cranes are specifically designed and manufactured for indoor use. You should choose the appropriate type of garage gantry crane based on your needs.

• To begin, there are numerous tons to choose from, such as light duty or heavy duty, 5 ton, 10 ton, 16ton, 25ton, 100ton, and so on.
• Second, we offer semi-gantry cranes and truss gantry cranes to accommodate unique working conditions.
• Third, as a crane solutions provider, garage overhead cranes are a popular product. Finally, in addition to gantry cranes for garages, we offer container gantry cranes, workshop gantry cranes, and other gantry cranes for specialized working environments. Send us an email and we will help you choose the best garage gantry crane for your needs.

What Affects The Garage Gantry Crane Price?

To better understand garage gantry crane pricing, it is necessary to first learn about the factors that influence garage gantry crane pricing. In fact, the gantry crane is a complex piece of machinery that is made up of numerous accessories and parts. As a result, there are numerous factors that influence the price.

• The maximum rated load or lifting capacity. For example, the price of a 20-ton gantry crane is significantly higher than the price of a 10-ton gantry crane.
• The length of the span you need to cover under the crane, or the horizontal distance between the runway rails.
• Your crane's loading height.
• Crane speed and lifting speed are required.
• The working environment in which your crane will operate, whether standard or special.
• The working duty of gantry,, which refers to how often the electric gantry crane will be in operation.

Reasons For Choosing Us As Your Top Gantry Crane Supplier

Yuantai Crane have been involved in the design, research, and manufacture of gantry cranes for over 30 years, having been founded in 1984. And we have amassed a large number of unrivaled advantages in this field.

• Top-quality. Yuantai Crane spends a lot of money on the  researching  and development of different cranes. Our products have a long service life due to advanced technology and durable materials. Furthermore, we offer a lengthy quality assurance period.
• Prompt delivery. Zhengzhou, the capital of Henan province, and transportation hub of China, where our factory located can provide the convenient transportation and the delviery of your crane and hoist on time.  We can ensure quick delivery and complete product safety via air, land, or water transportation.
• Affordable price. We have our own large-scale manufacturing facility and systematic and efficient managing system, Our material handling crane and hoist equipment are all factory priced.

The Excellent Service System Of Company

As a trustworthy crane project solutions provider, we provide our customers with fully professional and comprehensive after-sales service, which includes crane installation, maintenance, inspection, and operator training.  Furthermore, we provide excellent pre-sales service, such as 24 hour online support, a wide range of products, responsible winch selection instructions, and so on. Our excellent service system will undoubtedly provide you with a convenient and satisfying crane purchasing experience.

Ready To Start Your Crane Project?

We have become one of China's leading gantry crane suppliers after nearly 40 years of development. We offer a variety of high-quality garage gantry cranes to customers all over the world. All of our products are designed and manufactured in accordance with international standards. We also provide common and custom crane project services. Are you ready to begin your project? Tell us about your crane needs, and we'll get back to you as soon as possible.
