How Low Headroom Gantry Cranes Solve Indoor Material Handling Challenges

Low headroom gantry cranes optimize indoor material handling by overcoming space limitations, enhancing safety, and improving lifting capacity in tight areas.

Material Handling Challenges in Indoor Spaces

Indoor material handling can be tricky. Many facilities like warehouses, factories, and workshops have limited space. This means every square foot needs to be used wisely. With so much equipment, raw materials, and finished goods to move around, things can quickly get crowded.

The real issue? Headroom. A lot of indoor spaces are built with low ceilings or limited overhead clearance. This can make traditional cranes and lifting systems difficult to use. With bulky cranes or tall hoists, there’s not enough room to move materials effectively, slowing down production and creating safety hazards.

Why Space Optimization Matters
In tight environments, every inch counts. Whether you’re dealing with low ceilings or narrow aisles, optimizing space means you can move more material with less hassle. If the space is not used properly, you end up wasting valuable room, which leads to inefficiency and even costly mistakes. For businesses, this can mean delays, lower productivity, and higher operational costs.

Finding ways to maximize the available space is key. And that’s where low headroom gantry cranes come in.

Low Headroom Gantry Cranes: The Perfect Solution
Low headroom gantry cranes are designed specifically to solve space problems in tight indoor environments. Their compact design reduces the amount of vertical clearance needed, allowing businesses to use their space more efficiently. These cranes fit into spaces where traditional cranes just wouldn’t work.

Thanks to their unique structure, low headroom gantry cranes help businesses make the most out of their indoor spaces while still offering powerful lifting capabilities. Whether you're in a small factory or a cramped warehouse, these cranes can help you optimize your workspace and improve material handling performance.

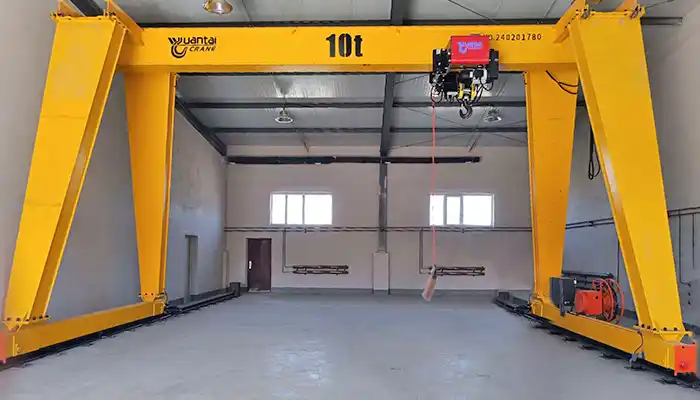

10 ton low headroom gantry crane single girder for indoor material handling


What is a Low Headroom Gantry Crane?

Definition and Key Characteristics
A low headroom gantry crane is a type of crane designed for indoor environments with limited overhead clearance. Unlike traditional cranes, which need a lot of vertical space, low headroom gantry cranes have a compact structure, allowing them to fit into tighter spaces.

Key features include:

• Reduced height: The crane's design minimizes the distance between the crane's main beam and the ceiling, optimizing headroom.
• Compact construction: The overall frame is built to take up less space without compromising the crane’s ability to handle heavy loads.
• Increased lifting capacity: Despite the low clearance, these cranes can still lift significant weights, making them ideal for tight but demanding environments.

Comparison with Traditional Gantry Cranes
Traditional gantry cranes typically require a lot of vertical space, making them unsuitable for indoor spaces with low ceilings. Here’s a quick comparison:

Traditional Gantry Cranes:

• Need more clearance for the crane’s frame and hoist.
• Can’t fit in spaces with low ceilings or cramped environments.
• Require larger, more open areas for installation and operation.

Low Headroom Gantry Cranes:

• Designed specifically for tight, low-ceiling areas.
• Take up less vertical space, making them perfect for factories or warehouses with limited overhead clearance.
• Allow for more effective use of floor space while still offering powerful lifting capabilities.

Space Constraints in Indoor Material Handling

Common Space Limitations
In many factories, workshops, and warehouses, space is often constrained by a combination of factors:

• Low ceilings: Older buildings or spaces with a fixed ceiling height can limit the use of large cranes.
• Narrow aisles: Tight aisles make it difficult to maneuver heavy equipment or materials.
• Limited floor space: In dense operations, maximizing the available floor area is key to maintaining efficiency.

How Limited Headroom Can Hinder Material Handling Efficiency
When the headroom is limited, traditional cranes simply won’t work. This can lead to:

• Restricted movement: The crane may not be able to lift materials to the required height, causing delays.
• Lower lifting capacity: The crane's design may be compromised to fit the limited space, which could reduce its overall lifting power.
• Safety concerns: Tight spaces increase the risk of collisions, damage, and accidents.

Maximizing Usable Vertical Space
To maintain smooth and efficient operations in tight spaces, businesses must optimize every inch of vertical space. This is where low headroom gantry cranes shine. Their compact design allows them to:

• Use available height more efficiently.
• Allow for the safe and effective movement of materials without taking up unnecessary space.
• Increase overall facility capacity, making better use of floor and vertical space.

By leveraging low headroom gantry cranes, businesses can work smarter in cramped spaces, improving both safety and productivity.

Single Girder Gantry Crane with Low Headroom Eccentric Hoist Trolley

How Low Headroom Gantry Cranes Overcome Space Limitations

Design Features That Contribute to Space Efficiency
Low headroom gantry cranes are specifically built to solve space problems in indoor environments. The key design elements that make them efficient in tight spaces include:

• Compact Structure: These cranes are designed with a smaller footprint, which allows them to fit into areas where traditional cranes can’t. The crane’s frame and components are built in a way that doesn’t take up unnecessary room.
• Low Clearance: The hoist and trolley system is positioned closer to the crane's main beam, minimizing the space needed between the crane and the ceiling. This design significantly reduces vertical height requirements, making the crane ideal for spaces with low ceilings.
• Optimized Hoist Position: In low headroom cranes, the hoist is placed in a more compact position, allowing for better use of vertical space. This means you can lift materials higher without needing a tall crane structure.

The Role of Reduced Overhead Space Usage in Improving Clearance for Materials
With limited headroom, the overhead clearance becomes a critical factor. Low headroom gantry cranes effectively utilize the available vertical space, enabling businesses to move materials within a smaller range without compromising functionality. Here’s how it works:

• Maximized Vertical Clearance: By reducing the crane’s height, these cranes leave more room above for lifting heavy materials. This is essential for factories or warehouses with low ceilings, where every inch of overhead space counts.
• Efficient Material Handling: With better clearance, materials can be raised and moved more efficiently, even in areas where traditional cranes wouldn’t fit. This can significantly improve material flow and reduce delays.

Advantages of Low Headroom Design for Maximizing Available Space
The low headroom design brings several space-saving benefits:

• More Floor Space: The compact nature of the crane means that more of the available floor area is kept clear for other tasks or equipment.
• Fitting into Smaller Areas: These cranes are perfect for tighter spaces, allowing businesses to use corners, narrow aisles, or other unused areas for material handling.
• Space Flexibility: In warehouses or factories with changing space requirements, low headroom gantry cranes provide flexibility in operations. They can be adapted to new configurations without taking up excessive room.

Benefits of Low Headroom Gantry Cranes for Indoor Material Handling

Improved Workspace Efficiency and Safety
Low headroom gantry cranes help improve workspace efficiency in several ways:

• Reduced Clutter: With a compact design, these cranes allow for better organization of the workspace. Less space taken up by the crane means more room for other activities.
• Enhanced Safety: By reducing the overall crane height and structure, the risk of collisions with overhead structures or materials is lowered. The streamlined design also minimizes the chance of accidents, ensuring a safer working environment for staff.

Greater Lifting Capacity with Minimal Height Requirements
Even with low vertical clearance, these cranes still offer impressive lifting power:

• Higher Lifting Ability: Despite their compact size, low headroom gantry cranes can lift substantial weights, making them ideal for handling heavy materials in limited spaces.
• Efficient Lifting Mechanism: The hoist and trolley system are designed to handle larger loads with minimal space requirements, allowing for both strong performance and space efficiency.

Ability to Operate in Constrained Areas Without Sacrificing Performance
The low headroom gantry crane doesn’t just fit into small spaces—it performs effectively there too:

• Adaptable Performance: These cranes can operate in tight spaces where standard cranes can’t, maintaining the same level of performance despite the size constraints.
• Versatility in Operations: Whether it’s a factory with low ceilings or a warehouse with narrow aisles, these cranes provide the flexibility to handle materials in a variety of confined environments without sacrificing efficiency.

By utilizing low headroom gantry cranes, businesses can improve material handling operations in tight indoor spaces, boosting both efficiency and safety while still benefiting from strong lifting capacity.

Customization Options for Specific Needs

Tailoring Low Headroom Gantry Cranes to Different Industries and Operations
Low headroom gantry cranes are incredibly versatile, and their designs can be customized to meet the specific requirements of various industries. Whether you're in manufacturing, logistics, or another field, these cranes can be adapted to fit the exact needs of your operation. Here’s how they can be tailored:

• Material Handling: Different materials have different lifting and movement requirements. For example, a crane used to handle heavy metals will have different specs compared to one handling fragile goods.
• Factory Layouts: Every workshop or factory has its own layout and space constraints. Low headroom gantry cranes can be modified to fit into narrow aisles, corners, or areas with low ceilings, optimizing space without compromising functionality.
• Industry-Specific Requirements: Industries like automotive, aerospace, or construction often have specialized material handling needs. These cranes can be customized to carry specific loads, handle sensitive materials, or meet safety regulations unique to each sector.

Custom Design Options
Customization ensures that the crane fits perfectly with your operations and the available space. Key custom design options include:

• Crane Spans: The span of the crane refers to the distance between the supports of the gantry. This can be customized to match the width of the workspace, ensuring the crane covers the right areas while minimizing wasted space.
• Lifting Heights: Low headroom gantry cranes are particularly useful in spaces with low ceilings, but they can still be designed to lift materials to the required height. Adjusting the lifting height ensures maximum use of available space while achieving the necessary lift range for specific tasks.
• Hoist Configurations: The hoist can be customized in terms of capacity, speed, and type (manual, electric, or pneumatic), depending on the materials being handled. Custom hoists can also be designed for special environments, such as explosion-proof systems for hazardous areas or corrosion-resistant hoists for outdoor use.

Applications in Various Industries

Examples of Industries and Environments Where Low Headroom Gantry Cranes are Beneficial

• Manufacturing: In industries like automotive and heavy machinery, space is often at a premium. Low headroom gantry cranes can help move heavy parts or materials without taking up valuable overhead space. Their compact design is perfect for tight factory settings.
• Warehouses: Warehouses with low ceilings or high racking systems benefit from low headroom gantry cranes. These cranes can move materials between shelves while maximizing the available vertical space.
• Assembly Lines: On assembly lines, especially in electronics, furniture, or consumer goods, low headroom gantry cranes can move components or finished products efficiently within confined spaces, helping to streamline production.

Case Studies or Success Stories
Here are a couple of examples where low headroom gantry cranes have made a significant impact:

• Automotive Factory: A leading automotive manufacturer faced space challenges in their assembly line. The ceilings were too low to use traditional cranes, and space was limited between machinery and product storage. By installing a custom low headroom gantry crane, they were able to move parts more efficiently, speeding up production and avoiding costly downtime. The crane’s compact design allowed them to use more of the floor space for assembly, ultimately boosting output by 20%.
• Warehouse Operation: A distribution center in a busy urban area had limited warehouse space due to low ceiling height and the need for dense shelving. A low headroom gantry crane was designed to fit into the available space and handle high-volume orders quickly. With its ability to lift goods between shelves and across aisles, the warehouse was able to optimize storage and speed up inventory management, reducing operational costs by 15%.

These examples highlight how customization and adaptation of low headroom gantry cranes can significantly enhance material handling efficiency, improve safety, and maximize usable space in various industries.

Selecting the Right Low Headroom Gantry Crane

Choosing the right low headroom gantry crane is crucial for optimizing space and improving efficiency in your operation. To make the best decision, several key factors need to be considered:

Key Considerations When Choosing a Low Headroom Gantry Crane

Capacity

• Determine the weight of materials: It's essential to know the maximum load the crane will be handling. Low headroom gantry cranes come in various lifting capacities, from light-duty models for smaller items to heavy-duty cranes for more substantial loads. Choose a crane with the appropriate capacity to ensure safe and efficient lifting without overloading.
• Consider future needs: Think about potential growth or changes in your business. Will your material handling needs increase over time? Opting for a crane with slightly higher capacity than your current needs can save you from needing to upgrade later.

Lifting Height

• Available vertical space: The lifting height is the maximum distance the crane can raise materials. In a low headroom environment, it’s important to measure the clearance and choose a crane that maximizes the available vertical space. Ensure that the crane’s lifting height allows for proper handling of your materials without hitting the ceiling or any overhead obstructions.
• Work elevation: Consider the height at which most of your material handling takes place. The crane should allow for efficient movement of materials at the desired work elevations.

Crane Span

• Width of the workspace: The span refers to the distance between the crane’s supports. It’s important to match the span to the layout of your facility. If your workspace is narrow, you’ll need a crane with a smaller span that can still cover the necessary area.
• Room for maneuverability: Ensure the span is wide enough for efficient movement of materials but not too wide to cause congestion in the workspace.

Operating Environment

• Indoor vs. outdoor use: If your crane will be used outdoors, ensure it is designed to handle environmental factors like moisture, dust, or temperature extremes. For indoor use, make sure the crane is well-suited for confined spaces and has features that protect it from internal factors like dust or humidity.
• Hazardous conditions: If your facility involves hazardous materials or environments (e.g., explosive areas or extreme temperatures), you may need a crane with special features such as explosion-proof or corrosion-resistant coatings. Be sure to choose a crane that is tailored to your operational conditions.

Tips for Optimizing Crane Selection Based on Space and Operational Needs

• Measure the Space Carefully
  Before selecting a crane, make sure to measure your available space, both in terms of height (ceiling clearance) and width (aisles or storage areas). Having precise measurements will help ensure that the crane fits properly into your facility and allows for efficient material movement.
• Match the Crane’s Features to the Workload
  Think about the type of materials being moved. If you're handling heavy or bulky items, you'll need a crane with a higher lifting capacity and perhaps a larger span. For smaller or lighter materials, a more compact crane may suffice. Tailor your crane to your typical load requirements for better efficiency.
• Consider Future Growth and Flexibility
  Don’t just think about your current needs. Consider future growth, such as increased production, more material types, or even an expanded workspace. Opting for a slightly more powerful crane or one with additional features can give you more flexibility down the line.
• Understand Your Operational Workflow
  Look at how materials are moved in your workspace. Are they being lifted from storage racks, loaded into trucks, or moved along assembly lines? Understanding how your materials flow will help you determine the best lifting height, span, and hoist configuration for the crane.
• Check for Customization Options
  If your operation has unique requirements, such as non-standard lifting heights or special hoist configurations, make sure to ask about customization options. Many low headroom gantry cranes offer customizable features that can be tailored to your specific needs.
• Consult With an Expert
  If you’re unsure about the best crane for your operation, consulting with a crane manufacturer or supplier can be a smart move. They can offer expert advice based on your space constraints, lifting requirements, and operational needs.

By carefully considering these factors and optimizing your crane selection, you can ensure that the low headroom gantry crane you choose will maximize space, improve material handling efficiency, and enhance safety in your facility.

Conclusion

In summary, low headroom gantry cranes provide an excellent solution for businesses dealing with space limitations in indoor environments. Their compact design and ability to maximize vertical clearance allow for efficient material handling, even in tight spaces with low ceilings. By reducing the amount of overhead space needed, these cranes make better use of the available floor area, improve safety by minimizing risks of collisions, and maintain strong lifting performance despite spatial constraints.

Making an informed decision when selecting a low headroom gantry crane is critical. Understanding your specific needs, whether it’s lifting capacity, lifting height, span, or environmental considerations, ensures that you choose the right crane for your operation. A well-chosen crane will not only enhance efficiency by improving material flow but also contribute to a safer work environment by optimizing space and reducing hazards.

By investing in the right low headroom gantry crane, you can optimize your workspace, increase productivity, and ensure long-term operational success.
