Gantry Cranes 5 T to 50 Ton for Bulk Material Handling in Mining

Gantry cranes 5 ton to 50 tons for bulk ores, coal, and minerals, efficient bulk material handling in stockyards or storage areas within mining operations.

Bulk material handling forms the backbone of mining operations, encompassing the movement, storage, and management of large quantities of materials such as ores, coal, and minerals. This critical aspect of mining requires specialized equipment designed to efficiently handle these heavy materials in various stages of mining processes.

In the mining industry, where the extraction and processing of massive quantities of raw materials are integral, the role of gantry cranes in facilitating the movement of substantial loads, ranging from 5 to 50 tons, cannot be overstated. Gantry cranes are purpose-built for these demanding tasks, offering unique features and capabilities tailored to the challenges posed by bulk material handling in mining operations.

This blog will delve into the pivotal role that gantry cranes play in the efficient movement and management of ores, coal, and minerals within mining sites. From their specialized designs to their practical applications, we'll explore how gantry cranes contribute to enhancing productivity and operational efficiency in the mining sector. Join us as we examine the intricacies and advantages of using gantry cranes for handling substantial bulk materials in the mining industry.

Types of Gantry crane used for bultk material handling in mining operation

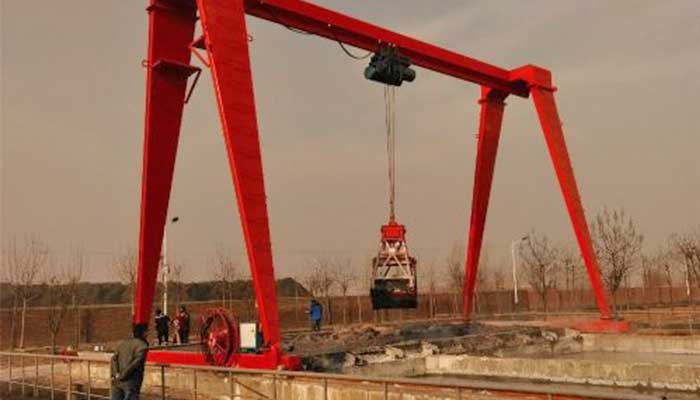

Single Girder Gantry Cranes:

Features:

• Single Girder Configuration:Designed with one girder for the trolley and hoist, providing a lighter structure and more straightforward design.
• Lower Headroom:Offers reduced headroom requirements, suitable for facilities with height limitations.
• Lighter Weight:Compared to double girder cranes, making them easier to install and more cost-effective.
• Load Capacities:Typically handles loads ranging from 1 ton to 20 tons, suitable for medium to lighter material handling tasks.

Benefits:

• Cost-Effectiveness:Lower manufacturing and installation costs due to a simpler design.
• Adaptability:Suited for applications requiring lighter loads and limited headroom clearance.
• Efficient Material Handling:Offers efficient handling of materials in the specified load capacity range.

Typical Applications:

• Medium-Sized Stockyards:Ideal for handling bulk materials in medium-sized stockyards or storage areas within mining operations.
• Maintenance and Assembly:Used for maintenance tasks or assembly operations involving moderate loads.

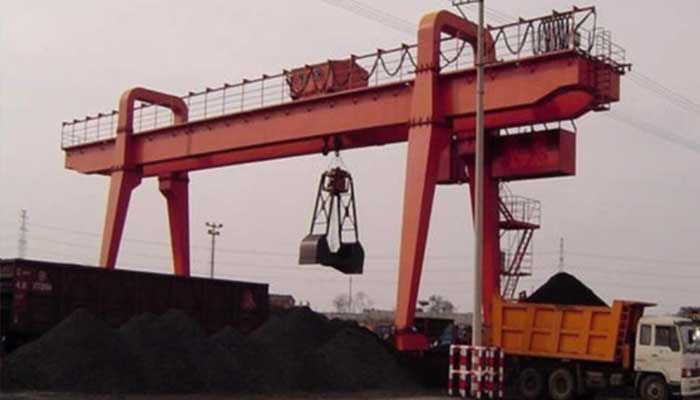

Double Girder Gantry Cranes:

Features:

• Dual Girder Configuration:Equipped with two girders for increased stability, higher lifting capacity, and greater rigidity.
• Higher Lifting Heights:Provides greater hook height and more significant lifting capabilities compared to single girder cranes.
• Heavy Load Capacities:Capable of handling heavier loads, ranging from 5 tons to 500 tons, suitable for heavy material handling tasks.

Benefits:

• Enhanced Stability:Offers greater stability and precision when handling heavier loads.
• Increased Lifting Capacity:Ideal for handling heavy machinery components, large materials, or high-volume bulk materials.
• Longer Service Life:Provides better durability and longevity due to its robust design and construction.

Typical Applications:

• Large Stockyards and Material Handling Centers:Suitable for larger-scale mining operations requiring handling of heavier and larger bulk materials.
• Heavy Machinery Assembly and Disassembly:Used for lifting and positioning heavy mining equipment or components during assembly or maintenance operations.
• Both single girder and double girder gantry cranes have their distinct advantages, making them suitable for different material handling applications within mining operations based on load capacities, space limitations, and specific material handling requirements.

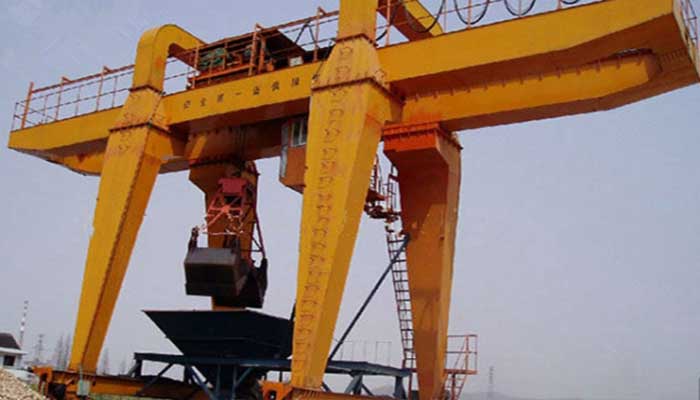

Rail-Mounted Gantry Cranes (RMGs):

Features:

• Rail-Mounted Structure:Mounted on rails, providing a fixed path for movement within the mining facility.
• High Load Capacities:Designed to handle heavy loads, ranging from 10 tons to several hundred tons, depending on the configuration.
• Precise Movements:Equipped with precise control systems for accurate positioning of bulk materials.
• Long Span Capability:Can cover a considerable area within the stockyard or storage area due to their ability to traverse along the rails.

Benefits:

• Stability and Precision:Offers stability and accurate movement, ensuring efficient stacking and organization of bulk materials.
• Space Utilization:Maximizes space utilization due to their track-mounted design, allowing efficient storage and handling.
• Increased Efficiency:Enables quick and systematic material movement, reducing operational time and increasing productivity.
• High Lifting Heights:Capable of lifting materials to significant heights, facilitating stacking in multi-level stockyards.

Typical Applications:

• Stockyards and Storage Areas:RMGs efficiently handle bulk materials such as ores, coal, minerals, and processed materials within stockyards or storage zones.
• Material Organization:Used for stacking and organizing bulk materials systematically for easy access and retrieval.

Applications in Stockyards and Storage Areas

Gantry cranes serve as indispensable assets in the strategic layout of mining operations. These cranes are strategically deployed in stockyards and storage areas, serving as workhorses for the movement and organization of bulk materials. They play a pivotal role in these designated zones, efficiently stacking and arranging materials for optimal storage and retrieval.

Mining sites often encompass vast stockyards where materials like ores, coal, and minerals need to be stored before processing or shipment. Gantry cranes, with their robust construction and adaptable features, are employed in these areas to facilitate organized material stacking, ensuring efficient use of space and easy accessibility for subsequent handling or transportation.

Handling Diverse Bulk Materials

Gantry cranes exhibit remarkable versatility in handling a diverse range of bulk materials found in mining operations. These cranes are engineered to manage various materials with differing properties and characteristics, including ores, coal, minerals, and other extracted resources.

Their adaptability to handle different materials is a testament to their design and functionality. Gantry cranes are equipped with mechanisms and configurations that enable safe and efficient handling of these materials, offering mining operations the flexibility needed to manage a wide spectrum of bulk materials effectively.

In mining operations, gantry cranes play a vital role in efficiently handling various bulk materials, aiding in material transportation, storage, and stockyard management. Some of the common bulk materials handled by gantry cranes in mining operations include:

• Ores:Gantry cranes are used extensively for handling different types of ores, such as iron ore, copper ore, gold ore, bauxite, and more. They assist in moving these ores from mining sites to processing plants or stockyards.
• Coal:Gantry cranes are crucial in coal mining, where they are utilized to handle bulk quantities of coal, transferring them from mining areas to transportation hubs or storage facilities.
• Minerals and Aggregates:Various minerals and aggregates like limestone, gravel, sand, and gypsum are handled by gantry cranes. These cranes help in stockpiling, loading, and unloading these materials efficiently.
• Processed Materials:After processing in refining or beneficiation plants, materials like refined metals (aluminum, copper, etc.) or processed minerals are moved using gantry cranes for storage or further transportation.
• Mining Equipment:Gantry cranes assist in handling heavy mining machinery, components, and equipment within the mining site or in storage areas, aiding in assembly, maintenance, or relocation.
• Bulk Chemicals:In some mining operations, chemicals used in processing or extraction, such as sulfuric acid or cyanide solutions, may require handling with gantry cranes.
• Overburden and Waste Material:During mining activities, overburden and waste material need to be moved and managed efficiently. Gantry cranes facilitate their relocation to designated areas.

These gantry cranes, with their diverse load capacities and customizable features, contribute significantly to the effective handling of bulk materials in mining operations. Their role spans from loading and unloading materials to stockyard management, ensuring smooth and efficient material flow within the mining facility.

Special Gantry Cranes and Below Hookd Devices

In mining operations, various types of gantry cranes with specialized designs and below-hook devices are employed for efficient bulk material handling:

• Grab Bucket Gantry Cranes:These cranes are specifically designed with grab bucket attachments for bulk material handling. They are equipped with grab buckets that can scoop up and handle materials like ores, coal, minerals, and aggregates. The grab buckets vary in size and design based on the type and density of the material being handled.
• Magnetic Gantry Cranes:For handling ferrous materials such as iron ore or scrap metal, magnetic gantry cranes equipped with electromagnetic or permanent magnets are utilized. These cranes can attract and lift ferrous materials, improving efficiency in material handling processes.
• Spreader Bar Attachments:Gantry cranes often employ spreader bar attachments for lifting bulk materials. These devices provide stability and ensure an even distribution of the load weight when lifting materials like ores, minerals, or aggregates packed in containers or bulk bags.
• Specialized Hooks and Slings:Gantry cranes are equipped with specialized hooks and slings designed to securely grasp and lift different types of bulk materials. These attachments can be customized based on the specific material handling requirements, offering versatility in lifting various loads.
• Lifting Beams and Tongs:In some cases, lifting beams or tongs are used as below-hook devices to handle irregularly shaped bulk materials. They provide a secure grip on materials that may not be easily lifted by conventional hooks or attachments.
• Customized Spreader Bars:Custom-designed spreader bars are used for lifting and handling specific bulk materials, providing adaptability and ensuring safe and efficient material handling operations.

These specialized gantry cranes with customized below-hook devices are crucial in enhancing the efficiency, safety, and adaptability of bulk material handling processes in mining operations. They ensure optimal handling of various materials while meeting specific operational requirements.

Gantry Crane Capacities and Customizations

Capacity Range

Gantry cranes designed for bulk material handling in mining operations exhibit a varied range of capacities, typically spanning from 5 tons to 50 tons. This diverse capacity spectrum allows mining sites to select cranes that align precisely with their specific material handling requirements.

Selecting the appropriate crane capacity is pivotal in optimizing material handling efficiency. Smaller capacity gantry cranes, around 5 to 20 tons, are ideal for managing lighter bulk materials or when the volume handled is relatively lower. Conversely, larger capacity cranes, ranging from 20 to 50 tons, cater to heavier materials or situations requiring higher volume handling.

Customized Features

Gantry cranes for bulk material handling are not only defined by their lifting capacities but also by their custom-designed features tailored explicitly for efficient material movement. These cranes come equipped with a range of specialized adaptations and configurations, enhancing their functionality in handling diverse bulk materials within mining sites.

Customizations may include specialized attachments, such as lifting beams or grabs, designed for specific material types. Moreover, gantry cranes are often engineered with adjustable spans, precise movement controls, and safety mechanisms to ensure optimal material handling while prioritizing safety protocols.

The tailored designs and functionalities of gantry cranes play a pivotal role in streamlining material movement, offering mining operations the adaptability and efficiency needed for effective bulk material handling.

Efficiency and Advantages

Gantry cranes stand as indispensable assets within mining operations, playing a pivotal role in the efficient handling of bulk materials. Their utilization brings forth several advantages, enhancing productivity and optimizing material handling processes within mining sites.

Increased Productivity

Gantry cranes are integral in augmenting overall productivity within mining operations. Their robust and adaptable design allows for swift, precise, and efficient movement of bulk materials. By expediting the loading, unloading, and stacking processes, these cranes significantly reduce downtime, facilitating a continuous flow of materials.

Reduced Material Handling Times

One of the standout advantages of gantry cranes is their ability to streamline material handling times. Their advanced lifting capabilities, combined with custom features tailored for bulk material handling, ensure swift and efficient transfers. By minimizing handling times, gantry cranes contribute to operational optimization, allowing mining facilities to handle increased volumes in shorter durations.

Improved Operational Efficiency

The utilization of gantry cranes enhances overall operational efficiency in mining sites. These cranes are equipped with functionalities that ensure precise material handling, reducing the risk of errors or damages during transfer. Moreover, their adaptability to various materials and customizable features optimize their performance, contributing to smoother operational workflows.

The efficiency and advantages of gantry cranes play a pivotal role in bolstering the effectiveness of bulk material handling processes within mining operations. In the subsequent sections, we'll delve deeper into specific case studies and instances where gantry cranes have revolutionized material handling practices, showcasing their real-world impact and success stories. Stay tuned for insightful examples illustrating their efficiency in action.

Safety Measures and Considerations

Gantry cranes employed in the handling of bulk materials within mining environments are meticulously designed with paramount emphasis on safety. Given the complexities and potential hazards inherent in handling heavy loads, especially in mining settings, stringent safety measures are paramount.

Crane Safety Features

Gantry cranes are equipped with a suite of safety features and mechanisms to ensure the secure handling of bulk materials. These include:

• Overload Protection Systems:Advanced sensors and overload prevention mechanisms are integrated into gantry cranes to prevent overexertion beyond the specified load capacity.
• Emergency Braking Systems:In the event of an operational emergency or malfunction, gantry cranes are equipped with instant braking systems to ensure swift halting, preventing potential accidents or damages.
• Collision Avoidance Technology:Cutting-edge collision detection systems are embedded within gantry cranes to avoid accidental collisions during material handling operations.
• Operator Training and Safety Protocols:Adequate training and strict adherence to safety protocols for crane operators are essential to minimize risks associated with bulk material handling.

Safety Considerations in Mining Environments

Mining environments inherently pose unique safety challenges due to various factors like uneven terrains, limited visibility, and the presence of dust or gases. Therefore, additional safety measures are imperative when handling bulk materials in these settings:

• Environmental Monitoring Systems:Continuous monitoring systems for hazardous gases, dust, or other potential risks in the mining area are essential to ensure the safety of both personnel and materials.
• Enhanced Visibility Measures:Installing adequate lighting and using visual aids to enhance the visibility of operators and ensure better maneuverability of gantry cranes.
• Rigorous Maintenance Checks:Regular maintenance checks and inspections of gantry cranes are crucial to identify and address any potential safety concerns or malfunctions proactively.

By integrating these safety features and considerations into the operations involving gantry cranes for bulk material handling, mining sites ensure a secure and accident-free working environment, safeguarding both personnel and materials from potential risks or mishaps.
