Designing Overhead Cranes for Hazardous Mining Environments
Overhead Cranes in Mining Operations
Overhead cranes are indispensable in mining operations, providing essential support for handling and transporting heavy loads such as ores, machinery, and equipment. Whether in underground or open-pit mines, cranes help streamline complex workflows, minimize manual labor, and reduce risks associated with moving large, heavy items.
- Material Handling: Cranes transport mined ore, waste, and essential supplies within the mining site or across different phases of the operation.
- Equipment Support: Cranes assist in moving mining machinery, tools, and components for repairs and maintenance, ensuring minimal downtime.
- Increased Safety and Efficiency: By automating heavy lifting, cranes reduce the need for workers to manually handle potentially dangerous loads, enhancing both safety and productivity.
Beyond their logistical role, cranes are essential in supporting operational continuity, ensuring that materials and equipment are efficiently moved between various locations, often in difficult-to-reach areas of the mine.
Challenges Posed by Hazardous Mining Environments
Mining environments present a host of environmental challenges that impact the performance and durability of cranes. Overhead cranes used in these settings must be designed to withstand dust, heat, moisture, and corrosive substances, all of which can cause mechanical wear, electrical failures, and safety hazards.
- Dust Exposure: Mining operations, particularly those in coal or copper mines, produce substantial amounts of dust. This dust can settle on crane components, causing friction, component degradation, and electrical malfunctions.Solutions: Sealed enclosures, dust-resistant electrical components, and regular maintenance routines.
- Extreme Heat: Both the external mining environment and the machinery itself can produce extreme heat. High temperatures can damage crane motors, electronics, and structural integrity if not properly managed. Solutions: Heat-resistant materials, thermal insulation, and active cooling systems to maintain stable operational temperatures.
- High Moisture Levels: Wet or underground mining environments increase exposure to moisture, which accelerates corrosion and damages electrical systems.Solutions: Moisture-proof coatings, corrosion-resistant materials, and sealed systems to protect sensitive parts.
- Corrosive Materials: Mines that handle chemicals, salts, or high-moisture ores subject cranes to corrosive environments. This corrosion can erode crane components, reducing their lifespan and operational reliability. Solutions: Anti-corrosive coatings, stainless steel and other resistant materials, and regular preventative maintenance schedules.
These environmental factors collectively increase the risk of crane malfunctions and reduce their lifespan. Therefore, it is crucial to design cranes that can resist these challenges, ensuring their long-term functionality and safety.

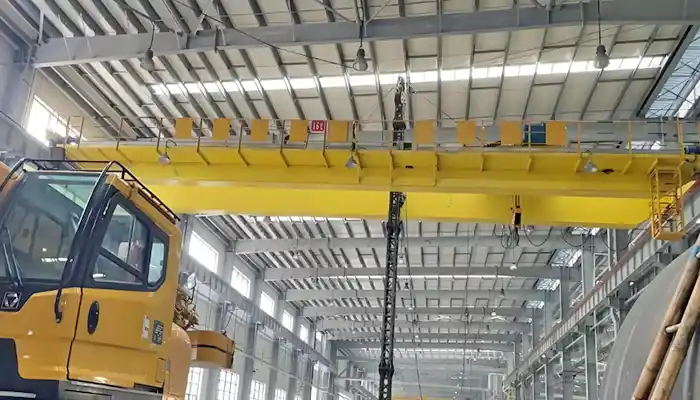

Explosion proof overhead crane with double girder crane design
Key Considerations in Hazardous Mining Environments
Overview of Mining Conditions: Underground vs. Open-Pit
Mining operations can be broadly categorized into two types: underground mining and open-pit mining. Each presents unique challenges for crane design and operation, demanding specialized considerations to ensure safety and operational efficiency.
Underground Mining:
Underground mining involves digging shafts or tunnels to reach mineral deposits buried deep beneath the earth's surface. Cranes used in underground mines must navigate confined spaces, often working in tunnels with limited clearance and irregular floor surfaces. The environment can be dark, damp, and prone to moisture, and temperatures can vary widely.
Key Challenges:
- Space constraints for crane movement and operation
- Limited ventilation and light, leading to higher moisture levels
- Increased risk of thermal stress and heat from machinery
- Elevated dust levels due to mining activities, which require sealed and protected equipment
Open-Pit Mining:
Open-pit mining, on the other hand, involves removing large sections of the earth’s surface to access minerals located near the surface. Cranes used in open-pit mines often work outdoors and are exposed to extreme weather conditions, such as high temperatures, rainfall, or dust storms, depending on the geographical location of the mine.
Key Challenges:
- Exposure to harsh weather conditions, such as intense heat, cold, or moisture
- Larger operational space but potential instability in shifting or sloped terrain
- Dust and particulate matter in the air from continuous excavation and blasting activities
- Risk of equipment wear and tear due to exposure to corrosive materials, such as salt or chemical runoff
The design of overhead cranes in both environments needs to account for these conditions to maintain performance, safety, and durability.
Types of Hazards in Mining Environments: Explosive Atmospheres, Extreme Temperatures, and High Humidity
Mining environments can be highly hazardous due to a variety of physical and chemical factors that affect both the safety of personnel and the operation of machinery. These hazards necessitate careful planning and design to mitigate risk and ensure the cranes operate effectively under such conditions.
Explosive Atmospheres:
Some mining environments, particularly coal mines, can have explosive gases like methane present in the air. The risk of ignition is high, and cranes in these settings must be designed to avoid sparks or heat generation that could lead to an explosion.
Key Design Considerations:
- Explosion-proof electrical components (motors, control panels, switches)
- Flameproof enclosures for electrical systems
- Grounding systems to prevent static electricity buildup
- Certification to meet safety standards, such as ATEX or IECEx
Extreme Temperatures:
Mines, especially underground, can have extreme temperature variations. In some locations, the temperature can reach very high levels due to geothermal heat or machinery operation. In contrast, other mines may have cold temperatures, especially in winter or high-altitude areas.
Key Design Considerations:
- High-temperature-resistant materials, such as heat-resistant steel or coatings
- Insulated or ventilated crane compartments to protect sensitive electrical components
- Thermal protection systems to prevent overheating of the crane’s motors and control systems
- Cold-weather adaptations, such as lubricants that perform well in low temperatures and heated electrical systems
High Humidity: Underground and certain surface mining operations are prone to high humidity levels, which increase the risk of corrosion and mechanical failure. Moisture can penetrate sensitive crane components, including electrical wiring, motors, and metal parts.
Key Design Considerations:
- Moisture-proof coatings for electrical systems and metal components
- Sealed crane cabins and protective covers for exposed parts
- Regular maintenance protocols to inspect and prevent corrosion
- Use of corrosion-resistant materials, such as stainless steel or specialized alloys
Each of these hazards—explosive atmospheres, extreme temperatures, and high humidity—requires a tailored approach to crane design, ensuring that they are equipped to handle the specific risks present in the mining environment.

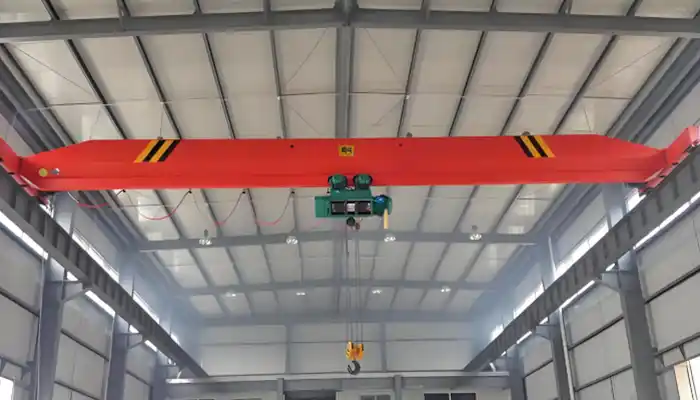

Explosion proof overhead crane with top running crane design
Safety and Operational Reliability
Safety and operational reliability are paramount in hazardous mining environments. Cranes not only need to function effectively in challenging conditions, but they also must prioritize the safety of operators and the surrounding workforce.
Safety Features: Overhead cranes in mining operations must be equipped with multiple safety features to protect workers, maintain stability, and avoid accidents. Key safety systems include:
- Load-Sensing and Overload Protection: Preventing cranes from lifting more than their rated capacity to avoid tipping or mechanical failure.
- Emergency Stop Systems: Easily accessible emergency stop buttons and automatic shut-off features in case of malfunction.
- Operator Protection: Safety cabins with climate control, clear visibility, and vibration-reduction features to protect operators in extreme conditions.
- Anti-Collision Systems: Systems that prevent the crane from colliding with obstacles or other machinery, especially in confined or crowded areas.
Operational Reliability: Reliability is crucial to maintaining continuous operation in mining, where downtime can result in significant delays and lost productivity. To ensure cranes are always operational:
- Remote Monitoring and Diagnostics: Systems that allow for real-time monitoring of crane performance, identifying potential issues before they result in failure.
- Durability in Harsh Conditions: The use of high-quality, durable materials and protective coatings to withstand the wear and tear from mining conditions.
- Regular Maintenance and Inspection: Scheduled checks to inspect crane components, identify potential issues, and replace worn-out parts before they cause problems.
- Backup Systems: Redundant electrical and hydraulic systems that ensure continued operation in case of a primary system failure.
By addressing these safety and reliability concerns, mining operations can ensure that their cranes are not only functional but also operate without jeopardizing worker safety or project timelines.
Dust and Moisture Protection
Dust-Resistant Crane Components: Seals, Enclosures, and Surface Coatings
In mining environments, dust is a major concern for overhead cranes, as it can settle on critical mechanical and electrical components, causing friction, wear, and even electrical failures. Therefore, it is essential to design cranes with dust-resistant features to prevent damage and maintain reliable operation.
Seals and Gaskets: Seals and gaskets are used to prevent dust from entering sensitive parts of the crane, especially around joints, doors, and access points. Rubber seals, for example, can be applied to moving parts to ensure that dust doesn’t infiltrate motors, gearboxes, or electrical panels. These seals must be durable enough to withstand repeated movements and environmental stress.
Common Applications:
- Motor housings and gearboxes
- Electrical control panels and wiring conduits
- Sliding doors and operator cabins
Dust-Proof Enclosures: Sensitive components, such as electrical circuits and control panels, are often housed in sealed enclosures to protect them from dust. These enclosures are designed to block dust from reaching crucial parts while still allowing for adequate airflow and heat dissipation. The materials used for these enclosures are often corrosion-resistant metals or durable plastic polymers that can withstand harsh conditions.
Benefits:
- Prevents short circuits and malfunctions caused by dust accumulation
- Enhances the operational lifespan of electrical and mechanical components
- Minimizes maintenance needs by reducing dust buildup in hard-to-reach areas
Surface Coatings: To prevent dust particles from adhering to crane surfaces, advanced surface coatings can be applied to various crane components. These coatings create a smooth, non-porous surface that resists dust accumulation and is easier to clean. Additionally, coatings can offer corrosion resistance, further enhancing the durability of crane parts in dusty mining environments.
Common Coating Types:
- Epoxy and polyurethane coatings for frames and structural components
- Anti-static coatings for electrical components to reduce dust attraction
- Powder-coated finishes to create durable and smooth surfaces
By using a combination of seals, enclosures, and coatings, cranes can be protected from dust infiltration, which is critical to ensuring long-term reliability and safe operation in mining environments.
Moisture-Resistant Materials and Their Importance in Crane Longevity
Mining operations, especially those that take place underground or in wet environments, expose overhead cranes to high levels of moisture. This moisture can cause corrosion, rust, and electrical failures if not properly addressed. The use of moisture-resistant materials is critical to ensuring the longevity and proper functioning of the crane.
Corrosion-Resistant Materials: Steel components exposed to moisture can rust quickly, leading to structural weakening and mechanical failures. To mitigate this risk, cranes in high-moisture environments are often made from or coated with corrosion-resistant materials. These materials include stainless steel, galvanized steel, or special alloys that resist rust and corrosion.
Key Materials:
- Stainless Steel: Offers high resistance to rust and corrosion, ideal for crane frames and exposed parts.
- Galvanized Steel: Coated with a layer of zinc to protect against moisture and corrosion, commonly used for crane components such as hoists and winches.
- Aluminum: Lightweight and naturally resistant to corrosion, aluminum is used for non-load-bearing crane parts.
Moisture-Proof Coatings: Crane parts are often treated with moisture-proof coatings that prevent the penetration of water. These coatings, such as epoxy-based or polyurethane-based paints, create a waterproof barrier that stops moisture from reaching the metal components of the crane.
Advantages of Coatings:
- Protects against rust, corrosion, and mold growth
- Provides additional protection against abrasion and wear
- Extends the service life of the crane and its components
Gasketed Connections: To prevent water from seeping into electrical or mechanical systems, crane designers use gasketed connections around areas like the base of cranes, hydraulic systems, and electrical panels. These gaskets ensure a tight seal and prevent the ingress of moisture during operations, even in high-humidity or wet environments.
The importance of using moisture-resistant materials lies in extending the crane's operational lifespan and ensuring it can continue to operate efficiently without frequent downtime due to corrosion-related issues.

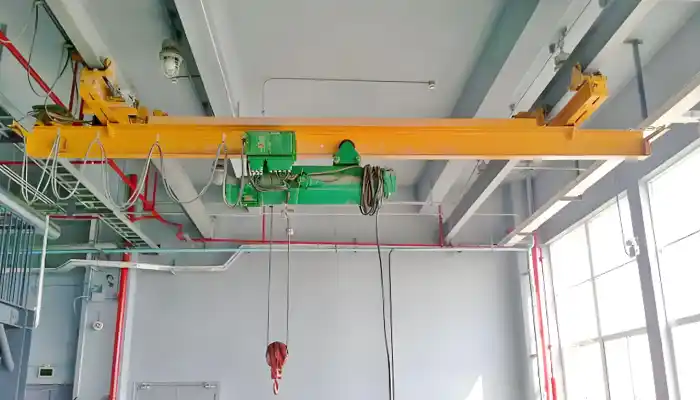

Explosion proof overhead crane with underhung bridge crane desgin
IP (Ingress Protection) Ratings for Overhead Cranes in Mining
Ingress Protection (IP) ratings are an international standard used to specify the level of protection an enclosure offers against dust and moisture. Understanding and selecting the appropriate IP rating is critical when designing cranes for mining environments, as it ensures that all electrical and mechanical components are adequately shielded from harmful elements.
IP Ratings for Dust Protection: The first digit in an IP rating refers to the level of dust protection a component offers. For mining cranes, components must be highly resistant to dust infiltration, and an IP rating of IP5X (dust-protected) or IP6X (dust-tight) is ideal. These ratings ensure that dust cannot interfere with the operation of sensitive components such as motors and electrical circuits.
- IP5X: Dust-protected – Limited ingress of dust is allowed but it does not interfere with the operation of the device.
- IP6X: Dust-tight – No dust can enter, providing full protection for electrical components.
IP Ratings for Moisture Protection: The second digit in an IP rating refers to protection against moisture. Given the wet environments found in mining, an IP rating of IPX4 (splash-resistant) or higher is recommended for electrical and mechanical parts. For cranes exposed to high-pressure water jets or submersion, ratings like IPX7 (protection against immersion) or IPX8 (protection against continuous immersion) may be needed.
- IPX4: Splash-resistant – Protected from water splashes from any direction.
- IPX7: Protected against immersion in water up to 1 meter depth for 30 minutes.
Selecting the right IP rating ensures that all crane components are sufficiently protected against the environmental factors in mining, enhancing both safety and reliability.
Advanced Filtration and Ventilation Systems
In addition to protective coatings and sealed enclosures, advanced filtration and ventilation systems are crucial for preventing the accumulation of dust and moisture in key areas of overhead cranes. These systems improve airflow, regulate temperature, and ensure that dust or moisture does not settle on sensitive components.
Dust Filtration Systems: In mines with high levels of airborne particulate matter, dust filtration systems can be installed to capture dust before it enters the crane's internal components. These systems use high-efficiency particulate air (HEPA) filters or similar technologies to trap dust particles, maintaining cleaner air inside the crane and minimizing the impact on mechanical parts.
Benefits:
- Prevents dust accumulation on moving parts, reducing wear and tear.
- Reduces the need for frequent cleaning and maintenance.
- Enhances the life of electrical and mechanical components.
Ventilation Systems: Effective ventilation is crucial for managing heat and humidity within crane cabins and control panels. Ventilation systems work to expel warm, moist air while drawing in cooler, drier air, maintaining optimal operating conditions. Additionally, ventilation helps to prevent the buildup of condensation, which can lead to corrosion.
Key Components:
- Exhaust fans and intake vents to control temperature and moisture levels
- Dehumidifiers to reduce moisture accumulation in electrical systems
- Air filtration to maintain clean and dry air within crane compartments
Together, filtration and ventilation systems work to maintain a safe and clean environment for crane operation, protecting both the machinery and its operators from the detrimental effects of dust and moisture.
By integrating dust-resistant components, moisture-proof materials, appropriate IP ratings, and advanced filtration and ventilation systems, overhead cranes in mining environments can achieve greater reliability, longer lifespans, and enhanced safety. These protective measures ensure that cranes are well-equipped to handle the challenging conditions of mining operations, from dust-laden air to high humidity and moisture.
Heat Resistance and Thermal Management
Materials for High-Temperature Resistance: Metals and Coatings
Mining environments, particularly in open-pit operations or underground mines with geothermal activity, can expose overhead cranes to extreme temperatures. To maintain the performance, safety, and durability of the crane, materials used in its construction must be capable of withstanding high heat without degrading.
Heat-Resistant Metals: Metals used in cranes must be chosen for their ability to retain strength and integrity under high temperatures. Materials like stainless steel, alloy steels, and nickel-based alloys are commonly used for components exposed to heat, as they offer excellent resistance to high temperatures and maintain structural integrity.
- Stainless Steel: Provides resistance to oxidation and corrosion, making it ideal for components exposed to heat and humidity.
- Alloy Steels: These are often used for crane components that need to endure elevated temperatures, offering both strength and heat resistance.
- Nickel Alloys: Specifically chosen for high-temperature applications due to their superior ability to withstand heat without significant material degradation.
Heat-Resistant Coatings: In addition to heat-resistant metals, protective coatings can be applied to crane components to improve their heat resistance. These coatings, such as ceramic coatings, high-temperature paints, and thermal barriers, can reduce heat buildup and protect the metal surfaces from thermal fatigue.
- Ceramic Coatings: Applied to exposed crane parts, these coatings form a heat-insulating layer that helps to reduce the temperature of critical components.
- High-Temperature Paints: Special paints designed to withstand high heat prevent rust and corrosion while reflecting some of the heat away from the crane structure.
- Thermal Barrier Coatings: These coatings are designed to insulate and reduce heat transfer, helping to protect sensitive electrical and mechanical parts from overheating.
Using heat-resistant materials and coatings helps to ensure that cranes remain functional and safe even in extreme temperature conditions, preventing material breakdown, surface degradation, and failure of essential components.
Design Solutions to Combat Heat Accumulation: Heat Shields, Cooling Systems
Excessive heat can lead to the overheating of machinery, which could cause component failure, reduce efficiency, and lead to operational downtime. To mitigate this risk, specialized design solutions can be implemented to manage heat accumulation and ensure proper thermal regulation.
Heat Shields: Heat shields are used to deflect excessive heat away from critical crane components. These shields are typically made of heat-resistant materials such as ceramic or insulated steel, and they are strategically placed around components like motors, electrical panels, or hydraulic systems that are particularly vulnerable to heat exposure.
- Placement: Heat shields are often installed around high-temperature areas, such as near the crane’s power units or in parts that operate in proximity to hot machinery, like furnaces or smelting areas.
- Function: The primary function of heat shields is to create a barrier that protects sensitive components from heat damage, ensuring they stay within optimal operating temperature ranges.
Cooling Systems: To regulate the temperature within crane systems, cooling solutions are essential, especially in high-temperature environments. There are several types of cooling systems that can be integrated into crane designs:
- Air Cooling: Fans and blowers can be used to circulate air around critical crane components, such as motors, gearboxes, and control panels. This helps prevent heat buildup by allowing hot air to be expelled and replaced with cooler air.
- Liquid Cooling: In some cases, liquid-based cooling systems (similar to radiators in vehicles) are used. These systems circulate a cooling fluid, typically water or a special coolant, through a series of pipes and heat exchangers that absorb heat from crane components and dissipate it efficiently.
- Heat Exchangers: Heat exchangers transfer excess heat from the crane’s internal components to an external cooling medium (usually water or air). By integrating heat exchangers into the design, excess thermal energy can be removed from the crane’s critical systems, preventing overheating and maintaining safe operating temperatures.
Thermal Insulation: For areas where cooling systems might not be feasible or practical, thermal insulation materials such as fiberglass, mineral wool, or silica aerogels can be applied to reduce heat transfer. Insulation helps to keep internal temperatures stable and reduces the impact of external heat sources.
Design solutions like heat shields and cooling systems are crucial for managing high temperatures, ensuring crane components remain within safe operating limits and minimizing the risk of heat-related failures.
Thermal Expansion Considerations in Crane Design
Thermal expansion occurs when materials expand or contract in response to changes in temperature. In mining environments where temperatures can fluctuate dramatically, accounting for thermal expansion is a key consideration in crane design to prevent structural damage, misalignment, or operational inefficiency.
Impact of Thermal Expansion: As crane components heat up, they expand. If these expansions are not properly accounted for, they can cause deformation of structural elements, misalignment of moving parts, or excessive stress on mechanical components like cables or hoists. Conversely, when temperatures drop, components contract, which can lead to gaps, misfitting, or damage to seals and joints.
Potential Issues:
- Structural Deformation: Crane beams, frames, or supports can warp or bend if thermal expansion is not properly managed.
- Misalignment: Parts like rails, pulleys, and hoisting mechanisms can misalign, affecting crane operation and causing wear or failure.
- Fatigue and Cracking: Repeated expansion and contraction can lead to material fatigue, cracks, or failure of the crane’s structural components over time.
Design Considerations for Thermal Expansion: Several design approaches can help manage thermal expansion and minimize its impact on crane performance:
- Expansion Joints:
Expansion joints are incorporated into crane structures to absorb the effects of thermal expansion. These joints allow for slight movement of components without causing deformation or stress buildup. They are commonly used in crane beams, girders, and rails. - Flexible Components:
Flexible materials such as rubber seals or gaskets can be used to accommodate the expansion and contraction of crane components. These materials can stretch or compress without losing their integrity, providing a seal against dirt, dust, or moisture. - Pre-Expansion of Materials:
In some cases, materials are pre-stressed or pre-expanded during the manufacturing process to account for thermal changes during crane operation. This helps to ensure that parts fit correctly and function smoothly, even when temperature fluctuations occur.
Temperature Monitoring Systems: To ensure that thermal expansion does not lead to operational issues, temperature sensors can be installed on critical components of the crane. These sensors monitor temperature levels and can trigger warnings or automatic cooling systems if temperatures exceed safe limits.
By considering thermal expansion in crane design, manufacturers can create cranes that perform reliably in fluctuating temperature environments, preventing damage and ensuring safe, efficient operations over the long term.
In mining environments, heat resistance and effective thermal management are essential to ensure the safety, longevity, and reliability of overhead cranes. Through the use of high-temperature-resistant materials, cooling systems, heat shields, and thoughtful considerations for thermal expansion, cranes can operate efficiently in extreme heat conditions, maintaining both their structural integrity and operational performance.
Corrosion Resistance and Durability
Anti-Corrosion Coatings and Treatments for Cranes in Mining Environments
Corrosion is one of the most significant threats to the longevity and performance of overhead cranes, particularly in mining environments where exposure to moisture, chemicals, and salty air can accelerate the process. Protecting crane components with anti-corrosion treatments and coatings is essential for reducing maintenance costs and extending the crane’s service life.
Anti-Corrosion Coatings: Coatings are the first line of defense against corrosion. They form a protective layer that isolates the metal surface from corrosive elements such as water, salt, or chemicals commonly found in mining environments.
- Epoxy Coatings: Epoxy-based coatings are widely used for their strong adhesive properties and resistance to water, chemicals, and high temperatures. Epoxy coatings create a durable barrier that prevents corrosion and is suitable for a variety of crane components, including structural beams and hoisting equipment.
- Polyurethane Coatings: Polyurethane coatings offer enhanced abrasion resistance in addition to corrosion protection. These coatings are ideal for areas exposed to both moisture and physical wear, such as moving parts or areas subject to frequent contact with mining machinery.
- Zinc-Rich Coatings: Zinc-rich coatings (such as galvanizing) offer sacrificial protection against corrosion. The zinc corrodes preferentially, protecting the underlying steel or iron from rusting, making it highly effective for components exposed to harsh environmental conditions like coastal or underground mining environments.
Corrosion Inhibitor Treatments: Corrosion inhibitors are chemicals that can be applied to the crane’s surface to prevent or slow the corrosion process. These treatments are often used in addition to coatings or on parts that are difficult to coat directly.
- Rust Converters: Rust converters chemically convert rust into a stable, paintable surface, preventing further corrosion. They are useful in repairing components that have already begun to show signs of rust or corrosion.
- Surface Passivation: Passivation treatments, often used on stainless steel, involve applying an acidic solution that enhances the natural oxide layer on the metal’s surface. This process increases resistance to rust and corrosion, particularly in highly corrosive environments.
By applying these anti-corrosion coatings and treatments, cranes can be better protected against the harsh conditions of mining operations, significantly reducing the need for frequent maintenance and repairs.
Selection of Materials: Stainless Steel, Galvanized Components, Special Alloys
Choosing the right materials for crane construction is essential to enhance corrosion resistance, especially in the highly corrosive mining environments. Various materials offer different levels of resistance to corrosion, and selecting the appropriate material depends on the environmental conditions to which the crane will be exposed.
Stainless Steel: Stainless steel is a widely used material in crane construction due to its inherent resistance to corrosion. Its high chromium content forms a protective oxide layer that shields the metal from rusting. Stainless steel is highly resistant to corrosion from water, salt, and various chemicals found in mining environments.
Applications:
- Crane frames and structural supports
- Hoists, pulleys, and winches
- Electrical and mechanical housings
Stainless steel also maintains its strength at high temperatures, making it suitable for cranes operating in hot, humid, or chemically active environments.
Galvanized Steel: Galvanizing involves coating steel with a layer of zinc to provide sacrificial protection against corrosion. In corrosive mining environments, galvanized components are ideal as they prevent the underlying steel from rusting. Even if the zinc layer is scratched or damaged, the exposed steel remains protected for a longer period than untreated steel.
Applications:
- Load-bearing parts like rails and beams
- Joints, bolts, and fasteners
- Frames and structural elements exposed to moisture
Special Alloys: For extremely corrosive environments, special alloys, such as nickel-based alloys or aluminum bronze, offer enhanced resistance to corrosion. These materials are particularly effective in environments with high salinity, high acidity, or other aggressive chemicals often found in mining.
Applications:
- Hoisting ropes and cables
- Winches and pulleys exposed to corrosive substances
- Critical crane components in chemically reactive mining areas
The selection of materials should be based on environmental exposure, load requirements, and durability expectations. By choosing the right materials, cranes can operate safely and efficiently for longer periods, minimizing the need for repairs and replacements.
Maintenance and Longevity of Cranes in Corrosive Mining Environments
Maintaining overhead cranes in corrosive mining environments is crucial to ensuring their longevity and minimizing unplanned downtime. Regular maintenance routines and proactive corrosion prevention strategies can significantly extend the life of the crane and its components.
Regular Inspections and Cleaning: Regular inspections are essential for identifying early signs of corrosion or wear before they lead to significant issues. Crane operators and maintenance teams should inspect all structural components, hoisting equipment, and electrical systems, paying particular attention to areas exposed to dust, moisture, and chemicals.
Cleaning:
- Frequent cleaning helps prevent the buildup of corrosive materials like salt, dust, or acidic residues.
- High-pressure washing or steam cleaning can remove harmful contaminants, especially in areas that are difficult to access.
Re-Coating and Re-Treating: Over time, coatings can degrade due to environmental exposure and mechanical wear. Re-coating and reapplying anti-corrosion treatments are necessary to maintain the protective layer on critical components. This may involve recoating metal surfaces with fresh epoxy or polyurethane or reapplying passivation treatments to stainless steel parts.
Lubrication and Preventive Maintenance: Lubricating moving parts, such as hoist chains, gears, and pulleys, helps to reduce friction, which can accelerate wear and corrosion. Using corrosion-resistant lubricants and oils can prevent the buildup of rust on critical components and ensure smooth operation.
- Grease and Lubricants: Special corrosion-resistant grease or oil should be used to lubricate parts exposed to high moisture or extreme conditions. This helps prevent rust and keeps mechanical parts working efficiently.
Condition Monitoring Systems: Advanced condition monitoring systems can track the performance and condition of crane components. Sensors can detect early signs of corrosion or overheating, alerting maintenance teams to potential issues before they become major problems.
- Sensors for Temperature and Humidity: Installing sensors in high-risk areas, such as control panels or hoisting mechanisms, can help monitor environmental conditions that might accelerate corrosion.
- Structural Integrity Monitoring: Ultrasonic testing and other non-destructive testing methods can be used to detect internal corrosion or material fatigue before they lead to structural failure.
Training and Operator Awareness: Educating crane operators and maintenance personnel about the signs of corrosion and how to handle cranes in corrosive environments can make a significant difference. Ensuring that operators perform daily visual checks and understand the importance of keeping the crane clean and well-maintained can prevent corrosion from taking hold.
By implementing a comprehensive maintenance plan, monitoring crane performance, and using anti-corrosion measures effectively, the longevity of cranes in corrosive mining environments can be significantly extended, ensuring safe and efficient operations with minimal downtime.
In corrosive mining environments, the use of anti-corrosion coatings, selecting the right materials, and committing to regular maintenance are critical strategies for ensuring crane durability. By adopting these measures, crane operators can reduce the risk of costly repairs, extend the operational life of equipment, and ensure continued safety and performance in harsh mining conditions.
Explosion-Proof Features for Hazardous Mining Areas
Explosion-Proof Components: Motors, Switches, and Electrical Systems
In mining environments, particularly in underground operations or areas with volatile gases and dust, the risk of explosions is a critical concern. Overhead cranes in these environments must be equipped with explosion-proof components to ensure the safety of workers and prevent ignition sources from causing catastrophic accidents. These components are designed to operate safely in hazardous atmospheres where flammable gases, dust, or vapors may be present.
Explosion-Proof Motors: Explosion-proof motors are specifically designed to prevent sparks or heat generated by the motor from igniting surrounding gases or dust. These motors are enclosed in robust casings, often made from flameproof materials, to contain any potential sparks or explosions that could occur inside the motor housing.
Key Features:
- Sealed Enclosures: The motor housing is tightly sealed to prevent any external substances from entering and causing ignition.
- Thermal Protection: Explosion-proof motors often include built-in thermal protection to ensure the motor does not overheat, which could lead to sparks or a fire.
- Increased Safety Design: These motors use specially designed windings and insulation that prevent overheating or damage, making them suitable for hazardous environments.
Explosion-Proof Switches and Electrical Systems: Electrical systems, including switches, controls, and circuit breakers, must be equipped with explosion-proof features to prevent electrical faults from becoming ignition sources in potentially explosive environments.
- Flameproof Switchgear:
Explosion-proof switchgear is designed with flameproof enclosures that prevent any internal sparks from igniting the external environment. These systems also provide protection against short circuits or overloads that might cause dangerous conditions. - Intrinsically Safe Wiring:
Intrinsically safe wiring systems are used to prevent electrical circuits from generating sparks or excessive heat. These systems limit the energy available to the circuit, ensuring that even in the event of a fault, the electrical components will not cause ignition. - Explosion-Proof Junction Boxes:
Junction boxes used to connect electrical circuits are designed to prevent the propagation of any explosion that might occur within them. They are built to contain any sparks or heat and are constructed from materials like stainless steel or aluminum alloy that can withstand high pressure.
Critical Safety Features: Explosion-proof components in mining cranes also include safety features such as automatic shutoffs, pressure-relief valves, and isolated control circuits that prevent dangerous conditions from arising in the event of an electrical failure or mechanical malfunction.
By using explosion-proof motors, switches, and electrical systems, mining cranes can operate safely in environments with high-risk conditions, reducing the potential for accidents or catastrophic failures.
Compliance with ATEX and IECEx Standards
To ensure the safety and reliability of explosion-proof features in mining cranes, they must meet international safety standards for equipment used in hazardous areas. The two most widely recognized standards for explosive atmospheres are ATEX (the European Union standard) and IECEx (the international standard).
ATEX Standards (EU): The ATEX Directive (2014/34/EU) sets the requirements for equipment used in explosive atmospheres. It divides hazardous areas into zones based on the likelihood of explosive gases or dust being present.
Zone Classification:- Zone 0: Continuous presence of explosive atmosphere.
- Zone 1: Likely to occur under normal operating conditions.
- Zone 2: Presence of explosive atmosphere is unlikely but may occur for short periods.
Equipment must be certified for the appropriate zone classification to ensure safe operation in explosive atmospheres. Overhead cranes used in mining must be equipped with ATEX-certified components that are suitable for the specific zones in which they operate.
Key Requirements
- Equipment must be capable of preventing any ignition sources from coming into contact with explosive gases or dust.
- Components are tested and certified for their ability to function safely under extreme conditions, such as high pressure, temperature variations, and mechanical stress.
IECEx Standards (International): The IECEx (International Electrotechnical Commission) is a global standard that ensures the safe design and operation of electrical equipment in explosive atmospheres. Like ATEX, IECEx defines requirements based on the level of risk posed by the environment.
Certification Process:
- IECEx Certification ensures that equipment has undergone rigorous testing and has been found to meet the required safety standards for explosive atmospheres. This includes testing for environmental factors like temperature, humidity, and the presence of hazardous substances.
- Equipment Classification: The IECEx system classifies equipment into Ex d (flameproof) or Ex e (increased safety), depending on the level of protection required for the environment.
Global Recognition: Equipment that meets IECEx standards is internationally recognized, making it suitable for use in mining operations around the world, including regions that may not adhere to ATEX regulations. This global standardization helps ensure that mining cranes meet the highest safety standards, regardless of location.
Ensuring compliance with ATEX and IECEx standards is crucial for minimizing the risk of explosion and ensuring safe crane operation in hazardous mining environments. These certifications guarantee that the equipment can safely operate in explosive atmospheres without posing a threat to workers or the surrounding area.
Ensuring Crane Safety in Explosive Atmospheres
Crane safety in explosive mining environments is a top priority. Beyond the use of explosion-proof components and adherence to ATEX and IECEx standards, several additional safety measures can be integrated into crane designs to further enhance protection against the risk of explosions.
- Explosion Venting: Explosion venting systems are installed on critical crane components, such as electrical panels or gearboxes, to release built-up pressure safely in the event of an internal explosion. These systems ensure that any pressure created by an explosion is vented safely to the outside, reducing the risk of damage to the crane or injury to personnel.
- Pressure-Relief Valves: These valves are designed to open at a specific pressure, allowing gases or dust to escape in a controlled manner and preventing dangerous buildup of pressure inside critical equipment. This safety feature helps to minimize the risk of catastrophic damage in the event of an explosion.
- Intrinsically Safe Design: Cranes used in explosive mining environments are often designed with an intrinsically safe approach, meaning the equipment is designed in such a way that no energy or heat is produced that could trigger an explosion. This can involve reducing electrical current in circuits, isolating circuits from other components, or using components that operate at lower voltages to minimize the risk of ignition.
- Safety Monitoring Systems: Advanced safety monitoring systems equipped with sensors and alarms can detect potential hazards, such as high gas concentrations, temperature fluctuations, or unusual pressure levels. These systems can automatically shut down crane operations if dangerous conditions are detected, preventing potential ignition and protecting both the equipment and the personnel.
- Employee Training and Safety Protocols: Regular training for crane operators and maintenance personnel is essential to ensure that they understand the risks associated with explosive atmospheres and how to safely operate and maintain the crane. Safety protocols should include guidelines for safe shutdown procedures, emergency response plans, and routine safety checks to ensure that all explosion-proof features are functioning correctly.
By integrating explosion-proof features, adhering to international safety standards, and implementing proactive safety measures, mining operations can significantly reduce the risk of explosions, ensuring the protection of both personnel and equipment in hazardous mining environments.
Crane Mobility and Stability in Challenging Terrain
Adaptations for Uneven or Unstable Ground
Overhead cranes in mining environments must be designed to handle challenging terrains, including uneven, shifting, or rocky surfaces that can destabilize equipment. Mining sites, particularly those in remote areas or underground, often feature unpredictable ground conditions that pose serious challenges for crane mobility and stability. Special adaptations are necessary to ensure that cranes can operate safely and efficiently in such environments.
Heavy-Duty Wheels and Tracks: Cranes operating on uneven ground need to be equipped with reinforced wheels or tracks that can handle the weight of the crane while providing adequate traction. Heavy-duty wheels made from durable materials, such as steel or reinforced rubber, ensure that the crane can move smoothly over rough terrain without tipping or becoming stuck.
- Steel-Reinforced Wheels: Steel wheels or tracks provide extra strength and durability, preventing wear and tear caused by rough or rocky surfaces. These are commonly used on cranes operating in areas with uneven or rocky terrain, such as open-pit mines.
- Rubber or Polyurethane Tires: In areas where the ground is softer but still uneven, cranes may use rubber or polyurethane tires that offer better shock absorption while still maintaining stability. These tires help reduce vibration and wear on both the crane and the ground surface.
Crawler Systems for Mobile Cranes:
Mobile cranes operating in mining environments can benefit from crawler systems, which provide superior stability on uneven ground. Crawler cranes are equipped with tracks that distribute the weight of the crane more evenly, allowing them to navigate soft, unstable ground with greater ease compared to wheeled cranes.
- Enhanced Mobility:
The large surface area of crawler tracks reduces the pressure on the ground, enabling cranes to travel over muddy, sandy, or otherwise unstable surfaces without sinking or becoming bogged down. - Greater Load Capacity:
The stability provided by crawlers also allows the crane to handle heavier loads safely, even on terrain that would otherwise pose a risk for tipping.
Special Features for Cranes Operating on Sloped or Shifting Surfaces
In mining environments, cranes often need to operate on sloped or shifting surfaces, which can affect their stability and performance. To ensure safe operations on these terrains, cranes are equipped with specialized features designed to enhance their stability and prevent accidents.
Adjustable Outriggers and Stabilizers: Outriggers and stabilizers are essential for improving the crane's balance and stability when operating on sloped or uneven surfaces. These hydraulic or mechanical extensions can be adjusted to provide additional support and prevent tipping by stabilizing the crane on one side.
- Hydraulic Outriggers: Hydraulic outriggers extend and retract automatically, adjusting the crane’s base width for increased stability. This system is particularly useful for cranes that need to operate on uneven ground where manual adjustments would be impractical.
- Adjustable Stabilizers: Stabilizers can be extended or retracted depending on the slope of the surface, ensuring that the crane is securely positioned before lifting heavy loads. They help prevent accidents by increasing the crane’s footprint, reducing the risk of tipping or imbalance.
Slope and Load Monitoring Systems:
Specialized monitoring systems that measure the angle of the crane’s incline are crucial when operating on sloped surfaces. These systems can automatically detect if the crane is tilting too much and can trigger safety alarms or prevent crane operation if the slope exceeds safe limits.
- Crane Tilt Sensors: These sensors measure the angle of the crane and ensure that it operates within safe limits. If the tilt exceeds the recommended threshold, the system will alert the operator and may lock out certain crane functions to prevent unsafe operation.
- Load Sway Prevention: Load sway can become a major issue on sloped surfaces, leading to instability. Anti-sway systems, such as load dampers or variable-speed hoisting systems, help reduce load swing and maintain control over the crane, even on challenging terrain.
Automatic Leveling Systems: Some cranes, especially those operating in mining areas with frequent shifts in surface level, are equipped with automatic leveling systems. These systems use sensors and hydraulic adjustments to continuously monitor and adjust the crane’s position, ensuring it remains level even if the terrain shifts or changes during operation.
Stability Analysis for Cranes in Extreme Environments
In extreme mining environments, where terrain conditions can vary dramatically, performing a thorough stability analysis is essential to ensure crane safety and reliability. Stability analysis helps assess the crane’s performance under different conditions and guarantees that the crane can operate efficiently without risking tipping or failure.
Load and Terrain Modeling: Stability analysis involves simulating various operational scenarios, including load lifting, terrain conditions, and crane positioning. Advanced modeling software can simulate how the crane will behave under different load and terrain conditions, helping engineers optimize the design for maximum stability.
- Load Distribution and Center of Gravity:
The stability of a crane is heavily influenced by load distribution and the center of gravity. Stability analysis takes into account the weight of the load and how it affects the crane’s balance, ensuring that the crane’s design accounts for uneven load distribution in difficult terrains. - Terrain Slope and Surface Conditions:
The analysis also includes modeling different types of terrain, including sloped, rocky, or loose soil. Understanding how the crane’s weight will interact with these surfaces helps determine the best crane features for safe operation.
Dynamic Stability Calculations: Dynamic stability calculations involve assessing how the crane will respond to external forces, such as wind or sudden movements. In mining environments where wind, seismic activity, or shifting earth can affect crane performance, dynamic analysis ensures that the crane remains stable under a wide range of environmental conditions.
Simulation of Crane Movements and Load Handling: Advanced simulation tools allow engineers to model how the crane’s structure will behave during lifting, swinging, and traveling on uneven terrain. By simulating crane movements and load handling, engineers can assess the risk of tipping, sway, or sudden shifts in weight distribution, and design features to counteract these risks.
Stress Testing: Stress testing is also part of stability analysis, where virtual models of the crane are subjected to extreme conditions, such as overload situations or unexpected ground shifts. These tests help identify weaknesses in the crane design and allow for adjustments to be made before the crane is put into service.
Safety Factors and Design Adjustments: Based on the results of the stability analysis, cranes can be designed with additional safety factors, such as reinforced outriggers, wider tracks, or improved counterweights. These design modifications ensure that the crane can handle the most challenging terrain and continue operating safely in extreme environments.
In summary, when operating on uneven, sloped, or shifting surfaces, overhead cranes in mining environments must be specially adapted to maintain mobility and stability. Features like adjustable outriggers, slope monitoring systems, crawler tracks, and advanced stability analysis tools are crucial for preventing accidents and ensuring the crane’s safe operation on challenging terrain. By addressing these challenges, cranes can continue to perform effectively in some of the most demanding environments found in the mining industry.
Safety Features and Operator Protection
Safety Protocols and Compliance with Mining Industry Standards
Safety is a paramount concern in mining operations, particularly when it comes to the use of overhead cranes. The mining industry is heavily regulated, with specific standards and guidelines designed to ensure the safety of workers and equipment. Cranes used in mining environments must comply with these safety protocols to prevent accidents, protect operators, and minimize the risk of mechanical failure.
Compliance with Regulatory Standards:
Overhead cranes in mining operations must meet a variety of industry standards and regulations, such as those set by the Occupational Safety and Health Administration (OSHA), International Organization for Standardization (ISO), and local mining safety regulations. These regulations define the minimum safety requirements for crane design, operation, and maintenance, including structural integrity, load capacities, and environmental considerations.
- OSHA Standards: OSHA provides comprehensive regulations governing crane operations in mining environments, including safe work practices, operator qualifications, and equipment inspections. Compliance with OSHA standards ensures that cranes are built and maintained to operate safely in hazardous mining conditions.
- ISO Standards: ISO standards for cranes, such as ISO 12480 and ISO 4301, cover aspects of crane design, performance, and safety. Adhering to ISO standards helps guarantee that cranes meet international safety expectations for operation in high-risk environments.
Routine Safety Inspections and Maintenance:
Safety protocols also include regular inspections and maintenance of crane systems. Mining companies are required to conduct routine checks on crane structures, hoists, and electrical systems to ensure their safe operation and prevent malfunctions that could lead to accidents.
- Inspection Checklists: Regular inspections are essential to identify signs of wear, corrosion, or damage that could compromise the crane’s safety. Comprehensive checklists should include checks for load-bearing capacity, functionality of safety devices, structural integrity, and the condition of crane components like cables, hooks, and motors.
- Pre-Operational Safety Briefings: Operators should receive training on safe operational practices before every shift. Pre-operational safety briefings ensure that operators are aware of specific risks associated with the mining site, the crane's limitations, and the appropriate emergency procedures.
Operator Cabins: Climate Control, Vibration Reduction, and Protection from Contaminants
Operator protection is critical in the harsh conditions of mining environments. Overhead cranes must be designed to shield operators from extreme temperatures, vibrations, and exposure to dust or other contaminants. Enhanced operator cabins play a key role in ensuring that crane operators can work safely and efficiently in challenging conditions.
Climate Control for Comfort and Safety: In mining environments, crane operators often work in extreme temperatures, whether in underground mines or open-pit operations exposed to harsh sun and dust. Operator cabins are equipped with climate control systems to regulate temperature, humidity, and air quality.
- Air Conditioning and Heating Systems:
Climate control systems, including air conditioning and heating, provide a comfortable working environment for crane operators, ensuring they remain focused and alert. In underground mines or remote locations, these systems are essential to prevent fatigue and discomfort that could impact performance. - Ventilation and Filtration:
In addition to climate control, advanced ventilation and air filtration systems are necessary to prevent the buildup of harmful gases, fumes, or dust inside the cabin. Clean, filtered air reduces the risk of respiratory issues and keeps the cabin free of pollutants.
Vibration Reduction Systems: Cranes operating in mining environments are exposed to heavy vibrations, especially when working on uneven terrain or when lifting heavy loads. Long-term exposure to vibrations can lead to operator fatigue, reduced concentration, and even musculoskeletal disorders.
- Suspension Systems for Operator Comfort:
To mitigate these risks, operator cabins are often equipped with suspension systems that absorb vibrations from the crane’s movements. These systems use shock absorbers or air suspension seats to reduce the impact of vibrations on the operator’s body. - Ergonomic Cabin Design:
In addition to suspension systems, ergonomic cabin design helps minimize strain on operators. Adjustable seating, ergonomic controls, and optimal cabin layout ensure that operators can maintain proper posture and work for extended periods without discomfort.
Protection from Contaminants: Mining environments often expose operators to hazardous substances like dust, chemicals, or fumes, which can be harmful to health. Cranes must be designed with protective measures to shield operators from such contaminants.
- Dust-Proof Seals and Filters: Cranes used in dusty environments, such as coal mines, must have dust-proof seals and high-efficiency particulate air (HEPA) filters in their cabin ventilation systems. These filters trap fine dust particles, keeping the air inside the cabin clean and breathable.
- Chemical and Gas Detection: In environments where chemicals or gases may be present, operator cabins can be equipped with gas detection systems to monitor the air quality. These systems alert operators to dangerous concentrations of toxic gases like carbon monoxide or methane, providing an additional layer of safety.
Automated Controls and Emergency Shutdown Systems
To further enhance safety in hazardous mining operations, cranes can be equipped with automated controls and emergency shutdown systems. These systems help minimize human error, reduce the risk of accidents, and ensure a rapid response to emergencies.
Automated Crane Controls: Automated crane controls use advanced technology to reduce the risk of human error and improve operational efficiency. Automated systems can manage crane movements, load handling, and speed adjustments, providing precise control and reducing the likelihood of mishaps.
- Load Monitoring Systems: These systems constantly monitor the load weight and crane performance, ensuring that the crane does not exceed its safe operating limits. If the load is too heavy or improperly positioned, the system can automatically stop the crane's operation or trigger an alarm.
- Remote-Controlled Operations: In particularly hazardous areas, operators may control cranes remotely, keeping a safe distance from dangerous conditions. Remote-controlled systems are equipped with safety features such as emergency stop buttons and automatic error-checking to prevent accidents.
Emergency Shutdown Systems: In the event of an emergency, an effective shutdown system is crucial for preventing accidents. Mining cranes are equipped with emergency stop buttons and fail-safe systems that can shut down the crane's operations immediately if a hazardous condition is detected.
- Automatic Emergency Stops: In addition to manual emergency shutdown buttons, cranes can be equipped with automatic emergency stop systems that detect potential hazards such as structural failure, extreme tilting, or overload conditions. These systems immediately halt crane operation to prevent further damage or risk to the operator.
- Automatic Lock-Out Features: Lock-out features ensure that the crane’s controls are disabled in the event of an emergency, preventing any accidental movement or operation until the issue is resolved. This feature is especially important for maintenance work or when operators are working in confined or dangerous spaces.
Safety Alarms and Warning Systems: Cranes are equipped with safety alarms and visual warning systems, such as flashing lights or sirens, to alert operators and nearby personnel to dangerous conditions. These systems can be triggered by issues such as overloads, high wind speeds, or system malfunctions, ensuring that everyone is aware of potential risks.
By incorporating automated controls, emergency shutdown systems, and advanced operator protections, mining cranes can operate more safely and efficiently in hazardous conditions. These features not only enhance operator safety but also help prevent equipment damage, reduce downtime, and ensure compliance with mining safety regulations.
Customization and Modular Designs for Mining Operations
Tailored Solutions for Specific Mining Environments
Mining operations can vary significantly based on factors such as location, terrain, environmental conditions, and the type of material being extracted. As a result, cranes used in these settings often need to be highly customized to meet the unique demands of each site. Tailored crane designs ensure that the equipment performs efficiently, safely, and reliably, no matter how challenging the environment.
Customized Load Handling Capabilities: Depending on the materials being handled (e.g., coal, ore, heavy machinery), cranes must be designed with specific lifting capacities, hook heights, and reach. Customizations are often made to accommodate unusual load shapes or sizes, ensuring that the crane can safely lift and transport the material without risk of damage or failure.
- Heavy Duty Lifting Systems: For mining environments that require lifting extremely heavy or bulky loads, cranes can be equipped with reinforced hoisting systems, including heavy-duty motors, winches, and ropes capable of handling higher load capacities.
- Extended Reach and Height: In some underground or open-pit mining operations, cranes may need to be customized for additional reach or height to access materials in deep or difficult-to-reach locations.
Site-Specific Design Adjustments: Every mining site presents unique challenges in terms of space, terrain, and environmental factors. Custom designs often include adjustments to suit the specific physical and operational requirements of the site. These may include compact crane models for tight spaces, or cranes equipped with specialized features for operation on rough or uneven surfaces.
- Underground vs. Open-Pit Adaptations: Underground mines often require smaller, more compact cranes with specialized lifting mechanisms suited to confined spaces. In contrast, open-pit mines may require larger, more robust cranes capable of handling massive loads in expansive areas.
- All-Weather Designs: Mining operations in regions with extreme weather conditions, such as freezing temperatures or high humidity, may require cranes with additional weatherproofing and climate control features to ensure reliability under challenging conditions.
Modular Crane Systems for Flexibility and Scalability
Modular crane systems offer significant advantages in mining operations by providing flexibility and scalability. These systems are designed with interchangeable parts that can be customized and reconfigured as operational needs change, allowing for future upgrades and modifications.
Scalability for Growing Operations: As mining operations expand, so too do the demands placed on crane systems. Modular designs enable easy scalability, allowing companies to add additional lifting capacity, longer spans, or more advanced safety features as their operations evolve.
- Easily Upgradable Systems: With a modular crane system, components such as hoists, electrical systems, or lifting mechanisms can be upgraded or replaced without requiring a complete crane redesign. This flexibility is crucial for mining operations that need to adapt to changing requirements over time.
- Customizable Components: Modular systems allow for the selection of specific components tailored to the operation’s needs, such as different lifting speeds, load capacities, or hoist types. This ensures that the crane performs optimally for the specific material handling tasks required on site.
Flexible Configuration Options: Modular cranes can be configured in various ways to suit different operational needs. For example, cranes used in large, open-pit mines may be configured with a wider span and longer jib to reach across vast areas. In contrast, cranes operating in smaller, underground mines might use a compact modular system designed for maneuverability in tight spaces.
- Adjustable Spans and Lifting Heights: Modular designs allow crane spans and lifting heights to be adjusted according to the layout of the mining site. This means that the crane can be reconfigured to fit the changing operational needs or site conditions.
- Adaptability to Various Mining Types: Modular cranes can be adapted to various types of mining, including coal, precious metals, and heavy ore extraction, by simply swapping out certain parts or upgrading components for specific requirements.
Case Studies of Customized Crane Designs
Customized and modular cranes have been successfully implemented in a variety of mining operations worldwide. Case studies illustrate how tailored crane solutions can significantly improve productivity, safety, and operational efficiency in harsh and dynamic mining environments.
Case Study 1: Underground Mine Lifting System
An underground mining operation in Australia required a compact, high-lift crane to operate in tight, confined spaces while transporting heavy ore extraction tools and machinery. The custom-designed crane was equipped with a high-capacity hoist and a reduced-profile base, allowing it to maneuver easily in low-clearance areas.
Key Features:
- Compact size and low height for confined spaces
- Reinforced hoisting system for heavy equipment lifting
- Remote-controlled operation for operator safety in hazardous areas
Outcome:
The crane improved operational efficiency by reducing downtime and increasing the speed at which heavy equipment could be moved between levels in the mine, allowing for continuous work cycles and better overall productivity.
Case Study 2: Open-Pit Mine Heavy Lifting Crane
In a large open-pit mine in South America, a modular crane system was designed for the lifting of oversized rock and machinery components. The modular design allowed for future upgrades as the mining operation expanded. The crane featured a custom, extended reach to access the deepest parts of the pit, where other cranes couldn’t operate.
Key Features:
- Modular design for easy upgrades
- Long reach and high lifting height for deep pit access
- Reinforced tracks and heavy-duty suspension for stability on uneven terrain
Outcome: This crane significantly increased the operation’s ability to move large equipment and rock efficiently. By modularizing the system, the mine was able to make cost-effective upgrades as its needs evolved, maintaining high performance and safety over time.
Case Study 3: Climate-Controlled Crane for Arctic Mining
An Arctic mining operation required a crane capable of operating in extreme cold, with temperatures dropping to -40°C (-40°F). The custom crane was equipped with climate-controlled systems for the operator cabin, along with materials designed to withstand freezing temperatures.
Key Features:
- Heated operator cabin for comfort and safety
- Weatherproofed crane components to prevent freezing
- Anti-corrosion treatments for all exposed parts
Outcome: The crane maintained high performance in severe cold conditions, with minimal downtime. The climate-controlled cabin allowed operators to work comfortably for extended periods, improving safety and productivity even in the harshest of environments.
Customized and modular crane systems are essential for mining operations, as they provide the flexibility and adaptability needed to handle the varied and demanding conditions of the industry. Tailored solutions ensure that cranes can meet specific operational requirements, while modular designs allow for scalability as mining operations grow or change. Through real-world case studies, we see the tangible benefits of customized crane designs, which enhance efficiency, improve safety, and help ensure the longevity of equipment in extreme mining environments.
Maintenance and Serviceability in Hazardous Conditions
Designing for Ease of Maintenance in Rugged Conditions
Overhead cranes used in mining environments must be designed with maintenance in mind to ensure long-term reliability and minimize downtime. Mining operations are often harsh, with extreme temperatures, dust, moisture, and corrosive substances posing significant challenges for crane components. Cranes must be engineered to facilitate maintenance tasks in these rugged conditions, ensuring that operators can quickly address issues before they lead to equipment failure.
Accessibility of Key Components:
To make maintenance tasks easier and more efficient, key components of mining cranes should be easily accessible. This includes features like large, removable access panels, wide walkways, and hoist bays that allow maintenance crews to quickly inspect and repair systems without needing to disassemble large portions of the crane.
- Strategic Component Placement: Components like motors, gearboxes, and electrical panels should be positioned to minimize the time required for repairs or replacements. This reduces downtime and ensures that workers can safely and quickly carry out maintenance tasks.
- Modular Parts for Easy Replacement: Cranes can be designed with modular components that can be easily replaced or serviced, such as hoist motors, drum assemblies, and sheaves. Modular designs help to streamline the maintenance process by allowing operators to replace individual components rather than the entire system.
Weatherproofing and Corrosion Resistance:
In hazardous mining environments, exposure to moisture, dust, and chemicals can rapidly deteriorate crane components. To ensure ease of maintenance, crane designs often incorporate weatherproofing features, such as sealed enclosures, waterproof seals, and rust-resistant coatings.
- Durable Materials for Harsh Conditions: Materials like stainless steel, galvanized steel, and special alloys are often used for critical components to ensure durability and corrosion resistance. This reduces the frequency of repairs and prolongs the lifespan of the crane in harsh conditions.
- Self-Lubricating Components: Self-lubricating bearings and bushings can also be used to reduce the need for frequent lubrication, which can be difficult to perform in the rugged mining environment. This helps maintain optimal performance while minimizing manual labor.
Remote Monitoring and Diagnostics for Mining Cranes
As mining operations grow larger and more complex, remote monitoring and diagnostic tools have become essential for maintaining crane performance and safety. These systems allow operators and maintenance teams to monitor crane health in real time, identifying issues before they lead to costly breakdowns and minimizing unplanned downtime.
- Real-Time Performance Monitoring: Advanced crane systems can be equipped with sensors that monitor key parameters such as load weight, hoist speed, crane movements, and electrical performance. These sensors transmit data to a central monitoring system, providing operators with real-time insights into the crane’s operational health.
- Load and Motion Sensors: Sensors that measure the load on the crane and monitor its motion help prevent overloads and ensure that the crane is operating within its design parameters. Alerts can be sent if the crane exceeds its rated capacity or if it is operating too quickly, providing an early warning to prevent damage.
- Temperature and Vibration Sensors: Temperature and vibration sensors can detect abnormal conditions, such as overheating motors or excessive vibrations in moving parts, that might indicate impending mechanical failure. These sensors can trigger alarms, allowing operators to take action before significant damage occurs.
Predictive Diagnostics:
Predictive maintenance uses data analytics and machine learning algorithms to predict when crane components are likely to fail, based on historical performance data and sensor inputs. This enables maintenance teams to schedule repairs or component replacements at the optimal time, reducing the risk of unexpected downtime.
- Failure Prediction Models: Predictive models can estimate the remaining useful life of critical components, such as wire ropes, hoist motors, or gearboxes, based on their wear and tear. This allows maintenance teams to replace parts before they fail, avoiding unnecessary downtime and reducing maintenance costs.
- Remote Troubleshooting and Adjustments: Remote access to crane systems allows technicians to troubleshoot issues and make adjustments without being physically present. This can be especially useful in remote mining sites, where access to skilled personnel may be limited.
Preventive Maintenance Strategies to Ensure Continuous Operation
Preventive maintenance is a critical strategy for ensuring the long-term reliability and safety of mining cranes. By establishing a proactive maintenance routine, mining operators can identify potential problems early, reduce the likelihood of unplanned breakdowns, and extend the lifespan of the crane.
Regular Inspections and Service Checks:
Preventive maintenance begins with routine inspections, where maintenance personnel check all critical systems, including the hoist mechanism, electrical systems, structural integrity, and safety devices. Inspections should be performed according to a set schedule, with more frequent checks in high-use environments or extreme conditions.
- Visual Inspections and Load Testing: Visual inspections help identify obvious signs of wear, such as cracks in the crane structure, frayed ropes, or corrosion on exposed components. Additionally, load testing is an essential part of preventive maintenance to ensure that the crane is capable of safely handling its rated capacity.
- Lubrication and Cleaning: Keeping components clean and well-lubricated is essential to reduce friction, wear, and corrosion. Cranes used in dusty or wet mining environments should undergo regular cleaning to remove dirt and debris from moving parts. Lubricating the hoist drum, bearings, and other critical components helps to maintain smooth operation.
Scheduled Component Replacements:
Certain components, such as wire ropes, brakes, and bearings, have a limited service life and must be replaced periodically. Scheduling component replacements before they fail ensures continuous operation and avoids costly repairs.
- Hoist Rope and Drum Replacement: Regular inspection of hoist ropes and drums helps identify early signs of wear, such as broken strands or deep grooves in the drum, which can lead to rope failure. Replacing worn ropes and repairing drums at scheduled intervals ensures the crane operates safely and efficiently.
- Brake System Maintenance: The braking system is critical for crane safety. Regular checks and adjustments to the brake system ensure that it can reliably stop the crane even under heavy loads. Scheduled brake pad replacements, lubrication of moving parts, and testing of the hydraulic or pneumatic systems are essential to maintaining performance.
Maintenance Documentation and Record-Keeping:
Effective preventive maintenance also involves keeping detailed records of inspections, repairs, and component replacements. These records can be used to track the performance of the crane over time and identify recurring issues, helping to refine maintenance strategies and improve overall equipment reliability.
- Digital Maintenance Logs: Using digital platforms to track maintenance activities allows for greater transparency and easier access to maintenance history. This also helps ensure compliance with safety regulations, as mining companies can demonstrate that regular maintenance has been performed on the crane.
Effective maintenance and serviceability are essential for ensuring the continuous operation of overhead cranes in hazardous mining environments. By designing cranes for ease of maintenance, incorporating remote monitoring and diagnostics, and implementing robust preventive maintenance strategies, mining operations can reduce downtime, improve safety, and extend the lifespan of their equipment. Regular inspections, predictive diagnostics, and proactive maintenance help identify issues early and ensure that cranes remain reliable, efficient, and safe throughout their operational life.
Conclusion
Key Design Features for Cranes in Hazardous Mining Environments
Cranes designed for hazardous mining environments face unique challenges that demand specialized features to ensure safety, reliability, and efficiency. These include protection against dust, moisture, heat, corrosion, and explosive atmospheres. The key design features discussed in this guide include:
- Dust and Moisture Protection: Sealed components, weatherproof enclosures, and materials designed to resist corrosion help safeguard the crane’s integrity and performance in harsh conditions.
- Heat Resistance and Thermal Management: Materials that can withstand high temperatures, along with heat shields and cooling systems, prevent heat buildup and ensure that crane components remain functional in extreme temperatures.
- Corrosion Resistance: The use of anti-corrosion coatings and durable materials like stainless steel ensures that cranes can operate in environments exposed to harsh chemicals, moisture, and salt air.
- Explosion-Proof Features: Compliance with ATEX and IECEx standards ensures that crane components, such as motors and electrical systems, are designed to operate safely in explosive atmospheres, preventing hazardous accidents.
- Adaptability for Challenging Terrain: Cranes can be customized for stability on uneven ground or sloped surfaces, allowing them to perform reliably in open-pit mines and other difficult settings.
- Operator Safety: Features like climate-controlled operator cabins, vibration reduction, and advanced safety protocols ensure that crane operators are protected from environmental hazards and can perform their tasks safely.
The Importance of Safety, Durability, and Compliance in Crane Design
Safety, durability, and compliance are the cornerstones of crane design in mining operations. Mining environments are inherently dangerous, and cranes must be engineered to withstand the physical stresses of heavy lifting, extreme weather, and hazardous materials.
- Safety: Mining cranes must incorporate features that prioritize operator safety and prevent accidents, including emergency shutdown systems, load monitoring, and automatic stop mechanisms. Adhering to global safety standards, such as those from OSHA, ATEX, and IECEx, ensures that cranes can operate within safe parameters in hazardous conditions.
- Durability: The harsh conditions of mining environments—such as corrosive chemicals, dust, moisture, and extreme temperatures—demand that cranes be built to last. Durable materials, anti-corrosion coatings, and rugged designs help minimize downtime and extend the operational life of the crane.
- Compliance: Compliance with local and international standards ensures that cranes meet regulatory requirements, providing assurance that equipment is safe to use in environments with explosive gases, dust, or other hazardous materials. These regulations are vital for both operator safety and environmental protection.
The design of cranes for hazardous mining environments is a critical factor in the safe and efficient operation of mining sites. From dust protection to explosion-proof features, crane designs must account for the unique challenges posed by these environments. Safety, durability, and compliance are essential elements that ensure operational continuity, while future technological advancements promise to make cranes even more efficient, safe, and environmentally friendly. As mining technology evolves, so too will the cranes that power the industry, helping to meet the growing demands of this vital sector while enhancing worker safety and environmental responsibility.
