Maximizing Space with Multi-Overhead Crane Systems: Is Your Facility Designed for Success?

Maximizing Space with Multi-Overhead Crane Systems" explores optimizing facility design for enhanced efficiency and productivity in material handling operations.

Multi-overhead crane systems are essential tools in modern industrial operations, enabling efficient lifting and movement of heavy loads across various facilities. These systems typically consist of two or more cranes working together, enhancing productivity by allowing simultaneous operations. Commonly used in manufacturing, warehousing, and construction, they optimize workflow and minimize downtime.

The design of a facility plays a crucial role in the effectiveness of crane operations. A well-planned layout ensures that cranes can operate without hindrance, maximizing their potential. Factors such as headroom, floor space, and the arrangement of work areas directly influence operational efficiency and safety. If a facility lacks proper design considerations, it can lead to bottlenecks, increased risks, and higher operational costs.

This guide aims to explore the design principles that optimize space for multi-overhead crane systems. By understanding these principles, facility owners and managers can ensure their spaces are well-equipped to support efficient crane operations. Ultimately, this knowledge will help prevent potential challenges, enabling smoother workflows and better use of resources.

multiple overhead  crane for sale

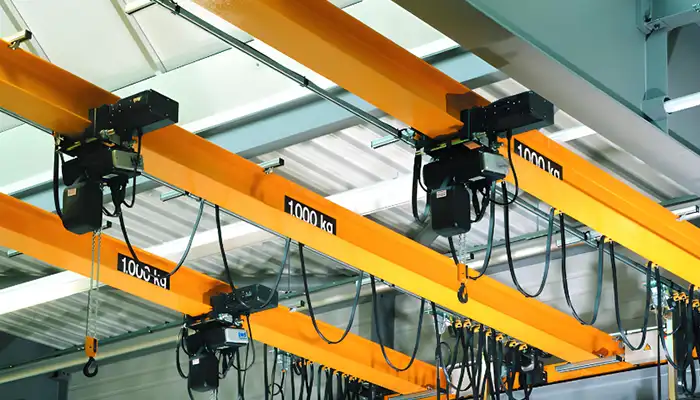

Multi -overhead crane with single girder design


Multi-Overhead Crane Systems

Multi-overhead crane systems consist of two or more cranes that operate within the same facility to lift and transport heavy loads. These systems can include various configurations, such as parallel cranes on the same runway or cranes that share a common runway. The primary types include:

  • Double Girder Cranes: These feature two beams that provide greater strength and lifting capacity, making them ideal for heavy loads.
  • Single Girder Cranes: Lighter and more economical, single girder cranes are suitable for smaller loads and tighter spaces.
  • Bridge Cranes: These cranes run on elevated tracks, allowing them to cover large areas without obstructing floor space.
  • Gantry Cranes: Mounted on legs, gantry cranes are versatile and can be used for both indoor and outdoor applications.

Common Applications in Various Industries

Multi-overhead crane systems are utilized across a wide range of industries due to their efficiency and adaptability. Common applications include:

  • Manufacturing: In factories, these systems handle raw materials, components, and finished products, streamlining the production process.
  • Warehousing: They facilitate the movement of goods, ensuring quick access to inventory and improving storage efficiency.
  • Construction: In construction sites, multi-crane systems lift heavy materials such as steel beams and concrete panels, enhancing workflow.
  • Shipbuilding and Maintenance: In shipyards, cranes are essential for lifting and moving heavy components during the construction and repair of vessels.
  • Automotive Industry: Multi-crane setups help in assembling vehicles by efficiently transporting parts along assembly lines.

Benefits of Using Multi-Crane Systems

Implementing multi-overhead crane systems offers numerous advantages:

  • Increased Efficiency: By allowing multiple cranes to operate simultaneously, facilities can improve their workflow, reducing the time required for loading and unloading.
  • Enhanced Safety: With proper design and coordination, multi-crane systems can minimize the risk of accidents, ensuring a safer working environment.
  • Flexibility: These systems can be adapted to various tasks and load sizes, making them suitable for diverse applications across different industries.
  • Space Optimization: By effectively utilizing vertical and horizontal space, multi-crane systems help to maximize facility layouts, allowing for more efficient use of available resources.
  • Cost Savings: Increased efficiency and safety often lead to lower operational costs, as facilities can reduce downtime and improve overall productivity.

In summary, understanding the types, applications, and benefits of multi-overhead crane systems is essential for making informed decisions about facility design and operations.

Key Design Principles for Optimizing Space

Layout Planning

The layout of a facility is crucial in determining the efficiency of crane operations. A well-thought-out design minimizes travel distances for cranes and reduces the risk of collisions, ultimately enhancing productivity.

Strategies for Effective Space Utilization:

  • Zoning: Divide the facility into specific zones for different operations, such as loading, unloading, and assembly. This helps streamline processes and keeps activities organized.
  • Crane Path Design: Plan the crane travel paths to avoid intersections and ensure that cranes can move freely without obstruction. Designate clear routes for materials and personnel.
  • Use of Simulation Tools: Employ software to visualize and simulate crane movements and workflows, allowing for adjustments before implementation.

Vertical Space Utilization

Maximizing vertical space is key to enhancing the effectiveness of multi-overhead crane systems. Proper use of headroom and lifting heights can significantly impact operations.

Maximizing Headroom and Lifting Heights:

  • High Ceilings: Facilities should be designed with sufficient height to accommodate crane operation and lifting requirements. The higher the ceilings, the more room for vertical movement, which increases flexibility in load handling.
  • Adjustable Lifting Mechanisms: Consider using cranes with adjustable lifting mechanisms to accommodate varying load sizes and optimize headroom use.

Considerations for Overhead Clearances:

  • Safety Margins: Always account for safety margins when determining clearances. Overhead structures, such as lights or HVAC systems, should not interfere with crane operations.
  • Maintenance Access: Ensure there is enough space for maintenance personnel to access cranes and overhead equipment safely, avoiding potential hazards.

Horizontal Space Management

Effective horizontal space management is vital for maintaining smooth operations within a facility.

Arranging Work Areas to Minimize Obstruction:

  • Strategic Equipment Placement: Position machinery and workstations in a way that allows easy access for cranes and minimizes obstruction in travel paths.
  • Defined Work Zones: Clearly mark work zones to prevent overlap between crane operations and other activities, ensuring that personnel can work safely without interfering with crane movements.

Flow of Materials and Personnel Around Crane Systems:

  • Separation of Traffic: Implement strategies to separate pedestrian pathways from crane operation zones. This reduces the risk of accidents and keeps workflows efficient.
  • Optimized Material Handling: Design the layout to facilitate the easy movement of materials to and from the crane areas, ensuring that supplies are readily accessible for lifting.

By adhering to these key design principles, facilities can create an environment that maximizes space, enhances operational efficiency, and ensures the safe and effective use of multi-overhead crane systems.

multiple overhead crane with double girder design

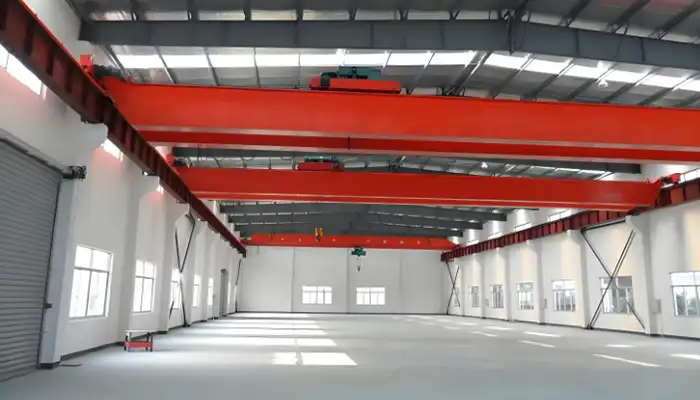

Multiple overhead cranes with double girder crane  and signle girder design  for working bay

Space Requirements for Multi-Crane Operations

Crane Dimensions and Specifications

The dimensions and specifications of cranes is essential for designing a facility that can accommodate multi-crane operations effectively.

Understanding Load Capacities and Spans:

  • Load Capacities: Each crane has a specific load capacity, which determines the maximum weight it can safely lift. It is crucial to match the crane’s capacity with the expected loads in the facility to ensure safety and efficiency.
  • Spans: The span refers to the distance between the supports or columns that hold the crane. Proper span calculations are necessary to prevent overloading and structural strain. Facilities should be designed to accommodate the required spans based on the cranes being used.

Implications of Crane Size on Facility Design:

  • Space Allocation: Larger cranes require more space for their operation, both in terms of footprint and clearance. Facilities must be designed with sufficient room to accommodate the size of the cranes, ensuring they can move freely without obstruction.
  • Structural Considerations: The design of the building must support the weight and movement of the cranes. This includes reinforcing the structure to handle the dynamic loads imposed during lifting and traveling.

Clearances and Safety Zones

Clearances and safety zones are critical components of crane operation design, directly impacting both safety and efficiency.

Required Safety Zones for Crane Operations:

  • Swing Radius: Cranes require safety zones around their swing radius to ensure that no personnel or equipment are in danger during operation. Establishing these zones helps prevent accidents and injuries.
  • Drop Zones: Identify areas where loads will be placed or dropped, ensuring they are clear of obstacles and personnel. Marking these zones can enhance awareness and compliance among staff.

Impact of Clearances on Operational Efficiency:

  • Operational Flexibility: Adequate clearances allow cranes to operate smoothly without the risk of collisions. This flexibility enables multiple cranes to work concurrently, maximizing productivity.
  • Maintenance Accessibility: Proper clearances also ensure that maintenance personnel can access cranes easily for routine checks and repairs, contributing to the longevity and reliability of the equipment.

By carefully considering crane dimensions, specifications, and the necessary clearances and safety zones, facility designers can create an environment that supports efficient and safe multi-crane operations.

Ensuring Operational Efficiency

Avoiding Bottlenecks

Bottlenecks in a facility can significantly hinder crane operations, leading to delays and reduced productivity. Identifying and addressing these areas is vital for maintaining efficient workflows.

Identifying Potential Bottleneck Areas in Facility Design:

  • High-traffic Zones: Observe areas where materials frequently intersect with crane paths or where personnel congregate. These zones can become congested, impacting crane movement.
  • Narrow Aisles: Review the width of aisles and access points. Insufficient space can restrict crane maneuverability and create obstacles during operations.

Strategies to Prevent Operational Delays:

  • Optimize Layout: Design the facility layout to facilitate smooth traffic flow for both cranes and personnel. Keeping high-traffic zones clear of obstructions can prevent congestion.
  • Scheduling and Coordination: Implement a scheduling system for crane operations to ensure that multiple cranes do not operate in the same area simultaneously. Coordinated movements can enhance efficiency and minimize wait times.
  • Regular Training: Conduct training sessions for personnel on best practices for operating around cranes. This ensures that everyone is aware of safety protocols and operational procedures, reducing the likelihood of disruptions.

Integrating Technology

Incorporating technology into facility design and crane operations can greatly enhance efficiency and space utilization.

Role of Automation in Maximizing Space:

  • Automated Crane Systems: Consider implementing automated cranes that can operate independently. These systems optimize space by reducing the need for manual handling and allowing for more precise control of movements.
  • Real-time Monitoring: Utilize sensors and monitoring systems to track crane movements and loads. This data can help optimize operations and prevent overloading, ensuring safety and efficiency.

Using Software for Design and Simulation:

  • Design Software: Employ computer-aided design (CAD) software to create detailed layouts of the facility. This enables designers to visualize crane paths and workflows, allowing for adjustments before construction.
  • Simulation Tools: Use simulation software to model crane operations within the facility. This can identify potential issues, such as bottlenecks or conflicts between cranes, allowing for proactive solutions and adjustments to the design.

By focusing on avoiding bottlenecks and integrating advanced technology, facilities can ensure smoother and more efficient multi-crane operations, ultimately leading to enhanced productivity and safety.

Case Studies: Successful Implementations

Examples of Facilities Optimized for Multi-Crane Operations

Automotive Manufacturing Plant
This facility employed multiple overhead cranes strategically along assembly lines to handle heavy components like engines, chassis, and subassemblies. Each crane was positioned to minimize travel distances between workstations. The layout included dedicated zones for loading and unloading materials, which reduced congestion around critical areas. Additionally, real-time communication systems were implemented to coordinate crane movements, allowing for seamless operation during peak production hours.
Outcome: The optimized layout reduced assembly time by 30%, enhancing overall production efficiency and enabling faster response to changing market demands.

Steel Production Facility
In this steel mill, a multi-crane system was introduced to efficiently manage the movement of heavy steel beams and plates throughout the production process. The facility featured high ceilings and wide aisles, allowing cranes to operate simultaneously without interference. Safety zones were established to protect personnel, and the facility implemented automated scheduling to ensure cranes were used effectively without delays. Regular training sessions for staff on crane operation and safety protocols further enhanced the operational flow.
Outcome: This thoughtful design minimized downtime, leading to a 25% increase in output while also improving safety measures around high-traffic areas.

Shipyard Operations
In a bustling shipyard, multiple gantry cranes were installed to facilitate the construction and repair of various vessels. The facility utilized advanced simulation software to map out crane paths and ensure clear access routes for both cranes and workers. By analyzing potential conflicts and optimizing crane movements, the facility reduced the risk of accidents. Furthermore, the layout allowed for dedicated assembly and repair zones, enhancing workflow efficiency. Regular maintenance schedules were established to keep cranes in peak operational condition.
Outcome: The integration of technology and careful planning reduced operational conflicts, resulting in faster turnaround times for ship repairs and improved overall productivity.

Lessons Learned from Design and Layout Choices

  • Flexibility is Key: Facilities that allowed for future expansions or modifications saw significant benefits. Designing for flexibility enables businesses to adapt to changing operational needs without extensive renovations.
  • Importance of Communication: Regular communication among engineers, designers, and operators during the planning phase led to better-informed decisions. Collaboration helped identify potential issues early, allowing for timely adjustments.
  • Emphasizing Safety and Training: Facilities that prioritized safety zones and conducted thorough training for staff experienced fewer accidents and operational delays. Ensuring all personnel are well-versed in safety protocols is crucial for maintaining a productive work environment.
  • Data-Driven Design: Utilizing data from monitoring systems and simulations proved invaluable in identifying inefficiencies. Facilities that adopted a data-driven approach could continuously improve operations based on real-time insights.

These case studies highlight the importance of thoughtful design and the integration of technology in optimizing facilities for multi-crane operations. By learning from successful implementations, other businesses can enhance their own operations, leading to increased efficiency and safety.

Conclusion

In summary, effective facility design is crucial for optimizing multi-crane systems. A well-planned layout not only enhances operational efficiency but also ensures safety and reduces the risk of bottlenecks. By understanding the key principles of design, including space utilization and clearances, facility owners can create environments that support smooth crane operations.

Facility owners are encouraged to assess their current designs critically. Consider how well your layout accommodates crane operations and whether there are areas for improvement. Identifying potential bottlenecks or inefficiencies can lead to significant enhancements in productivity.

To achieve the best outcomes, consulting with crane experts is recommended. These professionals can provide tailored solutions that align with your specific operational needs and help design a facility that maximizes efficiency and safety.
