What Key Ground Requirements Should RTG Crane Buyers Know?

Discover essential ground requirements for RTG crane buyers, including surface strength, level ground, drainage, space, and load distribution.

Introduction

Overview of RTG Cranes and Their Importance

Rubber Tyred Gantry (RTG) cranes are widely used in ports and large industrial operations. These cranes are designed to handle containers and heavy loads in areas where flexibility is needed. Mounted on rubber tires, RTG cranes can move freely across the yard, making them ideal for container terminals, warehouses, and large logistics centers.

Key benefits of RTG cranes include:

• Mobility: They can move easily across the yard, unlike fixed cranes.
• Efficiency: RTG cranes can stack and retrieve containers quickly, keeping operations running smoothly.
• Versatility: Their rubber tires allow them to work in various environments and configurations.

In ports, RTG cranes play a crucial role in loading and unloading containers from ships to trucks or storage areas. They help maintain a fast, efficient flow of goods, ensuring that the port operates at maximum capacity.

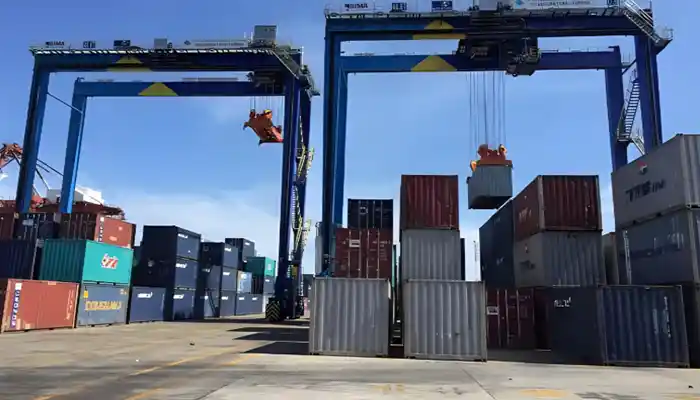

rubber typred rtg gantry crane

Why Ground Requirements Matter for RTG Crane Buyers

For buyers of RTG cranes, understanding the ground requirements is crucial for ensuring smooth and safe operations. The condition of the ground directly affects how well the crane will perform.

Key reasons why ground requirements are important:

• Stability: The ground must be strong enough to support the crane’s weight and the loads it carries. Poor ground conditions can cause instability, leading to safety risks and operational issues.
• Smooth Movement: RTG cranes rely on level, smooth ground to operate efficiently. Uneven or rough surfaces can cause the crane to tilt or move unevenly, affecting its performance.
• Tire Longevity: A stable and smooth surface reduces tire wear, preventing unnecessary repairs and maintenance.
• Drainage: Proper drainage prevents water from pooling on the ground, which can weaken surfaces and make them slippery, creating safety hazards.

By understanding these ground requirements, buyers can ensure that their RTG crane operates at its best, reducing maintenance costs and improving efficiency. Proper ground preparation leads to safer, longer-lasting crane operations and avoids costly mistakes later on.

Surface Strength and Stability

Why the Ground Needs to Support the Crane’s Weight and Dynamic Loads

RTG cranes are heavy, and when in operation, they carry and lift substantial loads. The ground beneath them must be strong enough to support both the static weight of the crane and the dynamic loads it handles while moving. As the crane travels, its tires exert pressure on the surface, which can cause deformation if the ground is not strong enough. A weak or unstable surface can lead to sinking, uneven wear on the tires, and safety concerns.

The weight of the crane, combined with the loads it carries, means that the ground must be able to withstand both constant pressure and the additional forces generated during movement. This is especially important for ensuring the crane remains stable during lifting operations, preventing accidents and ensuring efficiency.

Recommended Surfaces (Concrete, Asphalt) and Their Load-Bearing Capacity

For RTG cranes, the most commonly recommended surface materials are concrete and asphalt. Both offer high load-bearing capacities and durability.

Concrete: Concrete is the most commonly used surface for RTG crane operations. It can handle heavy loads and provides a stable, firm foundation. Properly designed and installed concrete surfaces can support the crane’s weight, reduce tire wear, and ensure smooth movement.

Load-bearing capacity: Concrete can generally support between 5,000 to 10,000 psi (pounds per square inch), which is more than enough for most RTG crane operations.

Asphalt: Asphalt is another option, though it’s more commonly used in areas with lighter operational needs or where flexibility is desired. While asphalt can handle heavy loads, it may not last as long as concrete, especially in areas with frequent traffic.

Load-bearing capacity: Asphalt typically handles 2,000 to 4,000 psi, which is sufficient for moderate to lighter crane operations.

Impact of Surface Strength on Crane Performance and Maintenance

The strength and stability of the ground beneath an RTG crane significantly affect its overall performance and maintenance needs.

• Crane Performance: A strong, stable surface ensures that the crane operates smoothly and efficiently. If the ground is uneven or soft, the crane may not move properly, leading to slower operations and potential damage to the tires and machinery.
• Maintenance: Weak surfaces can lead to increased tire wear, higher maintenance costs, and even structural damage to the crane over time. Uneven surfaces can also cause excessive strain on the crane’s components, leading to more frequent repairs and longer downtime.

In conclusion, ensuring that the surface is strong and stable is key to maximizing the crane’s lifespan, performance, and operational efficiency. By using materials like concrete or asphalt, crane buyers can minimize maintenance costs and optimize the crane’s overall effectiveness.

Level Ground for Safe Operation

The Necessity of Level Surfaces for Smooth Movement and Stability

For RTG cranes to operate effectively, the ground must be level. A level surface ensures that the crane moves smoothly without tilting or swaying, which is critical for both the safety of operations and the efficiency of lifting and transportation tasks. If the crane is not on level ground, it may struggle to move in a straight line, causing delays, increased tire wear, and potential strain on the crane’s mechanical components. Additionally, a level surface ensures that loads are lifted and transported evenly, preventing any instability that could lead to accidents.

Risks of Uneven Surfaces on Crane Safety and Load Handling

Uneven surfaces pose several risks to RTG crane operations:

• Instability: If the ground is uneven, the crane may become unstable, especially during lifting operations. This increases the risk of tipping or sliding, which could lead to accidents or damage to the crane, surrounding equipment, and even the cargo being handled.
• Uneven Load Handling: When a crane operates on uneven ground, the lifting process becomes unpredictable. Uneven surfaces can cause the load to shift, making it harder to manage the crane’s load. This can lead to equipment damage or unsafe working conditions.
• Increased Wear and Tear: When a crane is not on level ground, it puts extra pressure on certain parts of the crane, especially the tires and mechanical components. This can accelerate wear and tear, leading to higher maintenance costs and more frequent repairs.

Tips for Assessing and Maintaining a Level Ground

To ensure the ground is properly prepared for RTG crane operations, consider the following tips:

• Use Leveling Tools: Simple tools like spirit levels or laser leveling equipment can help assess the surface's flatness. These tools allow you to detect any unevenness, ensuring the ground meets the required standard.
• Regular Inspections: Consistent ground inspections should be conducted to check for settling, cracks, or other signs of uneven surfaces. These inspections should be done frequently to catch any issues early and prevent long-term damage to the crane.
• Compaction and Stabilization: If the ground is soft or prone to settling, additional measures such as compaction or the use of stabilization materials (e.g., gravel, sand) can be applied to ensure the surface remains level under the crane’s weight.
• Corrective Measures: If the ground is found to be uneven, corrective measures such as resurfacing or re-leveling should be taken. In severe cases, it may be necessary to replace parts of the ground material to restore stability.

Maintaining a level ground is essential for safe and efficient RTG crane operation. By assessing and regularly maintaining the surface, buyers can ensure the crane performs optimally and safely throughout its service life.

Smooth, Firm Surface for Mobility

How a Smooth, Firm Surface Impacts Tire Wear and Crane Mobility

For RTG cranes, the surface they move on plays a significant role in their mobility and the lifespan of their tires. A smooth and firm surface allows the crane to travel effortlessly, reducing the strain on its tires and mechanical components. This results in smoother operations, faster movements, and less energy consumption.

When the ground is smooth, the crane’s tires experience even wear, which prevents uneven damage that could lead to tire replacements or costly repairs. Firm surfaces, on the other hand, provide the necessary support to prevent tire deflation or sinking, ensuring that the crane maintains stability and operates at full capacity.

A smooth, firm surface not only contributes to tire longevity but also improves the crane’s ability to perform precise movements, which is essential for accurate load handling and efficient operations.

Common Issues Like Cracks and Potholes and How They Affect Performance

Several common surface issues can negatively impact the performance of RTG cranes:

• Cracks: Cracks in the ground can cause unevenness, leading to unstable crane movements. The tires may get caught in the cracks, causing unnecessary strain on both the crane and the tires. Over time, this can lead to misalignment, inaccurate load handling, and potential damage to the crane.
• Potholes: Potholes are another major concern for crane mobility. They create dips in the surface, which can disrupt the smooth movement of the crane. Potholes also put pressure on the crane’s tires, leading to rapid wear and potentially causing the crane to become unstable, especially during heavy lifts or while moving at higher speeds.
• Surface Deformation: Over time, frequent crane movements can lead to surface deformation, particularly in areas where the ground isn’t firm enough. This can result in depressions, which make it harder for the crane to move smoothly and efficiently, further increasing maintenance costs.

Solutions for Maintaining a Smooth, Stable Surface

To ensure the crane operates optimally and extends the life of its tires, maintaining a smooth, firm surface is essential. Here are some solutions:

• Regular Surface Inspections: Conduct frequent checks for cracks, potholes, and other surface irregularities. Early detection allows for quicker repairs, preventing further damage and ensuring the surface remains suitable for crane mobility.
• Resurfacing and Repairing: If cracks or potholes are found, they should be fixed as soon as possible. Resurfacing or patching damaged areas helps maintain a smooth surface and restores the firmness needed for safe crane operation.
• Surface Compaction: To prevent soft spots or deformation, proper compaction of the surface material is necessary, particularly in areas where the crane travels frequently. This ensures the ground is firm enough to handle the crane’s weight and movement.
• Use of High-Quality Materials: When constructing or resurfacing the ground, using durable materials such as high-strength concrete can reduce the chances of cracks and potholes forming. Choosing the right material will help maintain the surface’s integrity over time.

By addressing these surface issues and maintaining a smooth, firm foundation, crane buyers can ensure their RTG crane operates at peak performance, reducing tire wear, enhancing mobility, and extending the crane’s operational life.

Effective Drainage and Water Management

The Dangers of Water Accumulation on the Crane Path

Water accumulation on the crane path can lead to several operational and safety issues. When water pools on the surface, it weakens the ground, increasing the risk of soft spots that can lead to tire damage, instability, or sinking. Puddles and standing water can also create slippery conditions, posing a danger to crane operators and anyone working in the area.

Excess moisture can cause cracks or deformation in the surface, leading to longer-term damage that may require expensive repairs or resurfacing. Additionally, standing water can freeze in colder climates, creating hazardous icy conditions that can halt operations or cause accidents.

Why Proper Drainage is Essential for Maintaining Surface Integrity and Safety

Proper drainage is vital to keep the crane path dry and stable. When water is allowed to drain away efficiently, it prevents the ground from becoming soft or unstable, which could otherwise lead to operational delays or damage to the crane. Well-maintained drainage systems help:

• Preserve Surface Stability: Efficient drainage prevents water from pooling and softening the ground, helping maintain the integrity of the surface and ensuring the crane remains stable during operation.
• Enhance Safety: Drainage reduces the risk of slippery conditions caused by standing water or ice, promoting safe operations for both the crane and personnel working around it.
• Minimize Maintenance Costs: By preventing water damage to the surface, proper drainage helps avoid costly repairs and prolongs the lifespan of both the crane and the ground surface.

Design Considerations for Efficient Water Management

To ensure proper drainage and prevent water-related issues, consider these design factors:

• Slope of the Surface: The crane path should be designed with a slight slope to encourage water runoff. Even a small gradient can effectively direct water away from the crane's path and toward drainage systems.
• Drainage Channels and Grates: Install drainage channels, gutters, and grates along the crane path to catch and direct water away from the surface. These systems should be positioned at key locations to capture water runoff, especially in areas prone to heavy rainfall or wet conditions.
• Stormwater Management: Incorporate stormwater management features, such as retention ponds or soakaway pits, to prevent water from collecting on-site. This is particularly important in regions that experience frequent or heavy rainfall.
• Surface Materials with Drainage Properties: Use permeable materials for the crane path when possible, such as certain types of asphalt or gravel, which allow water to filter through rather than pooling on the surface.
• Regular Maintenance: Ensure that drainage systems are kept clear of debris and blockages to allow for uninterrupted water flow. Routine inspections should be conducted to ensure that drainage channels and grates remain effective, especially after heavy storms or prolonged rainfall.

Implementing these design considerations ensures that water management is efficient, promoting smooth crane operation and extending the life of both the crane and the infrastructure. By maintaining a well-drained crane path, buyers can avoid water-related issues and keep their operations running safely and smoothly.

Adequate Space for Turning and Maneuvering

The Importance of Ample Space for Safe Turning and Movement

Adequate space is essential for safe turning and maneuvering of RTG cranes. These cranes are designed to transport heavy loads across large areas, and their movement requires wide, open spaces to operate efficiently and safely. Sufficient space ensures the crane can navigate turns without colliding with obstacles, other cranes, or infrastructure.

Cramped or confined spaces make it difficult for the crane to complete turns and can lead to increased risks of accidents, equipment damage, or delays. Ample maneuvering space allows for smooth operation, even when navigating tight corners or complex layouts, enhancing both efficiency and safety.

How Cramped Spaces Can Limit Crane Functionality

Limited space can significantly restrict the functionality of an RTG crane:

• Restricted Movement: In confined areas, the crane may struggle to maneuver around tight corners or obstacles, slowing down operations and potentially causing safety hazards.
• Increased Risk of Collisions: Cramped spaces heighten the likelihood of the crane accidentally colliding with nearby structures, other cranes, or objects. This could cause expensive damage to the equipment and cargo, as well as potential injury to personnel.
• Operational Delays: Restricted space forces the crane to operate more slowly and cautiously, reducing the speed at which tasks are completed. This can create bottlenecks in operations, affecting productivity and delivery schedules.
• Increased Wear and Tear: When maneuvering in tight spaces, the crane may need to make sharper turns or movements, which can lead to more strain on the tires and mechanical components, accelerating wear and increasing maintenance costs.

Recommendations for Ensuring Sufficient Maneuvering Space

To ensure the crane can operate effectively and safely, the following recommendations should be considered when designing or preparing the crane path:

• Adequate Turn Radius: Design the crane path with wide, smooth curves that allow the crane to turn without difficulty. The turn radius should be large enough to accommodate the crane’s size and turning requirements, ensuring that it can navigate freely.
• Clear Pathways: Ensure there are no obstacles, such as piles of cargo or equipment, in the path where the crane needs to maneuver. Obstacles reduce maneuvering space and create hazards for both the crane and surrounding personnel.
• Allow for Buffer Zones: Include buffer zones around the crane path to provide additional space for movement, especially in areas where tight turns or sudden changes in direction are required. These zones also serve as a safety margin in case of unexpected issues or maneuvers.
• Regular Maintenance of Pathways: Keep the crane path free from debris and any other physical obstructions that could impede smooth movement. Regular cleaning and inspection of the path ensure there is always enough space for the crane to maneuver as required.
• Consider Future Expansion: When planning the crane path, take into account potential future needs or expansion. Overcrowded areas or poorly designed layouts can become even more limiting as operations grow. Planning ahead ensures the crane has enough room to adapt to changing demands.

Ensuring adequate space for turning and maneuvering is a key consideration for RTG crane buyers. With enough space, the crane will operate more efficiently, safely, and with less wear and tear, improving both performance and longevity.

Ensuring Even Load Distribution

Why Load Distribution Affects Crane Stability and Surface Condition

Load distribution is critical to the overall stability and safe operation of RTG cranes. When a crane carries a load, the weight is transferred to the surface it moves on. Evenly distributed loads ensure that the weight is spread out over a large area, minimizing the risk of surface deformation or instability.

If the load is not evenly distributed, the crane may become unbalanced, putting unnecessary strain on one side. This not only affects the crane’s stability but can also lead to excessive pressure on the ground surface, causing localized damage such as cracks or indentations. Proper load distribution helps maintain crane stability, ensures smooth operations, and preserves the integrity of the surface.

How Uneven Load Distribution Can Damage the Surface and Compromise Safety

Uneven load distribution poses several risks:

• Surface Damage: If the load is concentrated on one side, it creates uneven pressure on the surface, which may cause cracks, depressions, or even structural failure. Over time, this localized stress can weaken the surface, making it more susceptible to damage from future crane movements.
• Crane Instability: Uneven load distribution can cause the crane to lean or tip, affecting its balance and stability. This can lead to accidents, such as the crane overturning or dropping its load, resulting in safety hazards for both the operator and personnel in the area.
• Increased Wear on Tires: When the load is unevenly distributed, it forces certain tires to carry more weight, causing them to wear out more quickly. This leads to increased maintenance costs and potential safety concerns if the tires are unable to support the crane properly.
• Risk of Load Shifting: An imbalanced load is more likely to shift during transport, which can create sudden, unpredictable movements. This can make it harder for the crane operator to control the load, increasing the risk of accidents and damage to both the load and the crane.

Methods for Ensuring Even Load Distribution

To prevent these issues and maintain safe and efficient crane operations, consider the following methods for ensuring even load distribution:

• Use of Load Spreaders: Load spreaders or slings help evenly distribute the load across the crane's lifting system. These devices are especially useful for irregularly shaped loads or loads that are prone to shifting.
• Proper Load Placement: Ensure that the load is positioned correctly on the crane. The center of gravity should be aligned with the crane’s lifting point to prevent tipping. The load should also be centered within the crane’s lifting area to avoid putting undue pressure on one side of the crane.
• Weight Distribution Check: Before lifting, assess the load to ensure that it is balanced. Some cranes are equipped with load monitoring systems that can help operators check if the load is evenly distributed. If necessary, adjust the load’s position before proceeding.
• Regular Training for Operators: Train crane operators to properly assess and handle loads to ensure they are evenly distributed. Operators should be aware of the importance of load balance and have the skills to correct any imbalances before lifting.
• Prevent Overloading: Never exceed the crane’s rated lifting capacity. Overloading the crane, even with a well-distributed load, can strain the crane and surface, leading to potential damage. Ensure the load falls within the crane’s designated weight limits.
• Load Distribution Monitoring Systems: Install systems that monitor and adjust load distribution during crane operation. These systems help maintain an even load distribution in real-time, providing alerts if any imbalance occurs.

By ensuring even load distribution, crane buyers can safeguard the stability of both the crane and the surface it operates on, improving safety, reducing maintenance costs, and prolonging the equipment’s lifespan.
