Rail-Mounted vs. Rubber-Tired Shipyard Gantry Cranes – Which One is Right for Your Yard?

Overview of Shipyard Gantry Cranes

Overview of Shipyard Gantry Cranes

Shipyard gantry cranes play a vital role in lifting and transporting massive ship sections, hulls, and materials. They keep shipbuilding and repair processes running smoothly, making heavy lifting safer and more efficient.

• Improve efficiency by reducing manual labor and streamlining operations.
• Increase productivity by handling large components with precision.
• Enhance safety by minimizing risks associated with heavy load handling.

Without these cranes, moving large ship sections would be slow, labor-intensive, and potentially hazardous.

Purpose of the Comparison

Not all shipyards operate the same way, and different setups call for different types of gantry cranes. Choosing between rail-mounted and rubber-tired gantry cranes depends on factors like yard layout, lifting capacity, and mobility needs.

• Rail-mounted cranes offer stability and high lifting capacity but require a fixed path.
• Rubber-tired gantry cranes provide flexibility and mobility, ideal for shipyards that need more movement.

This comparison will break down the key differences, helping shipyard managers and decision-makers pick the best option for their operations. The right choice can maximize efficiency, reduce costs, and improve workflow in the long run.

Rail-Mounted Shipyard Gantry Cranes (RMG)

Definition & Design

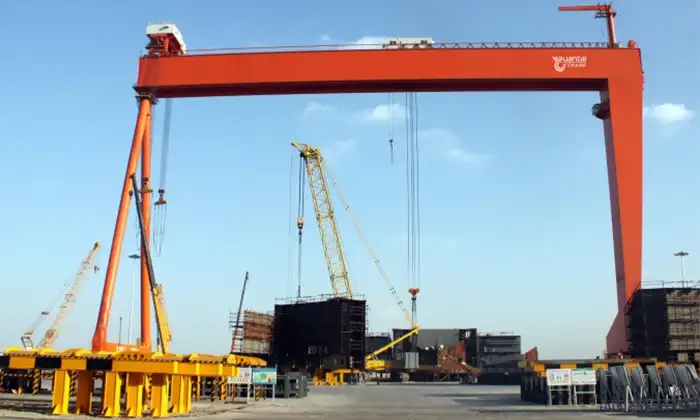

Rail-mounted shipyard gantry cranes (RMGs) are fixed to a steel rail system embedded in the ground, allowing them to move along a set path. Their rigid structure provides stability and precision in heavy lifting operations.

• Designed for large-scale shipbuilding and material handling.
• Operates within a defined track layout, ensuring controlled and efficient movement.
• Best suited for shipyards with consistent workflows and designated lifting zones.

Common Applications in Shipyards

These cranes are widely used in shipyards where large sections of ships, including hull blocks and prefabricated components, need to be transported with precision.

• Ideal for repetitive lifting tasks along fixed assembly or production lines.
• Used for moving massive ship structures between workstations.
• Essential for loading and unloading heavy materials such as steel plates, engine components, and outfitting equipment.

Key Features

Rail-mounted gantry cranes are designed for efficiency, durability, and high lifting capacity.

• Heavy lifting power – Capable of handling loads up to thousands of tons.
• Stability – Fixed track operation ensures precise positioning, reducing the risk of load sway.
• Energy efficiency – Typically powered by electricity, reducing fuel costs and emissions.
• Low mobility – Limited to pre-installed rail paths, requiring careful planning of the shipyard layout.

Rail-mounted gantry cranes are a solid choice for shipyards with structured workflows and high-volume lifting demands but may not be ideal for shipyards requiring frequent repositioning of lifting equipment.

Rubber-Tired Shipyard Gantry Cranes (RTG)

Definition & Design

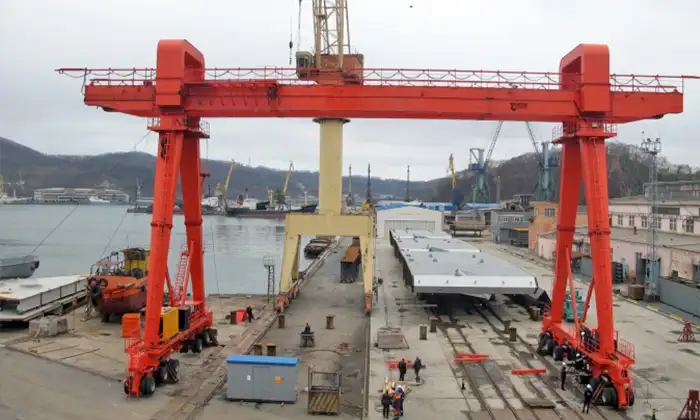

Rubber-tired gantry cranes (RTGs) are mobile cranes equipped with rubber tires, allowing them to move freely across the shipyard. These cranes are not confined to tracks, offering flexibility in operation.

• Mobile design enables movement across varied work zones within the yard.
• Can handle materials in multiple locations without the need for fixed pathways.
• Ideal for dynamic material handling where tasks and locations frequently change.

Common Applications in Shipyards

RTGs are versatile and well-suited for shipyards that require flexibility and mobility. They can be used in a wide range of material handling tasks, especially when the shipyard layout doesn't accommodate fixed paths.

• Perfect for handling smaller ship components and outfitting materials in different areas of the yard.
• Commonly used for transferring items between docks, including sections of the hull, engine parts, and shipbuilding tools.
• Ideal for shipyard maintenance tasks where repositioning is necessary.

Key Features

RTGs provide high maneuverability and efficiency in shipyards that need adaptability.

• Maneuverability – Easily repositions across the yard, making them ideal for yards with changing workflows.
• Repositioning ease – Quick and simple to move, saving time between tasks.
• Multi-tasking – Capable of handling various materials and ship sections without restrictions.
• Energy source – Powered by either fuel (diesel) or electricity, providing flexibility based on yard infrastructure.

RTGs are well-suited for shipyards with space limitations or those requiring frequent shifts in operations. While their mobility is a significant advantage, their fuel consumption or electric needs may require additional planning for operational costs.

Pros and Cons of Each Type for Shipyard Material Handling

Rail-Mounted Gantry Cranes

Advantages

• Higher Lifting Capacity and Stability: Rail-mounted cranes are designed for heavy-duty operations. They offer superior lifting capacity, making them ideal for handling large, heavy ship components. Their fixed nature ensures stability during operation, especially when handling massive loads.
• Energy Efficiency for Long-Term Operations: Since rail-mounted cranes operate on fixed tracks, they are generally more energy-efficient over long-term use. Their movements are predictable and consistent, leading to reduced wear and tear on the equipment and lower operational costs.
• High-Precision Lifting in Structured Environments: Rail-mounted cranes excel in environments that demand high-precision lifting, such as assembly lines or specific sections of a shipyard. The track system allows for accurate, controlled movements, ensuring precise load placement in a fixed production setup.

Disadvantages

• Limited Mobility: One of the significant drawbacks of rail-mounted cranes is their limited mobility. They are confined to specific track systems, making them less versatile when the operational area or layout needs to change. This limitation is less ideal for shipyards with varying workflows or multiple work zones.
• High Initial Infrastructure Costs: Setting up a rail-mounted crane requires a significant investment in infrastructure. The tracks must be installed, which can lead to higher initial setup costs compared to more mobile systems. This can be a barrier for smaller shipyards or those looking to expand without extensive upfront costs.
• Less Adaptable to Changing Yard Layouts: Since these cranes are fixed to specific tracks, they are not easily reconfigured if the layout of the yard changes. Shipyards that experience frequent shifts in operations or need to move cranes to different zones may find rail-mounted cranes less flexible in such cases.

Rubber-Tired Gantry Cranes

Advantages

• Flexible and Mobile: Rubber-tired gantry cranes are highly versatile. They can be easily moved across the shipyard to different locations, allowing for more dynamic material handling. This flexibility makes them ideal for shipyards with multiple work zones or constantly changing workflows.
• No Need for Rail Infrastructure: Unlike rail-mounted cranes, rubber-tired gantry cranes don't require a track system, which reduces the initial investment in infrastructure. This makes them an attractive option for shipyards that want to minimize setup costs or those with space limitations.
• Ideal for Yards with Variable Workloads and Layouts: These cranes are perfect for shipyards where the workload or layout might change frequently. They can be repositioned as needed to handle different tasks, making them a good fit for shipyards with fluctuating production demands or those that handle a wide variety of ship sizes and materials.

Disadvantages

• Higher Fuel or Energy Consumption: Rubber-tired gantry cranes require fuel or electricity for their mobility, which can lead to higher operational costs, especially in large-scale shipyard operations. The energy used to move the crane between zones may add up over time, impacting the overall cost efficiency.
• Requires More Maintenance: Due to their moving parts, rubber-tired gantry cranes generally require more maintenance than rail-mounted cranes. The tires, wheels, and engines need regular inspection and maintenance to ensure smooth operation. This can increase downtime and maintenance costs.
• Lower Lifting Capacities Compared to Rail-Mounted Designs: While rubber-tired gantry cranes are highly versatile, they tend to have a lower lifting capacity than rail-mounted cranes. This makes them less suitable for handling the heaviest ship sections or materials, particularly in shipyards where large, heavy lifts are common.

Key Factors to Consider When Choosing Shipyard Gantry Cranes

Yard Layout & Space Constraints

• Rail-Mounted Cranes: These are ideal for large, structured yards with clear, designated pathways. The fixed tracks are well-suited for shipyards where the operations are predictable and the layout remains stable.
• Rubber-Tired Cranes: Best for yards with limited space or constantly changing layouts. Their mobility allows them to operate in compact spaces and be repositioned as needed, making them a great option for flexible and evolving shipyard environments.

Lifting Capacity Requirements

• Rail-Mounted Cranes: These cranes are known for handling heavy loads with ease, making them perfect for lifting and moving large ship sections and materials. The stability and precision of rail-mounted cranes make them the go-to choice for high-capacity lifting operations.
• Rubber-Tired Cranes: While these cranes can handle medium to heavy loads, they are more suited for dynamic lifting tasks and areas requiring flexibility. They may not be ideal for the heaviest lifts compared to their rail-mounted counterparts but are still capable of handling a variety of tasks within their capacity range.

Operational Flexibility

• Rubber-Tired Cranes: These cranes offer superior flexibility in terms of moving across different parts of the yard. They can quickly shift between work zones, making them ideal for shipyards that handle a wide variety of tasks and need mobility for optimal productivity.
• Rail-Mounted Cranes: These cranes excel at repetitive lifting tasks within a structured layout. Once set on a specific path, they can efficiently and safely handle multiple lifting jobs, but they lack the adaptability of rubber-tired cranes in environments with changing work zones.

Budget & Long-Term Costs

• Rail-Mounted Cranes: While rail-mounted cranes require a larger initial investment due to the need for track installation, they tend to have lower long-term operational costs. Their energy efficiency and durability in a fixed environment make them cost-effective over time for large-scale operations.
• Rubber-Tired Cranes: These cranes have a lower initial cost since there is no need for track infrastructure. However, their mobility requires fuel or electricity for operation, leading to higher fuel and maintenance costs in the long term. This makes them more suitable for shipyards that prioritize lower upfront costs but can handle ongoing operating expenses.

Environmental & Weather Conditions

• Rail-Mounted Cranes: Rail-mounted cranes perform consistently well in extreme weather conditions, such as heavy rain, snow, or wind. Their fixed design reduces mobility-related risks, making them reliable even in harsh weather.
• Rubber-Tired Cranes: These cranes can face challenges in adverse weather, particularly in wet or slippery conditions. Traction issues, especially in heavy rain or snow, can limit their effectiveness. While they offer mobility, extreme conditions may impact their stability and performance.

Conclusion

Summarizing the Key Differences

• Rail-Mounted Cranes: These cranes are stable and ideal for high-capacity tasks. They excel in fixed routes, offering long-term cost efficiency, especially in large shipyards with structured layouts.
• Rubber-Tired Cranes: Known for their mobility and flexibility, rubber-tired cranes can easily move around the yard and adapt to a variety of tasks. They are best suited for yards with changing layouts or compact spaces that require versatility.

Making the Right Choice

Choosing the right shipyard gantry crane depends on aligning the equipment with the specific needs of the shipyard. Consider operational requirements, space constraints, lifting capacities, and budget when making a decision. Rail-mounted cranes are more suitable for fixed, high-capacity needs, while rubber-tired cranes are ideal for dynamic, flexible operations. A thoughtful decision will support both immediate efficiency and long-term success.

Future Trends in Shipyard Crane Technology

• Hybrid Models: The future may see hybrid crane designs that combine the stability of rail-mounted systems with the mobility of rubber-tired cranes. These models would provide the best of both worlds—high capacity and flexibility—further enhancing shipyard operations.
• Automation and Energy-Efficiency: With increasing demand for automation, future cranes will likely feature more advanced control systems, improved safety features, and energy-efficient designs. These innovations will contribute to higher productivity, lower operational costs, and greener, more sustainable shipyard operations.
