5 Ton vs. 10 Ton Gantry Crane: Selecting the Ideal Capacity

5 Ton vs. 10 Ton Gantry Crane: Selecting the Ideal Capacity

Gantry cranes are the unsung heroes of heavy lifting and material handling in various industries. These versatile machines come in different sizes and capacities, making them indispensable in settings ranging from manufacturing plants and construction sites to warehouses and shipyards. When it comes to gantry crane selection, one of the critical decisions is choosing the right lifting capacity. In this article, we delve into the importance of selecting the appropriate capacity and zoom in on the comparison between two popular choices: the 5-ton gantry crane and the 10-ton gantry crane. What are differences of 5 ton vs 10 ton gantry crane designs except capacity?

Understanding Gantry Crane Capacity

Gantry crane capacity is a critical aspect of crane selection that directly impacts efficiency and safety. Before delving into the comparison between 5-ton and 10-ton gantry cranes, it's essential to grasp the fundamentals of gantry crane capacity and the factors that drive capacity selection.

Explanation of Gantry Crane Capacity

Gantry crane capacity refers to the maximum weight a crane is designed to lift and handle safely. This capacity is not arbitrary; it is determined based on the crane's structural integrity, the strength of its components, and its load-bearing capabilities. It serves as a crucial parameter that ensures the crane's safe and efficient operation.

Factors Influencing Capacity Selection

Several key factors influence the selection of an appropriate gantry crane capacity:

  • 1. Weight of Loads to be Lifted:Perhaps the most straightforward factor is the weight of the heaviest loads that the gantry crane will encounter regularly. The selected capacity must exceed this weight to accommodate variations and prevent overloading, which can compromise both safety and crane performance.
  • 2. Frequency and Type of Lifting Tasks:The nature and frequency of lifting tasks play a pivotal role in capacity selection. Cranes used for frequent, heavy lifts require higher capacities to meet operational demands effectively. Conversely, cranes used for occasional, lighter tasks may be adequately served by lower-capacity models.
  • 3. Safety Considerations:Safety is paramount in crane operations. Choosing a gantry crane with the right capacity is a crucial safety measure. Overloading a crane can lead to structural damage, mechanical failures, and even accidents. Ensuring the crane's capacity aligns with the loads it handles is essential for the well-being of both personnel and equipment.

Significance of Choosing the Right Capacity for Efficiency and Safety

Selecting the appropriate gantry crane capacity is of paramount importance for several reasons:

  • - Efficiency:An adequately sized gantry crane optimizes efficiency in lifting operations. It ensures that the crane can handle the intended loads without strain or risk of overload, resulting in smoother and more productive workflow processes.
  • - Safety:Safety is the top priority in any crane operation. A crane that matches the required capacity reduces the likelihood of accidents caused by overloading. It enhances workplace safety by preventing equipment failures and structural damage, ultimately protecting the well-being of personnel.
  • - Long-Term Durability:Selecting the right capacity contributes to the longevity of the crane. Overloading a crane regularly can lead to premature wear and tear, necessitating costly repairs or replacements. Proper capacity selection ensures the crane's durability and longevity.

In summary, understanding gantry crane capacity, considering factors such as load weight, task frequency, and safety, and making a well-informed choice regarding capacity are all essential steps in ensuring the efficiency and safety of gantry crane operations. With this foundation, we can now delve into the comparison between 5-ton and 10-ton gantry cranes to help you make an informed decision for your specific lifting needs.

5-Ton Gantry Crane

Now, let's take a closer look at the 5-ton gantry crane, its design characteristics, typical applications, advantages, and potential limitations.

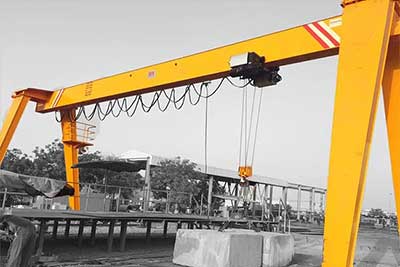

 5 ton gantry crane with European style  and low headroom electric wire rope hoist  5 ton gantry crane with European style  and low headroom electric wire rope hoist

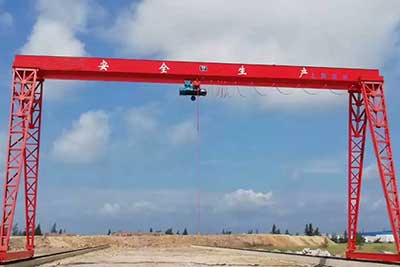

 5 ton gantry crane with Chinese style cd/md  electric wire rope hoist  5 ton gantry crane with Chinese style cd/md  electric wire rope hoist

Description of a 5-Ton Gantry Crane

  • 1. Design Characteristics:A 5-ton gantry crane is a sturdy and reliable piece of lifting equipment. It typically features a single girder design, which is a horizontal beam that spans the width of the gantry. The single girder design makes it relatively compact and maneuverable, suitable for various work environments.
  • 2. Lifting Capacity and Capabilities:As the name suggests, a 5-ton gantry crane is designed to lift and handle loads with a maximum weight of 5 tons. It is equipped with a hoist and trolley system capable of efficiently moving materials within this weight range. The crane's capabilities extend to precision load positioning and reliable material handling.

Typical Applications

Industries and Settings

Where a 5-Ton Crane is Suitable:The 5-ton gantry crane finds its niche in several industries and settings due to its versatility. Some typical environments where it is used include:

  • Manufacturing Facilities:In manufacturing plants, 5-ton gantry cranes are often deployed for tasks like moving raw materials, transporting work-in-progress components, and positioning finished products.
  • Maintenance Areas:Workshops and maintenance areas benefit from the flexibility of a 5-ton gantry crane for tasks such as equipment repair, machinery installation, and material handling.
  • Warehouses:Warehouses utilize 5-ton gantry cranes to manage inventory, load and unload heavy goods from trucks, and streamline storage processes.

Examples of Loads Handled by 5-Ton Gantry Cranes:

The 5-ton gantry crane is capable of handling a diverse range of loads, including:

  • Heavy machinery components
  • Large tools and equipment
  • Steel beams and bars
  • Industrial materials and supplies

Advantages of a 5-Ton Gantry Crane

The 5-ton gantry crane offers several advantages:

  • Cost-Effective:It is often a cost-effective solution for medium-sized lifting tasks compared to larger capacity cranes.
  • Versatility:The crane's versatility makes it suitable for a wide range of applications in different industries.
  • Maneuverability:Single girder design and portability allow for easy movement and positioning in various workspaces.



Limitations and Scenarios Where a 5-Ton Crane May Not Be Sufficient

While a 5-ton gantry crane has many strengths, it also has limitations:

  • Heavy Loads:It may not be suitable for tasks involving consistently heavy loads exceeding 5 tons.
  • High-Frequency Usage:In applications that require frequent, heavy lifting, a higher capacity crane might be more efficient.
  • Large Workpieces:For moving oversized or lengthy workpieces, a longer span or higher capacity crane may be necessary.

Understanding the capabilities and limitations of a 5-ton gantry crane is crucial for making an informed decision when selecting the appropriate equipment for your specific lifting needs. In scenarios where heavier lifting is required, it might be worth considering a 10-ton gantry crane, which we'll explore in detail next.

10-Ton Gantry Crane

Let's now delve into the world of 10-ton gantry cranes, exploring their design characteristics, typical applications, advantages, and potential limitations.

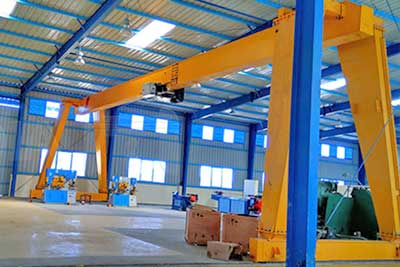

 10 ton gantry crane with European style  and low headroom electric wire rope hoist  10 ton gantry crane with European style  and low headroom electric wire rope hoist

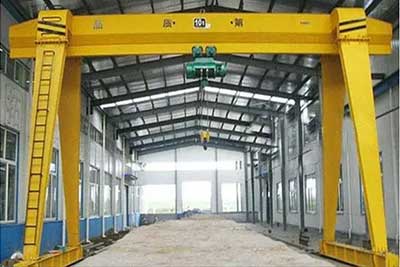

 10 ton gantry crane with Chinese style, cd/md wire rope hoist 10 ton gantry crane with Chinese style, cd/md wire rope hoist

Description of a 10-Ton Gantry Crane

  • 1. Design Characteristics:A 10-ton gantry crane is a heavy-duty lifting machine known for its robust construction. It typically features a double girder design, where two horizontal beams run parallel to each other across the gantry's width. This dual-girder configuration provides enhanced stability and load-bearing capacity.
  • 2. Lifting Capacity and Capabilities:As the name suggests, a 10-ton gantry crane is engineered to lift and handle loads with a maximum weight of 10 tons. It is equipped with high-powered electric hoists and trolleys capable of efficiently managing heavier materials. The crane's capabilities extend to precise load positioning and handling of substantial loads.

Typical Applications

Industries and Settings

Where a 10-Ton Crane is Suitable:The 10-ton gantry crane finds extensive use in various industries that demand heavy lifting capabilities. Some typical environments where it is deployed include:

  • Manufacturing:In manufacturing facilities, 10-ton gantry cranes are indispensable for lifting large machinery components, heavy equipment, and oversized workpieces.
  • Shipbuilding and Maritime:Shipyards require the strength of 10-ton gantry cranes for assembling ship structures, handling heavy marine equipment, and launching vessels.
  • Construction:Large-scale construction projects, such as bridge construction and building erection, benefit from the lifting power of 10-ton gantry cranes for hoisting massive construction materials and structural elements.

Examples of Loads Handled by 10-Ton Gantry Cranes:

The 10-ton gantry crane excels at handling heavy, bulky loads, including:

  • Steel plates and beams
  • Shipping containers
  • Heavy machinery and industrial equipment
  • Infrastructure components, such as bridge sections

Advantages of a 10-Ton Gantry Crane

The 10-ton gantry crane offers several advantages:

  • High Lifting Capacity:It is designed for handling substantial loads, making it ideal for heavy industrial applications.
  • Versatility:Despite its robust capacity, a 10-ton gantry crane can often be adapted for various lifting tasks within a facility.
  • Durability:The crane's heavy-duty construction ensures durability and reliability in demanding work environments.

Limitations and Scenarios Where a 10-Ton Crane May Be Excessive

While a 10-ton gantry crane boasts impressive capabilities, there are limitations to consider:

  • Cost:The initial investment and operational costs of a 10-ton gantry crane are higher compared to lower capacity options.
  • Space Requirements:Due to its larger size and heavier structure, it may require more floor space in the workspace.
  • Overkill for Lighter Loads:In scenarios where lighter loads are the norm, a 10-ton crane might be excessive and less cost-effective.

Understanding the strengths and limitations of a 10-ton gantry crane is crucial for making an informed decision when selecting the appropriate equipment for specific lifting needs. The choice between a 5-ton and 10-ton gantry crane depends on the nature of the tasks and the loads to be handled within your industrial or operational context.

Comparative Analysis

Now, let's conduct a head-to-head comparison of 5-ton and 10-ton gantry cranes, exploring their lifting capacity, versatility, adaptability, cost considerations, as well as the respective pros and cons of each capacity option. Additionally, we'll provide real-world examples and case studies to illustrate capacity selection scenarios.

Head-to-Head Comparison of 5-Ton and 10-Ton Gantry Cranes

1. Lifting Capacity:

  • 5-Ton Gantry Crane:Capable of lifting and handling loads up to 5 tons.
  • 10-Ton Gantry Crane:Designed for heavier lifting, with a maximum capacity of 10 tons.

2. Versatility and Adaptability:

  • 5-Ton Gantry Crane:Versatile and adaptable for medium-sized lifting tasks across various industries.
  • 10-Ton Gantry Crane:Suited for heavy-duty applications with substantial lifting requirements.

3. Cost Considerations:

  • 5-Ton Gantry Crane:Generally more cost-effective in terms of both initial investment and operational expenses.
  • 10-Ton Gantry Crane:Higher upfront costs and potentially increased operational expenses.
Aspect 5-Ton Gantry Crane 10-Ton Gantry Crane
Lifting Capacity Up to 5 tons Up to 10 tons
Versatility and Adaptability Versatile and adaptable for medium-sized lifting tasks Suited for heavy-duty applications with substantial lifting requirements
Cost Considerations Generally more cost-effective in terms of both initial investment and operational expenses Higher upfront costs and potentially increased operational expenses

Pros and Cons of Each Capacity Option

Benefits of Choosing a 5-Ton Gantry Crane:

  • Cost-Effective:Lower initial investment and operational costs make it a budget-friendly choice.
  • Versatility:Suitable for a wide range of tasks, providing flexibility in material handling.
  • Maneuverability:Single girder design and portability enable easy movement within workspaces.

Benefits of Choosing a 10-Ton Gantry Crane:

  • High Lifting Capacity:Designed for heavy loads, making it ideal for demanding industrial applications.
  • Versatility:Despite its capacity, it can often be adapted for various lifting tasks within a facility.
  • Durability:Heavy-duty construction ensures durability and reliability in demanding work environments.

Drawbacks and Potential Challenges for Both:

  • 5-Ton Gantry Crane Drawbacks:May not be suitable for tasks involving consistently heavy loads exceeding 5 tons regularly.
  • 10-Ton Gantry Crane Drawbacks:Higher upfront costs and potentially excessive for operations that involve lighter loads.

Factors Influencing the Decision

When selecting between a 5-ton and a 10-ton gantry crane, several critical factors come into play. These factors influence the decision-making process, ensuring that the chosen crane aligns with operational needs, safety requirements, and long-term budget considerations.

Weight and Size of Typical Loads

The weight and size of the typical loads that the gantry crane will handle are primary considerations:

  • 5-Ton Gantry Crane:Ideal for scenarios where the majority of loads fall within the 5-ton limit. It may struggle with loads significantly heavier than 5 tons or with dimensions that challenge its capabilities.
  • 10-Ton Gantry Crane:Suited for environments where larger and heavier loads are common. It excels at handling substantial materials and oversized items.

Frequency and Variety of Lifting Tasks

The frequency and variety of lifting tasks play a significant role in capacity selection:

  • 5-Ton Gantry Crane:Suitable for operations with a mix of tasks, including both regular lifting and occasional heavier lifting. It provides versatility for various material handling needs.
  • 10-Ton Gantry Crane:Ideal for environments with consistent heavy lifting requirements. It can handle repetitive heavy tasks efficiently.

Long-Term Operational and Budget Considerations

Long-term operational and budget considerations should not be overlooked:

  • 5-Ton Gantry Crane:Often more cost-effective in terms of both initial purchase and ongoing operational costs. It's a practical choice for businesses with budget constraints.
  • 10-Ton Gantry Crane:While it involves higher upfront costs, it may prove cost-effective in the long run for industries with regular heavy lifting demands, as it reduces the need for frequent equipment upgrades.

Safety and Compliance Requirements

Safety and compliance requirements are paramount in crane operations:

  • 5-Ton Gantry Crane:Generally meets safety standards for medium-duty lifting tasks. It is suitable for operations with standard safety protocols.
  • 10-Ton Gantry Crane:Designed with safety in mind for heavy lifting. It often includes advanced safety features and can adhere to stringent industry regulations.

In summary, the decision between a 5-ton and a 10-ton gantry crane hinges on a careful evaluation of the weight and size of typical loads, the frequency and variety of lifting tasks, long-term operational and budget considerations, and specific safety and compliance requirements. A thorough assessment of these factors ensures that the selected crane aligns with the operational needs and goals of the organization while prioritizing safety and efficiency.

Selecting the Ideal Capacity

Selecting the ideal capacity for a gantry crane is a crucial decision that requires a systematic approach. Here are the steps in the decision-making process, the importance of consultation with crane experts or manufacturers, and case studies illustrating capacity selection based on unique requirements.

Steps in the Decision-Making Process

  • 1. Assessing Load Specifications: - Begin by thoroughly assessing the specifications of the loads to be lifted. Determine the maximum weight, dimensions, and any special handling requirements for typical loads.
  • 2. Analyzing Operational Needs: - Analyze the frequency and variety of lifting tasks in your operation. Consider factors such as how often heavy lifting is required and the diversity of materials or objects to be handled.
  • 3. Evaluating Budget Constraints: - Carefully evaluate your budget constraints, taking into account not only the initial crane purchase cost but also long-term operational expenses, maintenance, and potential upgrades.

Importance of Consultation with Crane Experts or Manufacturers

Consulting with crane experts or manufacturers is invaluable in the decision-making process:

  • Expert Insight:Crane experts can provide valuable insights based on their industry knowledge and experience. They can help you understand the specific requirements of your operation and recommend the appropriate capacity.
  • Customization:Manufacturers can tailor gantry crane solutions to your unique needs. They can design and build a crane that precisely matches your operational requirements, ensuring optimal efficiency and safety.
  • Compliance:Experts can help ensure that your crane selection complies with industry safety standards and regulations, reducing the risk of accidents and costly compliance issues.

Conclusion

In conclusion, the selection of the right gantry crane capacity is a critical decision that can significantly impact the efficiency and safety of your lifting operations. Let's recap the key points discussed in this article, emphasize the importance of choosing the right capacity, and encourage informed decision-making in gantry crane selection.

Throughout this article, we explored the following key points:

  • - Gantry crane capacity refers to the maximum weight a crane can safely lift and handle.
  • Factors influencing capacity selection include load weight, task frequency, safety considerations, and more.
  • A 5-ton gantry crane is versatile and cost-effective, while a 10-ton gantry crane is designed for heavy-duty lifting.
  • Each capacity option has its own set of benefits and limitations.
  • Several factors, such as load specifications, operational needs, budget constraints, and safety requirements, should guide your capacity selection process.
  • Consultation with crane experts or manufacturers can provide invaluable insights and customized solutions.

Emphasis on the Importance of Choosing the Right Capacity

Selecting the right gantry crane capacity is not merely a technical detail; it is a decision that directly affects the effectiveness and safety of your lifting operations. An inadequately sized crane can lead to inefficiencies, costly downtime, equipment damage, and, most importantly, safety hazards. Conversely, choosing a crane with excessive capacity can result in unnecessary expenses.

Encouragement for Informed Decision-Making in Gantry Crane Selection

We strongly encourage informed decision-making when selecting a gantry crane capacity. Consider your specific operational needs, the nature of the loads you handle, your budget constraints, and the importance of safety. Consultation with experts or manufacturers is a wise step in this process, as their expertise can guide you toward the most suitable solution.

In the world of material handling and lifting, choosing the right gantry crane capacity is akin to selecting the perfect tool for the job. It ensures that your lifting operations run smoothly, efficiently, and, above all, safely. By following the steps outlined in this article and seeking expert guidance, you can make a well-informed decision that aligns with your unique lifting requirements, setting the stage for successful and productive operations.
