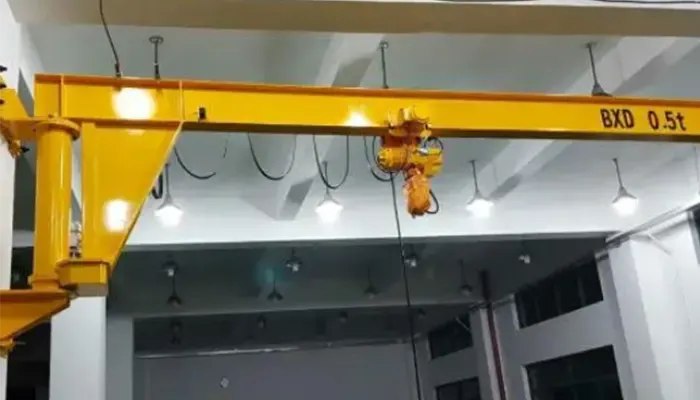

1/2 Ton Wall-Mounted Jib Crane in Cyprus
Case Study: Optimizing Material Handling with a 1/2 Ton Wall-Mounted Cantilever Jib Crane in Cyprus
Project Overview
In a bid to enhance material handling efficiency and optimize space utilization, a leading industrial facility in Cyprus undertook the installation of a BX Wall-Mounted Cantilever Jib Crane. This project aimed to address the specific challenges of working within constrained overhead space while maintaining robust lifting capabilities.
Crane Specifications
- Model: BX Wall-Mounted Jib Crane
- Capacity: 1/2 ton
- Crane Arm Length: 4 meters
- Lifting Height: 4 meters
- Hoist Type: Chain hoist
- Mounting: Wall-mounted
- Power Supply: 240V, 50Hz, 3-phase
Project Goals
The primary objectives of this installation were to:
- Enhance Material Handling Efficiency: The facility required a solution that could facilitate the smooth and precise movement of materials within a limited space.
- Optimize Space Utilization: With constrained overhead space, the project aimed to make the most of the available area without compromising on operational flexibility.
- Ensure Robust Support: The crane needed to be mounted securely to the wall to provide reliable support and stability during operation.
Design and Implementation
The selected BX Wall-Mounted Jib Crane was chosen for its cantilever design, which is ideal for environments where overhead space is limited. The cantilever arm, extending 4 meters, allows for flexible and unrestricted movement within the confined area of the facility. The wall-mounted configuration ensures that the crane is securely anchored, maximizing space efficiency and minimizing the footprint of the equipment.
Key Features
- Chain Hoist: The crane is equipped with a chain hoist that provides precise load control, crucial for handling materials with accuracy and ease.
- Power Supply: The crane operates on a 240V, 50Hz, 3-phase electrical supply, which is standard for industrial applications in the region, ensuring compatibility and reliability.

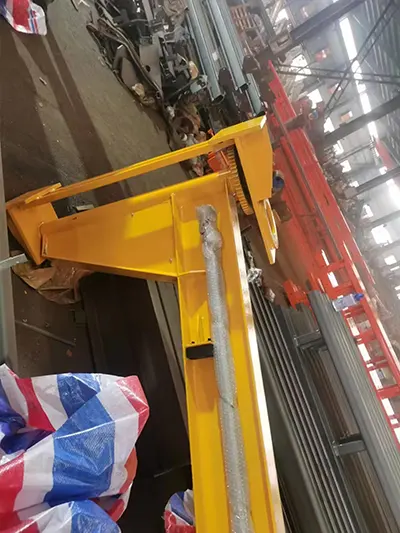

Cantilever underconstruciton for 1/2 ton wall mounted cantilever crane
wall mounted bracket of wall mounted cantilever crane

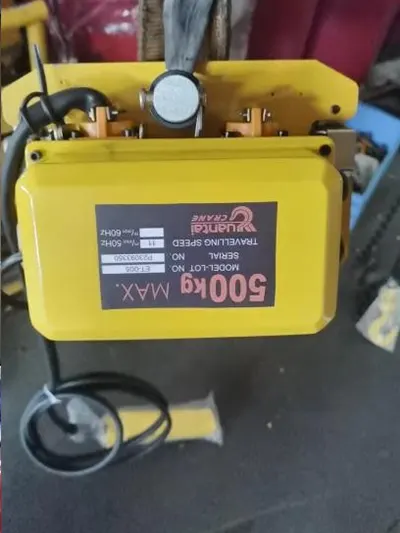

electric chain hoist trolley 500kg

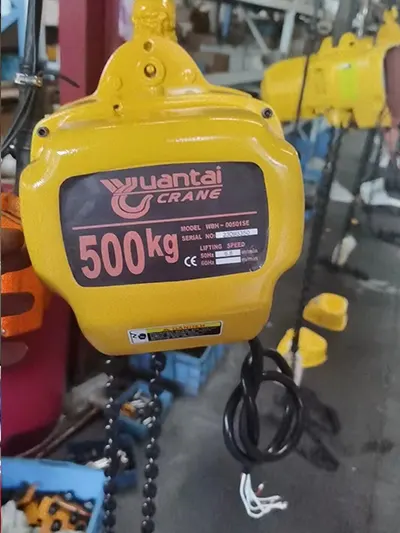

500kg electric chain hoist for the wall jib crane

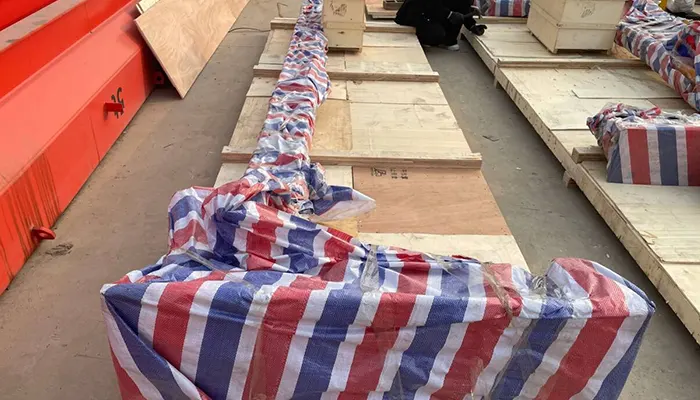

cantilever and hoists packed for delivery Installation Process
The installation process involved the following key steps:
- Site Assessment: A thorough assessment of the installation site was conducted to ensure that the wall could support the crane's load requirements.
- Mounting: The crane was mounted securely to the facility's wall, ensuring that all structural and safety standards were met.
- Calibration and Testing: The crane was calibrated and tested to verify that it met the required performance specifications and operated smoothly.
Outcomes and Benefits
The installation of the BX Wall-Mounted Cantilever Jib Crane brought several benefits to the facility:
- Improved Efficiency: The crane's precise load control and flexible movement significantly enhanced material handling efficiency, reducing downtime and increasing productivity.
- Space Optimization: By utilizing a wall-mounted design, the facility was able to maximize its workspace and improve overall operational layout.
- Robust Performance: The crane's robust support system and reliable operation provided a dependable solution for the facility's material handling needs.
Conclusion
The successful installation of the 1/2 ton BX Wall-Mounted Cantilever Jib Crane has proven to be a valuable asset for the facility in Cyprus. By addressing the challenges of limited overhead space and enhancing material handling capabilities, the crane has contributed to improved operational efficiency and optimized space utilization within the facility.
