Container Spreaders: Boosting Efficiency and Safety in Logistics

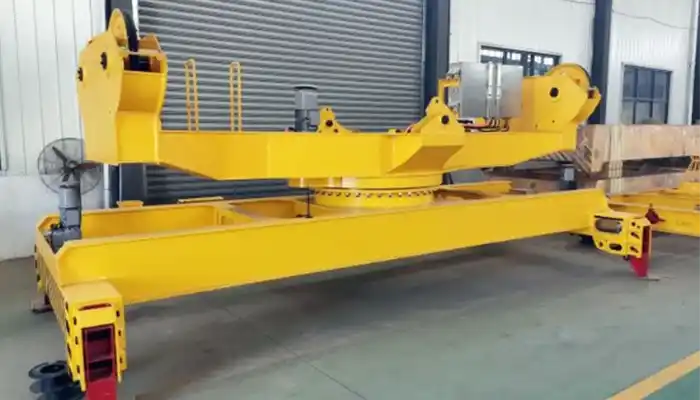

What is a Container Spreader?: A container spreader is a device used to lift and move shipping containers. It attaches to a crane and helps safely hold containers while they are being lifted and moved. The spreader locks onto the container's corners using twistlocks or other locking mechanisms, making sure the container stays secure during transport.

Role in Container Handling Operations: Container spreaders are crucial for container handling in busy environments like ports and terminals. They allow cranes to safely pick up, move, and place containers between ships, trucks, trains, and storage areas. The spreader ensures that containers are lifted and positioned correctly, reducing the risk of accidents and damage. It helps increase speed, accuracy, and safety in container operations.

Common Applications in Ports, Terminals, and Logistics: Container spreaders are most commonly used in ports, container terminals, and logistics hubs where containers are loaded and unloaded. In ports, they are used with large cranes to move containers from ships to storage areas or transport vehicles. They are also used in rail terminals for loading containers onto railcars and in logistics facilities for transferring containers between trucks, ships, and trains. Spreaders are important for warehouses and distribution centers too, where they help organize and stack containers.

Types of Container Spreaders

Fixed Spreaders: A fixed spreader is a simple, sturdy type of spreader that is designed to handle a specific container size, like 20ft or 40ft containers. These spreaders are reliable and durable, but they don’t offer flexibility for different container sizes. Fixed spreaders are ideal for smaller operations where containers are usually the same size.
Telescoping Spreaders: Telescoping spreaders are adjustable, so they can handle containers of different sizes, like 20ft, 40ft, and sometimes 45ft containers. These spreaders are versatile because they can extend or retract to fit the size of the container being lifted. Telescoping spreaders are great for terminals where a mix of container sizes is common, helping to maximize equipment use and efficiency.
Semiautomatic Spreaders: A semiautomatic spreader has a mix of manual and automatic features. While the operator still needs to do some work, many functions of the spreader are automated, such as adjusting the twistlocks to fit the container. This makes the handling process quicker and easier. Semiautomatic spreaders are often used in busy terminals where some automation helps speed up operations, but operators are still needed for more complex tasks.

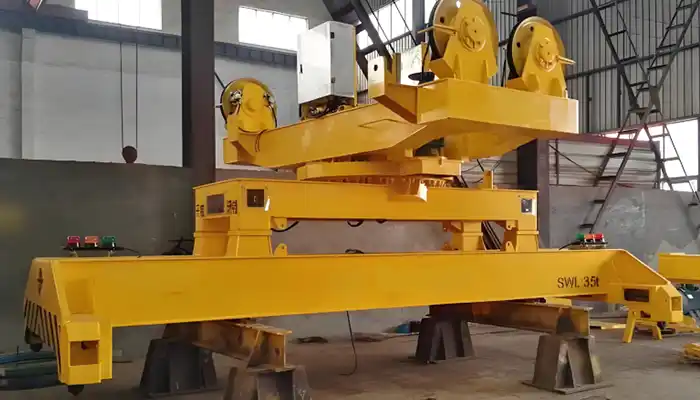

Fully Automatic Spreaders: A fully automatic spreader does everything automatically. It can adjust to different container sizes, engage the twistlocks, and even lift and lower the containers with little to no input from the operator. Fully automatic spreaders are used in high-volume terminals where speed and efficiency are a top priority. They reduce the need for human labor and increase productivity by handling containers with minimal error.

In short, container spreaders are key to making container handling operations faster, safer, and more efficient. Whether it's a fixed, telescoping, semiautomatic, or fully automatic spreader, each type is designed to fit specific needs, from handling different container sizes to improving overall efficiency. Spreaders are essential in modern logistics, making the movement of goods smoother and more reliable.

Key Features of Container Spreaders

Design and Build Quality

Materials Used (High-Quality Steel, Components): Container spreaders are built using high-quality steel and durable components to ensure they can withstand the demands of heavy-duty container handling. These materials help the spreader remain strong and reliable even under constant use in tough conditions.
Durability in Harsh Environments: The spreader’s design makes it highly resistant to wear and tear, ensuring it performs well even in harsh environments such as ports, terminals, and logistics hubs. Its ability to handle saltwater exposure, extreme temperatures, and heavy-duty operations makes it an essential tool for container handling in challenging conditions.
Safety Features (e.g., Torque Limitation, Floating Twistlocks): Safety is a top priority in container spreader design. Features like torque limitation systems prevent the spreader from getting damaged by excessive force, especially when dealing with blocked ISO corners. Floating twistlocks ensure that containers are securely locked without damaging the twistlocks or the container itself. These features add to the overall reliability and safety of the spreader, reducing the risk of accidents during lifting and moving containers.

Capacity and Size Handling

20ft, 40ft, and 45ft Container Sizes: Container spreaders are designed to handle containers of various sizes, typically 20ft, 40ft, and 45ft. These spreaders are built to ensure a secure connection with the container, regardless of its size. The ability to handle different sizes is essential for facilities that deal with a variety of container types.
Telescoping Functionality for Variable Container Sizes: Some spreaders come with telescoping functionality, allowing them to extend or retract to handle different container sizes. This feature provides flexibility in container handling, enabling the spreader to adjust to 20ft, 40ft, and 45ft containers, making it highly versatile for operations where the size of containers may vary.

Twistlock Mechanism

Automatic Adjustment of Twistlocks: The twistlocks are an essential part of the container spreader, locking onto the corners of the container to hold it securely. Many spreaders have an automatic twistlock adjustment system, allowing the twistlocks to quickly and accurately engage with the container corners without the need for manual intervention. This automation increases efficiency and reduces the chance of human error.
Prevention of Locking in Blocked ISO Corners: To prevent the spreader from damaging the twistlocks or the container, a torque limitation system ensures that the twistlocks don’t lock in blocked ISO corners. This feature prevents mechanical strain, ensuring that the spreader operates smoothly even if the container’s twistlocks are not aligned correctly.
Integration with Lifting Machines: The twistlock mechanism is designed to work seamlessly with the crane’s lifting machine. This ensures the spreader and crane system work together efficiently, securely lifting and transporting containers without risk of disconnection or failure during the process.

Automation and Operation Modes

Manual, Semiautomatic, and Fully Automatic Modes: Container spreaders come with different operation modes, offering manual, semiautomatic, and fully automatic options depending on the level of automation required by the operation. Manual mode allows the operator full control over the lifting and securing process, while semiautomatic and fully automatic modes reduce operator intervention, making handling quicker and more efficient.
Features like Low Battery Indicator and Position Lights: Modern spreaders often include helpful features such as low battery indicators and position lights. The low battery indicator alerts the operator when the battery is running low, reducing the risk of unexpected downtime. Position lights show the status of the twistlocks and other important functions, ensuring the operator can easily see if everything is functioning correctly.

Maintenance and Usability

Easy Maintenance and Operation: Container spreaders are designed to be easy to maintain and operate. Their simple, robust design ensures that routine checks and repairs can be carried out quickly, minimizing downtime. The spreaders are built to last, but regular maintenance ensures they continue to operate smoothly and safely for years.
Maintenance Guides and Spare Parts Availability: Spreader manufacturers provide detailed maintenance guides that help operators with proper upkeep and troubleshooting. Additionally, spare parts are readily available, making it easy to replace components and ensure the spreader remains in top working condition.
Low Downtime and Long Service Life: Thanks to their durable build, easy maintenance, and quality components, container spreaders have a long service life. This means they require fewer repairs over time and have low downtime, ensuring that container handling operations remain efficient and continuous without unnecessary interruptions.

In conclusion, container spreaders offer a range of important features that enhance their performance, safety, and longevity. From high-quality materials and durability in tough environments to automation features and easy maintenance, these devices are designed to make container handling smoother, faster, and more reliable in busy port and terminal operations.

Types of Container Spreaders

Fixed Beam Container Spreaders

Double Beam Fixed Frame: A double beam fixed frame spreader has two parallel beams, which provide extra strength and stability when lifting containers. This type of spreader is commonly used for lifting 20ft and 40ft containers. It’s designed for operations where containers of similar sizes are consistently handled. The double beam design helps evenly distribute the load, making it very reliable for high-volume operations.
Single Beam Fixed Spreader: A single beam fixed spreader has just one central beam to lift containers. It's lighter and simpler than the double beam spreader, making it a cost-effective option for smaller operations. It’s usually used for 20ft containers, though it can also handle larger ones, depending on the specific model and weight capacity.

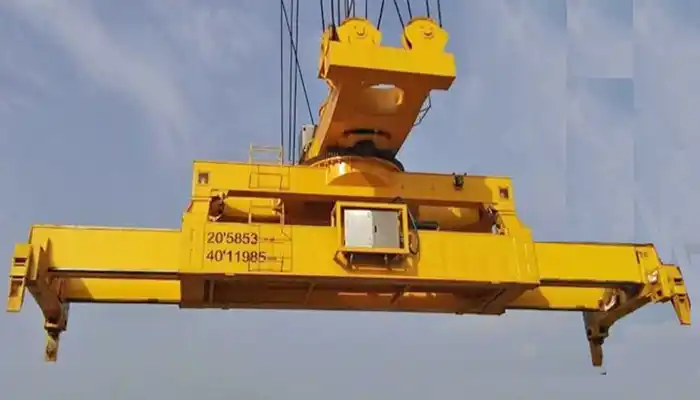

Telescoping Beam Container Spreaders

Adjustable for Multiple Container Sizes: A telescoping spreader can extend and retract, allowing it to handle containers of different sizes, like 20ft, 40ft, and 45ft. This flexibility makes it ideal for operations where containers of various sizes are frequently handled. Instead of needing multiple spreaders for different container sizes, this type allows for one spreader to do it all.
Benefits for High-Volume Operations: In busy ports and terminals, where containers of different sizes come in constantly, telescoping spreaders offer a big advantage. They help speed up the process by reducing the time spent changing spreaders. This leads to faster container handling and better use of space, which is especially important in high-traffic locations.

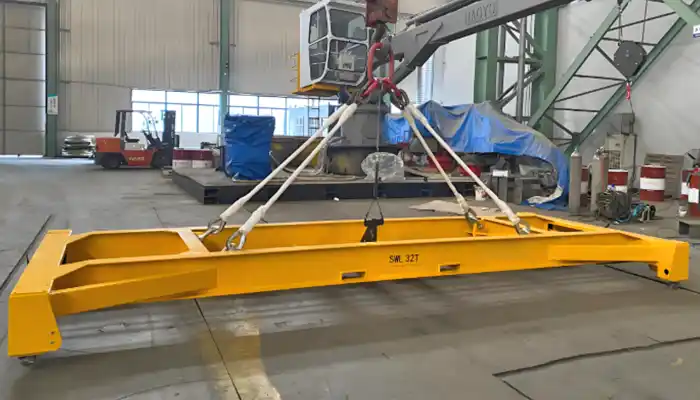

Semiautomatic Container Spreaders

Combination of Manual and Automatic Features: A semiautomatic spreader blends both manual and automated functions. The operator still has to perform some tasks, but many processes, like adjusting the twistlocks and controlling lifting, are automated. This helps reduce the workload on the operator and speeds up the process, especially with tasks like container positioning.
Adaptability and Versatility: Semiautomatic spreaders are highly versatile because they can handle a range of container sizes and offer a balance between manual control and automation. They’re a good choice for terminals that need some flexibility, such as those that handle a variety of container types or have different automation needs. These spreaders can adapt to both smaller and larger containers, making them a useful option in mixed environments.

Fully Automatic Container Spreaders

Complete Automation for High-Efficiency Operations: A fully automatic spreader does everything automatically, from adjusting to the container size to locking and lifting the load. There’s no manual intervention required. This type of spreader is perfect for high-efficiency operations, where speed and accuracy are key. It’s commonly used in large container terminals where quick, reliable handling is essential.
Ideal for High-Traffic Container Terminals: Fully automatic spreaders are designed for high-traffic terminals, where many containers need to be moved quickly. They handle everything from size detection to auto-locking mechanisms, and work seamlessly with other equipment to keep operations running smoothly. This automation results in higher throughput and lower downtime, making them the best choice for terminals with high-volume container handling.

In conclusion, container spreaders come in a variety of types to meet the needs of different operations. Whether you need the simplicity and reliability of fixed spreaders, the flexibility of telescoping spreaders, the versatility of semiautomatic spreaders, or the efficiency of fully automatic spreaders, there's a solution for every terminal. The right spreader depends on your container sizes, operation scale, and how much automation you need to optimize your workflow.

Technical Specifications and Performance

Lifting Capacity

Different Models and Their Load Limits: Container spreaders are designed to handle a range of lifting capacities depending on the model. The lifting capacity is one of the most important factors to consider when choosing a spreader, as it determines how much weight the spreader can safely lift.

32 tons: For example, some models are designed to lift 20ft containers with a capacity of 32 tons.
40 tons: Other models are designed for 40ft containers, with a lifting capacity of up to 40 tons.
The lifting capacity varies across different spreader types and models, so it’s important to select one that meets the specific weight requirements of your operation.

Examples (e.g., 32 tons for 20ft containers, 40 tons for 40ft containers)

Model BA-350(20)E: Lifts 32 tons for 20ft containers.
Model BA-350(40)E: Lifts 40 tons for 40ft containers.
The lifting capacity directly affects the types of containers the spreader can safely handle, ensuring efficiency and safety during lifting operations.

Container Size Compatibility

Container Size Options (20ft, 40ft, 45ft): Container spreaders are designed to handle a variety of container sizes, ensuring versatility across different types of cargo. Common container sizes include:

20ft containers: The smallest standard size, typically used for lighter cargo.
40ft containers: More commonly used for heavier or larger cargo.
45ft containers: Larger than the standard 40ft container, often used for specific types of goods.
Each spreader model is tailored to accommodate different container dimensions. This ensures that operators can handle a wide range of container types without needing multiple spreaders.

Versatility of Telescoping and Fixed Models

Telescoping spreaders provide adjustable length, allowing them to handle containers of various sizes, including 20ft, 40ft, and 45ft. This flexibility is especially useful in high-volume operations where different container sizes are common.
Fixed spreaders are designed for specific container sizes, such as 20ft or 40ft. While they don’t offer the flexibility of telescoping models, they are still very reliable for operations that primarily handle one or two sizes of containers.

Telescoping spreaders are more versatile in that they can adjust to multiple container sizes, while fixed spreaders are simpler and more cost-effective for consistent container sizes.

Tare Weight

Examples of Tare Weights for Different Models: The tare weight refers to the weight of the spreader itself, excluding the load it is carrying. It’s important to know the tare weight because it affects the total weight the crane or lifting machine has to handle.

Model BA-350(20)E: The tare weight for this model is 5 tons when lifting 20ft containers.
Model BA-350(40)E: The tare weight for this model is 5 tons when lifting 40ft containers.

These tare weights are important because they must be accounted for when calculating the total load that the crane will lift. The tare weight will reduce the net lifting capacity of the crane by that amount.

Impact on Overall Crane Load: The tare weight adds to the overall weight that the crane has to lift, reducing the available capacity for cargo. For example:

If a 40ft container has a weight of 30 tons and the spreader weighs 5 tons, the total weight the crane must lift is 35 tons.
Understanding the tare weight helps ensure that the crane is not overloaded and that lifting operations remain safe and efficient.

In conclusion, understanding the lifting capacity, container size compatibility, and tare weight of container spreaders is essential for selecting the right equipment for your terminal. These specifications determine the performance and efficiency of your operations, ensuring that containers are handled safely and effectively.

Optional Features and Customization

Additional Components

Forklift Tunnels, Flippers, and Extension Chains: Container spreaders can be equipped with additional components to enhance their functionality and efficiency.

Forklift Tunnels: These are built into the spreader to allow forklifts to pass through, making it easier to load or unload containers from the spreader.
Flippers: Flippers can rotate or adjust the twistlocks to help position containers more easily, improving loading and unloading speed.
Extension Chains: These can be added to extend the spreader's range, allowing it to handle taller or longer containers more effectively.

Cellular Guide Wheels, Cycle Counters

Cellular Guide Wheels: These wheels help guide the spreader along the crane track, improving stability and ensuring smooth operations, even under heavy loads.
Cycle Counters: Cycle counters track how many times the spreader has completed a lift cycle, providing valuable data for monitoring wear and maintenance needs.

Demountable Heads for Easy Transport: Some spreaders are designed with demountable heads, which make it easier to transport the equipment between different sites. This feature is especially useful for operations that need to move or relocate spreaders frequently.

Safety and Performance Enhancements

Extra Signals (Warning Lights, Alarms): To enhance safety, optional warning signals can be integrated into the spreader:

Warning Lights: These lights alert operators to potential issues or operational statuses, improving visibility, especially in low-light conditions.
Alarms: Audible alarms can notify operators of potential problems, such as overloading, helping to prevent accidents and ensure safer lifting operations.

BV Test Inspections and Certifications: For operators who need to meet specific regulatory or quality standards, spreaders can be certified through BV (Bureau Veritas) inspections. These inspections check for compliance with safety and performance standards, ensuring that the spreader meets the necessary criteria for safe and effective use.

Customization for Branding

Customer Logos and Color Schemes: Container spreaders can be customized to reflect the branding of the company that owns them. This includes:

Customer Logos: The spreader can be printed with the customer’s company logo, which helps promote brand recognition at the terminal.
Color Schemes: The spreader can be painted in the customer’s preferred color scheme, which helps maintain a consistent look with other equipment.

Tailored Configurations for Specific Needs: Beyond basic designs, spreaders can be customized to meet the unique needs of a specific terminal or operation. This can include:

Specialized lifting features for unusual container sizes or types of cargo.
Configuration adjustments to match specific crane systems or operational workflows, ensuring the spreader fits seamlessly into the customer’s existing infrastructure.

In conclusion, the optional features and customization options for container spreaders allow for tailored solutions that enhance both performance and safety. These additions make the spreader more versatile, efficient, and aligned with specific operational or branding needs, ensuring optimal performance in any container handling environment.

Applications and Industry Use Cases

Port Operations

Container Loading and Unloading: In port operations, container spreaders are essential for efficiently handling large volumes of containers during the loading and unloading process. These spreaders connect the crane to the container, allowing for precise lifting and placement. The spreaders are typically used with gantry cranes or ship-to-shore cranes to move containers from ships onto the dock or vice versa.

Speed and efficiency: With the ability to handle multiple sizes of containers (20ft, 40ft, 45ft), spreaders allow for faster turnaround times in port operations, which is critical for maintaining high productivity levels.
Safety: Automatic features like twistlock adjustment and torque limitation ensure that the spreader is safely handling containers, reducing the risk of accidents or damage.

Integration with Cranes and Lifting Systems: Container spreaders work in conjunction with cranes and other lifting systems. The integration ensures smooth, coordinated movements between the spreader and the crane, facilitating the safe handling of containers.

Advanced controls: Many spreaders feature automatic modes that adjust to the container size, streamlining the entire loading and unloading process.
Precision: The twistlock mechanism ensures accurate container positioning, which is crucial when stacking containers or moving them between ships and trucks.

Intermodal Transport Facilities

Rail and Truck Container Handling: At intermodal transport facilities, container spreaders play a vital role in transferring containers between different modes of transport, such as railcars, trucks, and ships.

Efficiency: Spreaders facilitate the swift transfer of containers from trucks or railcars to storage yards or directly onto ships. This helps in reducing delays and improving the overall logistics flow.
Flexibility: They can handle a wide range of container sizes, making them ideal for intermodal operations where different container types are commonly used.

Streamlining Logistics Operations: Container spreaders help streamline logistics by enabling seamless transfer and sorting of containers at transport hubs. Whether it’s moving containers from a rail track to a truck chassis or from one stacking zone to another, spreaders ensure operations remain smooth and on schedule.

Improved handling: With the ability to adjust to different container sizes and lifting needs, spreaders support efficient handling in fast-paced intermodal environments.
Reduced turnaround time: The use of semiautomatic or fully automatic spreaders reduces the need for manual intervention, speeding up container handling and reducing human error.

Logistics and Warehousing

Container Storage and Stacking: In logistics and warehousing, container spreaders are used for storing and stacking containers efficiently in large warehouses or storage yards.

Space optimization: Spreaders allow for the efficient stacking of containers in multiple tiers, maximizing storage space and improving site utilization.
Precision stacking: Spreaders equipped with automatic twistlock mechanisms ensure that containers are securely positioned, preventing instability during storage.

Optimizing Space in Terminals: Container spreaders help optimize terminal space by enabling containers to be stacked in a way that maximizes available storage areThis is particularly useful in busy logistics hubs and container terminals, where space is limited, and efficient use of the area is essential for managing high volumes of goods.

Customizable configurations: Different spreader types (fixed, telescoping, semiautomatic) allow for adaptable configurations based on the specific needs of the terminal or warehouse.
Improved workflow: The ability to easily stack, retrieve, and move containers ensures a more organized workflow, helping operations run smoothly and reducing bottlenecks.

In summary, container spreaders are indispensable across various industries, from port operations to intermodal transport and logistics. Their flexibility, efficiency, and ability to handle different container sizes make them essential for optimizing container handling, improving storage solutions, and enhancing the flow of goods across different transport modes. Whether in a port, terminal, or warehouse, container spreaders help increase productivity and reduce operational costs.

Advantages of Using Container Spreaders

Improved Efficiency

Reduced Loading/Unloading Times: Container spreaders significantly cut down the time required for loading and unloading containers. With their ability to handle containers of varying sizes (20ft, 40ft, 45ft), spreaders streamline the entire process, ensuring that containers are quickly transferred between ships, trucks, and railcars.

Faster turnaround: This speed helps in meeting tight schedules, especially in high-volume operations, and increases throughput at ports and terminals.
Precise handling: The automatic features, such as twistlock adjustments and load positioners, help ensure that containers are aligned correctly for efficient lifting, reducing the need for multiple adjustments.

High Automation and Reduced Manual Labor: Modern container spreaders are equipped with automation features that reduce the need for manual intervention, making the operations more efficient.

Automatic adjustment: The spreader automatically adjusts to the container size, minimizing the time spent on manual configuration.
Less human error: By reducing the reliance on manual control, the risk of errors is minimized, leading to smoother operations and fewer delays.

Enhanced Safety

Secure Container Handling and Lifting: Container spreaders ensure secure and stable handling of containers during lifting and stacking operations.

Twistlock mechanisms: These mechanisms automatically adjust and lock into place, preventing the container from shifting or falling during transport.
Load monitoring: Some spreaders include load sensors to monitor weight, ensuring that containers are lifted within safe capacity limits.

Reduced Risk of Operational Accidents: By automating key functions and improving precision, container spreaders reduce the likelihood of accidents that could occur due to human error or equipment malfunction.

Torque limitation systems: These systems protect the spreader and lifting equipment by preventing the twistlocks from becoming blocked in ISO corners.
Safety alerts: Features like warning lights, alarms, and overload indicators help alert operators to any irregularities, ensuring prompt action to prevent accidents.

Cost-Effectiveness

Minimizing Downtime and Maintenance Costs: Container spreaders are designed for durability, which translates into less downtime and reduced maintenance costs.

Robust design: Manufactured from high-quality materials, these spreaders are built to withstand harsh environments, ensuring long-term reliability and fewer breakdowns.
Low maintenance: With features like easy-to-replace parts, clear maintenance guidelines, and durable components, these spreaders require minimal maintenance, which helps keep operational costs down.

Long-Term Investment in Robust Equipment: While container spreaders may require a significant initial investment, their durability, automation features, and efficiency improvements make them a cost-effective choice in the long run.

Return on investment (ROI): The high efficiency and reduced labor costs associated with automated spreaders result in a quicker ROI, making them a wise investment for ports, terminals, and logistics operations.
Extended lifespan: Thanks to the use of quality components and a solid design, container spreaders tend to last longer, ensuring that the business gets maximum value out of its equipment.

In summary, container spreaders offer a range of significant advantages, from improved efficiency and enhanced safety to cost-effectiveness. These benefits make them essential for modern container handling operations, where speed, precision, and reduced operational costs are crucial. Investing in container spreaders not only boosts productivity but also ensures long-term reliability and a safer working environment.

Conclusion

Container spreaders are designed to offer remarkable versatility, enabling them to handle a wide range of container sizes, including 20ft, 40ft, and 45ft. This makes them adaptable to various operational needs across different sectors, from port terminals to intermodal transport hubs.

Efficiency: By automating many tasks such as twistlock adjustments and load monitoring, container spreaders reduce loading and unloading times, which boosts operational throughput and reduces labor costs.
Safety: With built-in safety features like torque limitation systems, automatic twistlock adjustments, and load sensors, container spreaders ensure that containers are handled securely, reducing the risk of accidents and improving the overall safety of operations.

Whether dealing with standard containers, oversized containers, or containers with varying configurations, container spreaders provide a flexible solution that can be tailored to different operational requirements. Their ability to handle a variety of container sizes makes them indispensable in fast-paced environments, ensuring smooth, efficient, and safe container handling at all times.

Selecting the right container spreader is critical to ensuring optimal performance, safety, and cost-efficiency in your operations. Factors such as lifting capacity, container compatibility, and automation level should be carefully considered when choosing the best spreader for your needs. Investing in the right equipment will not only improve the efficiency of your operations but also minimize risks and long-term maintenance costs.

In conclusion, container spreaders are a vital component in the modern logistics and transport industry, offering benefits in terms of efficiency, safety, and cost-effectiveness. By choosing the right spreader for your specific needs, you can ensure smooth and safe container handling that supports the growing demands of global trade. As technology advances, container spreaders will continue to evolve, delivering even greater performance and value to ports, terminals, and transport facilities worldwide.
