For die handling, a 50 ton /10 ton overhead crane are provided to Australian factory.
The requirement to flip the dies is usually specified in the die installation and maintenance area. This can be achieved by using two hoists working in tandem on a single or multiple crane, or by using die turning devices such as upenders or specialized lifting beams with a rotating device incorporating slings that roll the load within the slings grip. In the following, 50 ton /10 ton overhead cranes for die handling for sale Australia for your reference.
European 50/10 ton overhead cranefor sale Australia
On January 16, 2018, A request for a 50 ton double girder overhead crane for die handling was received by Yuantai Crane. The main specifications of overhead crane given by Australian client was presented for your reference:
- Crane capacity: 50 ton overhead crane
- Cranespan is 63.25 feet,
- and the lifting height is 30 feet.
- Functions: The overhead crane will be used to lift Metal stamping dies and plastic injection molds .
- A cable could be used to control the device.
- The power supply for the inside double girder crane is 480V 60HZ 3Phase.
With these parameters, our crane engineerand designing team provided the an overhead crane drawing and quote sheet to the client . In the meantime, we welcome our Australian customers to visit our facility where we make overhead traveling cranes so they may learn more about us.
Negotiations on the 50 ton /10 ton double girder overhead crane
The communication emails are provided for your reference in order to provide you with a vivid presentation of our communication between the Australian client and Yuantai Crane Crane.
Confirmation of parameters for 50 ton/ 10 ton double girder cranesCherry,
Thank you very much for your quote and prompt response. From the top of the rail to the lowest point of the ceiling, I only have 1650mm. Is there a way to fix this? I don't even need the cabin control.
Please let me know.
Thank you very much.
Following confirmation with our engineer and product department, we supply our Australian client with a customized design as a European standard double girder overhead crane.

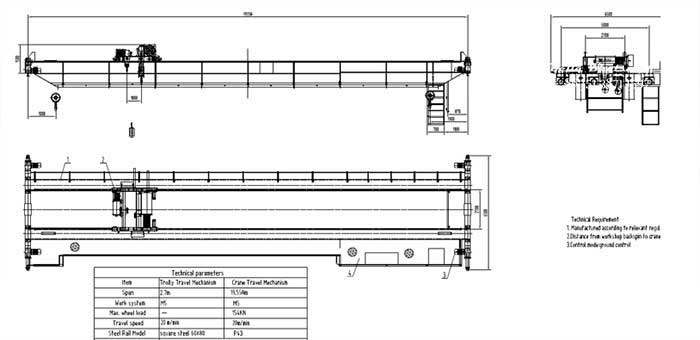

Design drawing of the 50/10Tdouble girder overhead crane
On confirming shipping cost to Australia
The Australian friend then needed us to confirm the shipping cost, so he emailed us and wrote: Thank you for your quote, Cherry. Do you know how much it will cost by shipping ?
So we sent the CIF quotation to the client, and they will make the final decision next week.
After visiting Yuantai Crane Crane's manufacturing facility, customers provided feedback.
Cherry, thank you for the update. xx was impressed by his visit to your plant.
Can you add the cost of the electric bus route to the cost of the crane? I require 500 feet (155 meters).
Good day, Cherry.
I reviewed your proposal and am very interested in purchasing a crane from Yuantai. xx considered your factory to be the best option.
Because of our client's wise decision, we finally received an order from our Australia client as best quality. You will be impressed by Yuantai Crane Crane's factory power, production and inspection processing line, and the sincerity and honesty of Yuantai Crane people once you come to us and see for yourself.

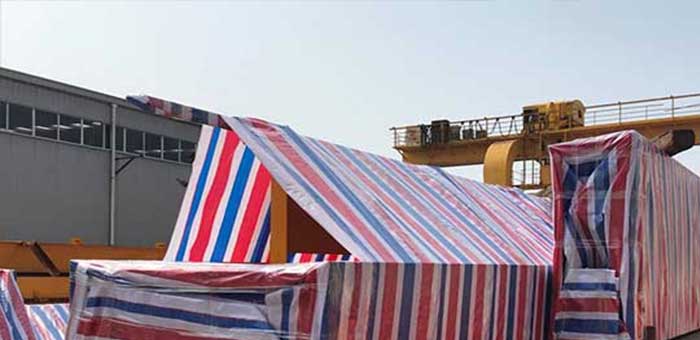

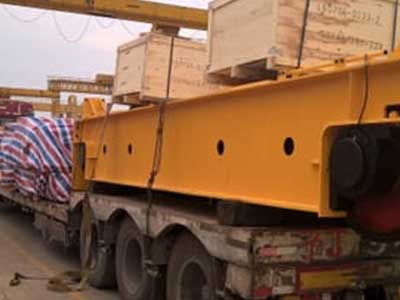

50 ton cranes for delivery
50 toncrane hookfor 50 ton / 10 ton double girder overhead crane for sale USA - Yuantai Crane double girder overhead crane
50 ton / 10 ton double girder overhead crane for sale USA - Yuantai Crane double girder overhead crane
50 ton / 10 ton double girder overhead crane for sale USA - Yuantai Crane overhead crane
Features of mold and die handling cranes
Aside from the cost of two hoists for the flipping operation, the hoisting equipment features required to ensure a proper system increase the overall system cost.
- When using two hoists on a single crane to turn a mold, hoists perpendicular to the crane's bridge beam are required. This keeps the wire ropes seated in the rope grooves and prevents them from being pulled across the drum ridges, potentially damaging the wire rope.
- Rope guides are also not recommended for hoists because they are easily damaged by the slightest side pull. Rope guides, which are common on European-style hoists, are also costly to replace.
- Double reeved ("True Vertical Lift") hoists are also preferred because the hook remains stationary in the same position relative to the hoist body at all times, ensuring evenly distributed loads.
- Although many flipping operations call for the use of two different hoist capacities, a far safer and more conservative approach is for both hoists to be of sufficient capacity to support the load. This minimizes the possibility of a damaging overload and anticipates the likely shock loading that the units will encounter during a flipping operation. A secondary mechanical load brake is a feature that adds some safety in the event of a motor brake failure.
- A robust design will help extend the life of the hoist while enduring shock loads and will help extend the life of the often abused hoists.
- Load limiting devices are required to ensure that the hoists do not lift dangerous loads.
- Control stations with the option of using a single hoist and trolley or both. This enables the hoists to travel and hoist in tandem or separately. We recommend using remote radio controls to keep the operator at a safe distance from any moving load.
- The crane and hoist must be able to travel at slow speeds in order to place objects precisely.
We recommend using variable frequency drives on the hoist trolley and bridge to allow for slower speeds to be programmed.
