5 Ton Gantry Crane Low Headroom Design, Higher Hook Height for Sale
5 ton gantry crane, single girder design, low headroom hoist, better hook height in low ceiling workshop for sale Bahrain in stone processing factory. Check now.
Yuantai Crane Euro Design Model Single Girder Gantry Crane with Euro Design Low Room Wire Rope Hoist with Good Appearance and Low Cost.
Overhead gantry crane single girder MH Model for indoors or outdoors factory and workshop.
Main specifications of 5 ton gantry crane for Bahrain
- gantry crane capacity： 5 ton
- gantry crane span： 12.5 m
- gantry lift height：5m
- Run way length: 50m
- Loading Materials: Stone yard
Similar to a bridge crane, the MH type single girder gantry crane employs legs to support the bridge and an electric hoist to move on the crane rail or track embedded on the ground. The gantry cranes are widely used when the overhead crane or overhead crane runway is impossible.

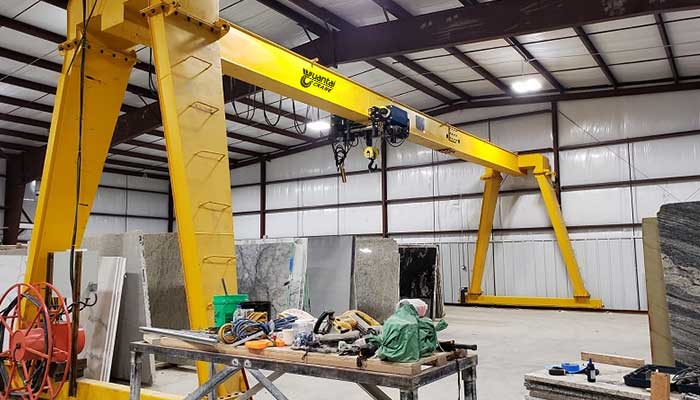

Based on lifting requirements and application conditions, the 5 ton gantry crane are designed and used for stone and marble plates handling in stone processing workshops. With low headroom design, the gantry crane well met the client’s requirement on lifting height in the relitively limited space workshop.
Advantages of Eurostyle Gantry Crane 5 ton
- The overhead gantry crane will reduce your expenditures for developing a plant and a workshop and will increase production efficiency;
- Gantry crane can be used both indoor and outdoor use;
- The European style gantry crane requires less regular maintenance and offer high operation performance and safety.
MH model single girder gantry crane is typically used for outdoor applications where full beams and columns can’t be installed, or the gantry crfane can be used below an existing bridge crane system. Gantry cranes can most commonly be found in shipyards, railyards, special outdoor projects like the construction of a bridge, or in places like steel mills where overhead room may be an issue.
Package of 5 ton gantry crane for sale Philippines
- Main beams and end beams are packed by plastic woven fabric, to avoid abrasion while shipping.
- Electric parts are packed by high grade plywood box, to reduce distortion in conveyance.
- The steel structure of gantry cranes will be transported in bulk or per container.
Comparisons of European style gantry cranes vs General use gantry cranes

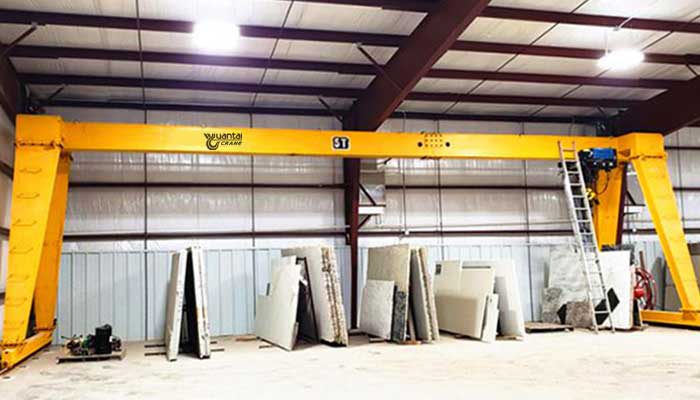

single girder gantry crane 5 ton general type
MH single girder gantry crane parameters
- Lifting capacity: 3-20t
- Span length: 8-35m
- Lifting height: 6-18m
- Lifting speed: 0.33-8m/min
- Trolley speed: 20m/min
- Crane travelling speed: 20m/min
- Working class: A3 、A4
- Customized service

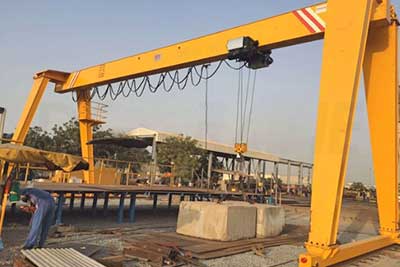

European style single girder gantry crane parameters
- Lifting capacity: 3.2-20t
- Span length: 8-35m
- Lifting height: 6-12m
- Lifting speed: 0.66-5m/min
- Trolley speed: 2-20m/min
- Crane travelling speed: 3-30m/min
- Working class: A5
- Customized service
European type gantry cranes differ from traditional cranes in that they have a distinct structural design with a main box-type girder. This has the advantage of reducing the height of the crane itself while to some extent increasing its lifting height. End beams are tubular in shape and can be split off from typical crane end beams.
And the primary distinction is the use of high-quality components. A crucial portion of such parts is the European wheel group, namely. European wheel groups are lightweight, compact, and easy to install.
They primarily consist of four parts: the wheel shaft, wheel, bearing box, and bearing. Directly matched with the triad reducer; no coupling required. Thus, this type of wheel has a small overall footprint, excellent assembly precision, quiet operation, and low noise. The wheel through modulation treatment, hardness of heat treatment HB300-HB380, car axle interference fit, and flat key links. High strength 42 crmo forgings. Car shaft made of 42 CrMo material with conditioning after rough machining and HB300 heat treatment hardness.
Applications of 5 ton gantry cranes
Pre Engineered Steel Building, Steel Plant, Steel Product Maker, Oil Industry, Plastic Plant, Cement Plant, Power Plant, Mine Industry, Food Industry, Chemical Industry, Cable Plant, Machine Tools, Car/Truck Industry, Transport Company, Construction Company, Electrical Company, Shipyard, Stone Yard, Installation and Maintenance, etc. are just a few of the many industries to which it is broadly applicable.
Get your custom 5 ton gantry cranes
- Capacity of gantry crane : _5_ton?
- Span length of gantry crane : __m?
- Any cantilever do you need? Left cantilever: __m? Right cantilever: __m?
- Lift height of overhead gantry: __m? (hook center to ground)
- Traveling distance: __m? Do you need us provide rail and cable?
- Which material to lift? Loads conditions & dimensions, etc.
- Any special requirement on lifting speed, hoist traveling speed and crane traveling speed?
- Work frequency: like how many times/day, hours/time?
- So that we can confirm which type is more suit for your case: like double girder or single girder?
- Working condition: temperature? Wind?Humidity? Slope?
- Power supply: of electric travelling gantry crane: 220/380/400/440V, 50/60Hz, 3Ph?
