Truss Girder Double Beam Gantry Crane for Sale Bahrain
Double beam gantry crane with truss girdert design for sale Bahrain for concrete beam handling with capacity 65 ton. Check 65 ton gantry crane specifications.
Overview of 65 ton gantry crane
- Crane type: double girder gantry crane, with truss girder design
- Main specifications: 65 ton, Span 19m,Height 12m
- Application: bridge beam construction
- Country:Bahrain
Background of 65 ton double girder overhead crane
This double beam girder gantry crane was purchased by a cooperated client of ours in Bahrain. The double beam gantry crane is required for a bridge project to handle the concrete bridge beam. After thorough communication of the working conditions, the working class of the gantry crane is confirmed and the concrete handling crane design. It is a truss beam double girder gantry crane since they are preferred by majority of the bridge construction working site due to the typical working frequency, and its features of simple to disassemble and transport.
Confirmation of double beam gantry crane
We discussed the configuration and accessories with the Bahrain client after we confirmed the 65 tontruss gantry crane design. The first client informed us that thedouble girder gantry crane would need to travel 100-200m each time. This is the most efficient method of operation. Following their discussion, they agreed on thegantrycrane's running length of 180m. We outfitted thedouble beam gantrycrane with a 180m long rail and a 100m center cable power supply.
Specificationsof gantry cranes
- Capacity:65 ton
- Span: 19 meter
- Lifting Height: 12 meter
- Lifting Speed: 15-1.5 m/min
- Trolley traversing speed: 0.9-9 m/min
- Full load traveling speed: 1-10m/min
- Crane running length: 180m
In this stage, the client requires a SEW or ABM motor; however, a general domestic motor will suffice; their local prefers European types and is willing to accept the cost increase. As a result, we confirm the SEW motor for our client.
We received the project and began production of the 65 ton truss gantry crane for our Bahrain client. Our workers did not dare to slack off during the construction of this gantry crane, and the 65 ton truss gantry crane was completed on time. It will be transported on April 11th. The truss girder gantry crane will be returned once. We make frequent contact with the driver and freight forwarder. Resolving the transportation issue.
Production of gantry crane 65 ton

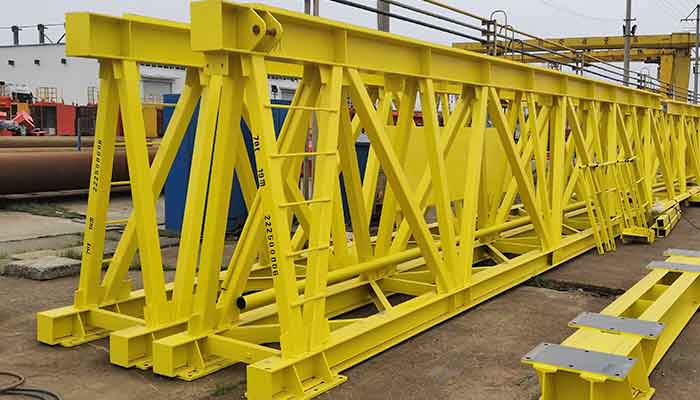

Truss girder gantry crane, beam girder

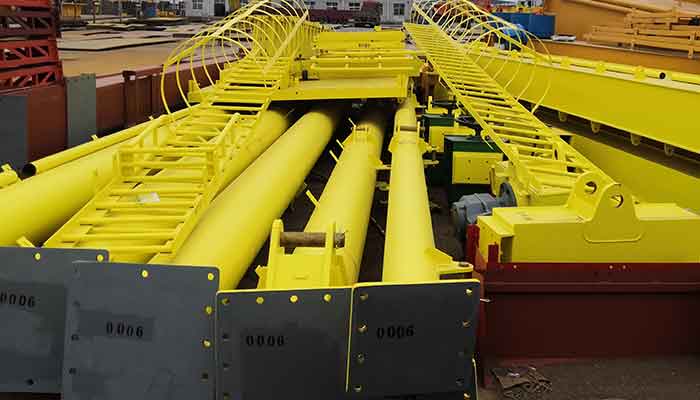

Supportiang legs and other steel structure components
Open winch trolley as the lifting mechanism
Features of truss girder gantry crane
In general, there are three types of truss girder gantry cranes. First, truss girder gantries are commonly used in concrete beam yards to lift beam girders used in bridge construction. A electric hoist will travel beneath the truss crane's main girder to lift light and small tools or material. Second, an engineered gantry crane will be used in the bridge construction site Once completed, the engineer gantry crane will also be used to lift concrete beams from the ground transporter to the bridge transporter, assisting the launcher crane in the construction of the entire bridge. Third type is the beam launcher crane.
To make moving the gantry crane from one erect point to the next easier and to save money, we usually provide a moveable steel box foundation for engineer gantry cranes.
Truss girder gantry cranes are primarily used in the construction of concrete beam yards and bridges, but they are also used in the steel, forest products, intermodal, biomass/pellet, and many other industries.
Features
- The truss beam gantry cranes can be installed and disassembled more quickly and easily.
- All necessary safety devices are included.
- It has a movable steel box foundation.
- Typically, one set of electric hoists is provided to lift light and small tools or material.
- Speed is slower than a standard gantry crane, but there is more safety.
The lifting mechanism is an open winch for double girder crane and heavy duty loads handling.
Get your customized truss girder gantry crane
The truss beam gantry crane is suitable for large loads and intermittent operation, and it is simple to disassemble and transport. Please let us know if you require a gantry crane in this condition. We offer personalized services, such as color, logo, and so on. Please leave us the following information to get your specific crane quotation.
- Types of gantry crane : Box girder or truss girder
- Lifting capacity
- Span:
- Cantilever: single cantilever, double cantilever, no cantilever
- Lifting height
- Whether you need overhang
- How long will the gantry crane will travel
