Custom 5000KG Overhead Crane: Elevating Industries in Saudi Arabia

In the ever-evolving landscape of industrial requirements, precision and efficiency are paramount. It is within this context that we embark on a bespoke project, responding to the unique needs of our esteemed client in Saudi Arabia. The client's requirement for a custom 5000KG overhead crane serves as the impetus for a venture that promises to redefine lifting capacities in the region.

Industrial Needs in Saudi Arabia:The Kingdom of Saudi Arabia stands at the forefront of industrial expansion in the Middle East. With diverse sectors ranging from petrochemicals to manufacturing experiencing exponential growth, the demand for robust material handling solutions is more pronounced than ever.
Specific Use Cases for a 5000KG Capacity Crane:The decision to opt for a 5000KG capacity overhead crane is informed by a keen understanding of the intricacies of industrial operations. This crane's versatility makes it an ideal solution for various applications, including heavy machinery assembly, material loading and unloading, and logistical operations within the expansive industrial facilities of Saudi Arabia.

The custom 5000KG overhead crane is not merely a piece of machinery; it is a tailored solution designed to align seamlessly with the industrial fabric of Saudi Arabia, ensuring optimal performance and operational efficiency. As we delve into the intricacies of this project, the confluence of client requirements and industry demands becomes evident, setting the stage for a transformative endeavor.
5000KG overhead crane custom for your needs

5000KG overhead crane custom for your needs

Client Requirements

Main Specifications

Capacity: 5000KG: The cornerstone of this project lies in meeting the client's need for a robust lifting solution with a substantial capacity of 5000KG. Understanding the nuances of the materials and products to be handled ensures that the crane's design and components are precisely calibrated to handle this weight with utmost safety and efficiency.
Crane Span: 06 m: In customizing the crane to the client's specifications, the span of 06 meters has been meticulously chosen. This dimension strikes a delicate balance between the spatial constraints of the industrial setting and the need for an expansive reach, optimizing the crane's maneuverability within the designated workspace.
Lifting Height: 5 m: The lifting height of 5 meters is a critical parameter, tailored to accommodate the vertical requirements of the client's operations. This specific lifting height empowers the crane to seamlessly handle diverse loads across varying heights, catering to the dynamic nature of industrial processes in Saudi Arabia.
Voltage: 380V60HZ3P: Powering the crane with a voltage of 380V60HZ3P ensures compatibility with the local electrical infrastructure in Saudi Arabia. This voltage configuration not only aligns with regional standards but also enhances the crane's operational reliability, facilitating a smooth integration into the client's existing power network.

Special Considerations

Environmental Factors in Saudi Arabia: Saudi Arabia's environmental conditions, characterized by high temperatures and occasional sandstorms, necessitate a design that can withstand the harsh climate. The materials selected for the crane undergo rigorous testing to ensure resilience against corrosion and degradation, guaranteeing longevity even in challenging weather conditions.
Safety Regulations and Compliance: Adherence to stringent safety regulations is non-negotiable in our commitment to delivering a crane that not only meets but exceeds industry standards. By integrating advanced safety features and meticulously following local safety regulations, the custom 5000KG overhead crane is engineered to operate with the highest levels of safety, mitigating risks and ensuring the well-being of personnel and assets in the industrial environment.

In essence, the client's requirements transcend mere technical specifications; they encapsulate a comprehensive understanding of the operational environment and safety imperatives, underscoring our dedication to delivering a solution that aligns seamlessly with the client's operational ecosystem in Saudi Arabia.

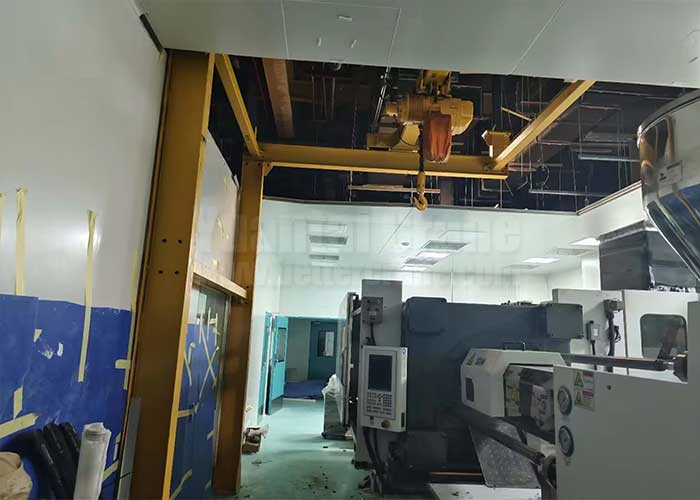

5000KG overhead crane custom low headroom design with half floor mounted runway and half ceiling mounted runway for your particular needs

Design and Engineering of 5000kg Electric Travelling Overhead Cranes

Crane Structure

Selection of Materials for Durability and Strength: The backbone of any reliable overhead crane lies in its structural integrity. Our design process places a premium on the selection of materials renowned for their durability and strength. High-strength steel alloys, meticulously chosen for their resistance to fatigue and wear, form the core of the crane's structure. This ensures longevity and steadfast performance even under the most demanding industrial conditions.
Customization of Crane Dimensions to Meet Client's Specifications: Tailoring the crane's dimensions to align precisely with the client's specifications is not merely a design choice; it's a commitment to operational efficiency. Every element, from the length of the crane's boom to the placement of controls, is meticulously customized. This bespoke approach ensures that the crane seamlessly integrates into the client's workspace, optimizing its utility and minimizing any potential impact on surrounding operations.

Runway Design

Custom Runway Layout Based on the Crane Span: The success of an overhead crane is not only contingent on the crane itself but also on the design of the runway it traverses. Our engineering team meticulously calculates the optimal runway layout based on the crane span. This bespoke approach guarantees that the crane moves with precision, covering the entire operational area without unnecessary complexity or interference. The runway design is a testament to our commitment to a holistic and seamlessly integrated lifting solution.
Floor-Mounted and Ceiling-Mounted Configurations: Understanding the diverse needs of our clients, we offer flexibility in choosing between floor-mounted and ceiling-mounted configurations. The decision is often driven by the spatial constraints and operational requirements of the client's facility. The floor-mounted setup is ideal for spaces where overhead space is limited, while the ceiling-mounted configuration maximizes floor space utility. Our engineering team collaborates closely with the client to determine the most suitable configuration, ensuring a harmonious integration of the crane into the existing infrastructure.

In essence, the design and engineering phase is a meticulous process that extends beyond the creation of a mere lifting apparatus. It involves the crafting of a tailored solution, where each component is optimized to enhance operational efficiency, durability, and adaptability to the unique demands of the client's industrial landscape in Saudi Arabia.

Manufacturing and Assembly

Component Selection

Quality of Materials for the Crane Structure: The foundation of a reliable and durable crane lies in the careful selection of materials. Our engineering team meticulously opts for high-strength alloys and steel, ensuring the crane's structural integrity even under heavy loads and challenging conditions. The chosen materials undergo rigorous testing to meet international standards, guaranteeing longevity and resistance against wear and tear.
Precision in Selecting Electrical Components for Efficient Operation: The efficiency and reliability of the overhead crane heavily depend on the quality of its electrical components. Each electrical part, from motors to control systems, is selected with precision, taking into account factors such as energy efficiency, load management, and responsiveness. By integrating cutting-edge electrical components, we ensure optimal performance, reduced downtime, and a longer operational life for the crane.

Assembly Process

Step-by-Step Manufacturing Process: The assembly process of the custom 5000KG overhead crane is a carefully orchestrated series of steps, where precision meets expertise. Beginning with the fabrication of the crane's structural elements, each component is crafted with precision using state-of-the-art machinery. The assembly process then progresses, integrating electrical systems, safety features, and control mechanisms. This step-by-step approach ensures a seamless integration of all components, guaranteeing a crane that meets the highest industry standards.
Quality Control Measures at Each Stage: Quality control is ingrained in every phase of the manufacturing process. At each assembly stage, our team conducts stringent quality checks, scrutinizing the dimensions, material integrity, and functionality of every component. Advanced testing methods, including load simulations and stress tests, are employed to verify the crane's performance under real-world conditions. This meticulous quality control ensures that the final product not only meets but exceeds the client's expectations for reliability and efficiency.

The emphasis on quality during the manufacturing and assembly phases reflects our commitment to delivering a custom 5000KG overhead crane that not only meets the technical specifications but also stands as a paragon of precision engineering and durability.

5000kg electric crane hoist

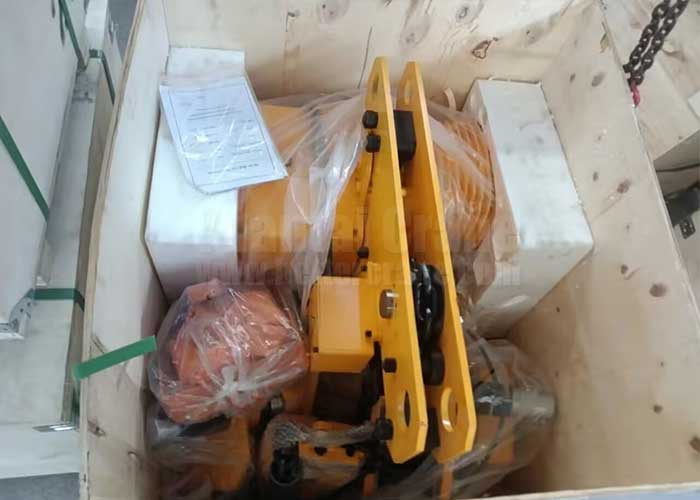

Main steel parts and electrical parts will be packed in wooden cases for delivery to Saudi Arabia

Testing and Quality Assurance

Load Testing

Simulating Real-World Conditions with a 5000KG Load: The efficacy of the custom 5000KG overhead crane is put to the ultimate test through rigorous load testing. Simulating real-world scenarios, the crane undergoes trials with a precisely calibrated 5000KG load. This dynamic testing ensures that the crane not only meets but exceeds its lifting capacity requirements, guaranteeing optimal performance in actual operational conditions.
Ensuring the Crane Meets Lifting Height and Capacity Requirements: Lifting height and capacity are pivotal parameters in the functionality of the overhead crane. During load testing, our team meticulously evaluates the crane's ability to lift loads to the specified height with the designated capacity. This process not only validates the technical specifications but also verifies the crane's stability and precision in handling loads across various heights, ensuring versatility in its application.

Safety Checks

Verification of Safety Features: Safety is paramount in industrial operations, and the custom 5000KG overhead crane is engineered with an array of safety features. These features undergo meticulous verification during the testing phase, ensuring they function seamlessly. From emergency braking systems to overload protection mechanisms, each safety feature is scrutinized to guarantee its reliability in safeguarding both personnel and assets.
Compliance with International and Local Safety Standards: The safety checks extend beyond individual features to encompass compliance with international and local safety standards. The custom 5000KG overhead crane is designed and tested to meet or exceed the safety regulations governing its operation. By adhering to these standards, the crane not only ensures the well-being of those working in its vicinity but also aligns with the regulatory framework in Saudi Arabia, fostering a safe and compliant industrial environment.

The comprehensive testing and quality assurance processes represent our unwavering commitment to delivering a custom overhead crane that not only meets performance expectations but also prioritizes the safety and reliability demanded by the industrial landscape in Saudi Arabia.

Installation and Commissioning

Site Preparation

Coordination with the Client for a Suitable Installation Location: The success of the custom 5000KG overhead crane project hinges on meticulous site selection and preparation. Our team engages in close coordination with the client to identify the optimal location for installation. Factors such as spatial constraints, proximity to operational areas, and adherence to safety regulations are carefully considered. This collaborative approach ensures that the crane is seamlessly integrated into the client's facility, enhancing operational efficiency.
Preparation of the Site for the Crane and Runway Installation: Before the crane and runway installation begins, the site undergoes comprehensive preparation. This includes leveling the ground to ensure a stable foundation, reinforcing the installation area to withstand the crane's load, and implementing safety measures. The preparation process is tailored to the specific environmental conditions in Saudi Arabia, guaranteeing that the installation site is resilient and capable of supporting the crane's operations over the long term.

Installation Process

Step-by-Step Guide to Installing the Crane and Runway: The installation of the custom 5000KG overhead crane is a meticulously orchestrated process. A step-by-step guide is followed, starting with the assembly of the crane components. The runway, tailored to the crane span, is then installed with precision. Each step is executed with attention to detail, ensuring that the crane is securely mounted and aligned for optimal performance.
Collaboration with Local Experts for Electrical Connections: A crucial aspect of the installation process involves the electrical connections. Our team collaborates with local electrical experts who possess an in-depth understanding of the regional power infrastructure. This collaborative approach not only ensures compliance with local electrical codes but also enhances the reliability of the electrical connections. By tapping into the expertise of local professionals, we facilitate a seamless integration of the custom crane into the existing electrical framework, minimizing downtime and maximizing operational efficiency.

The installation and commissioning phase represents the culmination of meticulous planning and precise execution. By aligning our efforts with the client's requirements and leveraging local expertise, we ensure that the custom 5000KG overhead crane becomes an integral and seamlessly functioning part of the industrial ecosystem in Saudi Arabia.

Training and Handover

Operator Training

Training Sessions for Crane Operators: The proficiency of the custom 5000KG overhead crane is intricately tied to the competence of its operators. To ensure optimal utilization, we conduct comprehensive training sessions for crane operators. These sessions cover not only the basic functionalities of the crane but also delve into advanced operational features. Hands-on training with simulated scenarios enables operators to familiarize themselves with the crane's controls and respond adeptly to diverse operational challenges.
Emphasizing Safety Protocols and Efficient Operation: Safety is paramount in industrial settings, and operator training places a strong emphasis on safety protocols. Operators are trained to identify potential hazards, execute emergency procedures, and operate the crane in compliance with safety standards. The training program intertwines efficiency with safety, instilling in operators a holistic understanding of the crane's capabilities and limitations.

Documentation and Handover

Providing Comprehensive Documentation for Future Reference: Accompanying the custom 5000KG overhead crane is a comprehensive documentation package, serving as a valuable resource for both operators and maintenance personnel. This documentation includes detailed user manuals, maintenance schedules, and technical specifications. The aim is to empower the client with the knowledge required to operate and maintain the crane efficiently over its operational lifespan.
Handover Process and Client Acceptance: The handover of the custom crane is a meticulously orchestrated process, culminating in client acceptance. Our team collaborates closely with the client during this phase, conducting a final inspection to ensure that the installation meets all specifications. The client is provided with ample time for hands-on operation under the guidance of our experts. Once satisfied with the crane's performance and safety features, the client formally accepts the system.

The training and handover phase marks the transition of the custom 5000KG overhead crane from a project to a fully operational asset. By equipping operators with the necessary skills and providing comprehensive documentation, we empower our clients to leverage the full potential of the crane while ensuring a smooth handover process that instills confidence in its operation.

Maintenance and Support

Maintenance Schedule

Establishing a Regular Maintenance Plan: The longevity and sustained performance of the custom 5000KG overhead crane hinge on a well-defined maintenance schedule. Our experts collaborate with the client to establish a regular maintenance plan tailored to the specific requirements of the crane. This plan encompasses routine inspections, lubrication schedules, and preventive maintenance measures. By adhering to a proactive maintenance approach, potential issues are identified and addressed before they escalate, minimizing downtime and maximizing the crane's operational efficiency.
Providing Guidelines for Routine Checks and Repairs: Empowering the client with the knowledge to conduct routine checks and minor repairs is integral to our commitment to long-term crane performance. We provide comprehensive guidelines outlining the procedures for routine inspections and minor repairs. This proactive approach not only ensures that the crane is consistently in peak condition but also reduces the reliance on external support for minor maintenance tasks.

Customer Support

Dedicated Support Channels for Any Queries or Issues: Our commitment to client satisfaction extends beyond the installation phase. We establish dedicated support channels, including helplines and online platforms, to address any queries or issues that may arise during the crane's operational life. Our support team is equipped with the expertise to provide prompt assistance, offering solutions to operational queries, technical concerns, or any unforeseen issues that may impact the crane's performance.
Collaboration with Local Service Providers for On-Site Support: Recognizing the value of localized support, we foster collaborations with local service providers in Saudi Arabia. This ensures that on-site support is readily available when needed. By leveraging the expertise of local professionals, we expedite response times, minimize downtime, and provide efficient resolutions to any issues that may require on-site intervention.

The Maintenance and Support phase underscores our commitment to the long-term success of the custom 5000KG overhead crane. By establishing a robust maintenance plan, providing guidelines for routine checks, and offering dedicated customer support channels, we ensure that the crane continues to deliver optimal performance throughout its operational life in the dynamic industrial landscape of Saudi Arabia.

Conclusion

In concluding the journey of the custom 5000KG overhead crane project, we reflect on the intricacies, precision, and commitment that have defined this endeavor.

Meeting Client Specifications and Requirements

From the inception of the project to its final stages, our paramount focus has been on meeting and exceeding the specifications and requirements set forth by our esteemed client in Saudi Arabia. The meticulous attention to detail, adherence to technical specifications, and seamless integration of environmental and safety considerations culminate in a crane that not only meets but surpasses the expectations of our client.

Contribution to the Industrial Landscape in Saudi Arabia

The deployment of the custom overhead crane extends beyond being a mere addition to a facility; it is a significant contribution to the evolving industrial landscape of Saudi Arabia. With its robust design, advanced features, and commitment to safety, the crane stands as a testament to innovation and efficiency. As Saudi Arabia continues to emerge as a global industrial hub, this crane becomes an integral tool, empowering industries to navigate complex operational challenges and drive economic growth.

In retrospect, the success of the custom 5000KG overhead crane project is not merely measured in tons lifted or dimensions spanned; it is measured in the seamless integration of technology, precision engineering, and client-centric solutions. As we conclude this project, we do so with the confidence that the custom crane will play a pivotal role in elevating industrial operations in Saudi Arabia, setting new benchmarks for efficiency, safety, and reliability.
