Double Speed overhead cranes usually refers the overhead crane with duel lifting speed, the slow speed & fast speed. They are widely used for accurate loads position, such as mold exchange, and other applications where high precision load positioning is required.  In the following, the 20 ton overhead crane for sale Saudi Arabia, is an example of double speed overhead crane. Check the application conditions and purpose of the overhead crane, to get better understanding of it and find out the suitable material handling solution for your applications.


Overhead crane for sale Saudi Aribia Series - Contact us to get your customize design. WhatsApp: + 150 38346929.

Overview of duel speed overhead crane 20 ton

• Location: Saudi Arabia
• Date: 27 Jun, 2017
• Products: Double girder overhead crane 20 ton
•  Application: Maintenance & Mold handling

Background of 20 ton overhead crane for Saudi Arabia
This new customer from Saudi Arabia, who was introduced by one of our cooperated client.  The new Saudi Arabia client needed us to find out an overhead crane which not only could help them to conduct the maintenace work of their machinery in workshops but also improve the mould exchange efficiency. After confirming the detailed applicaiton information and lifting requirement, the following summary is concluded.

Function of double speed overhead crane 20 ton

• Maintenance crane for existing workshop with limited space

Due to the new overhead crane will be installed into the  exist workshop where the space is small and limited , the specially designed overhead crane could be small and compact in size, especially with low headroom design.

• Mould handling needs for duel speed overhead crane to ensure precise positioning

 Because client will be used to handle mould, so its lifting and traveling speed request dual speed. Yuatai Crane ‘s professional technical support and design suitable double speed overhead crane crane for them, which fully meet their needs and help us to win the order.

Production of 20 ton overhead crane double speed design

Production time fo the specially designed overhead crane finised production within one month, and the production pictures of the 20 ton overhead cranes are presented for your reference.

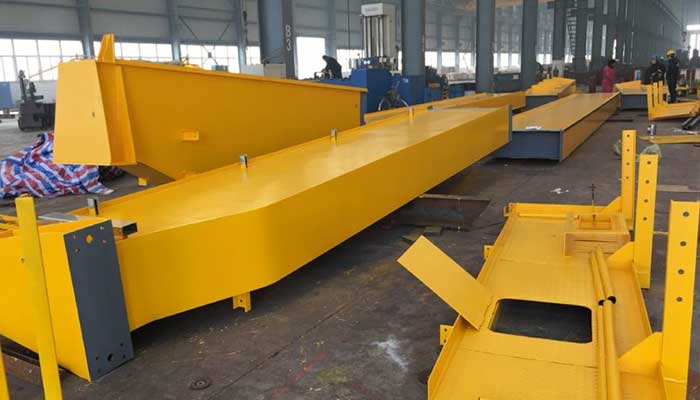

Main steel structrue of overhead crane for the double girder overhead crane project for Saudi Arabi
.

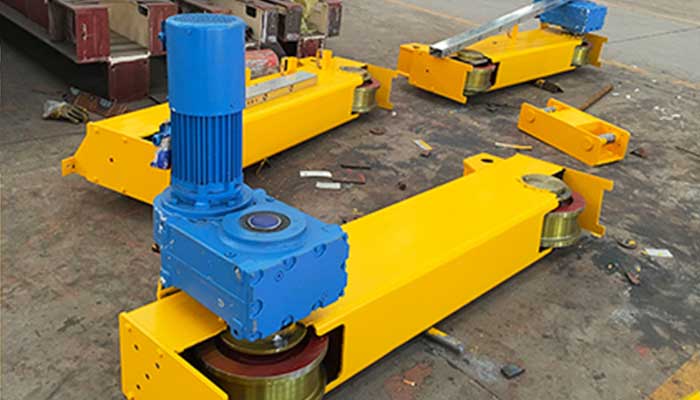

End beam with three in one motor

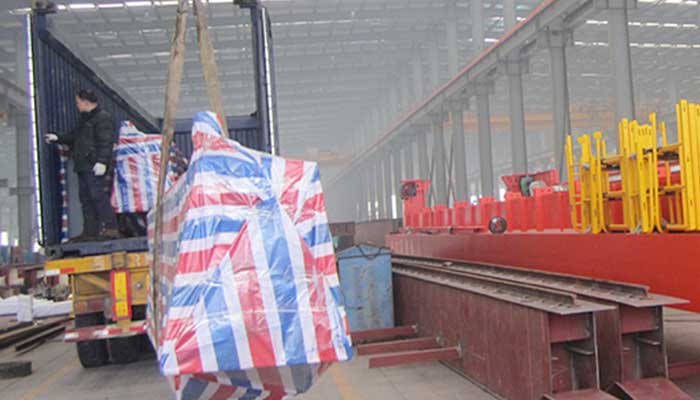

Main beam package and loaded for delivery to Saudi Arabia

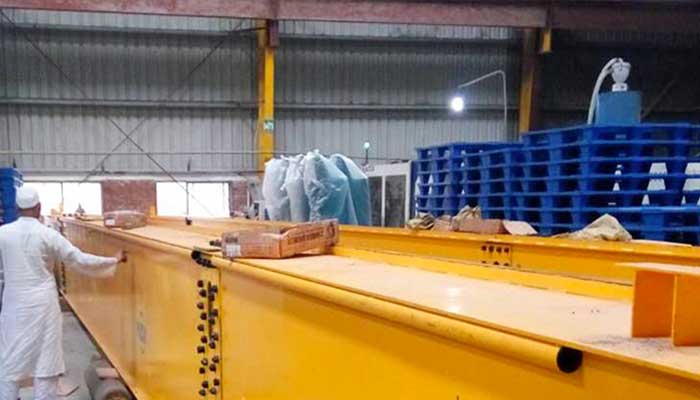

After takes almost 40 days the ship arrived Client destination port. Then our engineer go to help client installation the crane:

Related: single speed & double speed crane hoist

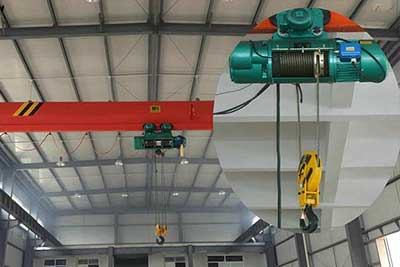

Single speed crane hoist

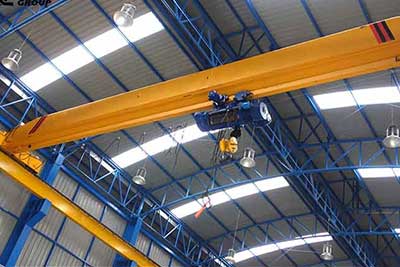

Double speed crane hoist

Single speed/Double speed refers to: lifting speed.

Single-speed crane hoist:

An electric hoist with only one lifting speed, often a regular speed, is referred to as a single speed crane hoist. The tonnage determines the hoisting speed. The CD1 type electric hoist is one type of the single speed hoist .

Double-speed crane hoist:

As for double speed crane hoist, the MD1 series of wire rope hoist is one good example of it. The MD1 wire rope electric hoist, which has two speeds—normal speed and slow speed—is a good example of a two-speed electric hoist. The primary and auxiliary motors' structural design enables two-speed performance.

The primary hoisting motor is close to a small, accelerating motor. The auxiliary motor is running slowly while the primary motor is operating at normal speed. The auxiliary motor, the intermediate gear, and the primary motor brake disc with gears make up an independent slow mechanism.

Working principle of double speed crane hoist:

• When the main motor is connected to a power source, the motor rotor overrides the brake spring's pressure and creates axial displacement, disengaging the brake wheel from the brake disc of the slow speed mechanism. The main motor then runs normally, and the mechanism rises or descends at a normal speed.
• When the power is turned off, the main motor's brake wheel is reunited with the slow speed mechanism thanks to the force of the brake spring. The auxiliary motor's brake opens when it is linked to the power source, and the shaft of the auxiliary motor also creates axial displacement.

The reduction gear drives the main motor brake wheel, which rotates along with the main motor and moves slowly up and down.

How to choose lifting speed of overhead crane hoist ?

The manufacturing requirements can be satisfied by a single-speed wire rope electric hoist in typical operation. In order to achieve uniform speed stability, the MD1 wire rope electric hoist, which are available with the  slow speed and high speed functions, must be used in conjunction with the necessity to alter the lifting speed throughout the lifting process to meet the various lifting purposes. Electric hoists with two speeds are frequently utilized in assembly lines. Slow motion can improve the precision of the loads position and the balance of material handling operation.

Custom overhead crane for your use needs

Based on your application conditions and lifting requirement, the overhead crane can be designed and produced with particular features such as, low headroom design, explosion proof, double speed, synchronized operation of two hoists or cranes, remote control, cabin control,  frequency control & automatic control, etc. Contact us to  get your customized overhead crane today.
