10 Ton Overhead Crane for Agriculture Equipment Manufacturing Workshop

Overhead crane for sale Indonesia .10 ton overhead crane for agriculture equipment manufacturing workshop in Indonesia. Check 10 ton overhead crane project now.

Requirements for 10 ton overhead cranes for Indonesia

For a major producer of agricultural equipment, a 10 ton overhead crane with a span 17.35 -meter-long was built.

Yuantai Crane produced an electric single girder overhead crane for a significant agricultural machinery manufacturer in Indonesia . Despite its substantial size and weight, the new crane's key feature is the hoist mechanism and bridge structure's fluid motion.

All the top running single girder crane drives have Schneider Electric frequency inverters installed, which offer quiet operation and the capacity to operate at both the main speed and the micro speed. For lifting and lowering large-sized objects, the radio control panel on the crane equipment allows for safer and more convenient crane control.

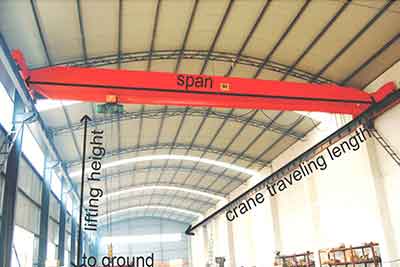

Main technical characteristics of the new crane:

• lifting capacity of top running overhead crane:  10.0 t;
• lifting height of single girder top running crane:  10.5m;
• span  of  top travelling overhead crane:  17.35  m;

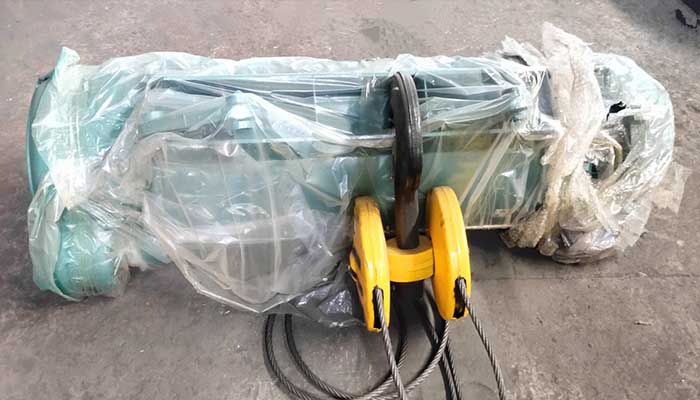

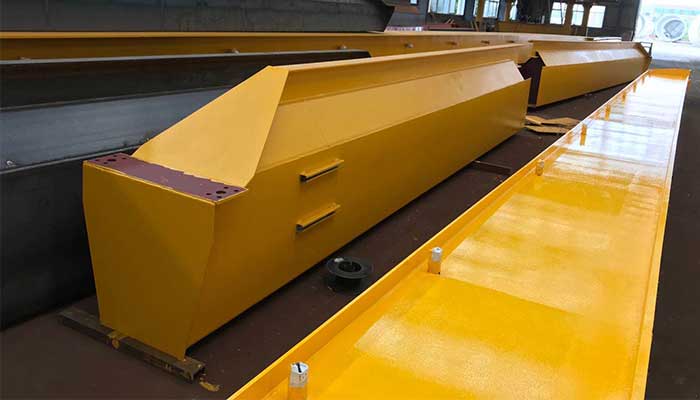

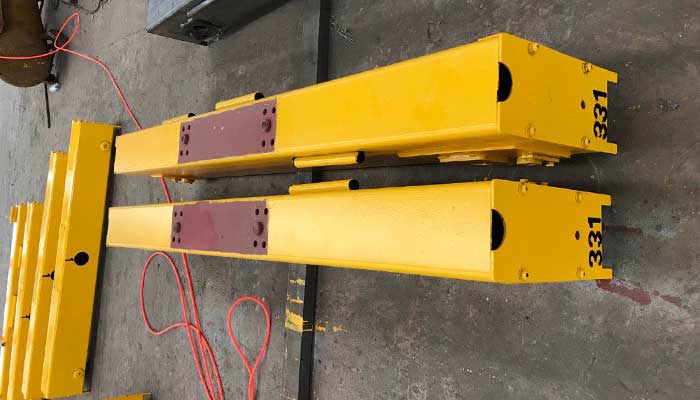

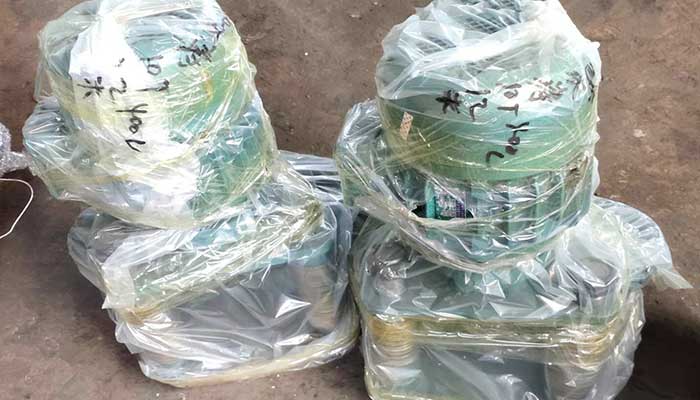

Production of top running overhead crane 10 ton

Since the 10 ton crane's design was developed concurrently with that of the new workshop's structure, by the time the frame and facade of the building were built, the top running overhead crane had already been delivered to its intended location, where it had been successfully mounted, undergone static and dynamic testing, and been given to the customer all the technical documentation that was required.

After the new workshop opens, the  electric eot crane will be used to assemble cutting-edge agricultural equipment made by the client, in particular incubators, hatchers, and incubation equipment. The finished product will also be put into cars with the aid of this crane.

Single Girder Overhead CraneTop Running & Underhung Crane Design

Overhead crane and runway systems are available from Yuantai Crane in a range of styles. We can manufacture almost any unique overhead crane and runway system due to its engineering and design capabilities, which may be used for a range of applications.

Both top running and under hanging overhead cranes are available. . All overhead crane systems can move the bridge manually, manually geared, or powered.

Single Girder Overhead Crane

•  Crane specifications - Rated loads from 1/4 to 20 ton with span/runway lengths up to 100+ feet.
• Crane designs - Freestanding Systems & Ceiling Hung
• Crane parts and components - Bridge Crane Kits Available for both undehrung crane and top running crane design.

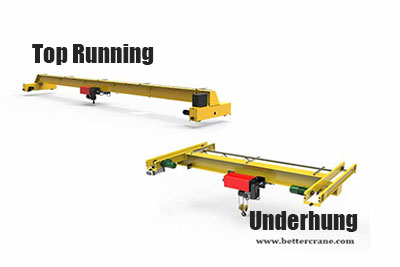

Top running and underhung overhead crane

funtions of overhead cranes or hook coverages

The left image image demonstrates how UNDERHUNG & TOP RUNNING cranes are capable of transporting goods between any two points inside of your workshop.

• Crane long travelling enables loads handling along runway
• Hoist Cross travelling enables loads movement along crane beam span.
• Hook vertical lifting enables loads vertical movement .

Thus  in this way, overhead crane will help your material handling in any place of your workshop.

Hand-driven, manually geared, or powered overhead cranes are all options. There are numerous ways to power and operate motorized overhead cranes, including a pendant that hangs from the hoist or trolley, a wireless radio remote, or a mobile push button station. The finest cranes for handling light weights or loads that are moved infrequently are those that are hand-pushed or hand-chain-driven. With the use of pendant controlled cranes, the operator can keep a close eye on the load as it is being transported. When the operator can't or won't approach the load or has to handle many cranes remotely, radio controls or independent traveling controls are employed.

Applications of overhead cranes

• The majority of material handling operations can use overhead cranes.
• Receiving raw or semi-finished materials or pieces is an example.
• Keeping supplies or parts in storage.
• Transporting components or raw materials to the industrial sites.
• Activity on the assembly lines.
• From the manufacturing floor to the loading dock.
• Work involving loading.

All in all, the single girder overhead crane 10 tons can be used in majoriy of the industrial sections. Contact us to get a customized overhead crane for your application and use now.
