Overview of 35 ton gantry crane
- Crane type: double girder gantry crane
- Crane specification: 35 ton -10.534m -7.2 m
- Project location: Malaysia
- Date:2018-01-26
- Qty:1set
Background of double girder gantry crane 35 ton for Malaysia
The gantry cranes are customized to meet the Malaysia client’s workshop. The double girder gantry crane will be used indoors. Since the workshop has limited space but one the other handling, the client required certain lifting height and crane span to accomplish loads handling. Due to the special application, the35 ton gantry crane is designed with European style with compact structure and low headroom design. The main specifications of the gantry crane are presented for your reference.
Main specifications of gantry cranes
- Capacity of gantry crane :35 ton
- Span of double beam gantry crane : 10.534m
- Lift height of double girder gantry crane : 7.2m
- Lift speed of gantry crane : 0.44-4m/min
- Winch travel speed: 2-20m/min
- Crane travel speed: 3-30m/min
- Voltage: 380V, 50HZ, 3AC
To meet the client's usage requirements, we create a 1:1 crane drawing, consider all details, and then develop a custom design. We, Yuantai Crane, are professionals who value all of our clients' feedback. Simply tell us what you want, and we will work together to achieve a satisfactory result!
Production of gantry cranes
Crane Travel Trolley
SEW European type motor is used in the crane travel motor. Or designated brand are available.

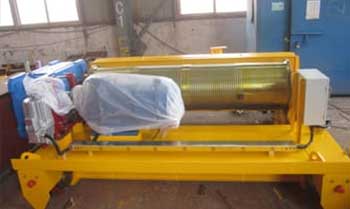

European Type Open Winch
The lifting mechanism, the trolley frame, and the trolley running mechanism are the main components of the trolley. The trolley frame is a plate welding combined structure with sufficient strength and rigidity.

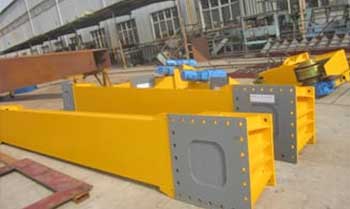

Ground Beam/ crane travelling mechanism
The steel structure and the running mechanism make up the crane traveling mechanism. The steel structure is made of welded box-shaped structures that are strong and rigid. The driving mechanism is made up of a motor, a reducer, and a wheel set, etc. It has safety features such as rail cleaners, buffers, and operating limits.
Main Beam
The main beam is made of welded box or truss, which has high rigidity and strength.
On the main beam, pedestrian passages and railings are provided to facilitate inspection and maintenance.
The upper arch is taken into account when designing and manufacturing. Camber shall not be less than that specified in GB/T14406-93 "Universal Gantry Crane" and other current relevant standards.

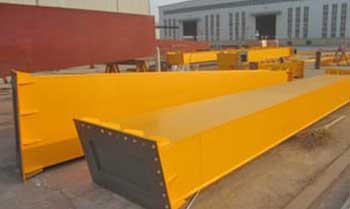

Support Legs
It has a welded box or truss structure, and the legs are made up of upper flanges, lower flanges, and supports that are welded together with steel plates or section steels. The upper flange is large, and the lower flange is small, resulting in a variable cross-section structure with a large upper and a small lower flange that can carry vertical and horizontal loads effectively.

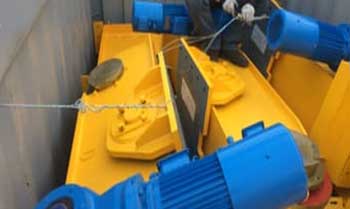

crane delivery- reinforcement in containerRelated:
European style gantry crane
Yuantai Crane offers European type gantry crane solutions, including single girder and double girder European type gantry cranes. Capacity ranges from 1 ton SWL to 800 tons SWL (we also manufacture gantry crane designed according to client special requirement).
Crane design in accordance with FEM and DIN standards, with small limit size, high precision, low power consumption, light weight, and low noise; modular design for ease of transportation and installation; crane equipped with frequency control, smooth operation, and high efficiency.
- Capacity: 5 ton -320t
- Span length: 18-36m
- Lifting height: 6m, 9m, 12m,etc.
- Work duty: A3-A8
- Raged voltage: 220V~690V, 50-60Hz, 3ph AC
- Work environment temperature: -25℃～+40℃, relative humidity ≤85%
- Crane control mode: Pendant control / Wireless remote control / Cabin control
Steel, Forest Products, Intermodal, Biomass/Pellet, Concrete, and many other industries use European type gantry cranes.
Features
- Gantry crane design based on FEM and DIN standards fully equipped with all required safety equipment.
- Small limit size, light weight, modular design, easier to travel and install.
- Utilizing high-quality components can lower maintenance expenses and failure rates.
- Crane with frequency control, efficient operation, and smooth operation.

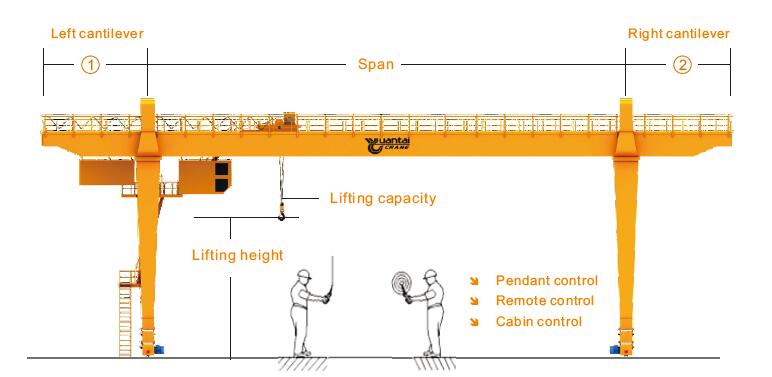

Get your customized gantry crane?
- Capacity: __ton?
- Span length: __m?
- Any cantilever do you need? Left cantilever: __m? Right cantilever: __m?
- Lift height: __m? (hook center to ground)
- Traveling distance: __m? Do you need us provide rail and cable?
- Which material to lift?
- Any special requirement on lifting speed, hoist traveling speed and crane traveling speed?
- Work frequency: like how many times/day, hours/time?
- So that we can confirm which type is more suit for your case: like double girder or single girder?
- Working condition: temperature? Wind?Humidity? Slope?
- Power supply: 220/380/400/440V, 50/60Hz, 3Ph?
