2 Ton Floor Mounted Jib Crane with Magnets for Sale Malaysia
Floor jib crane for sale Malaysia. Floor mounted jib crane, rotating jib design for sale Malaysia. Check crane specification & production picture now.
Overview of Floor mounted jib crane for sale Malaysia
- Crane type: floor mounted jib crane
- Crane specification: 2 ton - 4.5 m -3 m
- Country:Malaysia
- Date:2017-07-10
- Qty:2 Sets
Main specification of floor mounted jib crane 2 ton
According to our customer's requirements, the floor mounted jib crane is designed with electric rotating and equipped with electric wire rope hoist and magnetic.YX1-2 model magnetic easy to control, compact structure. It is suitable for lifting small parts.
Main parameters of floor mounted jib cranes
- Lifting capacity: 2 ton
- Lifting height: 3m
- Arm length: 4.5m
- Power source: AC 380V 50HZ
- Slewing angle: 200°
- Lifting speed: 8m/min
- Traveling speed: 20m/min
- Rotate mode: Electric
- Magnetic: 2 ton
Productions of floor mounted jib cranes 2 ton
Yuantai Crane designs, manufactures, and sells floor-mounted jib cranes and wall jib cranes.
Our floor mounted jib cranes can be ordered with or without an electric hoist. We provide lightweight standard Jib cranes and heavy duty jib cranes, which are both very cost-effective solutions for material handling in a designated working area. Every Swing Jib manufactured will be tested, certified, and ready for installation/use.
A full package for Jib crane services are available including the design, manufacture, supply, and installation of lightweight crane systems and low-headroom jib cranes.
The productions of main parts of the 2 ton jib cranes will be presented for your reference.

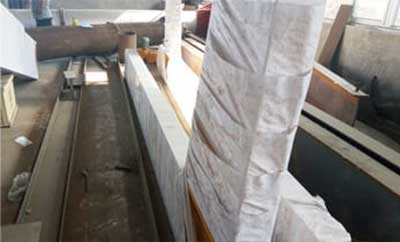

Arm - column mounted jib crane
The arm beam is welded by I-beam to support electric hoist and realize electric rotation. The electric hoist travels on the cantileve to achieve the horizontal movement of the trolley and the up and down movement of the electric hoist.

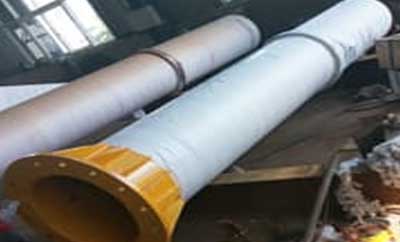

Column of floor mounted jib crane 2 ton
The column, which is composed of double-row tapered self-aligning bearings that bear radial and axial forces, is to fix the rotating support part of the crane on the column, according to the JB/8906-1999 standard.

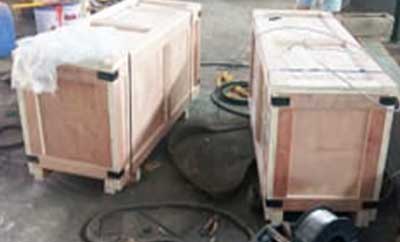

Electric Hoist and Spare Parts Box for 2 ton jib project
Electric hoists are added to the lifting mechanism. To lift heavy objects along the beam, the electric hoist moves up and down and horizontally.

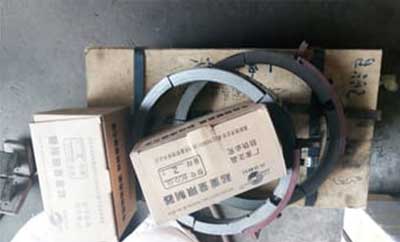

Magnetic Box & rope guide for delivery to Malaysia
Related

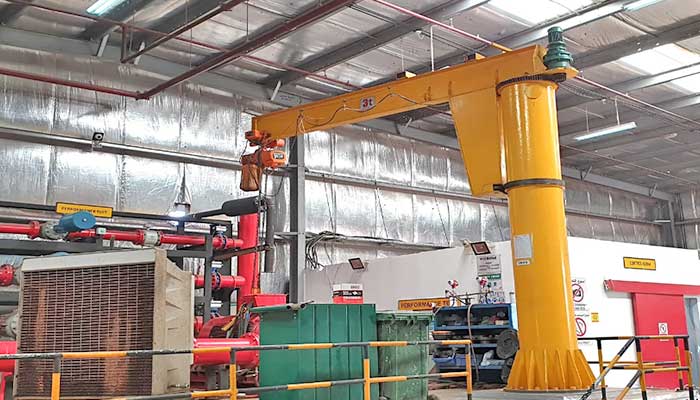

Floor jib crane
Free standing jib crane often used in a smaller work cell area for repetitive and unique lifting tasks. Jib cranes are incredibly reliable and can be used in conjunction with overhead bridge cranes to increase productivity. The working surface is round, making it ideal for close-proximity and densely populated workplaces.
It can be used in a variety of sectors due to its substantial lifting capacity. It is simple to install, has a light structure, and takes up little room.
- Capacity: up to 16 tons
- Arm length: up to 16 m
- Lifting height:up to 12 (floor to underside of boom)
- Work duty: M3-M5
- Rotation angle: 120-360°
- Raged voltage: 220V~690V, 50-60Hz, 3ph AC
- Crane control mode: Floor control / Remote control
Get your customized jib cranes
As a reputable crane manufacturer, Yuantai Crane primarily produces overhead cranes, gantry cranes, jib cranes, electric hoists, and crane replacement parts. such as crane wheels, drums, hooks, and so on. Please do not hesitate to get in touch with us if you are interested.
