10 ton double girder overhead crane for sale Bangladesh. Double girder crane, with  low headroom crane design, reliable 10  ton crane for steel mills.Click!

A steel mill in Bangladesh approached us with a requirement for an overhead crane to handle heavy materials within their facility. They were looking for a reliable and durable crane that could operate efficiently in their challenging environment.

10 ton double girder overhead crane with European design for sale Bangladesh

The European style double girder overhead crane, designed to meet FEM standards, is the most recent version of overhead cranes. It boasts numerous benefits, including exceptional performance, a compact structure, low dead weight, high levels of safety and reliability, efficient operation, and broad applicability across various industries.

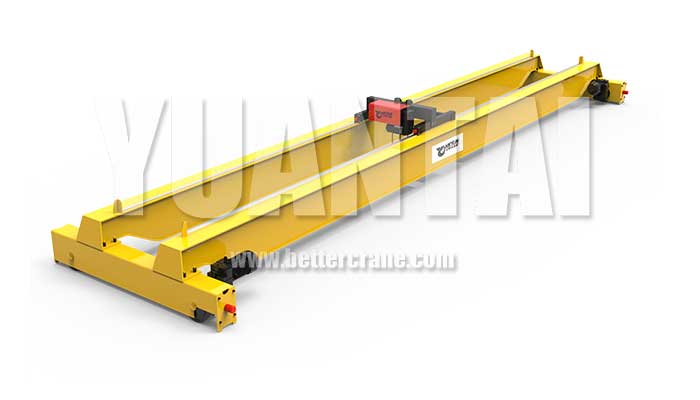

European style double girder overhead crane with low headroom hoist trolley

Overhead crane specification confirmation

 After understanding their requirements, we recommended a double girder overhead crane with a 10-ton capacity and a 10.3-meter span. The crane's lifting height was set at 10 meters, and it was designed to run on a power supply of 415V50HZ3P, which was compatible with the steel mill's existing electrical infrastructure.

Specifications: The overhead crane we recommended had the following specifications:

• Crane type : Double girder design for increased stability and load-bearing capacity
• Crane capacity : 10-ton capacity for heavy-duty material handling
• Crane span: 10.3-meter span to cover a large area within the steel mill
• Lifting height: 10 meters.
• Power supply of 415V50HZ3P for compatibility with the steel mill's electrical infrastructure

Production

After the prepayment received, the 10 ton overhead crane for sale bangledesh was arranged on our production table. And within the timetable of the contract the double girder was produced and delivered. During the production, the production pictures of the overhead cranes was kept informed to the clients to make sure they know the processing and free them from worries. In the following, parts of the 10 ton electric overhead crane fabrication pictures are presented for your reference.

 main girder of 10 ton double girder girder overhead crane for sale Bangladesh

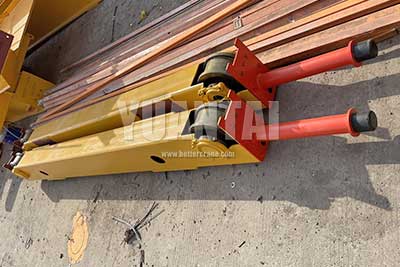

 end carriage of 10 ton overhed crane for bangdesh project

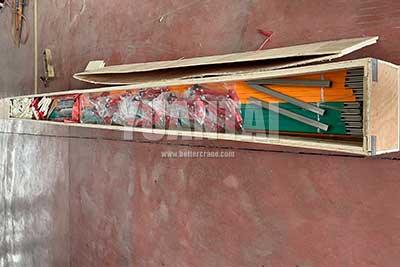

Busbar for 10 ton overhead crane

Crane rail for 10 ton double girder crane

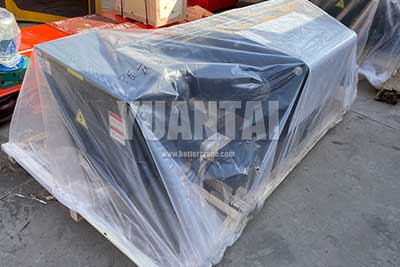

 Trolley

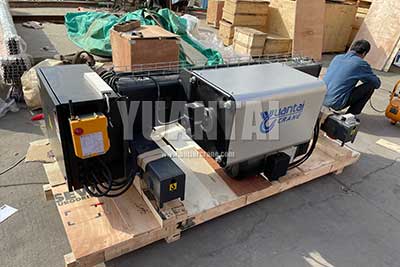

10 ton electric wire rope hoist for sale Bangladesh

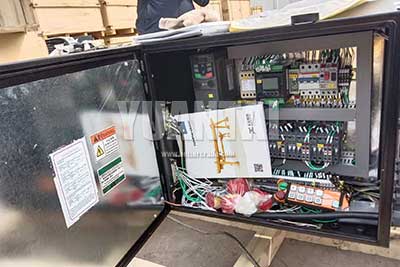

Electric control

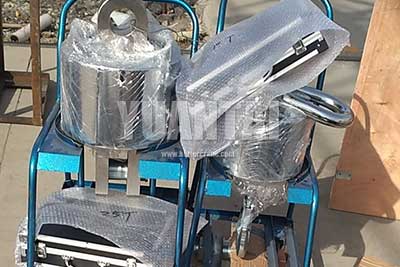

 Crane scales

Installation and testing of 10 ton overhead cranes

Outcome: The steel mill was pleased with our recommendation and decided to purchase the overhead crane from us. The crane was delivered and installed within the agreed timeframe, and our team provided training to the steel mill's operators on how to use it safely and efficiently.

The overhead crane has been in operation for several months now, and the steel mill has reported significant improvements in their material handling processes. The crane's durability and reliability have helped them increase their productivity and reduce downtime, resulting in cost savings for the company.

Custom bridge crane for steel mills

Special requirements for steel mill overhead cranes can be put forward on the crane’s operating performance, including environmental requirements, safety protection requirements, etc. metallurgical cranes should not use ordinary electric hoist as a lifting mechanism and should have support brakes and safety brakes. They should also have different types of rising double limiter (lifting height greater than 20m, the limit position limit device should also be installed) and weight limiter. The electric hoist should have the function of heat insulation and protection.

Types of steel mill cranes

There are several types of cranes used in steel mills and steel plants. Based on the steel load or object handling, the steel mill cranes can be classified into the following types:

• A Slab Handling Crane is an electric overhead traveling (EOT) crane that can move large pieces of hot, soft metal, known as slabs, from the melt shop to their next destination. The crane moves the slabs to shaping rollers, reheating furnaces, and other conveyors for further processing or storage.
• A Billet Handling Crane is similar to a Slab Handling Crane, but it handles billets instead of slabs. Billets are smaller than slabs and are used to make long products like bars, rods, and wires.
•  For Steel Scrap Handling, crane grabs and electron-magnets are commonly used. The crane grab transports steel scrap from the stacking yard to the shearing machine where it is shredded.
• The magnet crane takes the shredded scrap to a truck or trolley for melting. A Slab and Billet Handling Electromagnetic Crane is a trolley rotating magnet overhead crane. It is used to handle and transfer steel plates, pipes, profile steel, steel bars, steel billets, steel coils, and other large materials in steel mills, shipyards, and port yards.

Additionally, steel mills use various types of cranes, including tundish cranes, scrap cranes, ladle cranes, billet cranes, and coil and plate handling cranes. We take pride in providing customized material handling solutions to our clients, and this case study is an example of our commitment to delivering high-quality products and services. If you have any material handling requirements, please feel free to contact us, and we will be happy to assist you.

Factor to consider when custom overhead crane for you

When selecting an overhead crane for a steel mill plant, there are several factors that should be considered:

When selecting an overhead crane for a steel mill plant, it's important to consider several factors. These include:

• Lifting needs: Determine the type of crane that's suitable for your current production processes and anticipate any future changes that may affect the type of crane you need.
• Duty classification: Overhead cranes are classified based on the intensity of the load and the number of cycles the equipment completes in a given period of time. Consider the crane's classification, which can range from infrequent service to continuous severe service.
• Technology options: Explore the technology options available for your crane, such as protective elements like dust-proof protection or explosion-proof technology.
• Hook attachments: Decide on the hook attachments that will best suit your lifting needs.
• Environment: Consider the operating environment of the crane, including temperatures, building dimensions, and desired speed requirements.

By taking these factors into account, you can select the best overhead crane for your steel mill plant.
