FEM Hoist Single Girder Overhead Crane 5 Ton for Sale Bangladesh

5 ton overhead crane for sale Bangladesh. Single girder overhead crane,  with low headroom European style FEM hoist. Check 5 ton crane specification now.

Overview of 5 ton overhead crane project

• Crane type：single girder overhead crane
• Crane specifications: 5 ton - 18.76m & 15.7m span - 5.713m & 5.063m lifting height
• Country:Bangladesh
• Date:2018-04-07
• Qty:3sets

Back ground of overhead crane 5 ton for Bangladesh

We are glad that our Yuantai Crane can work with a client who is so knowledgeable about cranes and is so professional.

For the Bangladesh client, there are two workshops: one has a concrete runway beam and the other has a steel support bracket without a runway beam. According to our plan, the rail can be directly welded to the steel belt after the steel belt has been laid down for the concrete runway beam. And offer steel runway beam for the other.

Overhead crane specifications confirmed

Main specifications of the single girder overhead crane 5 ton are confirmed very smoothly due to both parties has the rich knowledge of overhead cranes.

• Capacity of overhead crane :5t
• Span of single girder crane: 18.76m & 15.7
• Lift height of single girder eot crane: 5.713m & 5.063m
• Lift speed of single beam overhead crane: 0.8/5m/min
• Winch travel speed of bridge crane : 2-20m/min
• Crane travel speed of bridge crane: 3-30m/min
• Voltage: 380V, 50HZ, 3AC

Production of European style single girder overhead crane

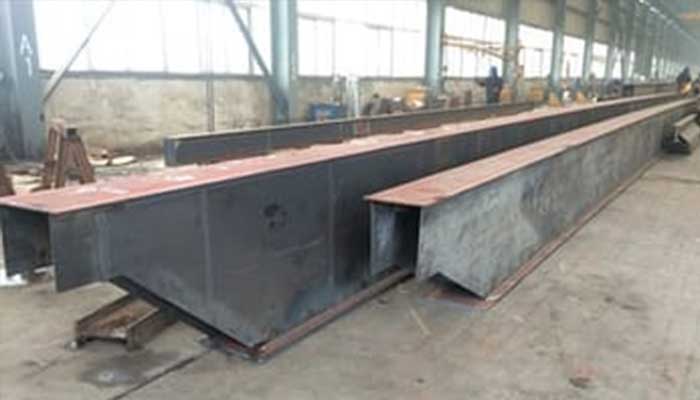

It has a unique structure, with a box-type main girder. The advantage is that it reduces its own height while increasing the crane lifting height to some extent.

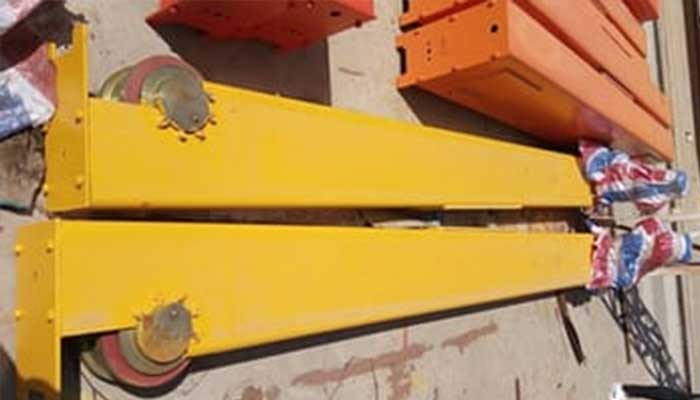

End beams are tubular in design, with high-quality components. The European wheel group, in particular, is an important component of such parts.

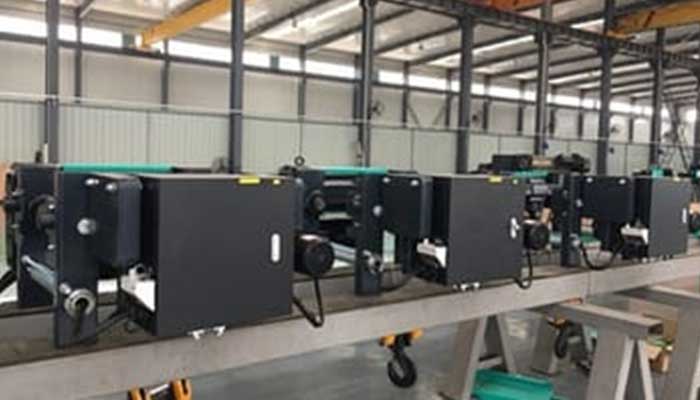

The European Electric Hoist is equipped with an ABB lifting motor, reducer, and brake or with SEW motor, reducer, and brake. All can be customized with your lifting requirements and application conditions.

Delivery of 5 ton overhead crane to Bangladesh

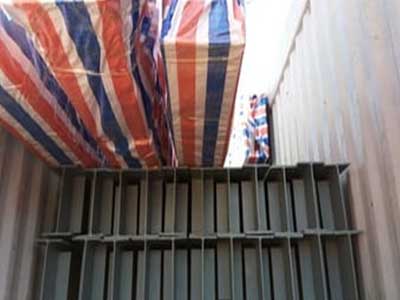

Main girder and runway beam

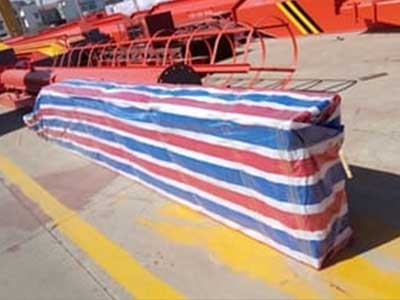

End carriages & end trucks

Related:

European style overhead crane

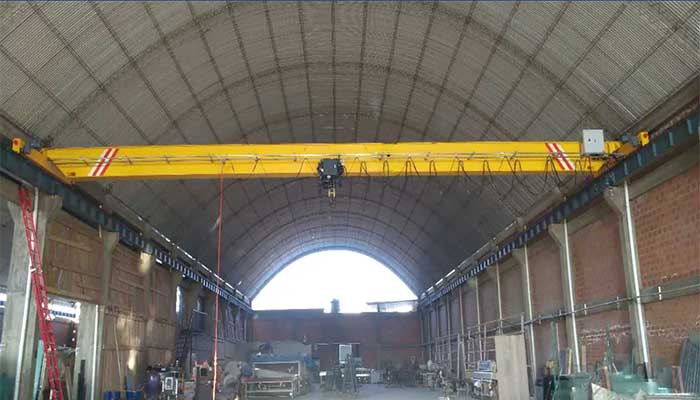

Single girder overhead crane of European style

In addition to general-purpose domestic standard cranes, Yuantai Crane also manufactures European Type Overhead Cranes and Gantry Cranes. European Type Overhead Cranes are advanced material handling crane with cutting-edge technology and European style low headroom crane designs that are manufactured strictly in accordance with FEM and DIN standards. It has variable frequency drives on the trolley and hoist and low headroom electric hoists.

In comparison to other traditional overhead cranes, the limit distance between the hook and the wall is the shortest, the net height is the smallest, the lift height is the highest, and the work space is essentially increased. Due to the low dead weight and low wheel load design, the overhead crane can significantly lower the cost of the workshop.

 FEM standard Single girder overhead crane Top running design

Fem standard double girder overhead crane

 Underhung  crane, single girder design , European style

Double girder crane hoist, European style low headroom wire rope hoist

Features of European style overhead cranes

European series overhead crane with hook is a new generation crane, it has the following advantages: ·Light dead weight, light wheel load, small boundary dimensions, dependable performance, easy operation.

Light wheel load and small boundary dimensions can reduce plant construction costs and save capital in the vestment of lighting, heating, and other systems.

• High-quality components can help to reduce failure rates and maintenance costs.
• On the other hand, total installed power (power consumption), low total power consumption can reduce costs.
• Non-destructive testing should be performed on all weld lines.
• Shot blasting is required for all raw materials.

Custom your overhead crane for your application

Please bear in mind, cranes are customized products, just feel free to tell us what of operation and usage your want realize, then we will feedback suitable design for you!

• Types of overhead crane: Single girder/ double girder/ Underhung crane
• Span of overhead crane :______ ?
• Lift height of bridge crane : ______ ?
• Lift Capacity: ______ ?
• Loads type: ______ ?
• Indoor/outdoor ______ ?
• Lift Speed: Single/Double/Variable? ______ ?
• Travel Speed: Single/Double/Variable?______ ?
• Use Environment: Any explosive, combustible air? Temperature?______ ?
• Workshop practical situation? Any drawing available. ______ ?
• Use frequency? How many hours/day? How many times/hour? ______ ?
